Flatbed Laser Cutting Machine for Appliques & Quilt Kits with Four Heads

Brand: STYLECNC
Model: STJ1610A-4
Type: CO2 Laser Cutting Machine
Rating:  4.9 /5 Based On 75 Votes
Sale Price: $9000.00 / Set
Price Range: $9000.00 to $12000.00 / Set Based On The Features
Supply Ability: 600 Sets / Month Waiting for Your Order in Stock
Global Shipping: Available to Your Location in
Payment Terms: T/T, Credit Cards, e-Checking, Alibaba Trade Assurance

Table of Contents

Product Introduction

Customer Reviews & Testimonials

Flatbed laser cutting machine is used to cut applique kits, quilt kits, quilt patterns, perfused fabric appliques, precut applique shapes & patterns with four laser heads and automatic feeding system.

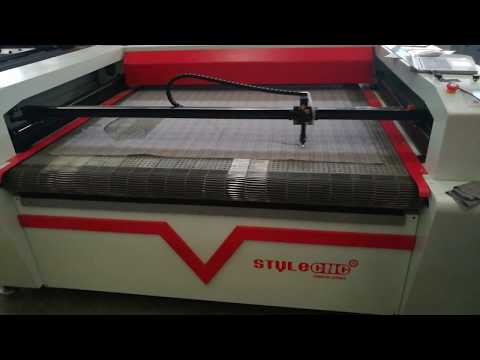

Demonstration Video

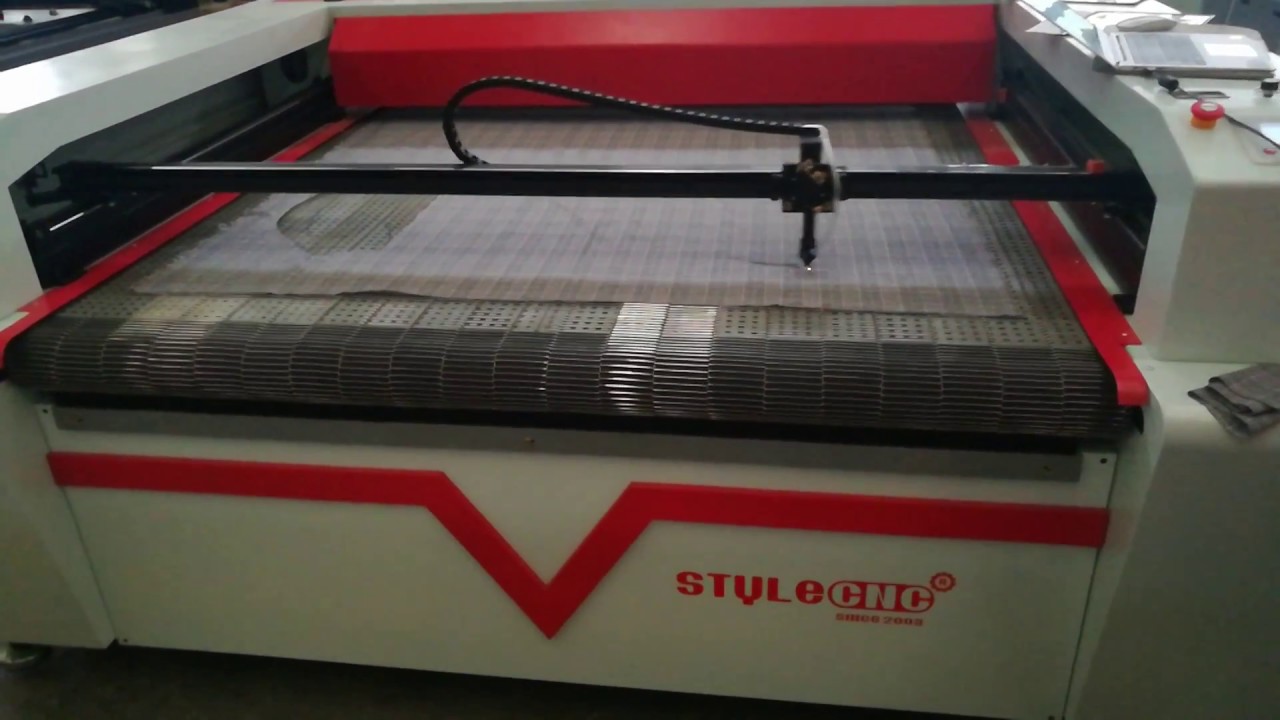

Flatbed Laser Cutting Machine for Appliques & Quilt Kits

Product Details

Flatbed Laser Cutting Machine for Appliques & Quilt Kits with Four Heads

Flatbed Laser Cutting Machine for Applique Kits with Four Heads

CO2 Laser Cutting Machine for Quilt Kits with Four Heads

Flatbed laser cutting machine is a type of laser fabric cutting system with CO2 laser tube, automated feeding system, and open stainless meshed worktable, which is suitable for industrial production of fabric cutting, textile cutting, clothing cutting, and leather cutting. The fabric laser cutting machine is also used to create personalized applique kits, seasonal table toppers, themed wall hangings, cute candle mats, impressive album quilts, and sweet mug rugs.


Features of Flatbed Laser Cutting Machine for Appliques & Quilt Kits with Four Heads


1. With four laser heads auto movable processing, high efficiency compared with one head.

2. With auto feeding function with roller, so as to save time to change materials.

3. Conveyor moving working table with auto feeding device realizing continuous feeding and cutting.

4. Red dot position system is added in standard configuration, contributing to simple and precise working position.

5. Advanced LCD Screen+ USB port+ Offline Control,with professional motion control chip, which has the function of consecutively high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.

6. Edge smoke outlet can protect the nets- worktable, extend the usage life of the machine.

7. The special software for automatic nesting, enhancing material utilization.


Technical Parameters of Flatbed Laser Cutting Machine for Appliques & Quilt Kits with Four Heads


Model

STJ1610A-4

Working Area

1600*1000mm

Laser Power

80W-150W

Laser Type

CO2 Laser Tube

Engraving Speed

0-40000mm/min

Cutting Speed

0-20000mm/min

Power Supply

220V/50HZ , 110V/60HZ

Position Accuracy

0.01mm

Repetition Accuracy

0.02mm

Graphic Format Supported

BMP, PLT, DST, DXF, AI

Guide Rail

Hiwin from Taiwan

Transmission Method

Belt Transmission

Software Supported

CorelDraw, PhotoShop, AutoCAD

Driving System

Leashine driving system and stepper motor

Net Weight

580KGS


Applications of Flatbed Laser Cutting Machine for Appliques & Quilt Kits with Four Heads


1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, PVC fabic, sponge, insulating material and other industrial flexible materials.

2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.

3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc

4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.

5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.


Details of Flatbed Laser Cutting Machine for Quilt Kits & Applique Kits with Four Heads


Laser Fabric Cutting Machine

Four Heads Laser Fabric Cutting Machine

Four heads laser fabric cutting machine

Four laser heads of laser fabric cutting machine

Laser heads of laser fabric cutting machine

Laser tubes of laser fabric cutting machine


Flatbed Laser Cutting Machine for Appliques & Quilt Kits Projects


Laser Cut Fabric Applique Shapes


Laser Cut Fabric Applique Shapes


Laser Cut Applique Dress


Laser Cut Applique Dress


Package of Flatbed Laser Cutting Machine for Quilt Kits & Applique Kits with Four Heads


Laser fabric cutting machine package


How to order a flatbed textile laser cutting machine from STYLECNC?


1. Consult: We will recommend the most suitable laser cutting machines to you after being informed by your requirements, such as the material you want to cut, the max size of the material (Length x Width x Thickness).

2. Quotation: We will offer to you with our detail quotation according to our consulted laser cutting machines, with high quality and the most competitive laser cutting machine price.

3. Process Evaluation: Both sides carefully evaluate and discuss all the details (including technical parameters, specifications and business terms) of the order to exclude any misunderstanding.

4. Placing Order: If there is no doubt, we will send you the PI (Proforma Invoice), and then we will sign a contract with you.

5. Production: We will arrange the production as soon as receiving your signed sales contract and deposit . The latest news about production will be updated and informed to the buyer during the production.

6. Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete laser cutting machine will be tested to make sure they can work very well before being out of factory.

7. Delivery: We will arrange the delivery as the terms we both agreed with and after the confirmation by the buyer.

8. Custom Clearance: We will supply and deliver all the necessary shipping documents to the buyer and ensure a smooth customs clearance.

9. Support and Service: Offer professional technical support and intime laser engraving cutting system service by Phone, Email, Skype, WhatsApp around the clock.


How about the service for Flatbed laser fabric cutting machine from STYLECNC?


1. The laser fabric cutting machine has been tested and adjusted before delivery
2. Two year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period(except human damage). Laser tube 6-10 months warranty, and mirror and lens for 3 months.
3. Free training course at our workshop, of course if necessary, offer door-door, but clients need offer tickets,accommodation and etc.
4. 24 hours on line service each day, free technical support.


We also have single head and dual heads laser fabric cutting machine for option:


single head laser fabric cutting machine


Single Head Laser Fabric Cutting Machine


Dual heads laser fabric cutting machine


Dual Heads Laser Fabric Cutting Machine
