Most Professional CNC Machining Centers for Industrial Manufacturing

Last Updated: 2023-12-20 05:55:41

CNC machining centers can do many things in industrial manufacturing. Its capabilities are beyond your imagination. From metal mold making to auto parts processing, everything is possible. There are a variety of machining centers on the market with different capabilities and uses, so it is important to understand your options to find the best machine for your industrial applications. In this buying guide, we'll take you through the most important factors to consider when buying a machining center. Understanding what you plan to do with your CNC machining center will help you make the right choice. If you're turning a hydraulic valve or throttle control shaft, then a turning center might be perfect. Your business may need to make billet water pump impellers. In this case, a five-axis or multi-axis machining center may be required. If you want to process multiple types and shapes of parts, then you can buy a compound machining center. You should consider all possibilities before purchasing.

5x10 CNC Wood Machining Center with 4th Rotary Axis on Sale
STM1530D-R1
4.8 (21)
$20,000.00 - $40,000.00

5x10 CNC wood machining center with 4th rotary axis is used for 2D/3D popular woodworking projects. Now the best wood CNC machine for sale at affordable price.

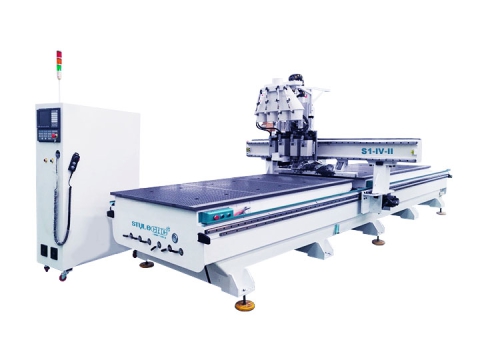

Wood Door Making CNC Router Machine with Dual Table
S1-IV-II
4.8 (57)
$11,000.00 - $24,000.00

Wood door making CNC router machine is equipped with dual tables for wood door making, cabinet door making, home door making, and room door making.
Small 5 Axis CNC Machining Center for 3D Woodworking
STM1212E-5A
4.9 (56)
$80,000.00 - $90,000.00

Small 5 axis CNC machining center is an entry-level five-axis CNC router machine with HSD spindle in woodworking, mold making, 3D cutting & milling projects.

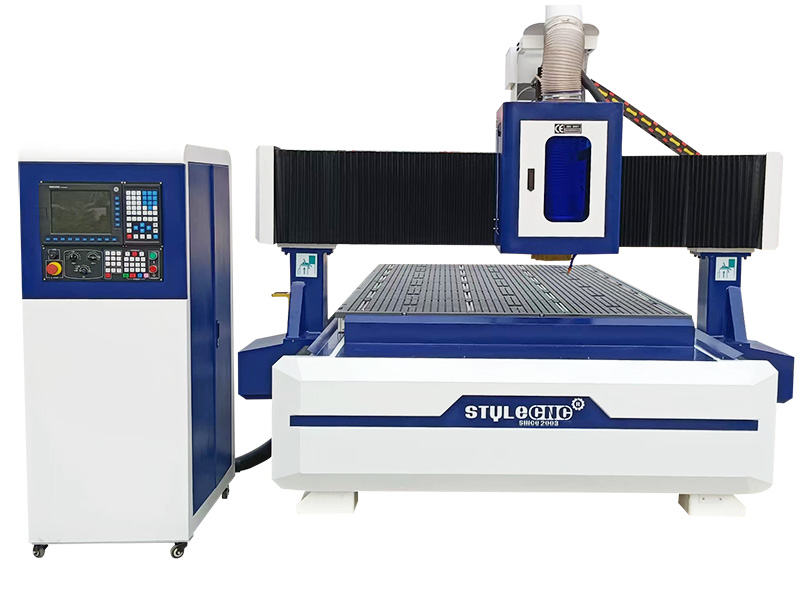

Automatic Tool Changer CNC Machining Center for Woodworking
STM2130D
4.9 (58)
$20,800.00 - $27,000.00

Rotary automatic tool changer CNC machining center uses a carousel tool magazine of 12 router bits for woodworking to change tools automatically in routing.
Industrial 5x10 CNC Woodworking Machine with Dual ATC Kits
STM1530D2
5 (31)
$20,500.00 - $23,800.00

Industrial 5x10 CNC woodworking machine comes with dual rotary ATC kits with 2 drum tool magazines, including 24 router bits for cabinets and furniture making.
Mini 5 Axis CNC Milling Machine for 3D Modeling & Cutting
STM1212E2-5A
4.9 (17)
$90,000.00 - $120,000.00

Mini 5 axis CNC milling machine with double tables is designed for 3D cutting, 3D mold making, and 3D modeling in wood , foam, and metal mold making.
4x8 ATC CNC Wood Carving Machine with Tool Changer for Sale
STM1325C3
5 (58)
$14,200.00 - $21,800.00

4x8 ATC CNC wood carving machine is an automatic woodworking CNC machine with tool changer for milling & cutting cabinets, wardrobes, custom furniture making.

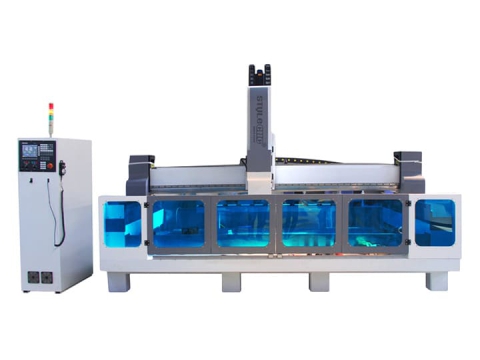

CNC Machining Center for Stone Cutting and Polishing
STS3216
4.8 (39)
$32,800.00 - $36,800.00

STS3216 CNC machining center is used for cutting and polishing stone such as cabinets artificial stone, quartz stone countertops, granite, marble and sink.

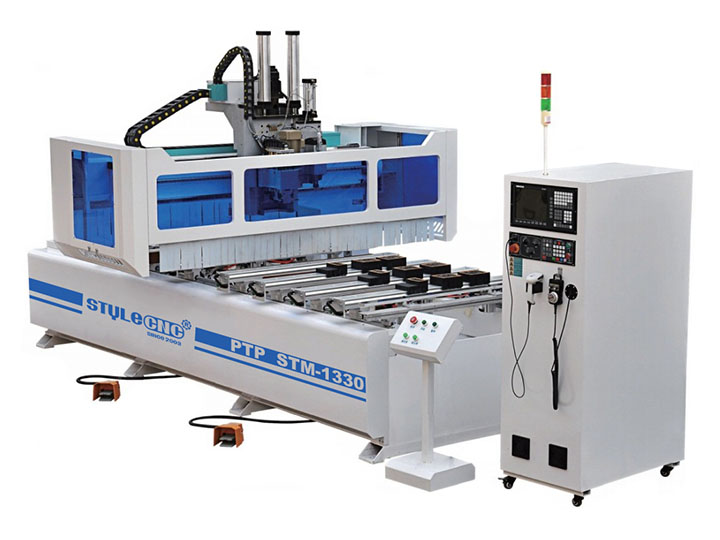

PTP CNC Router for Furniture Milling, Cutting, Drilling
STM1330C
4.9 (48)
$25,000.00 - $50,000.00

PTP CNC router machine is suitable for routing, drilling, cutting and milling panel furniture, wood crafts, solid wood furniture, doors, and cabinets.
PTP All-Rounder CNC Working Center for Sale
STM1224E
4.9 (44)
$20,000.00 - $50,000.00

PTP all-rounder CNC working center is a high automation machine tool, which is used for carving, drilling, cutting, milling, chamfer in furniture making.
Single Arm PTP CNC Working Center
STM1330E
4.8 (43)
$25,000.00 - $55,000.00

Single arm PTP CNC working center is designed for making cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, and table.
PTP CNC Machining Center for Furniture Making
STM1330D
4.8 (20)
$22,000.00 - $30,000.00

PTP CNC machining center is suitable for furniture making with routing, pneumatic drilling, cutting, side milling, side drilling, and side cutting.
  • Showing 12 Items On 1 Page

Most Popular Project Ideas for Free

Instructional Videos You Should Watch

Feature Stories & Articles Worth Reading

Pick Up An Industrial CNC Machining Center for Commercial Use

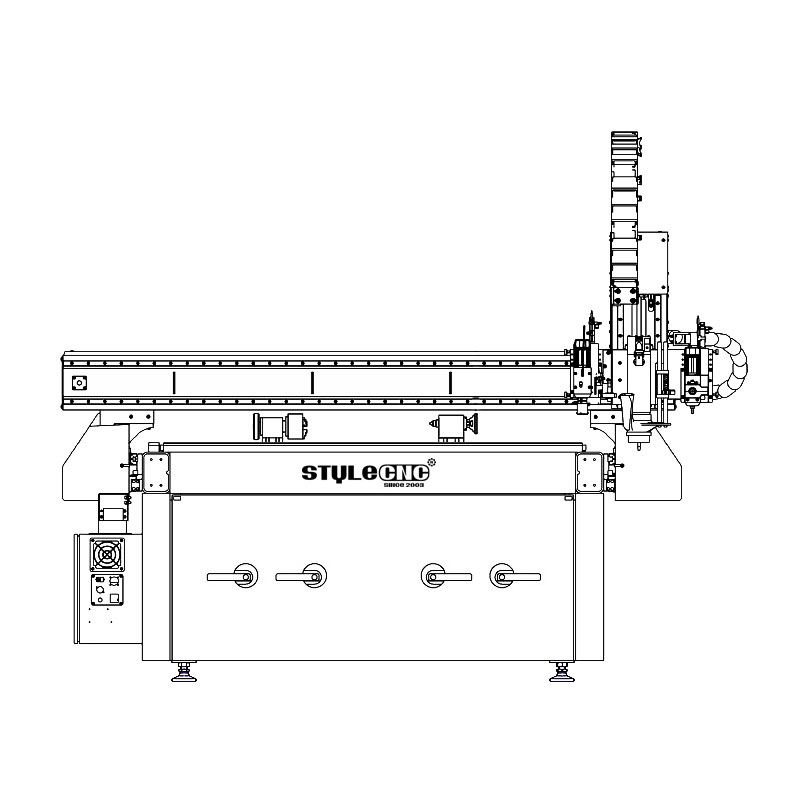

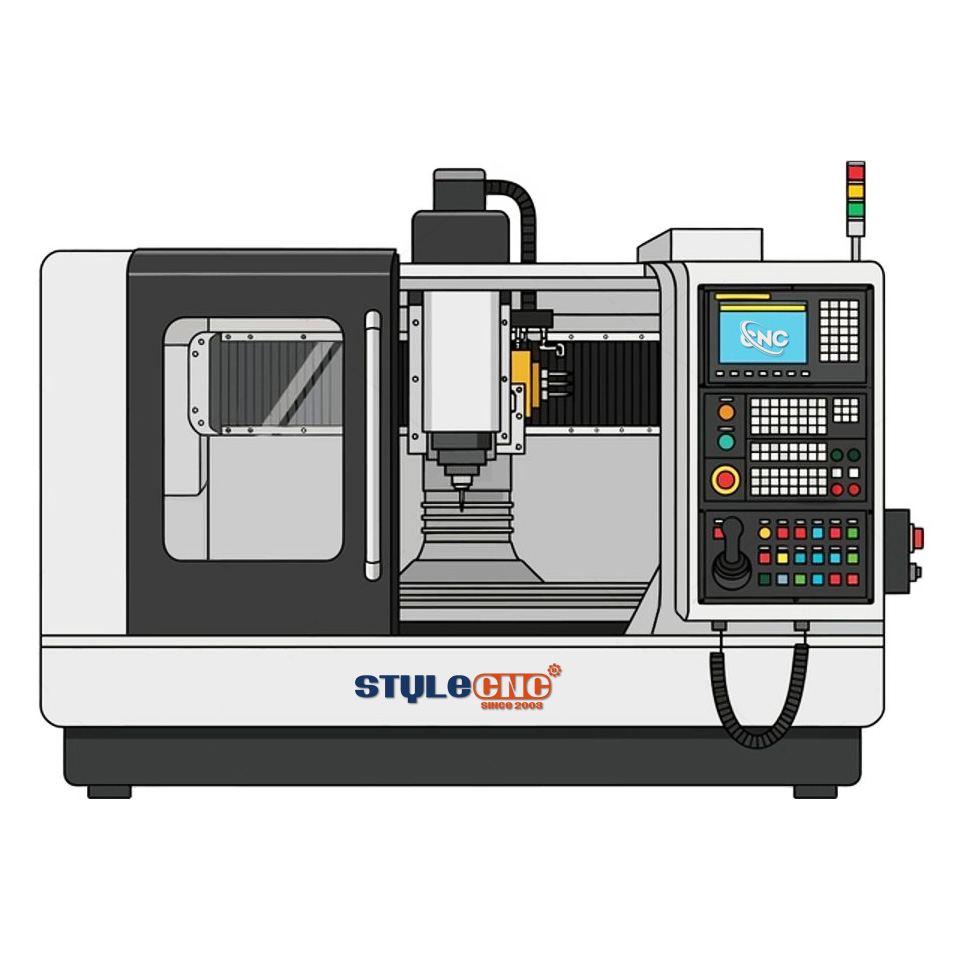

CNC Machining Center

Definition

CNC machining center is a multi-functional computer-controlled automatic machine tool capable of milling, routing, boring, turning, drilling, tapping and cutting. It is a high-efficiency automatic machine tool suitable for processing complex parts composed of mechanical equipment and numerical control system. It has powerful comprehensive ability to perform multiple tasks at one time with high precision, and its batch processing efficiency is 5 to 10 times that of ordinary machine tools. It is more suitable for single-piece processing with complex shapes and high precision requirements or small and medium batch production of multiple varieties.

Types

Boring & Milling Center

It is used for boring and milling, and is suitable for multi-process processing of special curves and surface contours of boxes, shells and various complex parts. The term machining center generally refers to the boring and milling machining center, while other functional machines should be preceded by attributives, such as turning and drilling machining centers.

Drilling Center

It is based on drilling, and the tool magazine is mainly in the form of a turret head. It is suitable for multi-process processing such as drilling, reaming, reaming and tapping of small and medium-sized parts.

Turning Center

It is an upgraded version of a CNC lathe. It is equipped with a turret-type tool magazine or a tool magazine composed of a tool-changing manipulator and a chain-type tool magazine. Most CNC systems of machine tools are equipped with two or three axis servo axes, that is, X, Z, and C axes, and some high-performance turning centers are equipped with milling power heads.

Compound Machining Center

It can complete multi-process processing such as turning, milling, boring, and drilling on one device, which is called a compound working center, which can replace multiple machine tools to achieve multi-process processing. This method can not only reduce loading and unloading time, improve production efficiency, but also ensure and improve shape and position accuracy. The machine refers to the five-sided composite machining center, and its spindle head can automatically rotate for vertical and horizontal processing.

According to the number of motion coordinates and the number of coordinates controlled at the same time, it can be divided into three-axis two-linkage, three-axis three-linkage, four-axis three-linkage, five-axis four-linkage, six-axis five-linkage, multi-axis linkage linear + rotary + spindle swing. Three-axis and four-axis refer to the number of motion coordinates, and linkage refers to the number of coordinates that the control system can control at the same time, so as to realize the position and speed control of the tool relative to the workpiece.

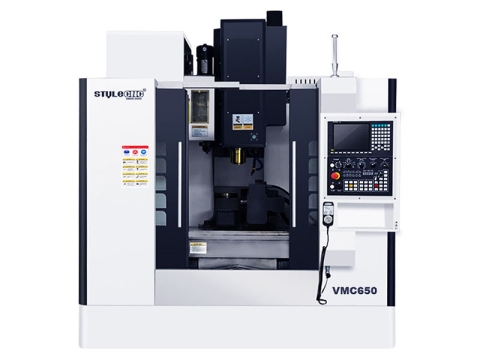

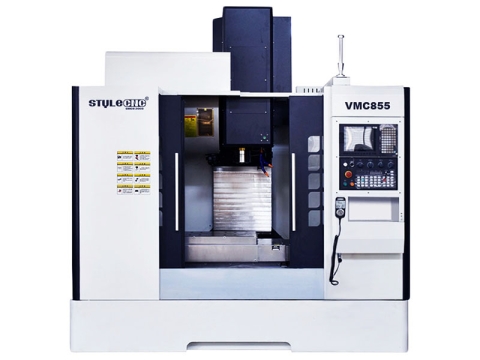

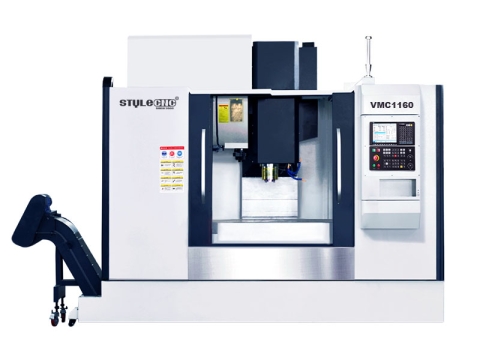

Vertical Machining Center

It refers to the machining center with the spindle in a vertical state. Its structure is mostly a fixed column, the workbench is rectangular, without indexing and rotary function, suitable for processing discs, sleeves, and plate parts. It generally has two linear motion coordinate axes, and one can be installed on the workbench along the horizontal axis. Rotating rotary table for processing helical parts.

It is easy to operate, observe processing conditions, and debug programs. However, limited by the height of the column and the tool changer, parts that are too high cannot be processed. When processing a cavity or a concave surface, the chips are not easy to discharge. In severe cases, the tool will be damaged and the processed surface will be damaged, which will affect the smooth progress of processing.

Horizontal Machining Center

It refers to the machining center with the spindle in a horizontal state. It usually has a rotary table with automatic indexing. It generally has 3 to 5 motion coordinates. The common one is three linear motion coordinates plus one rotary motion coordinate. It is most suitable for adding box parts to the processing of the remaining four surfaces other than the surface. Compared with the vertical types, it is easy to remove chips during processing, which is beneficial to processing, but the structure is complex. The price is higher.

Gantry Machining Center

Its shape is similar to CNC gantry milling machine. Most of its spindles are set vertically. In addition to the automatic tool changer, it also has a replaceable spindle head attachment. The functions of the numerical control device are relatively complete, and it can be used for multiple purposes. It is especially suitable for processing large workpieces and workpieces with complex shapes.

Five-Axis Machining Center

It has the functions of vertical and horizontal machining centers. After the workpiece is installed once, the processing of the other five surfaces except the installation surface can be completed. It has two forms: one is that the main shaft can rotate 900, and the workpiece can be processed vertically and horizontally. The other is that the spindle does not change direction, but the worktable rotates 900 with the workpiece to complete the machining of the five surfaces of the workpiece.

Multi-Axis Machining Center

It has changed the structure of the traditional machine tool in the past. Through the movement of the connecting rod, the movement of the main shaft with multiple degrees of freedom is realized, and the processing of the complex curved surface of the workpiece is completed.

Features

Fully Enclosed Protection

It is usually equipped with a protective cover, which can effectively prevent personal injury accidents by closing the protective door during processing.

Automatic Tool Changing

It has a tool magazine and an automatic tool changer. Before processing, the required tools are loaded into the tool magazine, and the tool can be automatically replaced by program control during processing.

Continuous Machining

It has multiple feed axes (more than three axes), even multiple spindles, and there are many linkage axes, such as three-axis, five-axis and seven-axis linkage, so it can automatically complete multiple planes and multiple angle positions. Machining to achieve high-precision machining of complex parts. Milling, boring, drilling, expanding, reaming, tapping and other processing can be completed in one clamping, and the process is highly concentrated.

High Automation, High Precision, High Efficiency

Its spindle speed, feed speed and fast positioning accuracy are high. Through reasonable selection of cutting parameters, the cutting performance of the tool can be fully utilized, cutting time can be reduced, and the entire processing process is continuous, various auxiliary actions are fast, and the degree of automation is high. Auxiliary action time and downtime, therefore, the productivity is high.

Automatic Exchange Table

If it is equipped with an automatic exchange workbench, it can realize that one workbench is processing while another workbench completes the clamping of the workpiece, thereby greatly reducing the auxiliary time and improving the processing efficiency.

Multifunction

It has compound turning function, grinding and other functions. For example, the circular table can drive the workpiece to rotate at high speed, and the tool only performs the main movement without feeding, and completes similar turning processing, which makes it have a wider processing range.

High Investment

Due to its high degree of intelligence, complex structure and powerful functions, its one-time investment and daily maintenance costs are much higher than ordinary machine tools.

Pros & Cons

Pros

The degree of automation technology is high, with high productivity. In addition to manually clamping the blanks, the entire production process can be automatically completed by the CNC machining center. If it is equipped with automatic loading and unloading means, it is the basic construction stage of unmanned processing plants. It alleviates the work intensity of the operator and continuously improves the working conditions; it saves the process of line drawing, multiple clamping positioning, inspection and other process and auxiliary control, which reasonably and effectively enhances the productivity.

Strong applicability to production and processing targets. When changing the production and processing target, not only replace the tool and overcome the blank clamping method, but also only need to reprogram, without using other complicated adjustments, thereby reducing the production preparation cycle time.

The processing precision is high, and the product quality is relatively stable. The dimensional precision of production and processing specifications is between 0.005 and 0.01 mm, and will not be disturbed by the complexity of parts. Considering that most of the manipulation is done automatically by the machine, the deviation of human factors is eliminated, and the uniformity of the specifications and dimensions of a large number of parts is enhanced. The precision is guaranteed.

It is easy to establish communication with the computer, and it is easy to complete the group control system. Considering that a CNC machine is easy to connect with computer application design system software to form CAD/CAM integrated system software, and can establish links between CNC machines, which is easy to complete the group control system.

Cons

Its disadvantage is that it is expensive and requires a high level of operation and maintenance personnel.

Buyer's Guide

1. Consult:

We will recommend the most suitable CNC working center to you after being informed by your requirements.

2. Quotation:

We will offer you with our detail quotation according to the consulted CNC working center. You will get the most suitable specifications, the best accessories and the affordable price.

3. Process Evaluation:

Both sides carefully evaluate and discuss all the details (technical parameters, specifications and business terms) of the order to exclude any misunderstanding.

4. Placing Order:

If you have no doubt, we will send you the PI (Proforma Invoice), and then we will sign a contract with you.

5. Production:

We will arrange the CNC machining center production as soon as receiving your signed sales contract and deposit. The latest news about production will be updated and informed to the buyer during the production.

6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work well before out of factory.

7. Delivery:

We will arrange the delivery as the terms in the contract after the confirmation by the buyer.

8. Custom Clearance:

We will supply and deliver all the necessary shipping documents to the buyer and ensure a smooth customs clearance.

9. Support and Service:

We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have door-to-door service in some areas.
