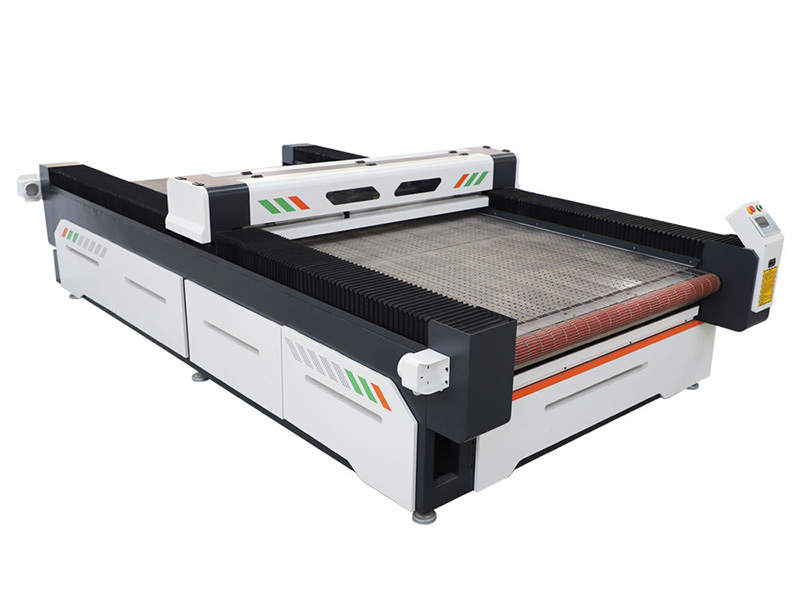

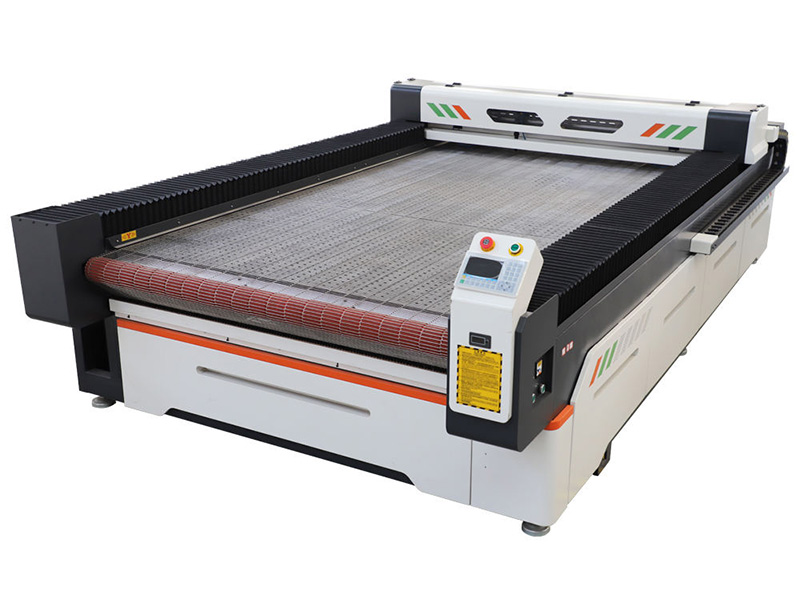

Automatic CO2 Laser Cutting System for Garment, Clothing, Apparel with Roll Feeder
Product Introduction
Customer Reviews & TestimonialsAutomatic CO2 laser cutting system with roll feeder is used to cut clothing patterns, festival clothing, cloth face masks, textile garment, and fashion apparel. Now the CO2 laser cutting machine roller table and automated feeding system for sale at cost price.

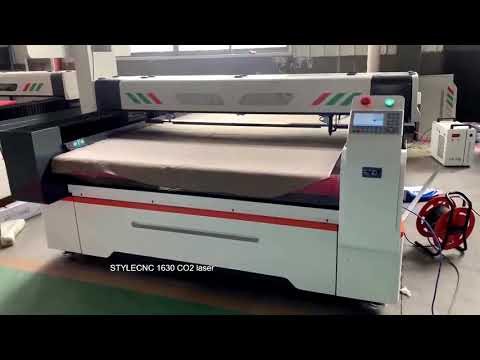

Demonstration Video
Product Details
Features of Automatic CO2 Laser Cutting System for Clothing, Garment, Apparel with Roll Feeder

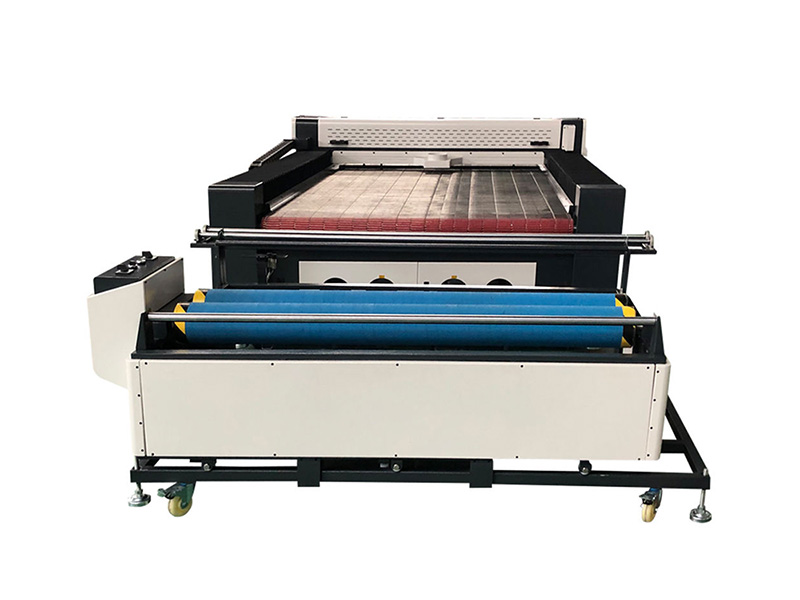

1. The automatic feeding system (roll feeder or roller table) is added to save time and cost, and to improve work efficiency.
2. The roller table adopts special automatic feeding device, convenient processing objects move freely on the surface of the cutting machine.
3. Fabric auto-collecting device is very convenient for users to collect clothes. The window is fireproof glass, let the machine more secure.
4. Liner guide rail and precision gear for transmission to ensure accuracy and high speed, open stainless meshed worktable to ensure convenient operation and wear resistance.
5. Crawler correction device can prevent crawler belt dislocation when working.
6. The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up with the advanced stepper motor to ensure the working accuracy.
7. To fully support design software, such as CAD, CORELDRAW, PHOTOSHOP, friendly man-machine interface, live close to the industry needs.
8. CCD camera (Charge-coupled Device camera) is optional, automatic locating cutting machine with camera.
Technical Parameters of Automatic CO2 Laser Cutting System for Clothing, Garment, Apparel with Roll Feeder
Model | STJ1620A |
Table Size | 1600*2000mm |
Laser Power | 80W/100W/130W |
Laser Type | Sealed CO2 laser tube, 10.6µm |
Laser Locating Precision | ≤±0.01mm |
Cooling Type | Water Cooling |
Max Moving Speed | 1600mm/s |
Max Cutting Speed | 1400mm/s |
Laser Output Control | 0-100% set by software |
Controlling Software | RD Control system |
Graphic Format Supported | DST, PLT, BMP, DXF, DWG, AI, LAS |
Drive System | Stepper motor or servo optional |
Auxiliary Equipments | Exhaust fan and air exhaust pipe |
Power Supply | AC110V/220V±10%, 50H/60HZ |
Working Environment | Temperature 0-45°C, Humidity 5-95% |

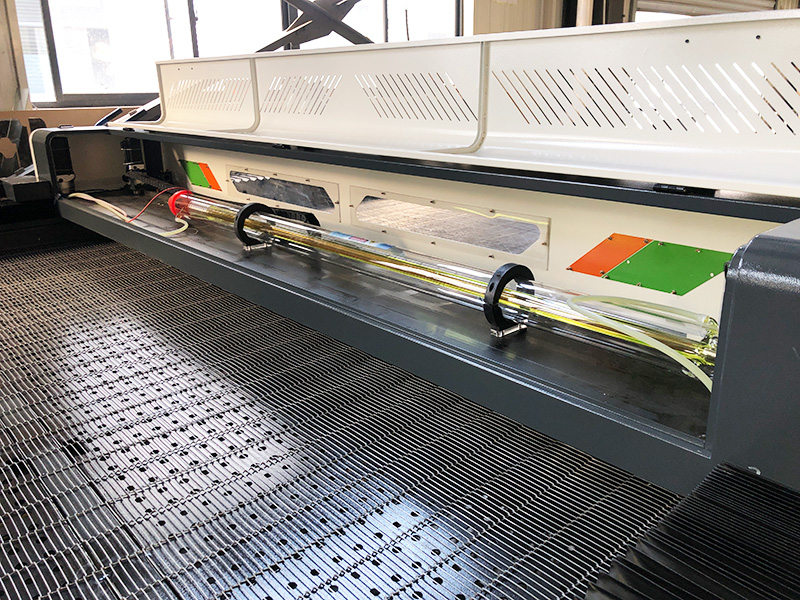

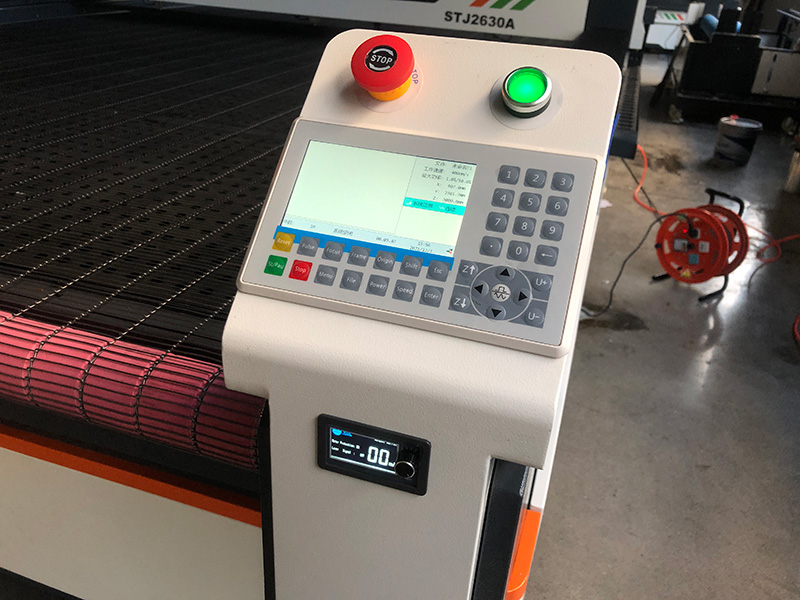

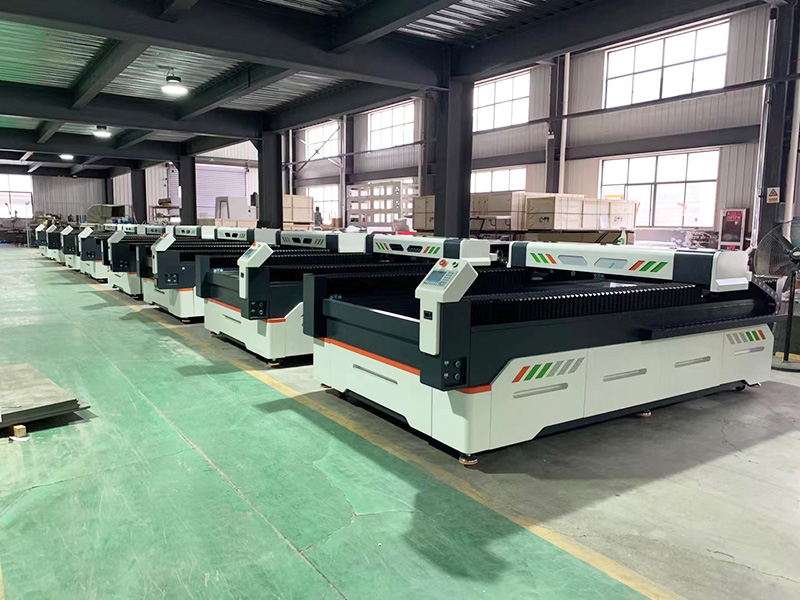

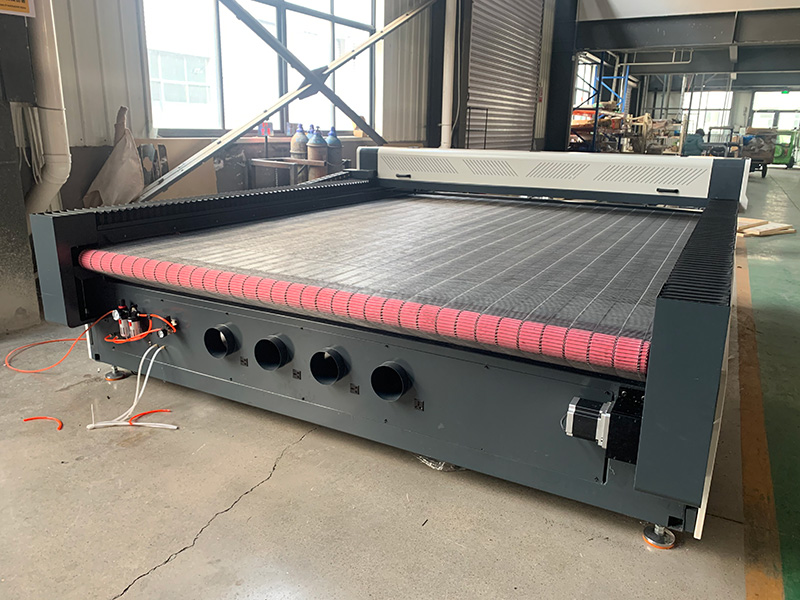

Machine Details of Automatic CO2 Laser Cutting Machine for Garment, Clothing, Apparel with Automatic Feeding System
Applications of Automatic CO2 Laser Cutting System for Apparel, Clothing, Garment with Automated Feeding System
CO2 laser fabric cutting machine applicable industries: Textile, garment, industrial fabrics, carpets, cloth toys, decorative cloth, automotive interiors and other industries.
CO2 laser fabric cutting machine applicable materials: Clothing, textiles, leather, maple leaf, double-color sheet, acrylic, wood, paper, leather, etc.
Projects of Automatic CO2 Laser Cutting Machine for Garment, Clothing, Apparel with Roller Table
International Shipping Around the World
All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
-
