Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters & Spindles
Product Introduction
Customer Reviews & TestimonialsIndustrial wood turning lathe machine with CNC controller is a full size automatic woodworking machine tool for table legs, stair spindles, stair balusters, Roman columns, staircase columns, tubular sharps, bowl sharps, vehicle wood crafts, baseball bats, general columns, chair legs, or sofa legs.
Demonstration Video
Product Details
Features of Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles
1. Maximum turning length is 1500mm, max turning diameter is 160mm.
2. The wood lathe machine has 4 cutters at two sides of the machine, the 4 cutters work together to improve the efficiency greatly.
3. Taiwan PMI guide, Germany ball screw, high precision and durable.
4. Heavy Cast iron lathe bed. avoid shaking when the spindle rotates fast or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.
5. Drawing by AutoCAD and other softwares, transfer the files to machine by a USB.
6. LCD screen control system is easy to operate.
7. It can be equipped with spindle for grooving, slotting, etc.
Technical Parameters of Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles
Model | STL1516-2S1 |
Max turning length | 1500mm |
Max turning diameter | 160mm |
Power supply | AC380V/50hZ (AC220V for option) |
Control Systems | PLC controller |
Guides and ball screws | Taiwan Hiwin square rails and TBI precision ball screw |
Follow rest | Rotary Centre (5CM wooden , 6CM wooden) |
Number of axis | Double axis, four blades |
Motor control | Stepper motor |
Overall dimensions | 0.6-0.8MPa |
Tailstock | Pneumatic material clamping top |
Maximum feed rate | 200cm/min |
Spindle speed | 0-3000r/min |
Weight | 1600kgs |
Engraver / Pull trough, pull and twist versatile spindle control section | |
Additional pull trough Universal rotary joint | |
Optional for CNC wood lathe | |
1. 160mm four-jaw chuck linkage. 2. Woodworking cleaner(Vacuum cleaner). 3. 220V constant power variable spindle control. 4. Four-exchange station automatic tool changer. | |
Detail Pictures of Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles
Large Wood Lathe Machine for Industrial Manufacturing in Factory:
Large Long Wood Lathe with Cast Iron Bed:

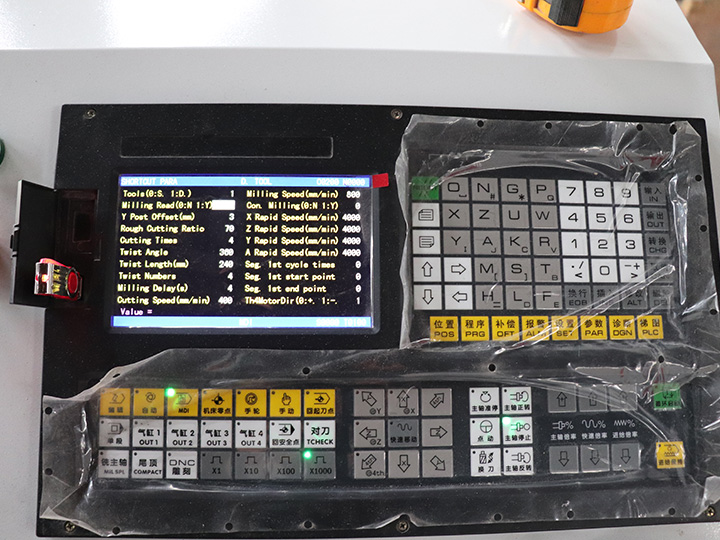

LCD Screen Control System to Show the Whole Turning Process:

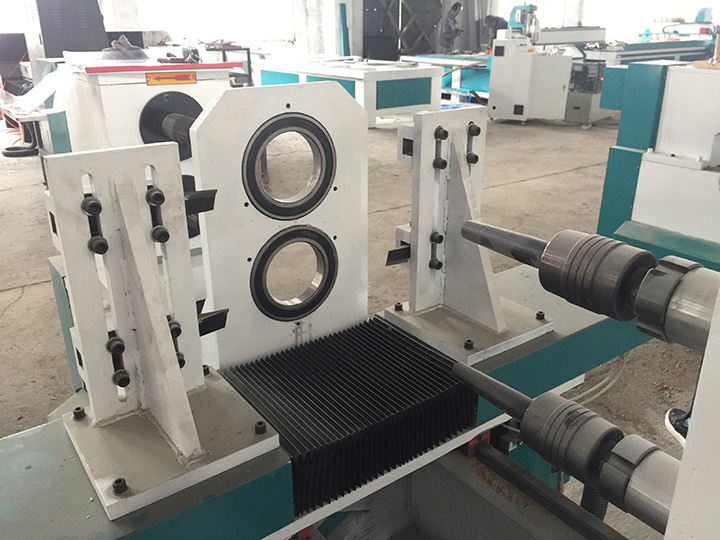

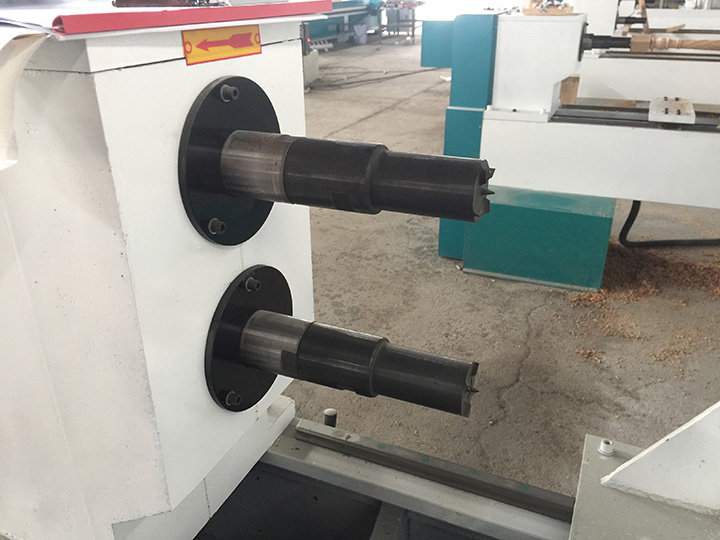

Double Truck of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles:
Tailstock of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles:
Stepper Motor of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles:
Oil lubrication of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles:
Applications of Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles
Roman columns, bowl sharps, tubular sharps, vehicle wood crafts, staircase columns, general columns, table or chair legs, wooden vases, washstand, car wooden furnitures, baseball bats, children' s bed columns and various cylindrical workpiece.
Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles Projects
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
-
