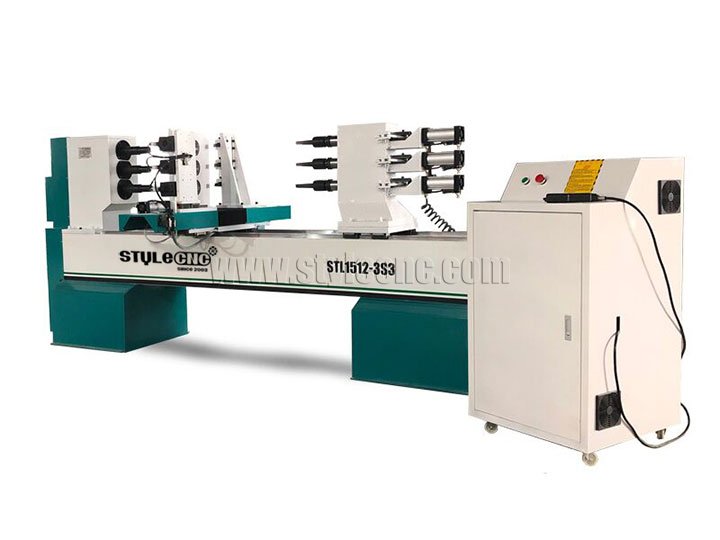

3 Axis Wood Lathe Machine for Wood Turning

3 Axis Wood Turning Lathe Machine for sale

Model: STL1512-3S3
Views: 1436
Brand: STYLECNC STYLECNC®
Rating: 5 /5 based on 1 ratings and reviews
Standard Price: $8280.00 / Set
Price Range: $8280.00 to $8680.00 / Set according to configuration
The price will float according to the configurations of 3 Axis Wood Lathe Machine for Wood Turning
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba

Product Introduction

Buyer's Reviews

3 axis wood lathe machine with three turning axis, which can turn 3 pieces wood columns with maximum 120mm diameter and 1500mm length at the same time. The 3 axis wood turning lathe machine processing length can be customized to 2000mm, 2500mm or 3000mm.

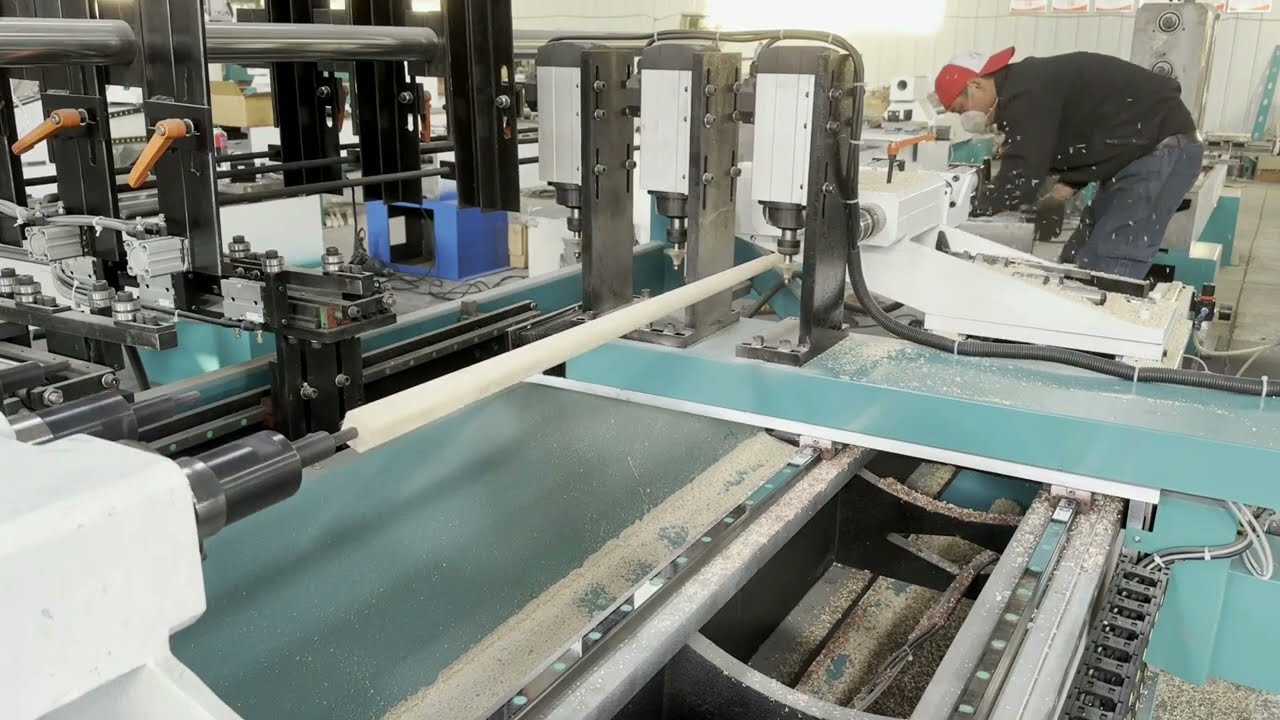

Demonstration Video


Product Descriptions

3 Axis Wood Lathe Machine for Wood Turning


3 Axis Wood lathe machine for Wood Turning Applications:


3 Axis Wood turning lathe Machine is applied to wooden cup, wooded bowl, tubular shape and vehicle wood crafts, cylindrical workpiece, staircase column, Roman column, general column, table or chair legs, washstand, wooden vase, wooden tables, baseball bats, car wooden furnitures, children' s bed columns, etc. 3 Axis Wood Turning Lathe Machine can be equipped with spindles with function of carving, slotting, hollowing on wood strip.


Technical Parameters of 3 Axis Wood Lathe Machine for Wood Turning:


Brand

STYLECNC

Model

STL1512-3S3

Max turning length

1500mm

Max turning diameter

120mm

Number of axis

3 axis

Maximum feed rate

2000mm/min

Minimum setting unit

0.1mm

Spindle motor power

3.5kw air cooling spindle

software

including

Power supply

AC380v/50hZ

Price Range

$8,280.00 - $8,680.00


3 Axis Wood Lathe Machine for Wood Turning Features:


1. Big torque stepper motor and Yako driver guarantee wood turning with fast speed.

2. Driving system: high quality square rails from Taiwan Hiwin and TBI precise ball screw, which can control the linear error effectively.

3. Best inveter: The wood turning lathe machine adopts frequency conversion speed regulation system, which can adjust the turning speed at any time to solve the problem of materials’ vibration.

4. Operation system:  The wood turning lathe machine adopts DSP controller, easy to operate, easy to learning.

5. Spindles are optional, the wood turning lathe machine can be equipped with single spindle, double spindles or 3 spdinles, single spindle could configure with chuck for bowl, cup shape turning.

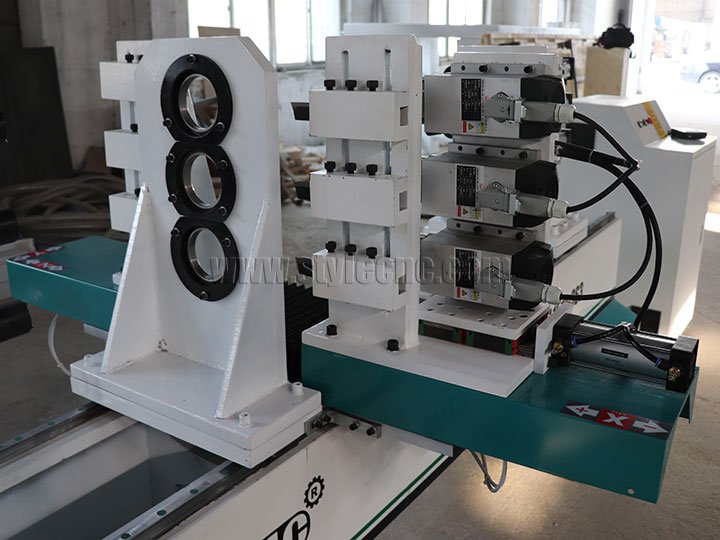

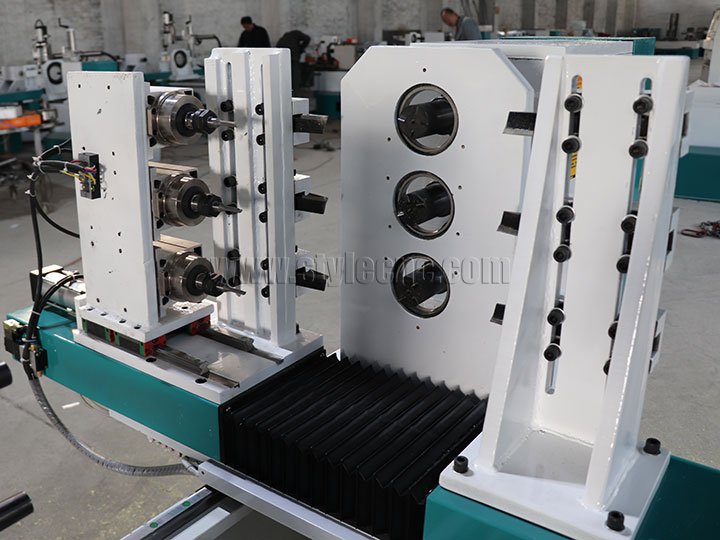

3 Axis Wood Turning Lathe Machine Parts


3 Axis Wood Turning Lathe Machine Package:


3 Axis Wood Turning Lathe Machine Parts is shipped with all the necessary parts, STYLECNC wood turning lathe machine can be used to work directly when it arrival.

Such as blades, tailstock, thimble, USB or CDs with software program, Hexagon ring spanner, bucket, collets and bits, etc.


3 Axis Wood Turning Lathe Machine Package


3 Axis Wood Turning Lathe Machine Projects:

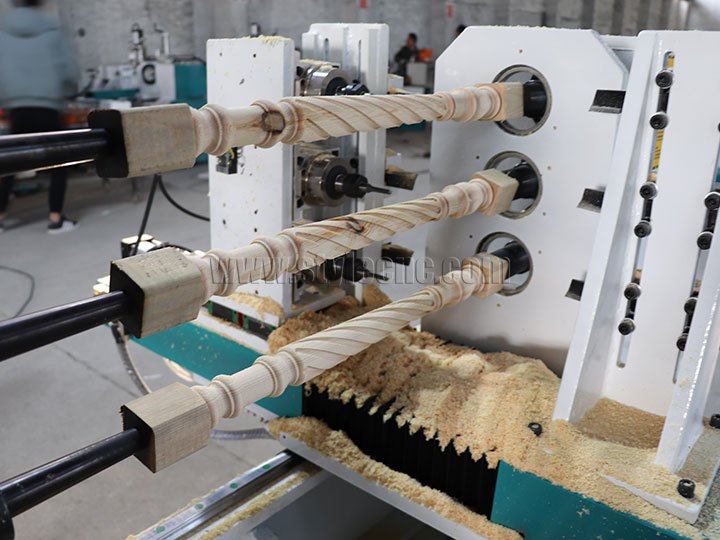

3 Axis Wood Lathe Machine for Wood Turning Projects

3 Axis Wood Turning Lathe Machine


Service for 3 Axis Wood Turning Lathe Machine from STYLECNC:


1. One year quality guaranty, the main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 24 hours on line service each day, free technical support.

6. The wood lathe machine has been adjusted before delivery.

7. STYLECNC service man with good English-speaking can be dispatch to your company to install or adjust if necessary.


STYLECNC has all kinds of Wood Lathe Machine for Different Wood Turning Works:


CNC wood lathe machines


International Shipping Around the World


All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
