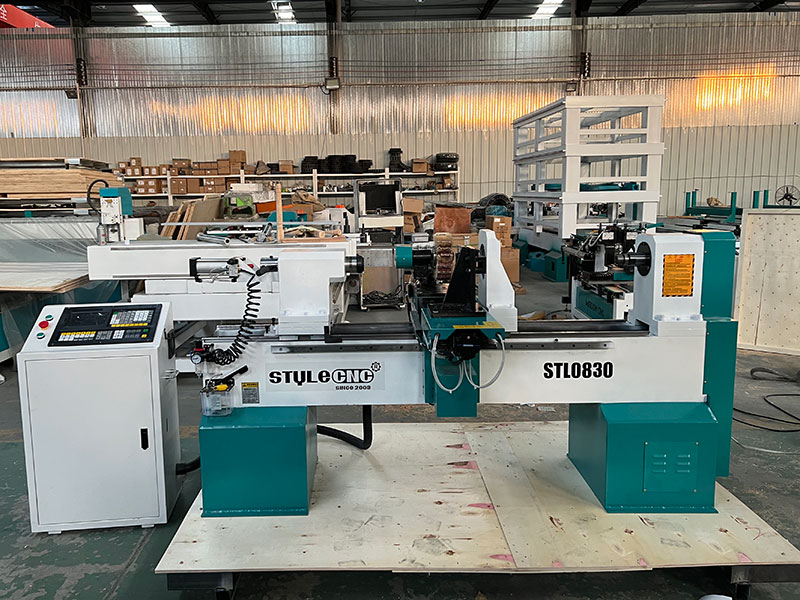

Small wood lathe for beginners is an automated CNC wood turner that works with automatic turning tools instead of handheld lathe blades for home woodworking, including wooden balusters, baseball bats, stair spindles, bowls, vases, cups, table legs, chair legs, sofa legs, ottoman legs, beads, barrels, gourd pendants, arts and crafts.
Small wood lathe is the most popular home wood turner for beginners with CNC controller that can automatically finish one, 2 or 3 woodturning projects at once, which is designed for craftsmen, hobbyists, home stores and small businesses. It's user-friendly and easy to use for both craft carpenters and professional woodturners. The small CNC wood lathe is also known as mini wood lathe, home wood lathe, hobby wood lathe, small CNC wood lathe machine, small wood turner, small wood turning machine.
A small CNC wood lathe machine is used to turn wooden bowls, rolling pins, vases, drawer pulls, candle holders, magic wands, pool cues, cue stickers, billiard cues, baseball bats, chess pieces, trivets, keepsake boxes, egg cups, beads, barrels, round boxes, drumsticks, wooden plates, wine cups, succulent planters, spurtles, stair balusters and spindles, christmas ornaments, salt and pepper shakers or mills, goblets, lamps, pens, bottle stoppers, lidded boxes, wooden flashlights, christmas trees, honey dippers, spatulas, spoons, ice cream scoops, gourd pendants, Buddha heads, magnifying glasses, mortars and pestles, antique pepper mills, furniture legs (chair legs, table legs, ottoman legs and sofa legs), ring shapes (bracelets and bangles), wooden tools and toys, pizza cutter handles, pigtail flipper handles, coffee scoop handles, and handles for anything and everything.
| Model | STL0820 | STL0810-2 | STL0810-3 |
|---|---|---|---|
| Working Area | Length 800mm, Diameter 200mm | Length 800mm, Diameter 100mm | Length 800mm, Diameter 100mm |
| Processing Quantity | 1 piece | 2 pieces | 3 pieces |
| Upgraded Model | STL0820-S | STL0810-2S2 | STL0810-3S3 |
| Control system | 1000TC | 1000TC | 1000TC |
| Motor Power | 5.5KW asynchronous motor | 5.5KW asynchronous motor | 5.5KW asynchronous motor |
| Motor rotating speed | 0-3000rpm/min | 0-3000rpm/min | 0-3000rpm/min |
| Transmission | Taiwan Hiwin square rails, Taiwan TBI ballscrews | Taiwan Hiwin square rails, Taiwan TBI ballscrews | Taiwan Hiwin square rails, Taiwan TBI ballscrews |
| Driver | Yako | Yako | Yako |
| Inverter | Best | Best | Best |
| Working accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Working voltage | AC380V/3 phase or 220V/single phase/3 phase | AC380V/3 phase or 220V/single phase/3 phase | AC380V/3 phase or 220V/single phase/3 phase |
| Overall dimensions | 2400*1500*1500mm | 2400*1550*1500mm | 2400*1550*1700mm |
| Weight | 1100kgs | 1150kgs | 1200kgs |
| Main functions | Lathing | Lathing, grooving, drilling, milling, column carving | Lathing, grooving, drilling, milling, column carving, 3D carving |
| Optional | Sanding, Automatic tool changer, Chuck, DSP controller | Sanding, Automatic tool changer, Chuck, DSP controller | Sanding, Automatic tool changer, Chuck, DSP controller |
Turning Size
Max turning diameter 200mm, Max turning length 800mm.
Simple Operation
Direct input required of autocad software, which is easy for drawing design .
Controller with USB interface is simple to use.
High Precision
Top brand square rail and ballscrew transmission.
Long lifespan and high precision.
Processing precision: 0.05mm.
Long Cutter Lifespan
The wood lathe machine adopts super hard alloy CNC cutter, no wear for turning and milling wood.
Turning 3,000 wood pieces with 20mm diameter, no need to change cutter.
Long service life. If the cutter is damaged, replace it directly.
The normal package is plywood case, non-fumigation crate.
1. Training on how to install the home wood turning lathe machine?
2. Training on how to use the home wood lathe machine for beginners?
3. Training on how to maintain the best small wood lathe machine?
This is my first lathe machine to start turning bowls and pens. The CNC controller makes it to be a time saver with automatic variable speed control. It is an easy lathe and I have been completely satisfied with it.
