Multifunctional CNC wood lathe is a large heavy duty automatic lathe machine equipped with three independently controlled cutting tools, 1st turning blade for roughing the square wood to be shapes designed, 2nd milling tool for twisting or fluting, 3rd producing one-off bespoke turnings. A sanding head with narrow belt to sand turned or straight profiles is optional.
Features of Multifunctional CNC Wood Lathe with Automatic Feeder
The heavy duty wood lathe machine is suitable for same design work pieces long production runs, save working time and turned components with excellent quality.
The large wood lathe machine is equipped with three independently controlled cutting tools, the first turning blade for roughing the square wood to be shapes designed, the second milling tool for twisting or fluting, the last one producing one-off bespoke turnings. A sanding head with narrow belt for sanding turned or straight profiles is optional.
Technical Parameters of Multifunctional CNC Wood Lathe with Automatic Feeder
| Model | STL2530A-4T |
| Working size | 2500*300mm |
| Max. diameter | 300mm |
| Max. length | 2500mm (1500mm and 2000mm for choose) |
| Control system | STYLECNC controller |
| Inverter | Best |
| Driving system | Leadshine 2206 servo driver and motor |
| Frame | Heavy duty wholly cast iron |
| Feeding system | Automatic feeding system |
| Transmission | Taiwan TBI ballscrew transmission #32 Taiwan Hiwin square rail #25 |
| Turning motor | 5.5KW |
| Spindle | 3.5kw air-cooling |
| Milling tool | Length:250mm, OD:125mm,ID:40mm |
| Functions | Sculpture, carving, slotting, milling |
| Spindle speed | 0-3000r/min |
| Working voltage | 380V/3P/50HZ or 220V/3P/60HZ |
Details of Multifunctional CNC Wood Lathe with Automatic Feeding System

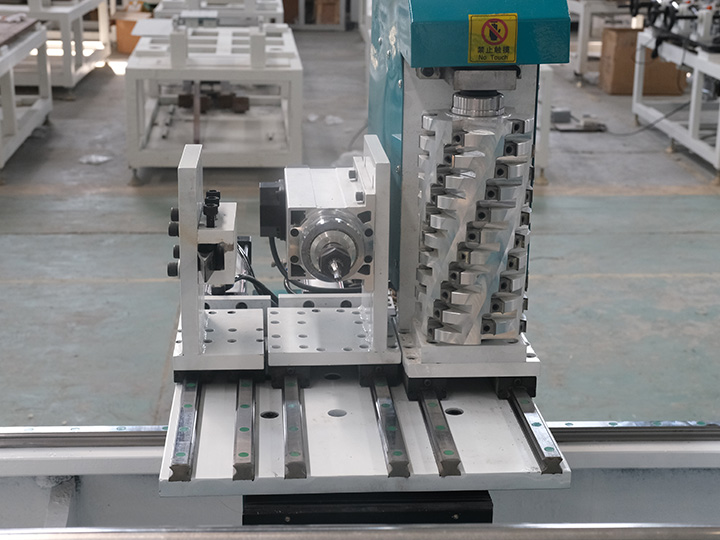

Three independently controlled cutting tools:
Sanding head:

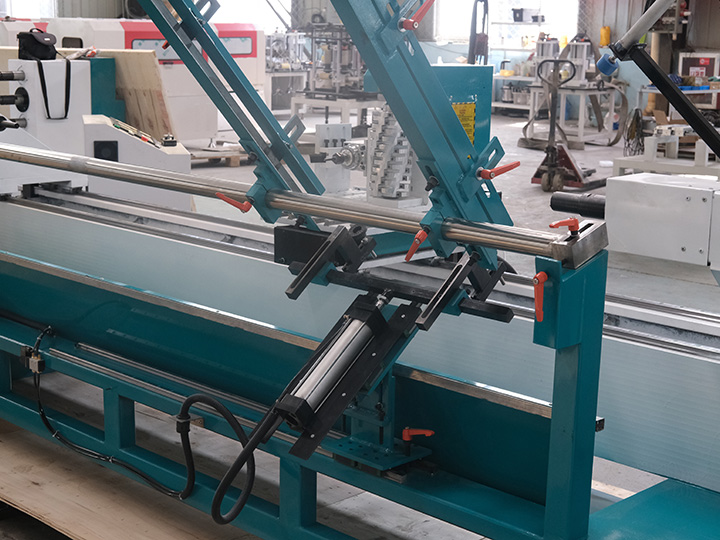

Self feeding system:

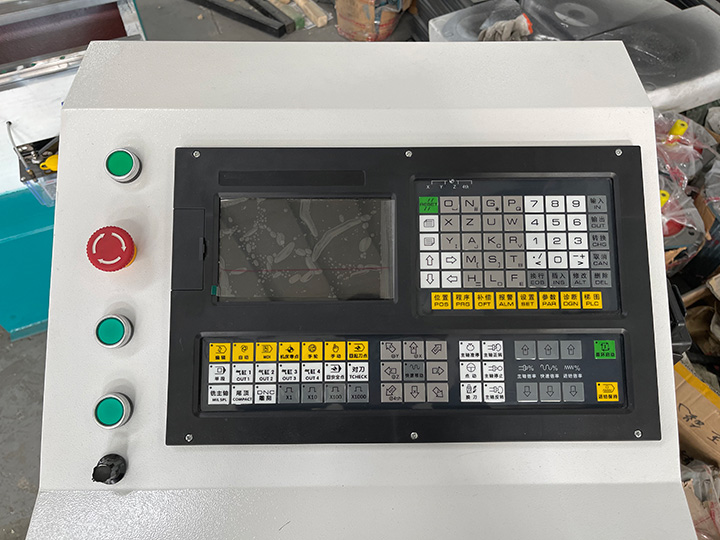

STYLECNC controller:
STL2530A-4T Multi-Functional CNC Wood Lathe with Self-Feeder:

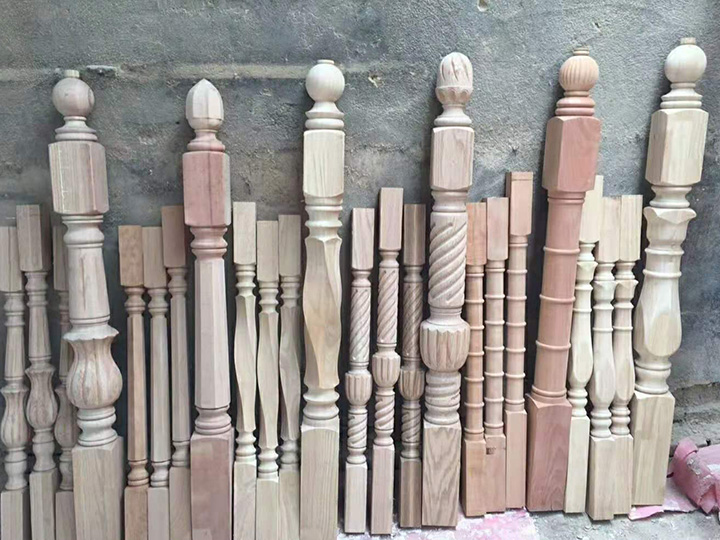

What types of special works a multi-functional CNC wood lathe with automatic feeding system can do?
