2026 Top Rated Industrial Foam Laser Cutter for Sale

What Is A Laser Foam Cutting Machine?

Laser foam cutting machine is an automatic foam laser cutter with CNC controller to cut foam and sponge. At present, the high temperature of the laser machine is mainly used for cutting, because the laser beam fine cutting is not easy to be deformed, the cut is smooth, and there is no sticky edge. It has the advantages of high cutting efficiency, accurate cutting size and high precision. The foam laser cutting machine is mainly used for cutting foam materials. It can cut rigid foam, soft foam, and plastic into squares, rectangles, strips, and more profiles and shapes, and input any graphics into the computer for cutting.

Why Use Laser Cut Foam? - Benefits & Advantages

The open working platform of the laser foam cutting machine facilitates the placement of processed materials, and can cooperate with the large-size honeycomb adsorption platform working in the assembly line to meet the processing of large-format materials. And it can meet the needs of small industries such as model industry, handicraft industry, bamboo product industry and so on. Optional functions such as auto focus, red light positioning. which can make this laser foam cutter perfect and maximize its functions. Really achieve multi-function and multi-purpose, time-saving and efficient. The optical path part adopts a hybrid optical path, which has a high utilization rate of light energy, a fully enclosed optical path and strong safety performance. Its control system adopts unique intelligent prediction algorithm and improved control algorithm to ensure high-speed processing, stable and efficient operation speed. The laser energy can be adjusted in real time, which greatly facilitates the operation of customers. Thirdly, the automatic compensation function of high-power cutting energy greatly improves the cutting effect. In short, this model can truly process a wide range of fabrics, with smooth cuts without flash, automatic closing, no deformation, and graphics can be designed at will through the computer and other functions.

2026 Top Rated Industrial Laser Foam Cutting Machine Features

1. The unique design by STYLECNC team, with high power laser tube to cut EVA foam.

2. This foam laser cutting machine adopts the constant light path system for high precision laser cutting.

3. The integration of high strength frame type lathe bed structure, good rigidity, ensures the high stability of the laser cutting equipment.

4. Top brand guide rails be installed and debugged by precision collimator, ensure the high speed and high precision.

5. High power exhaust fan, make the cutting smoke exhaust more thoroughly.

2026 Best Industrial Foam Laser Cutting Machine Technical Parameters

Industrial Laser Foam Cutter Machine Details

Control Board for Laser Foam Cutter Machine:

Laser Cutting Head for Foam Laser Cutter Machine:

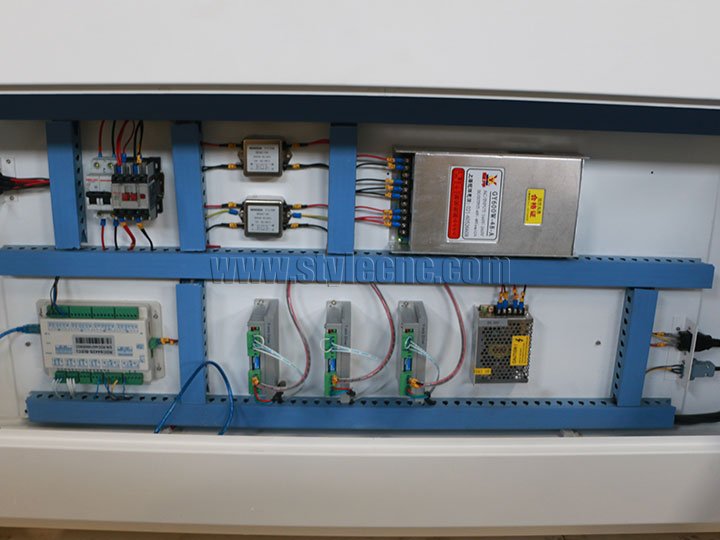

Electronic Box for Laser Foam Cutter Machine:

Blade Table for Foam Laser Cutter Machine:

2026 Best Industrial Foam Laser Cutting Machine Applications

Foam laser cutter machine is suitable for cutting EVA foam, polyethylene foam, polystyrene foam (EPS), styrofoam, rubber, filter mats, self adhesive marine decking, car floor mat, non skid adhesive sheets, synthetic teak cabin sole, etc.

The foam laser cutter machine can also cut double-color plate, organic glass, acrylic, wood, paper, leather, fabric, rubber and other non-mental materials, suitable for advertisement signs and marks making, handicraft industry, wood and bamboo industry, printing industry, clothing and leather industry, garment industry, decorative industry, photo frame making etc.

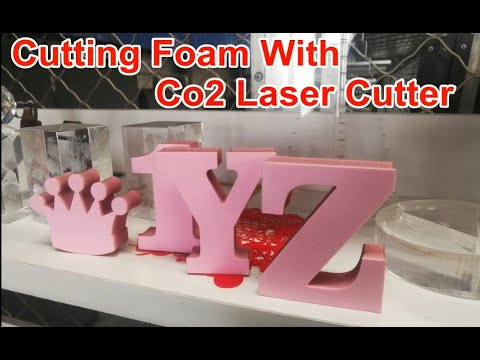

2026 Best Industrial Laser Foam Cutting Machine Projects

The projector can be optional for eliminating error, improve the output and reduce the cost:

If you need to mill some special designs, foam CNC router machines will meet your requirements:

Maximizing Quality and Safety with Foam Laser Cutting

A foam laser cutter delivers clean, melt-free edges only when power, speed, and ventilation match the foam in front of it. EVA, EPE, and PU foams cut beautifully with the right settings; polystyrene needs careful control; and PVC foam must never enter the bed at all.

Power and Speed Settings by Foam Type

Foam densities and chemistries vary widely, so a setting that breezes through 6mm EVA will scorch thin polystyrene. Use the table below as a starting point on a 150W tube, then run a 25mm test square before full sheets. Drop power or raise speed at the first sign of melted edges or thick smoke. For deeper parameter math, see our CO2 laser cutting parameters guide.

Soft, dense foams like EVA produce the cleanest edges. Lightweight EPS demands fast travel and low power so the beam vaporizes material instead of igniting trapped air pockets. For 3D contour shaping, an EVA foam CNC router or 4-axis EPS foam cutter handles those shapes better than a laser.

Ventilation and Safety Essentials for Foam Cutting

Foam fumes are the single biggest workshop hazard most operators underestimate. Every foam type releases something - styrene from EPS, benzene from polyethylene, hydrocarbons from rubber - and a stock exhaust fan is rarely enough on its own.

✓ Pair an exhaust fan with an inline fume extractor using activated carbon and HEPA stages.

✓ Never cut PVC foam - chlorine gas damages optics and harms operators.

✓ Keep a CO2 fire extinguisher within arm's reach; EPS can ignite in under a second.

✓ Watch every cut on polystyrene and rubber - these should never run unattended.

✓ Clean lens and mirrors weekly; foam residue dulls cuts and shifts focus.

Follow the full protocol in our laser cutter safety guide before running production batches.

Frequently Asked Questions

Can a 60W laser cut 10mm EVA foam?

Yes, but slowly expect 8–12 mm/s at 90% power, often in two passes. A 150W tube cuts the same thickness in a single 15 mm/s pass with cleaner edges and less heat-affected zone.

Why is my foam not cutting all the way through?

Usually a focus issue or insufficient power for the thickness. Re-focus the lens to the top surface (not the table), drop speed by 25%, and run a test square first.

What's the difference between cutting EVA and EPS foam?

EVA cuts cleanly with a continuous beam at low power. EPS (Styrofoam) is mostly trapped air, ignites easily, and should be cut in pulse mode at high speed to vaporize rather than burn.

Can I laser cut foam with adhesive backing?

Only if the adhesive contains no PVC or chlorine. Check the SDS from the supplier first. Self-adhesive marine decking and synthetic teak panels are generally safe to cut.

How thick of foam can a CO2 laser cut?

A 150W CO2 tube cuts up to 25 mm EVA in a single pass. With multiple passes and air assist, well-vented machines handle 40–50 mm soft foam. Beyond that, knife or wire cutters are more efficient.

Do I need air assist when cutting foam?

Low-pressure air assist (1–2 bar) helps on dense foams and rubber by blowing residue from the kerf and reducing scorch marks. Skip air assist on lightweight EPS to avoid fanning sparks.

Should I use a honeycomb or blade table?

Blade tables are standard for thicker foam they suspend the sheet for clean back-side edges. Honeycomb works for thin EVA and pattern-cut packaging. See our pink insulation foam cutting guide for a worked example.
