  • Last Last Updated on Oct 11, 2023 at 10:15:10
  • Model - STJ1630A-CCD
  • Brand - STYLECNC
4.8 (27)
$12,800.00 (Up To $13,800.00 for Top Version)

Contour laser cutter for digital printed fabrics & textiles with CCD camera is a vision laser cutting system for sublimation printed fabrics with all shapes and sizes.

  • 180 Sets / Month Waiting for Sale In Stock
  • 1 Year Limited Warranty for Entire Machine
  • 1-2 Days Handling and 7-30 Days Shipping
  • 30-Day Money Back Guarantee for Your Purchase
  • Online (PayPal) & Offline (T/T, Debit & Credit Cards)

Contour Laser Cutter for Digital Printed Fabrics with Vision CCD Camera

Contour laser cutter uses high-quality digital cameras to realize full-frame single shooting and full-frame image recognition, which greatly improves the efficiency of automatic camera positioning. The laser contour cutting machine supports full-frame automatic recognition of image contour generation templates and custom drawing of multiple graphic templates. The software matches the entire page material according to the characteristics of the template, and sends the processing data to the motion controller to achieve rapid and accurate positioning and cutting. The contour laser cutting machine supports setting camera calibration offset compensation, correct and recognize the overall offset that appears after the device has been running for a period of time, to ensure accurate graphics cutting. The automatic laser contour cutting system can directly cut according to the material thickness setting parameters, and the operation is simpler. The automatic feeder and conveyor is used to keep cutting continuous, saving time and increasing production. The automatic contour laser fabric cutting machine is equipped with a professional suction box design, which can effectively absorb materials and remove dust. The mesh belt has the characteristics of light weight, stable structure, no deformation, no breakage, no deviation, and good flatness. This mesh belt can be replaced one by one, cleaned at any time, convenient for maintenance, maintenance and repair, long service life, strong stability, low cost of use, and supports long-term continuous fatigue operations.

Advantages of Contour Laser Cutter for Digital Printed Fabrics & Textiles with Vision CCD Camera

1. Automatic without manual intervention.

2. Directly detect roll printed fabrics.

3. No required the original graphics files.

4. Recognition within 5 seconds on the whole cutting area.

Technical Parameters of Contour Laser Cutter for Digital Printed Fabrics with Vision CCD Camera

ModelSTJ1630A-CCD
Working area1600mm*3000mm
Laser power150W laser tube
Laser typeCO2 sealed laser tube, water-cooling
Driving systemLeadshine brand stepper motor
TransmissionBelt transmission
Guide wayHigh speed inner guide rails
Control systemRuida control system RD6442S
Working tableOpen stainless steel meshed worktable
Water chillerCW5200 cooling system
Dust collector2 pcs dust collector
Air pumpincluded
Engraving speed0-7500mm/min (According to the materials)
Cutting speed0-4000mm/min (According to the materials)
Power supply220V/50HZ, 110V/60HZ
Graphic format supportedBMP, PLT, DST, DXF, AI
Software supportedCorelDraw, PhotoShop, AutoCAD, TAJIMA
Red pointerYes

Details of Laser Contour Cutter for Sublimation Printed Fabrics with Vision CCD Camera

Vision CCD camera for scanning the fabric.

CCD camera for scanning the fabric

Automatic feeder to keep cutting continuous, saving time and increasing production.

auto feeder of fabric laser cutter

Double laser cutting head for choose.

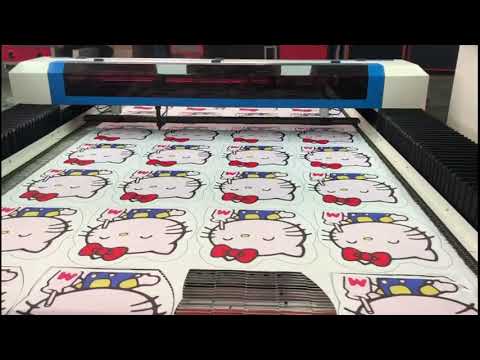

 0:38 正在播放 Vision Laser Cutting Printed Textile

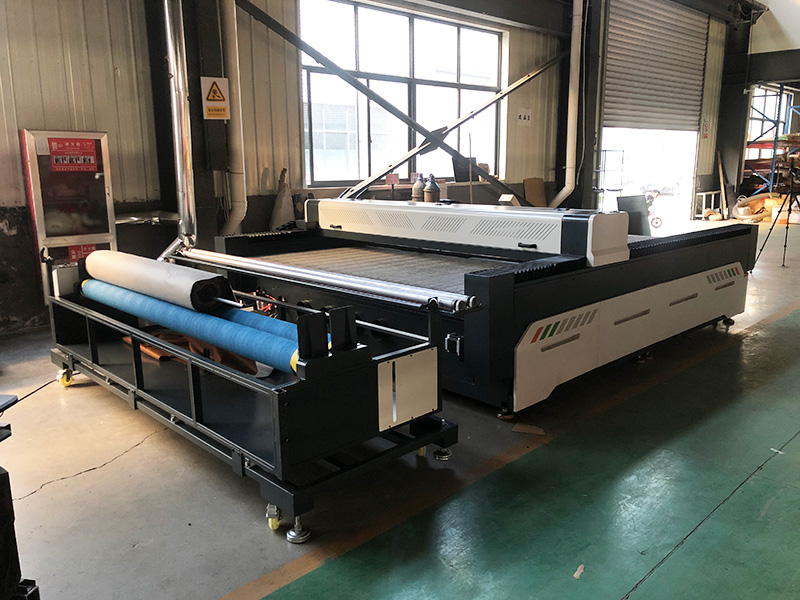

Stainless steel meshed worktable with auto feeding device to realize continuous feeding and cutting.

auto feeding fabric laser cutter

Applications of Contour Laser Cutting Machine for Sublimation Printed Fabrics with Vision CCD Camera

Vision laser cutter with CCD camera is ideal for cutting digital printed fabrics and textiles of all shapes and sizes, such as team uniforms, sportswear, polo shirt, jersey, swimwear, cycling apparel, sports shoes, banners, flags, stripe matching, plaid matching, repetitive visual pattern fashion garment, bags, suitcase, soft toys, etc.

1. Sportswear, sports garment, swim suit and all printed fabrics.

2. Strips/plaids cutting suit, shirt, dress.

3. Fabric with Repetitive Visual Motifs.

4. Arabesquitic luxury bags, suitcase and sofa upholstery.

5. Advertising banners, flags, vinyl billboard and all polyester printed signs.

Projects of Laser Contour Cutting Machine for Digital Printed Fabrics with Vision CCD Camera

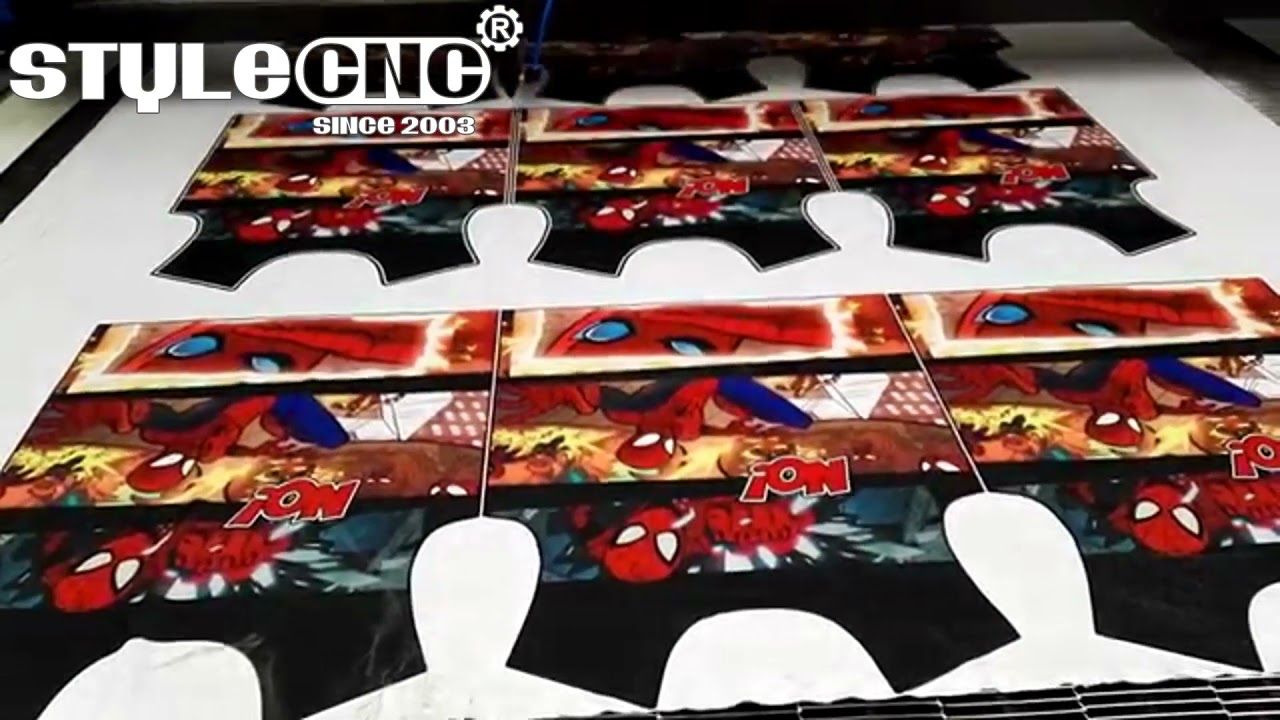

fabric contour laser cutter

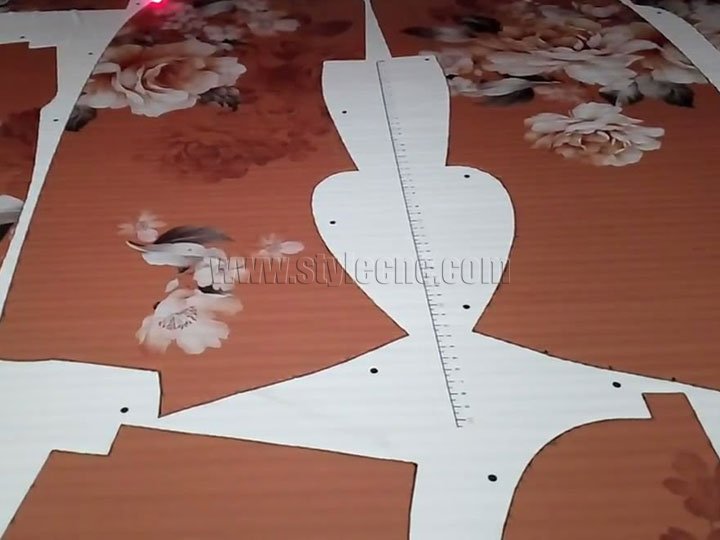

sportswear laser cutter

Contour Laser Cutter for Printed Fabrics with CCD Camera
Tips - Don't take our words as everything. Find out what customers say about our products and services they have purchased, owned or experienced.
H
5 out of 5

Reviewed in Pakistan on

I bought the laser fabric cutter for sportswear pattern cutting, its cutting ability is out of my imagination, I really like it.
