I have one CNC laser cutter, but when I do the cutting work, it produces smoke which is very troublesome. With STYLECNC's help, I bought this air filter, it really helps me very much.

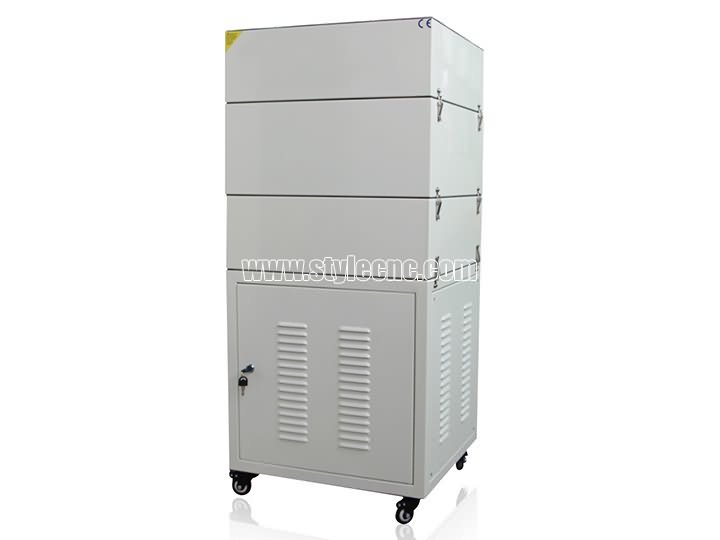

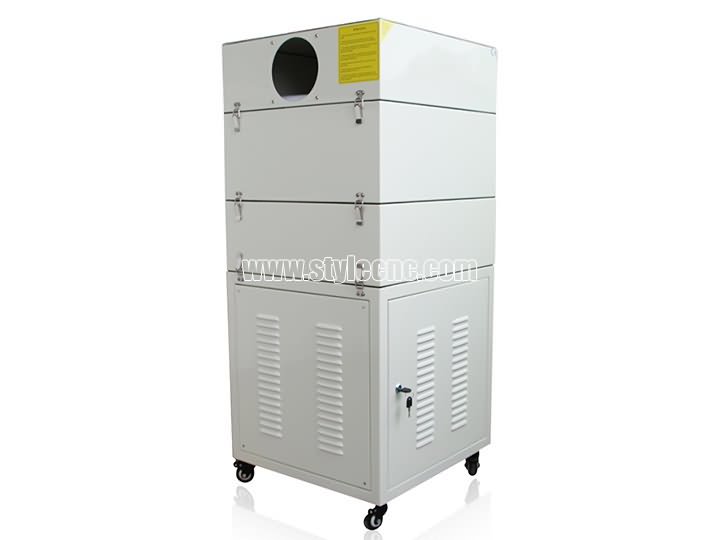

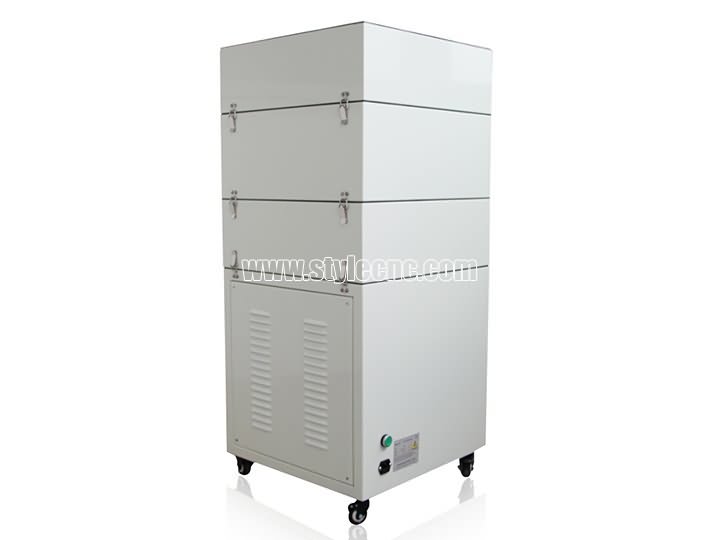

Air filter & fume extractor for CNC laser machine with four layers filter filtration to ensure high efficiency purification, which is suitable for fume filtration & air cleaning to the fumes, dust, smell from laser machine.
Air filter/fume extractor is suitable for fume filtration & Air cleaning to the fumes, dust, smell during middle size laser cutting, engraving, and marking machine. Four layers filter filtration to ensure high efficiency purification. Installed castors, can be moveable easily.
Features of air filter extractor:
1. Best brand blower, low noise, high rotate speed, running steady, long life, energy saving, high efficiency;
2. Four stage big clogging capacity filtration design to ensure filtrate harmful material of the fumes completely to achieve room air quality standard, protect environment and people’s health;

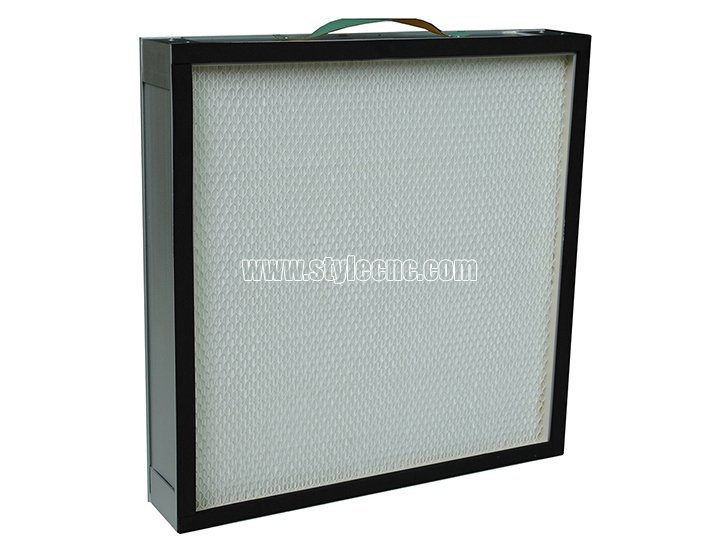

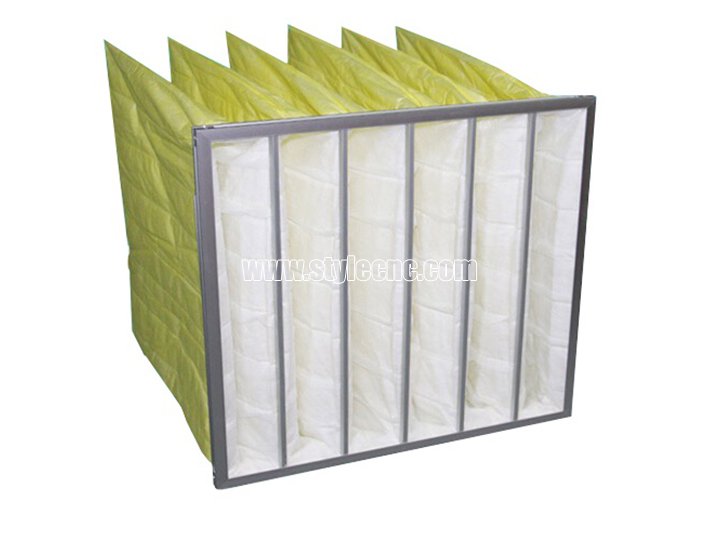

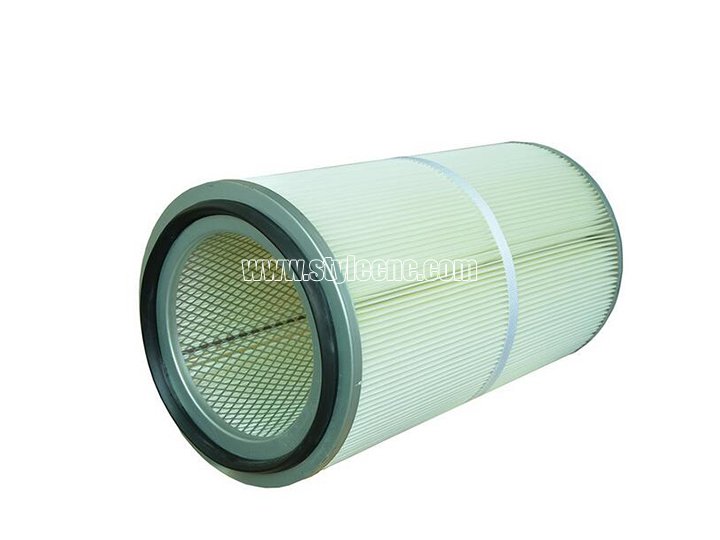

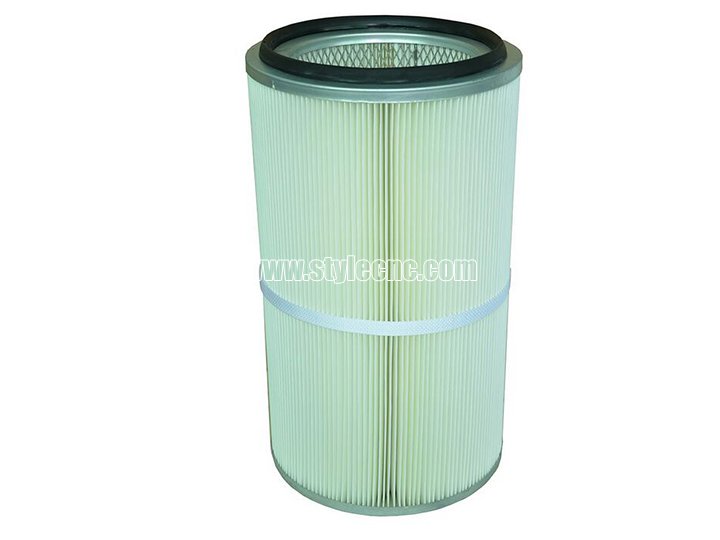

3. Primary filter, Medium Efficiency Filter, main HEPA filter gas filter both can replace individually, extend filter’s use life and reduce filter replacement cost;
4. Metal framework structure desgin, equipment with small size, saving floor space and can be movable easily;
5. After multi-stage dust filtration, can be directly emitted in the room without expensive complex exhaust project.The indoor temperature can be stability, and save energy.
Technical parameters of air fume extractor:
| Model | 700AF | 1000AF | 1500AF |
| Air Flow | 700m3/h | 1000m3/h | 1500m3/h |
| Input Power | 550W | 750W | 1100W |
| Air Pressure | 2000Pa | 2000Pa | 2300Pa |
| Voltage | 220V,50HZ | ||
| Noise | ≤ 60dB | 2000Pa | ≤ 70dB |
| Filtration Rate | 99.97% | ||
| Exhaust Arm | φ150mm x 1.8M | φ150mm x 1.8M | φ200mm x 1.8M |
| Machine Dimension | 500*520*1250mm | 500*520*1250mm | 500*550*1450mm |
| Machine N.W | 80KG | 80KG | 100KG |
| Mark | Suitable for laser working area less than 1000*1000mm | Suitable for laser working area less than 1000*1300mm | Suitable for laser working area less than 1600*1800mm |
I have one CNC laser cutter, but when I do the cutting work, it produces smoke which is very troublesome. With STYLECNC's help, I bought this air filter, it really helps me very much.
