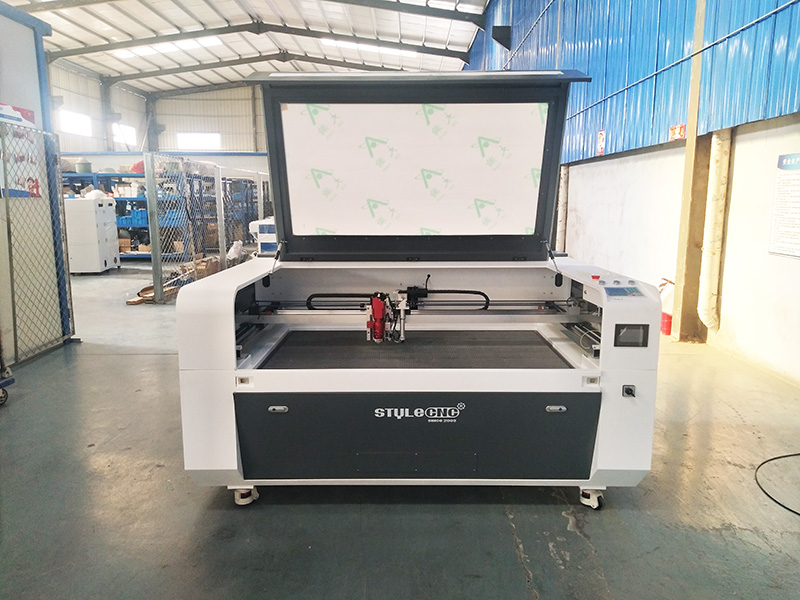

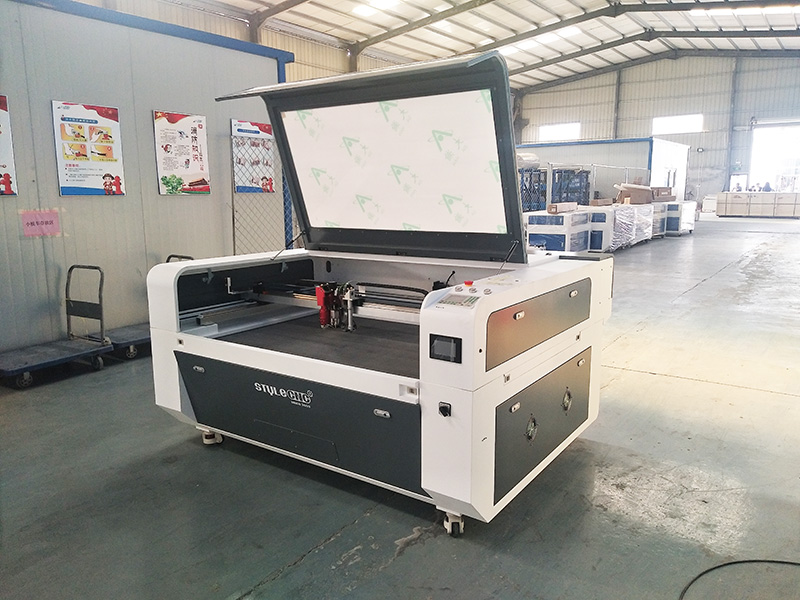

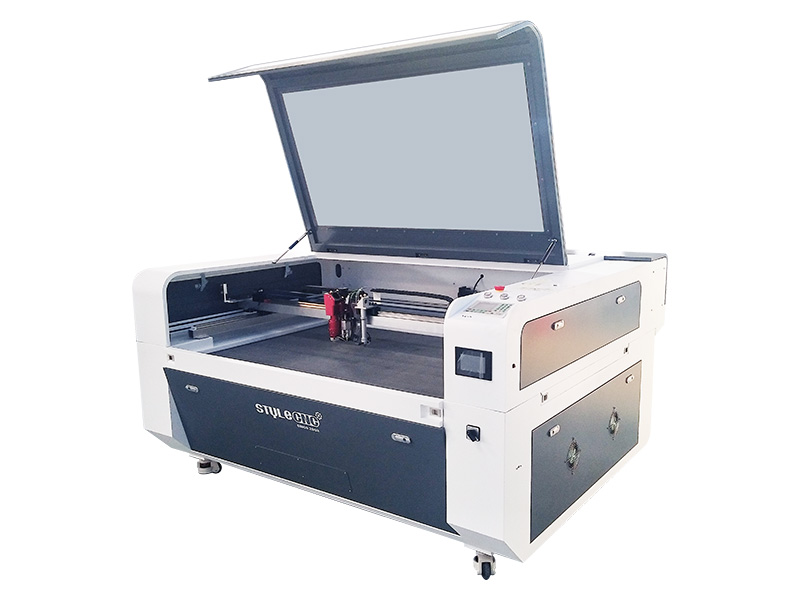

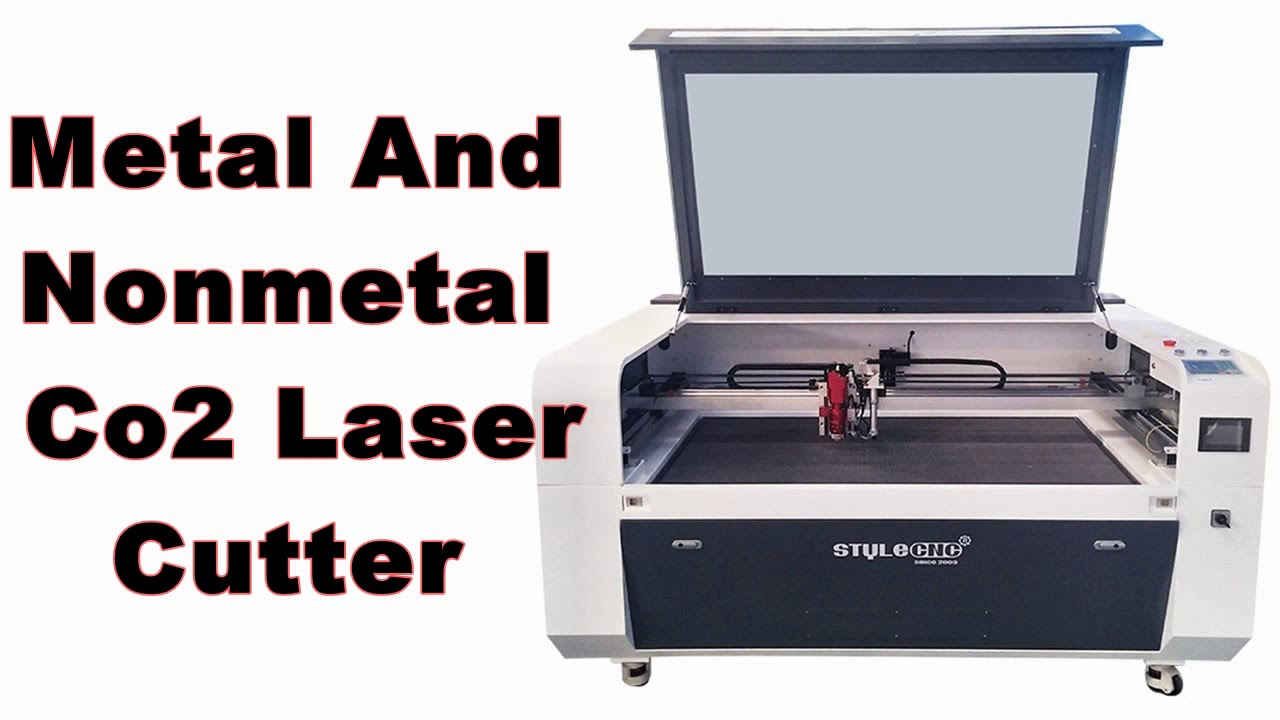

Commercial Hybrid CNC Laser Cutting Machine for Sale

Advantage of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

• Stable and reliable in quality, it offers comprehensive cutting capabilities, effortlessly cutting through a wide range of materials including stainless steel, carbon steel, wood, and acrylic.

• High-efficiency 300W combined-beam laser tube, featuring a stable optical path and a service life of approximately 10,000 hours.

• The initial investment cost is budget-friendly, and the operating and maintenance costs are also affordable for the vast majority of users.

• An automatic height-adjusting laser head with a follow-up system makes cutting both metal and non-metal materials effortless.

Technical Parameters of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Features of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

• An ultra-large working area (cutting table) of 1300 × 900 mm, suitable for processing large-sized materials.

• The built-in software supports direct output of raw images and is compatible with various graphic formats, including CAD, CorelDraw, and Photoshop.

• Power-off recovery and breakpoint resume features.

• Top-tier brand linear guides ensure higher cutting precision.

• Drawer-style and funnel-style waste collection design, offering convenient and efficient operation.

• High-quality chiller, ensuring stable laser output and effectively extending the service life of the laser generator.

• Laser metal cutting head equipped with a follow-up system, enabling the effortless cutting of both metallic and non-metallic materials.

• The transmission system offers two options for users to choose from: rack-and-pinion drive and ball screw drive.

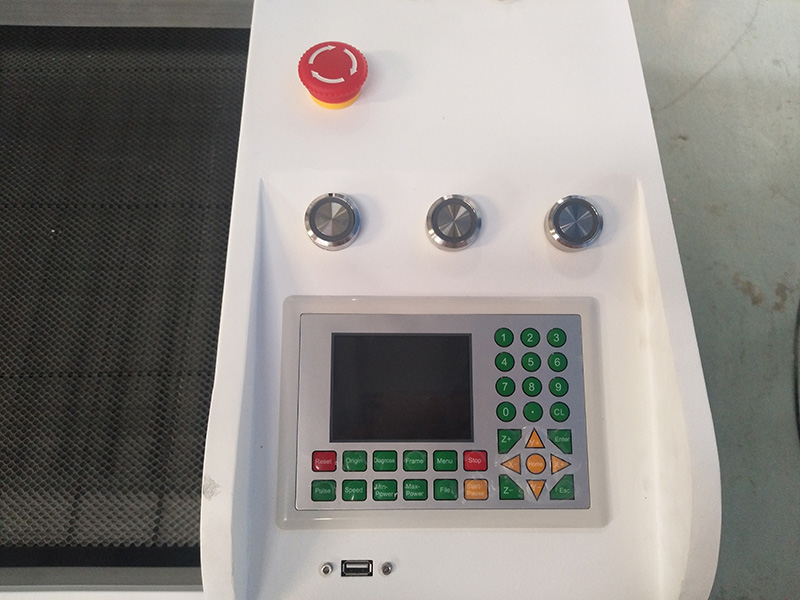

Control Panel

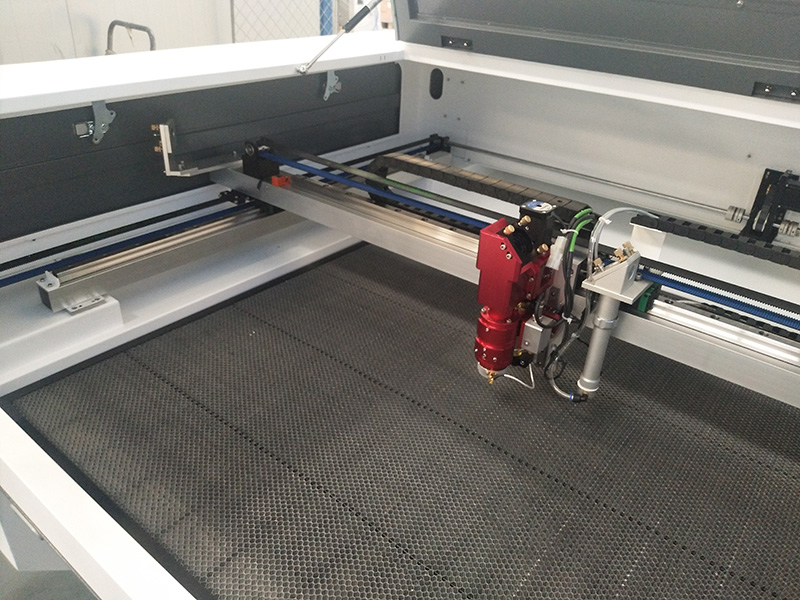

Hybrid Laser Cutting Head

Mixed Laser Cutting Head

Laser Cutting Table

Applications of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Metal: Max 3mm stainless steel, 2mm stainless steel.

Nonmetal: Acrylic, wood, fabric, leather, MDF, plywood, bamboo, rubber, paper, PVC, foam, EVA, plastic.

Projects of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Package and Service for Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

• Technical consultation and professional advice tailored to your specific cutting requirements, provided prior to your machine order.

• Professional guidance on equipment operation.

• A one-year limited warranty; upon expiration of the warranty period, we will supply consumable parts to you at cost price.

• Our technicians will conduct on-site inspections and repairs at your workshop in instances where machine malfunctions cannot be resolved via online or telephone communication.

• 24/7 technical support services available via email or telephone.

How the Hybrid Laser Cutting Head Switches Between Metal and Non-metal

The STJ1390M-2 relies on a professionally engineered hybrid cutting head equipped with an automatic height-following system. When the machine transitions from cutting non-metal materials like acrylic or plywood to thin metal sheets such as stainless steel, the dynamic focus mechanism adjusts the focal distance in real time. This ensures consistent beam concentration regardless of surface irregularities in the workpiece. Unlike standard CO2 laser cutting machines that use a single fixed-focus head designed only for non-metal processing, hybrid models pair a combining beam CO2 laser tube with a specialized nozzle assembly that channels oxygen or air assist directly onto the metal surface during cutting. The result is a clean kerf with minimal slag, even on thin stainless steel up to 3mm.

Operators can switch between material modes through the RD6332M controller without manual head replacement, which significantly reduces downtime between mixed-material jobs. This design makes the machine especially productive for sign shops and small fabrication businesses that process a variety of materials in a single shift. For a deeper comparison of laser architectures, see STYLECNC's guide to types of laser cutting systems.

220W vs. 300W CO2 Laser Tube: Which Power Option Fits Your Workshop?

Power selection directly determines cutting capacity and operating cost. The STJ1390M-2 offers two Yongli combining beam laser tube configurations, and the table below summarizes the key differences:

For workshops that primarily cut nonmetals but need occasional thin metal capability, the 220W configuration provides a balanced starting point at a lower laser cutting machine cost. Production-focused operations handling daily metal orders should consider the 300W upgrade for its ability to process thicker stainless steel at faster feed rates.

Oxygen Assist Gas Setup for Metal Cutting on a Hybrid CO2 Laser

Cutting metal with a CO2 hybrid laser requires oxygen-assist gas, which is fundamentally different from the compressed air assist used during non-metal processing. Oxygen creates an exothermic reaction at the cutting point, adding thermal energy that allows a 220W–300W beam to penetrate stainless steel and carbon steel that would otherwise be beyond CO2 laser capability. Proper gas setup is essential for clean cuts and operator safety.

Key setup checklist:

• Connect a regulated oxygen cylinder to the machine's gas input valve with pressure set between 0.3–0.6 MPa depending on material thickness.

• Verify the solenoid valve is configured to activate gas flow only during cutting cycles, which conserves gas usage.

• Inspect the nozzle alignment before each metal cutting session to ensure the oxygen stream is concentric with the laser beam.

• Keep nitrogen available as an alternative for stainless steel jobs requiring oxide-free, bright-finish edges.

• Review the recommended parameters in STYLECNC's CO2 laser cutting parameters guide for optimal speed and pressure settings.

Operators transitioning from pure non-metal CO2 lasers should note that oxygen-assist cutting generates more sparks and fumes than air-assist work. A properly functioning exhaust fan and extraction system are mandatory for workshop safety. For replacement nozzles, lenses, and gas fittings, browse STYLECNC's full catalog of CNC laser parts and accessories.

Frequently Asked Questions

Can a CO2 hybrid laser cutter really cut through stainless steel?

Yes. The STJ1390M-2 uses a combined beam laser tube paired with an oxygen-assist cutting head that focuses enough energy to penetrate thin stainless steel. With the 300W option, clean cuts through up to 3mm stainless steel and 2mm carbon steel are achievable at a production-quality edge finish.

How long does the Yongli combining beam laser tube last before replacement?

Yongli combining beam tubes are rated for approximately 10,000 hours of service. Actual lifespan depends on power usage habits, cooling system maintenance, and operating environment. Keeping the water chiller temperature between 18°C and 25°C and running the tube below 80% of its rated maximum power helps extend tube life significantly.

Do I need oxygen to cut metal, or can I use regular air assist?

Oxygen assist is required for metal cutting on a hybrid CO2 laser. Compressed air alone does not generate the exothermic reaction needed for the beam to penetrate steel. Oxygen pressure is typically set between 0.2–0.6 MPa, depending on material thickness, and the solenoid valve controls flow so gas is only consumed during active cutting.

Is the RD6332M controller compatible with LightBurn or other third-party software?

The STJ1390M-2 ships with the Ruida RD6332M control system, which is compatible with RDWorks and LaserCAD. LightBurn also supports Ruida controllers. The machine accepts DST, PLT, BMP, DXF, DWG, and AI file formats through software like CorelDRAW, AutoCAD, and Photoshop.

What maintenance does the hybrid cutting head require?

Regular cleaning of the focus lens and reflective mirrors is essential for maintaining beam quality and cutting precision. Inspect the autofocus sensor and nozzle alignment before each metal cutting session. The water chiller coolant should be checked weekly and replaced with distilled water every three to six months. For detailed troubleshooting, refer to STYLECNC's laser cutter troubleshooting guide.

Can I use this hybrid laser for engraving as well as cutting?

Absolutely. The STJ1390M-2 supports both engraving and cutting modes with software-controlled laser output adjustable from 0% to 100%. The machine can engrave detailed graphics on wood, acrylic, leather, and other nonmetals at up to 4000 DPI scanning precision, then switch to cutting mode for through-cuts on the same or different material.

Is a hybrid CO2 laser cutter better than a dedicated fiber laser for a small shop?

For small shops processing both metal and nonmetal materials, a hybrid CO2 laser is typically the more cost-effective choice. Fiber lasers excel at thicker metal cutting but cannot process organic materials like wood, fabric, or acrylic. A hybrid machine like the STJ1390M-2 handles both categories in one footprint at a fraction of the price. Shops requiring cuts beyond 3mm metal should consider a dedicated sheet metal laser cutter for that specific workload.
