Color laser marking machine with MOPA fiber laser source is used to engrave white, black, grey and colors on metals of stainless steel, chromium, and titanium. Now the best MOPA laser marking system for sale at cost price.

Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
Color Laser Marking Machine with MOPA Fiber Laser Source
  • Brand - STYLECNC
  • Model - STJ-60FM
4.8 (86)
5000.00 / 6800.00 for Top-Notch
  • 320 Sets / Month Waiting for Sale In Stock
  • 2 Years Limited Warranty for Entire Machine
  • 1-2 Days Handling and 7-30 Days Shipping
  • Meet CE Standards in Terms of Quality & Safety
  • 30-Day Money Back Guarantee for Your Purchase
  • Online (PayPal) & Offline (T/T, Debit & Credit Cards)
  • Lifetime Free Technical Support for End-Users & Dealers

Color laser marking machine

What Is MOPA Laser Marking Machine?

MOPA laser marking machine is a fiber laser engraving system with main oscillation power amplification. MOPA refers to main oscillation power amplification. MOPA laser marking machine can easily black out alumina and aluminum alloy, and it can also be used on stainless steel and titanium. Color patterns are marked on metal materials such as chrome, chromium, etc., but it is difficult for other laser equipment to do this. MOPA laser marking machine adopts direct electric modulation semiconductor laser as the fiber laser of the seed source (MOPA) scheme, which has good laser characteristics and good pulse shape control ability.

MOPA laser marking machine outputs laser light from MOPA fiber laser with adjustable pulse width, and realizes marking function through high-speed scanning galvanometer system. With high-quality laser beam, low cost of use, 100,000 hours of maintenance-free, it is suitable for alumina blackening, stainless steel coloring, black plastic whitening, white plastic blackening and other fields. The laser pattern fonts are environmentally friendly and meet ROHS standards.

Compared with the common laser marking machine, the outstanding feature of MOPA laser marking machine is that the pulse width is adjustable and the frequency range is large. Generally, the pulse width of laser marking machine is fixed about 200ns, and the frequency is 1-600kHz. MOPA marking machine has an adjustable pulse width of 2-500ns and a frequency of 1-4000kHz. This equipment is designed with an integrated frame structure in the entire structure. It runs very stably during use, and there is no noise. The operator can also know the specific advantages when operating, so that it can be used more reasonably.

MOPA laser marking machine is suitable for mobile phone back cover, IPAD, aluminum blackening, mobile phone buttons, plastic transparent buttons, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tool accessories, knives, glasses and watches , Jewelry, auto parts, luggage buckles, cooking utensils, stainless steel products and many other industries.

How to Mark Colors on Metal with MOPA Laser?

MOPA laser marking machine can change the color of the surface layer of the material by adjusting the laser beam, so as to achieve the purpose of color marking. Under the action of the laser, the metal surface produces a laser thermal effect. Through the laser thermal effect, it is obtained that the laser energy density is proportional to the film thickness. As the laser energy increases, the color of the metal surface shows regular changes: yellow, red, blue, green until green gradually darkens. By controlling the laser energy density, the desired color can be produced on metal materials such as stainless steel, chromium, and titanium.

Features of Color Laser Marking Machine with MOPA Fiber Laser Source

1. JPT brand 60W MOPA fiber laser source, fiber laser service time is over 100,000 hours without maintenance.

2. Laser source with Air cooling, small size, low power consumption.

3. Motorized Z axis system, it is easy to mark and engrave different workpieces.

4. The machine has more higher photoelectric conversion efficiency. The efficiency of optic-electrical converting is up to 30%.

5. High speed galvo scanner to guarantee the stable beam and good performance.

6. Red light preview, make the marking visible before marking.

7. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc. It can realize automatic edition and correction of characters, signs, graphs, images, bar codes, 2D codes.

Technical Parameters of Color Laser Marking Machine with MOPA Fiber Laser Source

ModelSTJ-60FM
Laser SourceMOPA fiber laser
Laser Power60W
Laser Wavelength1064nm
Fiber Cable Length3m
Pulse Width

2-500ns

Repetition Frequency Range

1-4000kHz

M2<1.8
Max Single Pulse Energy1.5mJ
Output Power Stability<5%
Output Beam Diameter

7±0.5mm

Power Range0%-100%
Anti-Reflection ProtectionYes
Marking Range

110*110mm/175*175mm/200*200mm/300*300mm

Minimum Line Width0.01mm
Minimum Character0.1mm
Marking Speed≤7000mm/s
Marking DepthDepend on materials
Repeatability Accuracy±0.001mm
Marking FormatGraphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc.
Graphic format supportedAi, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif
Working Voltage220V±10%/50Hz or 110V±10%/60Hz or customized
Unit Power<0.5kw
Working EnvironmentClean and dust free or dust less
Working Condition Humidity5%-75%, 0-40 degree, free of condensed water
Laser lifetime>100000 hours
Net weight65 kgs
Packing Size770*480*780mm
Camera systemOptional
Auto Focus FunctionYes

Details of Color Laser Engraving Machine

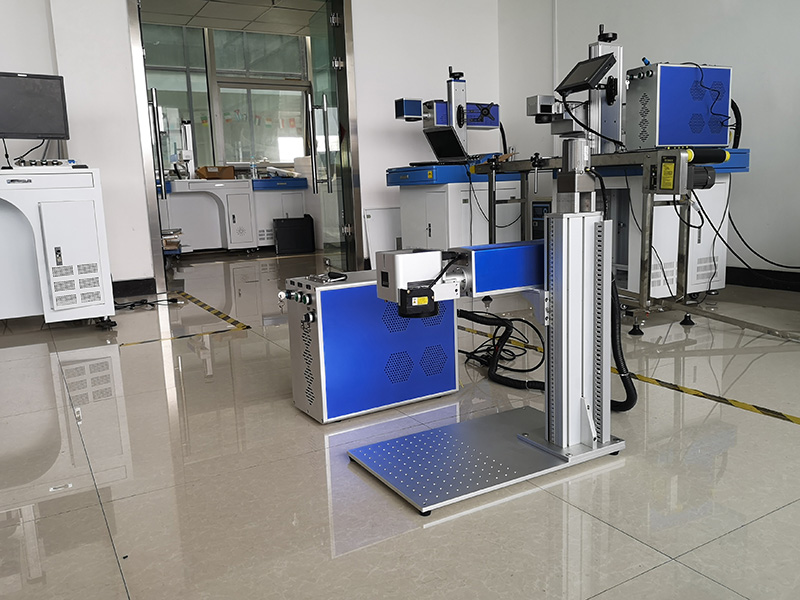

Color laser marking machine

MOPA Laser Marking Machine

Color laser engraving machine

MOPA laser engraving machine head

laser marking head

MOPA laser engraving machine field lens

laser marking machine field lense

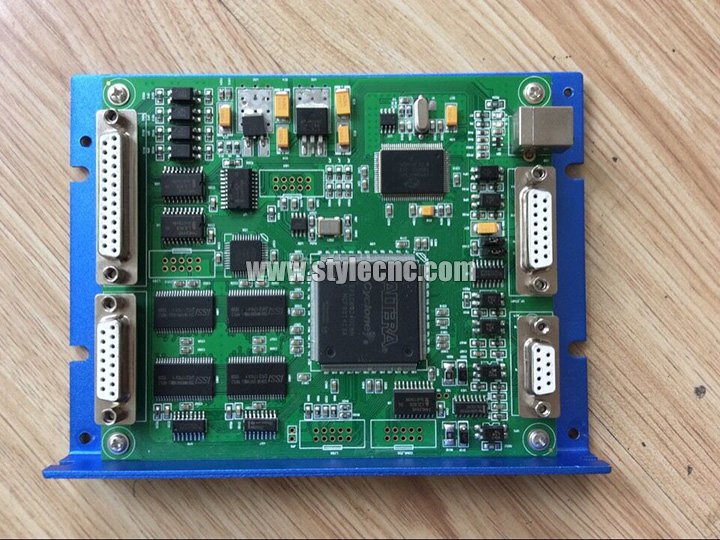

MOPA laser marking machine control card

JCZ control card

Applications of Color Laser Marking Machine with MOPA Fiber Laser Source

1. Aluminum sheet stripped surface: No deformation, fine marking.

2. Aluminum sheet black color marking.

3. Metal depth marking.

4. Stainless steel color marking: marking different colors by setting the parameters.

5. PCB, ABS, plastic without yellow color.

6. Light transmission paint keyboard: easy to make it pervious to light.

7. Electronic, semiconductor components, ITO precision machining: the pulse can be adjusted to get best facula, and make the power balance.

8. DIY custom metal credit cards with titanium, aluminum, stainless steel, gold, and silver.

MOPA Color Laser Marking Machine Projects

Color laser marking projects

Color laser marking machine applications

Color laser marking machine projects

Color laser marking machine applications

color fiber laser marking machine project

Fiber laser engraver for DIY custom metal credit cards

MOPA laser engraving projects
