STYLECNC® PTP all-rounder CNC working center

STYLECNC® PTP all-rounder CNC working center
  • STYLECNC® PTP all-rounder CNC working center
  • The First Picture of STYLECNC® PTP all-rounder CNC working center
  • The Second Picture of STYLECNC® PTP all-rounder CNC working center
  • The Third Picture of STYLECNC® PTP all-rounder CNC working center
  • The Fourth Picture of STYLECNC® PTP all-rounder CNC working center
  • The Fifth Picture of STYLECNC® PTP all-rounder CNC working center
Loading...

PTP all-rounder CNC working center

Inquiries:

482

Model: STM1224E Category: CNC working center
Brand: STYLECNC STYLECNC®
Rating:

4.4

 /5 based on 11 ratings and reviews
Price Range:

20000.00

to

$

50000.00

/ Set according to your configuration
The price will float according to the configurations of STYLECNC® PTP all-rounder CNC working center
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Port From: Qingdao, Shanghai, Tianjin, Beijing, Guangzhou Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Skype to usSend a request

STYLECNC® PTP all-rounder CNC working center is high automatic machinery, it is widely used for engraving, drilling,cutting,milling,chamfer.

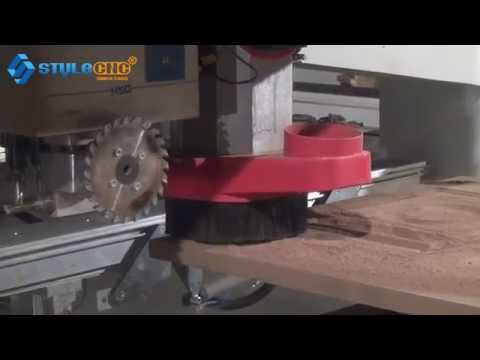

Video Show

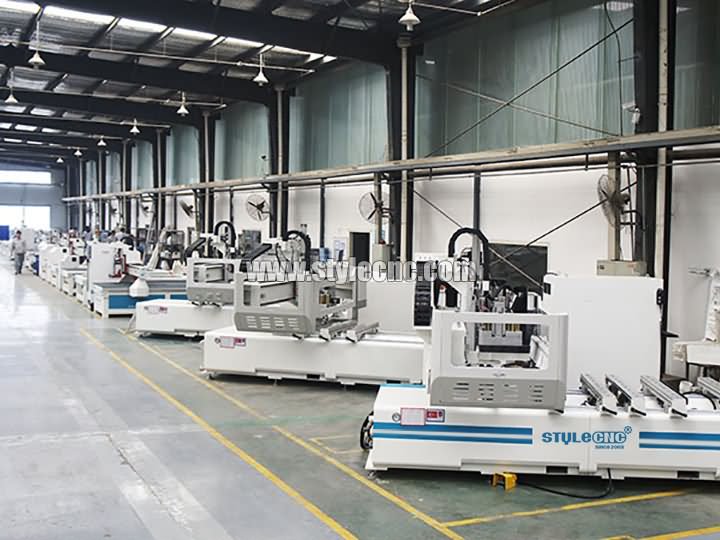

Product Show

PTP all-rounder CNC working center advantages:


1. Adjustable Vacuum Pump Suction Cups

2. Boring Unit &Saw Blade Unit optional

3. Intelligence OSAI or Syntec control system

4. Japan Yaskawa Servo motors

5. Strong heavy duty Mahine Body design

6. Smart Feet-Touch Sensor Switch

7. Disk Type 8PCS Auto Tool Changer SYSTEM.


Application materials:


Our PTP all-rounder CNC working center is high automatic Machinery. It is suitable for various complex processing of work pieces, widely used for engraving, drilling,cutting,milling,chamfer. MDF, wood, organic glass, PVC, double color board, laminboard, aluminium, copper,etc



Application Industries:


panel furniture industry,wood furniture,solid wood doors,decorative materials,cabinets doors,computer tables,mahjong table,office furniture,wooden sound box,kitchenware,etc. Also applied to non-metallic mold,automobile mold,foam processing industry.



PTP all-rounder CNC working center features:


1. Advanced components are equipped in this router,for example,European vaccum system,Japanese servo driving system and Italian spindles etc.


2. This machine has disk type ATC tool magazine,capacity is 8,tool change time is only 8 seconds,engraving spped: 20 meters per minute


3. Two guide ways,double sides driving structure.


4. Germon Movble vaccum blocks table. whole panel no need cutting before processing,save working time.


Taiwan Syntec control system

FAM boring unit

Vacuum tableCNC drilling

PTP all-rounder CNC working center rails



PTP all-rounder CNC working center technical parameters:



NO.DescriptionSTM1224STM1230
1X/Y/Z Axis Travelling size 3400*1640*250mm4660*1640*250mm
2Working size3060*1260*100mm4320*1260*100mm
3Working area3060*1200mm4320*1200mm
4TransmissionX/Y rack and pinion drive,Z ball screw drive
5Table structureMoveable gantry; suction cups
6Spindle Power9.0KW
7Spindle speed24000 r/min
8Travelling speed80m/min
9Working speed20m/min
10Tool magazineCarousel
11Tool slots8
12Drilling head14 vertical+6 horizontal+2 sawing units/9 vertical+6 horizontal+1 sawing units
13Driving systemYaskawa
14VoltageAC380/3Ph/50Hz
15Control systemOSAI or Syntec



PTP all-rounder CNC working center samples:


PTP all-rounder CNC working center samples for panel furniture

PTP all-rounder CNC working center samples for office furniture

PTP all-rounder CNC working center samples for wood doors

PTP all-rounder CNC working center samples for wood furniture
