Automatic Tool Changer CNC Machining Center for Woodworking

Automatic Tool Changer CNC Machining Center for Woodworking

Model: STM1325D
Views: 576
Brand: STYLECNC STYLECNC®
Rating: 4.9 /5 based on 54 ratings and reviews
Standard Price: $18800.00 / Set
Price Range: $18800.00 to $27000.00 / Set according to configuration
The price will float according to the configurations of Automatic Tool Changer CNC Machining Center for Woodworking
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba

Product Introduction

Buyer's Reviews

Automatic Tool Changer CNC machining center for woodworking is mainly applied in panel furniture, wood arts, wood crafts, plate processing, decorate industry and other popular woodworking.

Demonstration Video


Product Descriptions

CNC Machining Center

Features and advantages of CNC machining center for Woodworking:


1 .Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

2. Japanese YAKSAWA servo motor makes machine stable running with low noise, high speed and high accuracy.

3. Italy Hitech automatic tool changer spindle makes machine with high precision , long service time and stable movement.

4. Configured with disc tool magazine of 10 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.

5. Auto tool sensor enables the machine compensate the tolerance of the tool length.

6. Strong power suction Vacuum pump Yongdun free-oil pump.

7. Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display,can alter the parameters and automatically change the tool .

8. Strong dust collector ensures site cleanliness during the machine operation.

9. Automatic lubricating system, one touch can finish periodic maintenance easily.


Applications of Automatic Tool Changer CNC Machining Center for Woodworking:


1.Panel Furniture: including kitchen cabinets, closets, entertainment centers and also mdf doors.

2. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.

3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

4.Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.


Technical parameters of Automatic Tool Changer CNC Machining Center for Woodworking:


Model

STM1325D

Working Area

1300x2500x200mm

Table Size

1450x2940mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Reposition Accuracy

±0.03mm

Table Surface

Vacuum table with vacuum pump

Frame

Welded Structure

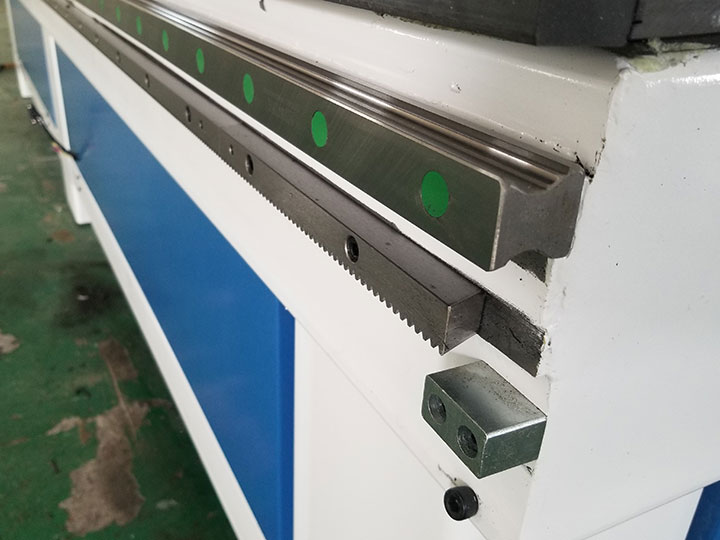

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption

(Without Spindle) 3.0Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

9.0kw

Spindle Speed

0-24000RPM

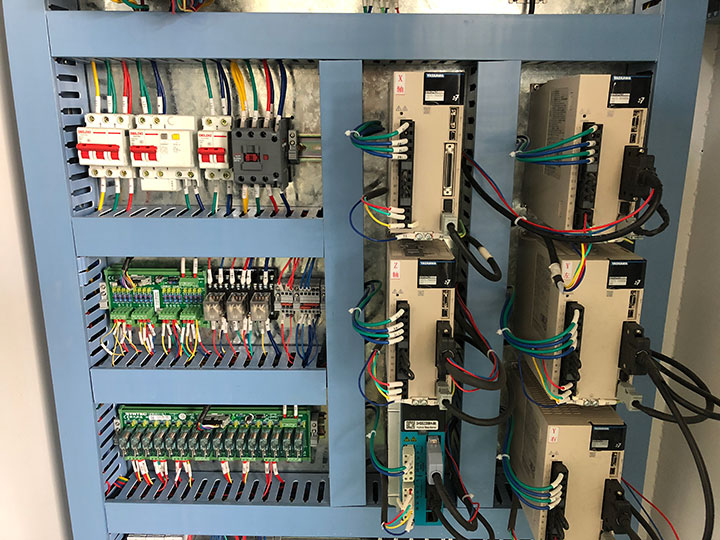

Drive Motors

Yaskawa servo System

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

Command Language

G Code

Operating System

Taiwan Syntec control system

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X,Y Resolution

<0.03mm

Software Compatibility

Type3/UcancameV9 Software(Option: Artcam Software)

Running Environment Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Packing Size

3300X2100X2300mm

N.W.

1800KG

G.W.

2280KG


Details of Automatic Tool Changer CNC Machining Center for Woodworking:


CNC Machining Center

Automatic Tool Changer CNC Router

Hitech spindle of Automatic Tool Changer CNC Machining Center

Automatic Tool Changer CNC Machining Center

Pricision calibrator of CNC Machining Center


Projects of Automatic Tool Changer CNC Machining Center for Woodworking:

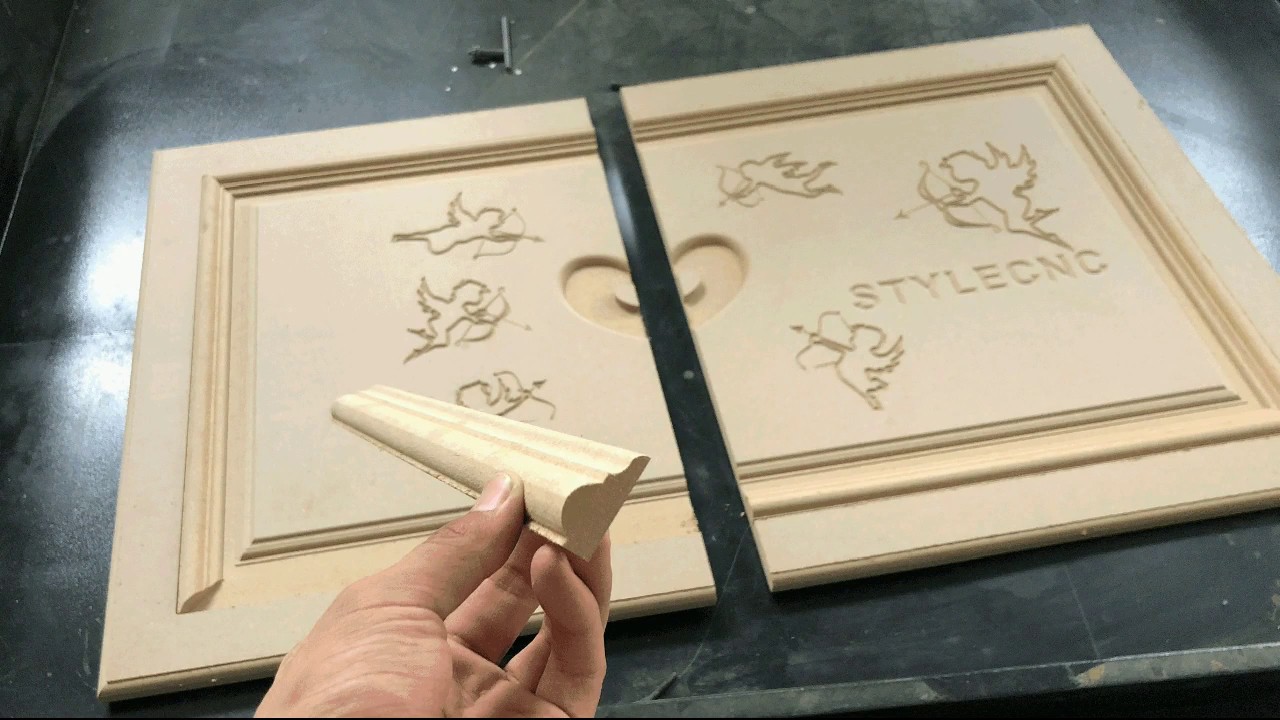

Wood Arts&Crafts Projects by Automatic Tool Changer CNC Machining Center

CNC Machining Center for Woodworking Projects
