STYLECNC® Single arm PTP CNC working center

STYLECNC® Single arm PTP CNC working center
  • STYLECNC® Single arm PTP CNC working center
  • The First Picture of STYLECNC® Single arm PTP CNC working center
  • The Second Picture of STYLECNC® Single arm PTP CNC working center
  • The Third Picture of STYLECNC® Single arm PTP CNC working center
  • The Fourth Picture of STYLECNC® Single arm PTP CNC working center
Loading...

Single arm PTP CNC working center

Inquiries:

645

Model: STM1330E Category: CNC working center
Brand: STYLECNC STYLECNC®
Rating:

4.8

 /5 based on 43 ratings and reviews
Standard Price:

$

25000.00

/ Set
Price Range:

$

25000.00

to

$

55000.00

/ Set according to configuration
The price will float according to the configurations of STYLECNC® Single arm PTP CNC working center
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Send a request

Single arm PTP CNC working center is suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, table.

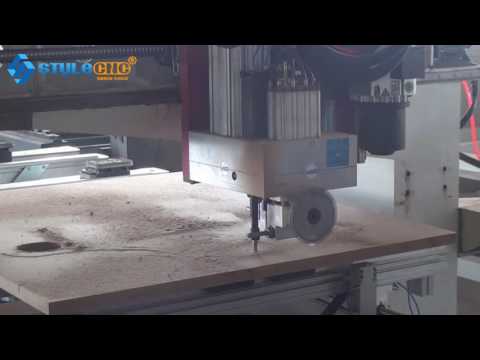

Video Show

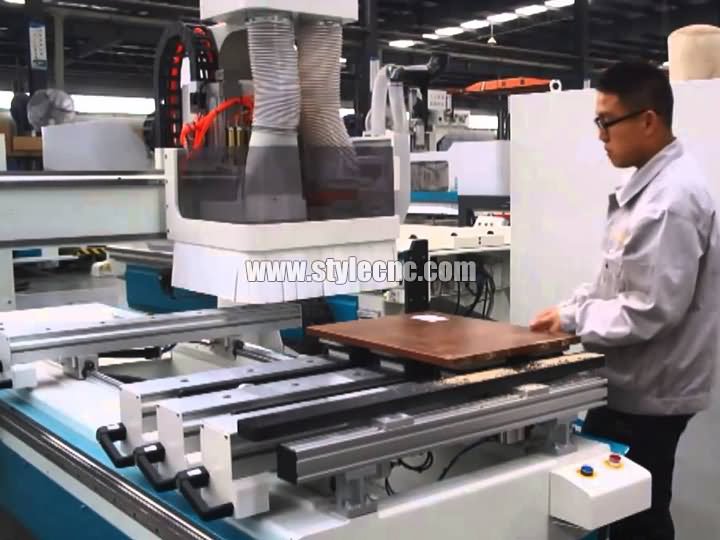

Product Show

Single arm PTP CNC working center applications:


Single arm PTP CNC working center is suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, table,etc.


The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs.

Wood products: speakers, game cabinets, computer tables, sewing Machines, musical instruments.

Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting engrave wash.


Single arm PTP CNC working center features:


1. Adopt Italy HSD Boring Head, it has vertical boring head+horizontal boring head+saws. So it is appropriate for side working, like side drilling, slotting, milling,etc .


2. Single arm type, it is more convenient for you to loading material.


3. Double working position design. One side is machining, the other side is up-down loading, improving the efficiency and capacity greatly .


4. Fixed type Pneumatic cylinder be used for correct the carved wood’s location,and can also fixed carved wood as clamp through pneumatic type.And working table material adopt compact grade,these advantages are wearable,pressure-proof,never deformed.and profession designed vacuum groove can suction material instant and can afford heavy duty cutting.

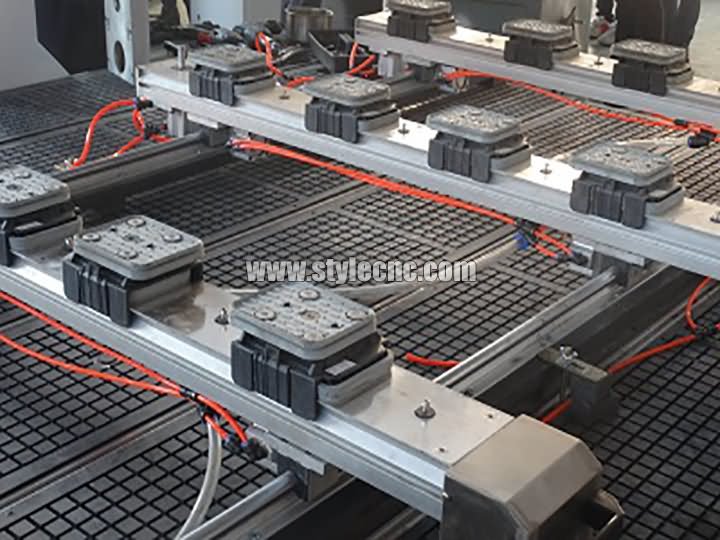

5. Point to point working table is designed for improving working efficiency. Point to point working table is equipped with machine, this working table with aluminum alloy bars and suction cups. Move flexible, lock automatically according to the size of your material.


Single arm PTP CNC working center advantages:


1. Adjustable Vacuum Pump Suction Cups


2. Boring Unit &Saw Blade Unit optional


3. Intelligence OSAI or Syntec control system


4. Japan Yaskawa Servo motors


5. Strong heavy duty Mahine Body design


6. Smart Feet-Touch Sensor Switch


7. Disk Type 8PCS Auto Tool Changer SYSTEM.




Single arm PTP CNC working center body

FAM boring unit of Single arm PTP CNC working center

Single arm PTP CNC working center details

Automatic tool changer with 8 pcs


Single arm PTP CNC working center technical parameters:


No.

Description

Parameter

1

X,Y,Z Working Area

1220x3000x350mm

2

Table Size

1300×3400mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z repositioning Accuracy

±0.01mm

5

Table Surface

Vacuum pad clamping, moving beam

6

Frame

Welded structure

7

Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

X, Z Structure

THK Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without spindle)  4.5Kw

10

Max. Rapid Travel Rate

80000mm/min

11

Max. Working Speed

25000mm/min

12

Spindle Power

9.0KW

13

Spindle Speed

0-24000RPM

14

Drive Motors

Yaskawa servo system

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G code

17

Operating System

Syntec control System(Osai)

18

Computer Interface

Ethernet

19

Flash Memory

256 M(with CF card)

20

Collet

ER25

21

X,Y Resolution

<0.01mm

22

Software Compatibility

Type3/UcancameV9 software, (Option: Artcam software)

23

Running Environment  Temperature

0 - 45 centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

2300X4800X1900mm

26

N.W.

2850KG

27

G.W.

3500KG

28

Guarantee

One year from the date of commission

29

Optional Parts

Air cooling spindle or Water cooling spindle

Dust collector

Rotary system

Mist-cooling system

Panasonic Servo motors/Delta servo motors


Single arm PTP CNC working center samples:


Single arm PTP CNC working center samples


Single arm all-rounder CNC working center samples for office furniture

Single arm all-rounder CNC working center samples for computer tables

Single arm all-rounder CNC working center samples for wood doors
