Mini 5 Axis CNC Milling Machine for 3D Modeling & Cutting
Product Introduction
Customer Reviews & TestimonialsMini 5 axis CNC milling machine with double tables is designed for 3D cutting, 3D mold making, and 3D modeling, such as wood mold making, foam mold making, automotive models, metal mold making, building models. Now the small 5 axis CNC milling machine for sale at affordable price.

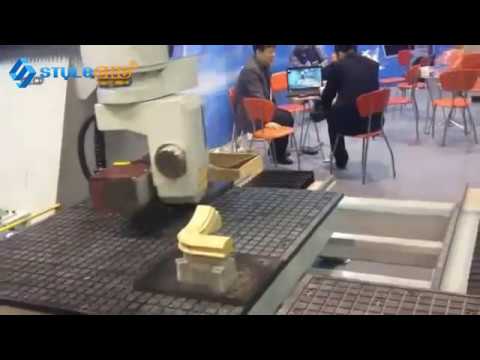

Demonstration Video
Product Details
Features of Mini 5 Axis CNC Milling Machine for 3D Modeling
1. Mini 5 axis CNC machine with double table, when finish one work, it can automatic transfer to work on another table, so that the operator can handle the workpiece, greatly improve the work efficiency.
2. Small 5 axis CNC machine adopts 7KW Italian HSD spindle, 10KW is for option.
3. Taiwan Syntec control system is equipped, powerful and easy to operate, high precision.
4. Special heavy duty welded steel frame and gantry for maximum straightness and rigidity.
5. THK made in Japan lubricated for life linear rails and guide blocks.
6. High quality ball screw on x axis ensures processing accuracy.
7. Yaskawa servo drivers and motors with high power and speed.
8. T-Slot clamping table,the vacuum table with becker vacuum pump for vacuum clamping fixtures optional.
9. Oil mist cooling system for cutting non-ferrous metals (optional).
10. 8pcs carousel automatic tool change system.
Mini 5 Axis CNC Milling Machine Technical Parameters
| Model | STM1212E2-5A |
| Movement type | Movable table |
| X working area(MM) | 1220 |
| Y working area(MM) | 1220 |
| Z working area(MM) | 500 |
| C travelling | ±220° |
| A travelling | /+100°/- 40° |
| Supplier for Double pendulum head | HSD |
| Output power of Spindle | 7KW |
| Spindle speed | 18000rpm |
| Servo system | YASKAWA |
| Invertor | Delta |
| Ball screw | Taiwan TBI |
| Table size | Two sets 1230*1220 mm |
| Table material | Aluminum covered with PVC |
| Material fixed Type | T-slot (Vacuum table for choose) |
| Tool magazine | 8 positions rotary |
| Cutter specifications | HSK.F63 |
| Control system | Taiwan Syntec |
| Software Option ( not included) | AlphaCAM |
| Software version | V7 |
| Overal dimension (mm) | 4100*4600*2600 mm |
| Total weight | 3900 kg |
| Total power | 18 KW |
| Working voltage | AC3P 380V 50HZ |
| Voltage regulator | Necessary |
| Equipment data storage and capacity | Cable transmission/ USB |
| Max travelling speed X axis: | 40m/min |
| Max travelling speed Y axis: | 40m/min |
| Max travelling speed Z axis: | 20m/min |
Small 5 Axis CNC Milling Machine Applications
Small 5 axis CNC milling machine is used for mold making, profiling, solid surface machining and contouring, large metalloid mould, especially suitable for automotive foam mold, boat model, building model, rail model, train model.
Small 5 Axis CNC Milling Machine for 3D Mold Making Projects
FAQs of Mini 5 Axis CNC Milling Machine for 3D Modeling
Q1: Does the mini 5 axis milling machine include the software?
Yes, we use the professional SYNTEC or OSAI software for our 5 axis milling machine, and we have the user manual and software CD in the package.
Q2: Can I get training for installing the machine & operating the CNC machine?
Yes sure, you can get free training in our factory and we also can send our technicians to your factory to tech you how to install and operate it.
Q3: How long is the delivery time?
For 5 axis milling machine, it need 45-60 days. For standard 3 axis CNC router, 10 days is enough.
Q4: What is the payment term?
When you pay the 30% deposit, then we will start to make production. When the machine is ready, we will take pictures to you, and then you can pay the balance. After we get your full payment. We will delivery the machine to your port.
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
-
