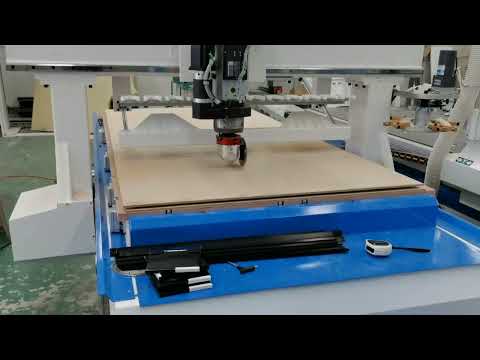

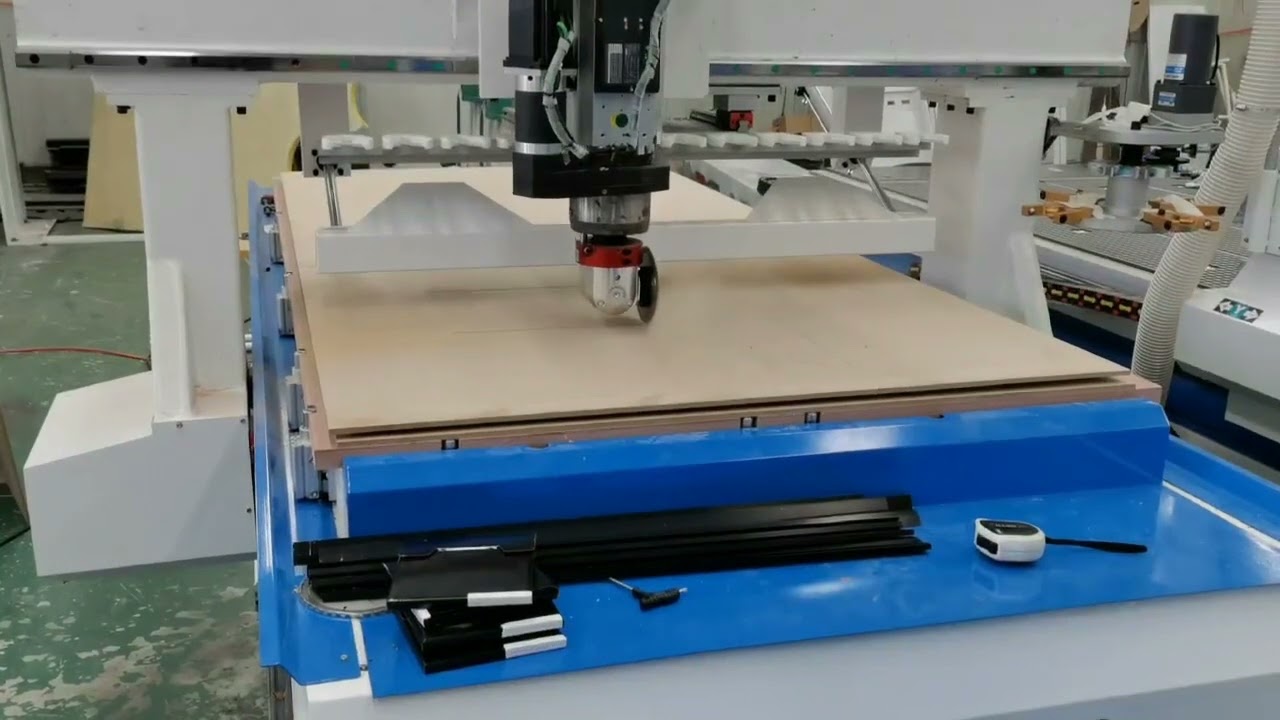

PTP CNC router machine is suitable for routing, drilling, cutting and milling panel furniture, wood crafts, solid wood furniture, doors, and cabinets.
STM1330C PTP CNC router advantages:
Function: It is suitable for processing diversification and complex products, entire function: routing, pneumatic drill, cutting, side milling, side drilling, side cutting, etc. It can accomplish double station four areas processing, one station is machining, the other is up-down loading, improving the efficiency and capacity greatly.
Construction: The whole machine table adopts high strength thick steel pipe welded. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
Spare parts: Features world top class mechanical and electronic components, e.g. German rack and pinion, Taiwan rail and ball screw, Taiwan reducer, French Schneider electrical components, which guarantee stable performance and high quality.
Precision: Excellent spare parts, accurate precision detection instrument, which make sure the machine with perfect location and working precision.
High-speed: Adopt reducer direct design, high torque, high energy, X axis dual motor drive, runs smoothly with high efficiency.
Table: Vacuum workable fitted with aluminum alloy bars and suction cups can be set flexibly according to the size of wokpiece, and convenient to unload workpiece.
Tool magazine: With one 8-slots Carousel tool changer, tool changes to be performed quickly.
STM1330C PTP CNC router machine features:
1. Adjustable Vacuum Pump Suction Cups.
2. Boring Unit & Saw Blade Unit optional.
3. Intelligence OSAI or Syntec control system.
4. Japan Yaskawa Servo motors.
5. Strong heavy duty Mahine Body design.
6. Smart Feet-Touch Sensor Switch.
7. Disk Type 8pcs Auto Tool Changer SYSTEM.
8. Adopt Italy HSD Boring Head, it has vertical boring head+horizontal boring head+saws. So it is appropriate for side working, like side drilling, slotting, milling, etc .
9. Single arm type, it is more convenient for you to loading material.
10. Double working position design. One side is machining, the other side is up-down loading, improving the efficiency and capacity greatly .
11. Fixed type Pneumatic cylinder be used for correct the carved wood’s location,and can also fixed carved wood as clamp through pneumatic type. And working table material adopt compact grade, these advantages are wearable,pressure-proof, never deformed. And profession designed vacuum groove can suction material instant and can afford heavy duty cutting.
12. Point to Point working table is designed for improving working efficiency. Point to point working table is equipped with machine, this working table with aluminum alloy bars and suction cups. Move flexible, lock automatically according to the size of your material.

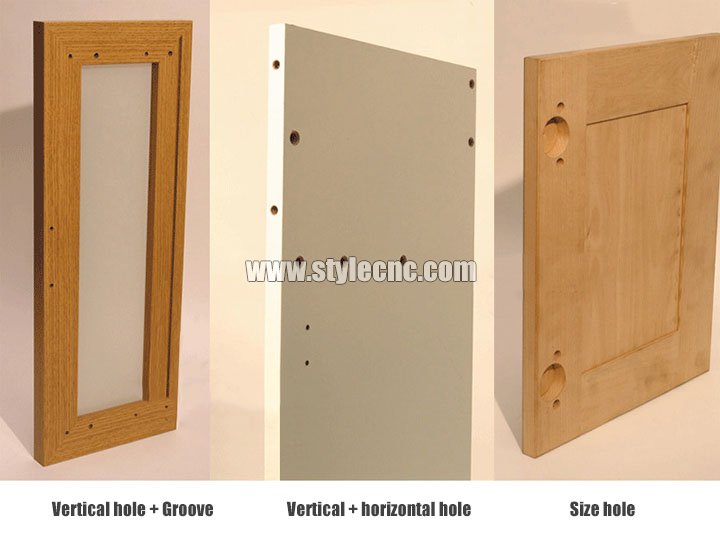

Drilling Group:
1. 11pcs vertical driller.
2. 3+3pcs horizontal driller for X axis.
3. 2+2pcs horizontal driller for Y axis processing.
which can realize drilling in multiple directions with grooving, vertical drilling, horizontal drilling, and other functions, rapidly and accuracy.
Work Table:
Activity type operation table and sucker device; Divided into six groups, each group with two vacuum suction cup, effectively to ensure uniform adsorption force, and equipped with two positioning cylinder before and after for the easy positioning, simple and flexible operation.
Spindle:
1. 9KW HSD air-cooling spindle(Italy).
2. Equipped with auomatic lubracation, it don't need to add oil external; Strong torque, high efficient processing speed, suitable for technical cutting, milling and other heavy processing technology, ensure edge neatly without a ripple.
Driving System:
1. Yaskawa servo motor and driver(Japan).
2. With imported precision bearing, large torque, long working hours.
Three axis driven by Japan Yaskawa servo driver, high resolution and positioning accuracy.
Taiwan Delta frequency converter:
STM1330C PTP CNC router machine technical parameters:
Model | STM1330C |
X,Y,Z Working Area | 1300x3100x300mm |
Table Size | 1300×3000mm |
X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
X,Y,Z repositioning Accuracy | ±0.01mm |
Table Surface | Vacuum pad clamping, moving beam |
Frame | Welded structure |
Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
X, Z Structure | THK Rail Linear Bearings and Ball Screw |
Max. Power Consumption | (Without spindle) 4.5Kw |
Max. Rapid Travel Rate | 80000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 9.0KW |
Spindle Speed | 0-24000RPM |
Drive Motors | Yaskawa servo system |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language | G code |
Operating System | Syntec control System(Osai) |
Computer Interface | Ethernet |
Flash Memory | 256 M(with CF card) |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 software, (Option: Artcam software) |
Running Environment Temperature | 0 - 45 centigrade |
Relative Humidity | 30% - 75% |
Packing Size | 2300X4800X1900mm |
N.W. | 2850KG |
G.W. | 3500KG |
Guarantee | One year from the date of commission |
Optional Parts | Air cooling spindle or Water cooling spindle |
Dust collector | |
Rotary system | |
Mist-cooling system | |
Delta servo motors |
STM1330C PTP CNC router machine appliations:
Woodworking Industry: Ideally suitable for panel furniture,furniture decoration, musical instruments, wooden crafts, solid wood furniture,MDF paint-free door, wood composite door,cabinet, kitchen doors, windows, night table, etc.
Decoration industry: Art model, Wall Art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate,electrical cabinets panels, sports equipment, and other wooden industrial products.
Advertisement: Acrylic, double color plate, PVC, ABS board,aluminum plate, density board, artificial stone, organic glass, soft metals like aluminum and copper, cut matrix, character, signs, trademark, etc.
I bought this point to point CNC router for my furniture production, it works well with a nesting CNC machine up to now, thanks for all.
