Multi-Head 4 Axis CNC Wood Carving Machine with Four 4th Rotary Axis

Brand: STYLECNC
Model: STM1325-4R
Type: CNC Wood Router
Rating:  4.9 /5 Based On 37 Votes
Sale Price: $8800.00 / Set
Price Range: $8800.00 to $12800.00 / Set Based On The Features
Supply Ability: 360 Sets / Month Waiting for Your Order in Stock
Global Shipping: Available to Your Location in
Payment Terms: T/T, Credit Cards, e-Checking, Alibaba Trade Assurance

Table of Contents

Product Introduction

Customer Reviews & Testimonials

Multi-head 4 axis CNC wood engraving machine with four 4th rotary axis is designed for popular custom 2D/3D woodworking projects with router bits compared with laser wood engraving machine with laser beam.

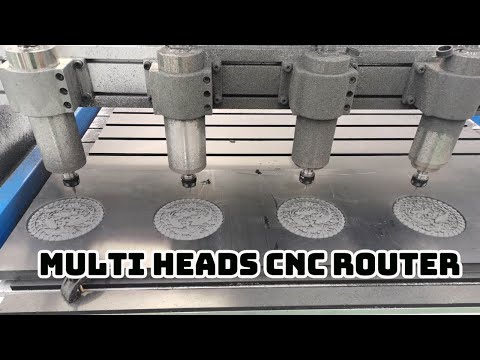

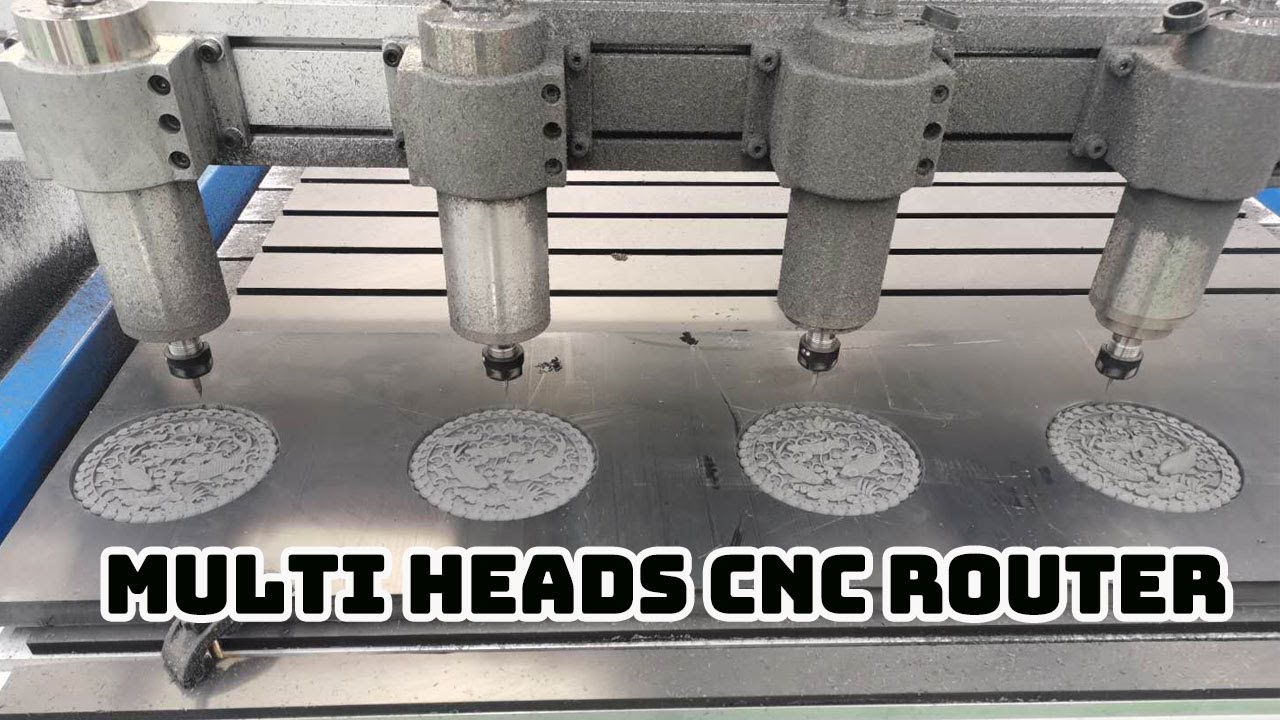

Demonstration Video

Multi-Head 4th Axis Rotary CNC Wood Engraving Machine

Product Details

Multi-Head 4 Axis CNC Wood Engraving Machine with Four 4th Rotary Axis

Multi-Head CNC Wood Engraving Machine Features


1. 4th axis CNC wood router with four rotary axes and four spindles, which can work at the same time or independently, and every one's max effective working area is 300mm (diameter) by 1600mm (length).

2. The whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

3. It can not only do rotary engraving but also flat engraving. It can engrave several materials at one time, which greatly increasing the working efficiency.

4. Taiwan TBI dual screw-nut anti-gap ballcsrew with high accuracy and long life.

5. Equipped with high speed spindle motor, low noise and high performance division drive.

6. Adopted with advanced controlled system, with simple operating software, its easy to learn.

7. Powerful compatibility for most of software such as: Type3, Artcam, Proe, Wentai, CAD/CAM.

8. Humanized design, convenient for removing and installing

9. XYZ axis use anti-dust system, prevent dust during working, make sure the long life span of square parts.

10. 4th axis rotary CNC router with four heads has the function of re-carving after break point and power failure.

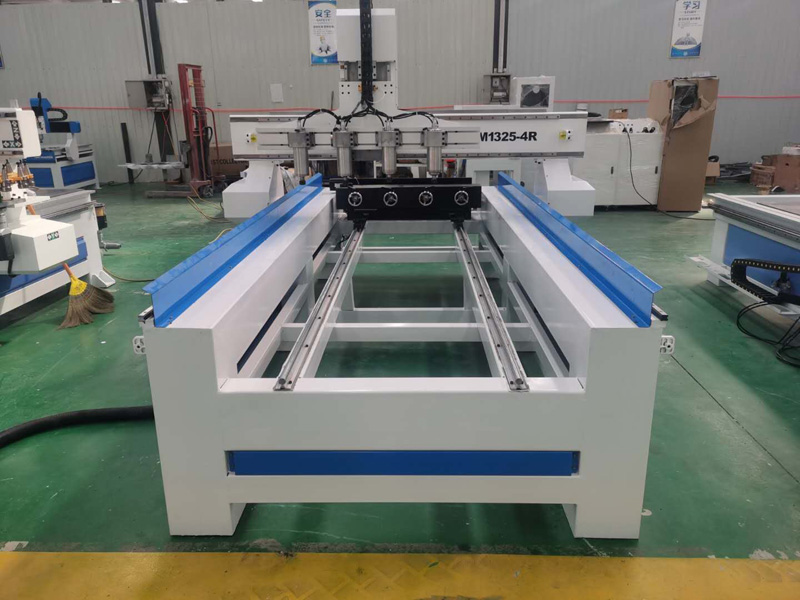

Multi-Head 4 Axis CNC Wood Router Machine with Four 4th Rotary Axis

Multi-Head 4 Axis CNC Router Machine with Four 4th Rotary Axis

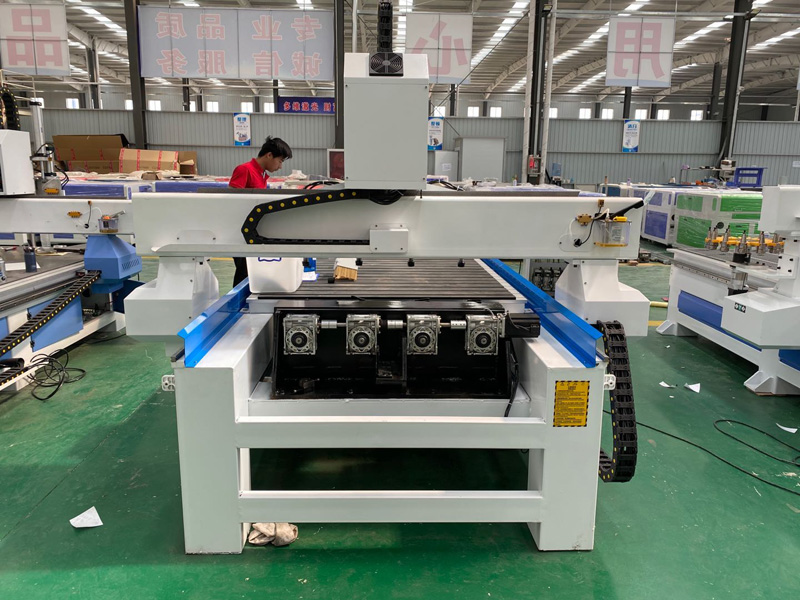

Four Rotary Axis for STM1325-4R

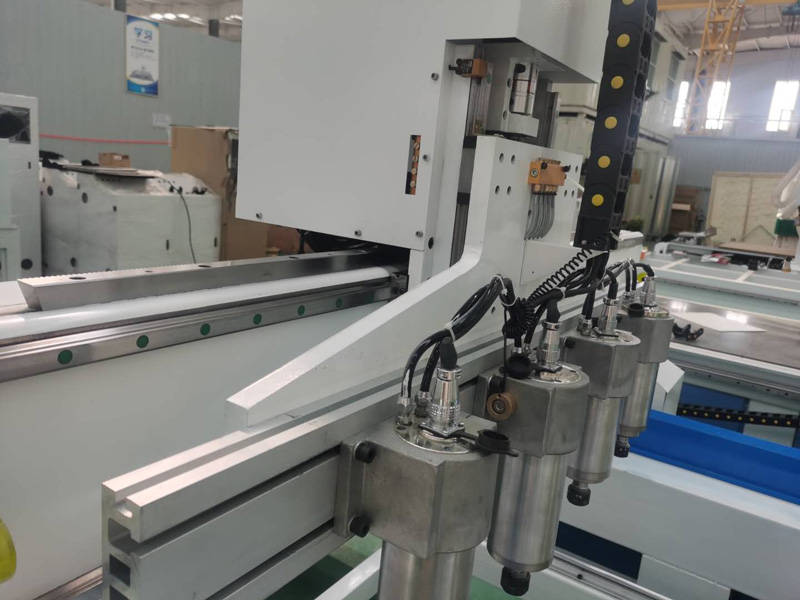

Four Spindles for STM1325-4R

4 Axis CNC Wood Engraving Machine Control Box


Multi-Spindle 4 Axis CNC Wood Engraving Machine Technical Parameters



Model

STM1325-4R

X,Y,Z Working Area

1300x2500x200mm

X,Y,Z Reposition Accuracy

±0.03mm

Table Surface

T-slot Table

Frame

Welded Structure

Driving system

Helical Rack and Pinion Drive

Guide way

Taiwan Hiwin square rails

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

2.2kw water-cooling spindle

Spindle Speed

0-24000rpm

Drive Motors

Stepper System

Working Voltage

220V,single phase or 380V,3 phase

Command Language

G Code

Operating System

RichAuto DSP control system

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER20

Software Compatibility

Artcam Software and JDpaint software or other CAD software

N/G weight

1000/1100kg

Package dimension

3300*2150*1800mm



Multi-Head 4 Axis CNC Wood Engraving Machine Applications


This machine is mainly used for 2D woodworking, relief carving, hollowing, and some 3D woodworking projects, such as Roman columns, stair handrails, chair legs, and more cylindrical projects.


Woodworking: 3D wave board processing, furniture like solid wood door, kitchen cabinets, wardrobe cabinets, tables, beds, computer desk and cylinders like table legs, sofa legs, wooden craft, paint door, screen, craft fan window processing, shoe polisher, game cabinets and panel, mahjong table, auxiliary processing.

Advertising: Advertising sign, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative product.

Mold Making: Engraving wood, foam, EPS, copper, aluminum mold, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.

Other Industries: A variety of large-scale relief sculpture, shadow carving, widely used in the craft making industry.


Multi-Spindle 4 Axis CNC Wood Engraving Machine for Custom Woodworking Projects


4 Axis CNC Engraving Projects

4 Axis CNC Router for 3D Woodworking Projects

4th Axis CNC Router for Woodworking Projects

4 Axis CNC Wood Engraving Machine for Custom Woodworking Projects

4 axis CNC router
A real 4 axis CNC router with ATC system STM1325-4 axis


International Shipping Around the World


All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
