2022 best 4 axis CNC router machine is designed for 3D curved surface carving, 4 axis is refer to X-Y-Z-A, X-Y-Z-B or X-Y-Z-C, 4 axis are linked, the four axis can work at the same time. Now the affordable 4 axis CNC router for sale at cost price.
4 axis CNC router is also called as 4 axis CNC machine, 4 axis CNC router machine, 4 axis router, 4 axis machine. A 4 axis CNC router is also equipped with X, Y and Z axis, 4 axis is refer to X-Y-Z-A, X-Y-Z-B or X-Y-Z-C, 4 axis are linked, the four axis can work at the same time. 4 axis CNC router machine will make working possible on both sides, which is not on 3 axis CNC router. Someone may call a 4th axis CNC router as a 4 axis CNC router. Actually, a 3 axis CNC router is equipped with a rotary axis, also called A axis, that is a 4th axis CNC router or rotary axis CNC router, not a real 4 axis CNC router.
4 Axis CNC Router Features and Advantages
1. The 4 axis CNC machine is especially designed for processing on different 3D curved surface carving.

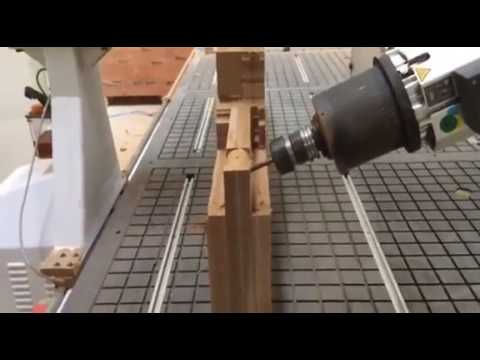

2. The HSD ATC spindle (B axis) can rotate ±90 degree, which is suitable for side milling, drilling, cutting, lock slot and so on.
3. The machine’s body is strong, high-precision, reliable and durable.
4. Imported high-precision ball screw, which moving smoothly, to ensure the machine's high precision.
5. Well-known Colombo automatic tool changer spindle, strong cutting ability, low noise, to ensure the machine working for long time.
6. High-performance driven motor to ensure the machine’s high speed and accuracy.
7. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
8. Auto lubrication system and separated control system, easy to operate.
9. Perfect design, top quality accessories, to minimize the machine's failure rate.
10. A 4 axis CNC machine machine can do all a 3 axis CNC machine can do.
4 Axis CNC Router Technical Parameters
|Traveling Positioning Accuracy||±0.03/300mm|
|Table Surface||Vacuum and T-slot Combined (Option: T-slot Table)|
|Frame||Big Steel Tube Structure|
|X, Y Structure||Rack and Pinion Drive,Hiwin Rail Linear Bearings|
|Z Structure||Hiwin Rail Linear Bearings and Ball Screw|
|Max. Power Consumption||(Without Spindle) 4.5Kw|
|Max. Rapid Travel Rate||40000mm/min|
|Max. Working Speed||30000mm/min|
|Drive Motors||850W Yaskawa Motors(Option: Siemens servo motors)|
|Command Language||G Code|
|Operating System||Syntec Control System(Option:Siemens controller)|
|Software Compatibility||Type3/UcancameV9 software (Option: Artcam software)|
|Running Environment Temperature||0 - 45 Centigrade|
|Relative Humidity||30% - 75%|
|Optional Parts||Dust Collector/ Dust Hoods for three Axis|
|Delta/ Panasonic Servo Motors|
|Price Range||$22,800.00 - $38,000.00|
4 Axis CNC Router Machine Details
4 Axis CNC Router Machine Option Items
1. Bigger size like 1500*3000mm, 2000*3000mm,etc.
2. Rotary Device for processing column materials.
3. Dust collector.
4. Mist spray cooling system.
4 Axis CNC Router Machine Applications
1. Wood doors
|Panel Processing Industry|
4 Axis CNC Router Machine Projects
4 Axis CNC Machine Extra Services
1. OEM Service is acceptable
2. 4 axis CNC machine body design and color can be customize.
3. 4 axis CNC machine specifications can be changed according to customer requirements
Other Informations for 4 Axis CNC Machine
1. Warranty: 1 year warranty for the whole 4 axis machine.
2. Packing: Plywood case with strong Iron steel pallet.
3. Delivery: By sea with LCL OR FCL.
4. Payment Method: by bank transfer or LC.
5. Payment Terms: 30% deposit before production, pay off 70% balance before shipment.
6. Training: Offer technician on-site training and installation/Life-time technical support is for free.
We also have 4th axis CNC routers for option
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
