4 Axis CNC Wood Router with ATC System for Sale

4 Axis CNC Wood Router with Automatic Tool Changer System for Sale

Model: STM1325D-4A
Category: CNC Wood Router
Views: 3633
Brand: STYLECNC
Rating:
 4.7 /5 based on 29 ratings and reviews
Standard Price: $22800.00 / Set
Price Range: $22800.00 to $35000.00 / Set according to configuration
The final price will fluctuate according to the configurations of 4 Axis CNC Wood Router with ATC System for Sale
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba

Product Introduction

Buyer's Reviews

4 axis CNC wood router with ATC system is used for side slot milling, drilling, cutting and keyhole, the 4 axis CNC router adopts 9KW HSD automatic tool changer spindle with 8 position rotary carousel tool holder, which is suitable for processing on different surface.

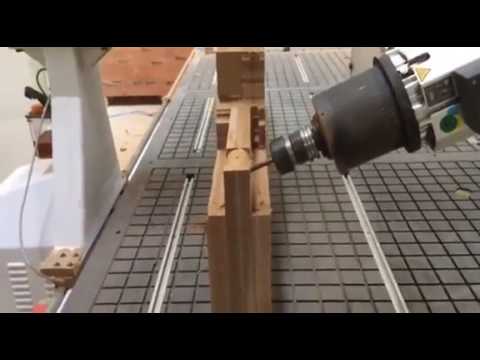

Demonstration Video


Product Descriptions

4 axis CNC wood router

Advantages of 4 Axis CNC Wood Router:


1. Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.

2. Top-quality components, HSD 4 axis ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on. Long-time working time, high precision and efficiency.

3. Carrousel Tool Magazine system with 8 forks and tool holders , which is loaded with the spindle, make the 4 axis wood CNC machine change tools quickly and save time.

4. Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.


Features of 4 Axis CNC Wood Router:


1. HSD spindle: original famous brand from Italian, you also can choose Hitech spindle and Chinese HQD spindle.

2. SYNTEC control system: from Taiwan with high performance and competitive price.

3. Yaskawa servo motor and drives: from Japan with high precision and long life.

4. HIWIN linear guide: from Taiwan, it is used for linear reciprocating stadium.

5. Working area: 1300*2500*400mm, C Rotary Axis: 180 degree.

6. Whole welded steel structure thicken to 10mm.

7. Drive System: X, Y-Rack Z-Ball Screw, Z with high precision ball screw.

8. Automatic lubrication: To lubricate rail and slide block , make it run better.

9. Schneider electrical components: original brand from France.

10. Japanese Omron Switch with long life.

11. Shimpo Reudcer from Japan: More powerful and higher precision.

12. Vacuum & T-Slot table with Aluminum sheel: Use vacuum pump and clamp fixed materials.


HSD Spindle for 4 axis CNC wood router

Automatic Tool Changer for 4 axis CNC wood router

Syntec Control System for 4 axis CNC wood router

ER32 for 4 axis CNC wood router

HIWIN linear guide

4 axis CNC wood router auto lubrication

4 axis ATC cnc wood router parts


Technical Parameters of 4 Axis CNC Wood Router:


ModelSTM1325D-4A
Working Area1300x2500x400mm*180 degree
Table Size1450×2940mm
Traveling Positioning Accuracy±0.03/300mm
Repositioning Accuracy±0.03mm
Table SurfaceVacuum and T-slot Combined (Option: T-slot table)
FrameWelded structure
X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
Z StructureHiwin Rail Linear Bearings and Ball Screw
Max. Power Consumption(Without Spindle) 5.5kw
Max. Rapid Travel Rate45000mm/min
Max. Working Speed30000mm/min
Spindle Power9.0KW
Spindle Speed0-24000RPM
Drive MotorsYaskawa servo
Working VoltageAC 380V/50/60Hz,3PH
Command LanguageG Code
Operating SystemSyntec Control System
Computer InterfaceEnthernet, CF Card
Flash Memory512M
ColletER32
X,Y Resolution<0.03mm
Software CompatibilityType3/UcancameV9 software (Option: Artcam software)
Running Environment Temperature0 - 45 Centigrade
Relative Humidity30% - 75%
Packing Size3950x2250x2200mm
N.W.2100KG
G.W.2400KG


Applications of 4 Axis Wood CNC Router:


1. Mould: wood, wax, wood, gypsum, foams, wax.

2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.

4. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.


4 Axis CNC Wood Router Projects:


4 Axis CNC Router Projects

4 axis ATC cnc wood router

4 axis ATC cnc wood router samples


Package of 4 Axis Wood CNC Machine:


4 axis ATC cnc wood router package


STYLECNC SERVICE for 4 Axis CNC Machine:


1. Warranty time: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.

Exceed warranty period: if the machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

2. After buy the item, we will send you friendly user manual and the videos about installation,operation and maintanance for the 4 axis wood cnc machine step by step.

3. Our technician can give you remote guide online (Teamviewer/Skype//Whatsapp/Tel) if you have any question.

4. 24 hours technician professional and timely after-sale service online or by email or calling

5. If you need,we will arrange technicians go abroad to install or maintenance the 4 axis cnc machines.

6. Free training course in our factory.


We also have 4th axis CNC routers for option:


STM1325-R1 4th axis CNC router

STM1325-R1 4th axis CNC router

STM1325-R3 4th axis CNC router

STM1325-R3 4th axis CNC router


International Shipping Around the World


All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
