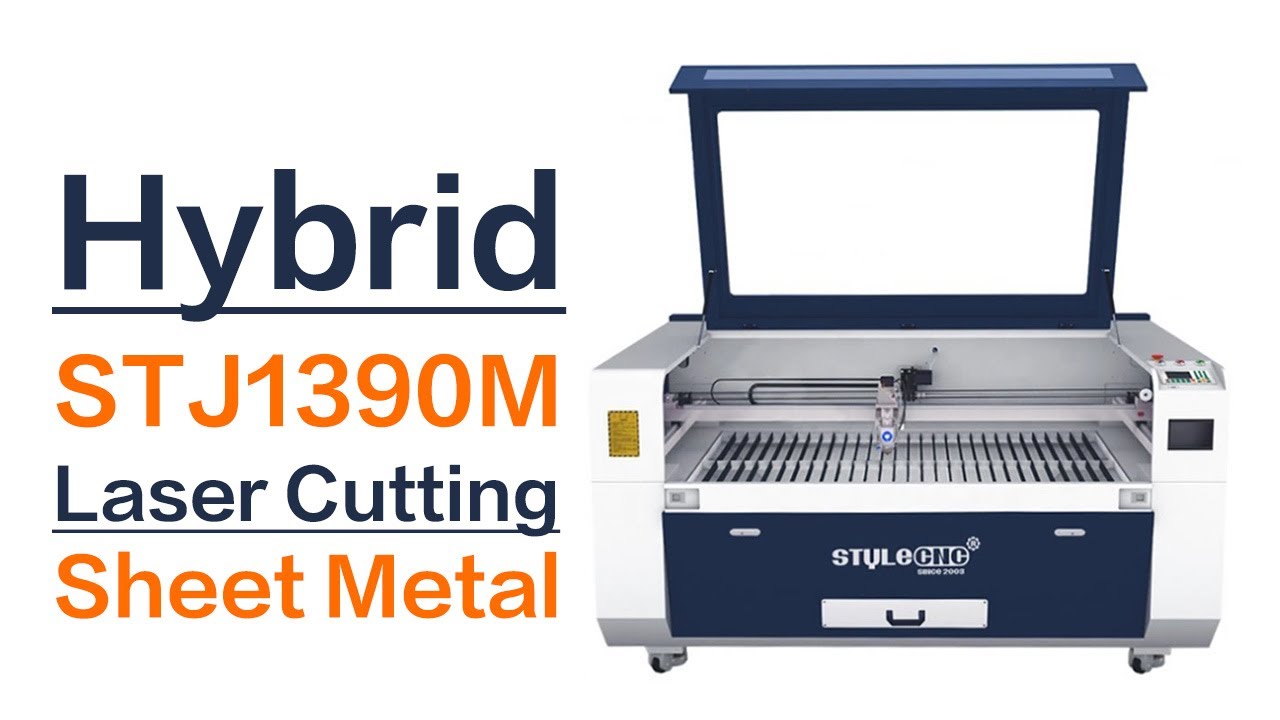

STJ1390M hobby hybrid CO2 laser cutter with 280W Yongli combined beam laser tube to cut 3mm stainless steel, 4mm carbon steel, 30mm acrylic, 25mm wood.
Advantages of Hobby Hybrid CO2 Laser Cutter for Metal & Nonmetal
1. Professional mixed laser cutting head with following system, when the sheet metal is not plain, the dynamic focus laser cutting head will adjust the focusing distance automatically.
2. Top brand lens and mirrors from Singapore with good reflective effect.
3. 300W Yongli combining beam laser tube with stable laser path, life time around 10,000 hours.
4. Stable machine's quality with comprehensive cutting applications (stainless steel, carbon steel, acrylic, wood, other metals and nonmetals).
5. Lower investment cost, lower operating cost and lower maintenance cost.
6. Working table: Open blade with special treated material. Never fray and easy operation, it is suitable for all kinds of hard materials.
7. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced controller.
8. RD control system with control panel, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and other graph disposal software.
Applications of Hobby Hybrid CO2 Laser Cutter for Metal & Nonmetal
Material: Metal and nonmetal material cutting and engraving, including stainless steel, carbon steel, wood, plywood, plastic, leather, stone, cloth, acrylic, MDF, ABS board.
Industry: Mould, plexiglass products, architectural model industry, advertising industry, decorating, arts and crafts, electronics and electric appliance industry.
Technical Parameters of Hobby Hybrid CO2 Laser Cutter for Metal & Nonmetal
| Model | STJ1390M |
| Working area | 1300mm*900mm |
| Laser power | 300W Yongli combining beam laser tube |
| Laser type | CO2 sealed laser tube,water-cooled |
| Driving system | Stepper motor |
| Transmission | Belt transmission |
| Guide way | Taiwan Hiwin Square guide rails |
| Control system | RD6332M control system |
| Lens and mirrors | 3pcs mirrors and 2pcs lens from USA |
| Working table | Blade table |
| Cutting thickness | At max 30mm (According to the materials) |
| Air compressor | Included |
| Water chiller | CW6000 |
| Power supply | 220V/50HZ |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Details of Hobby Hybrid CO2 Laser Cutter for Metal & Nonmetal
Combining Beam Laser Tube.
Laser Source.
Professional Hybrid Laser Cutting Head.
Ruida Control Panel.
CW6000 Industail Water Chiller.
Projects of Hobby Hybrid CO2 Laser Cutter for Metal & Nonmetal
Bought this as an alternative to the ordinary CO2 laser. Building was pretty easy. Worked great for both metal and acrylic, and was not too expensive. Overall, decent laser for the purpose and it meets my needs.
I have had a good time learning how to use the RD6332M controller with the laser and have been satisfied with the cuts of wood, ss and cs. Overall, this laser has given me something cool to pickup.
I had been looking at other laser cutting machines but I found that the STJ1390M was easy to use and much faster lasering. Super awesome for my advertising shop.
