2023 best 4x8 CNC router machine with 48x96 inches table size is used for making doors, cabinets, signs, decorations, and 2D/3D full sheet woodworking projects.
Are you looking forward to build the best budget 4x8 CNC router for woodworking? Are your looking for full sheet 4x8 CNC router plans to start or grow your business to make money? Maybe you can make it easy, buy the most popular 4x8 CNC router table within your budget. It is ideal for hobby and commercial use.
4x8 CNC router is one of the most common computer numerical controlled machine tool with a handheld router as a spindle, and 4' x 8' (48" x 96" in inches) table top for full sheet woodworking, which is also known as 48x96 CNC router table kit, 1325 CNC router machine. 4x8 stands for the table size with 4 feet (48 inches, 1300 millimeters) in width, and 8 feet (96 inches, 2500 millimeters) in length, which is also known as 4' x 8', 4 by 8, 4 feet by 8 feet, 4 ft x 8 ft, 48x96, 48" x 96", 48 inches by 96 inches, 1325, 1300mm x 2500mm, 1300mm*2500mm, and 130cm x 250cm.
4x8 CNC router is the most popular CNC machine for woodworkers all over the world, which is ideal for cabinet making, door making, furniture making, sign making, logo making, wood crafts making, decorations, and most woodworking projects & plans.
4x8 CNC router drives the X, Y, Z three-axis linear motion with the computer, and controls the tool with the spindle on the Z axis to cut along the tool path designed by the CAD/CAM software, and finally cuts the designed pattern on 4 feet x 8 feet plywood and sheet goods for woodworking.
1. The bed frame is constructed from thick-walled steel pipes. The bed has undergone finite element analysis (FEA) and designed to provide a rigid and stable processing platform for the machine tool, and all bed components have been stress-relieved before the bed is processed.
2. High-precision ball screw which moving smoothly to ensure the machine's high precision.
3. High-performance driver motor to ensure the machine's high speed and accuracy.
4. Perfect design and high quality accessories to minimize the machine's failure rate.
5. Breakpoint specific memory to keep the carving status when power off, machining time forecast and other functions in case of the accidental power outages.
6. The table top adopts vacuum adsorption table top, which is made of bakelite, which is resistant to high temperature and corrosion, and can strongly absorb wood, MDF, and non-metallic materials with different sizes. The vacuum adsorption table is divided into six machining areas, which can be processed in a single area or at the same time, which has improved the working efficiency.
7. The embedded DSP numerical control system adopts USB transmission, which can realize the function of continuous carving and power-off memory. The standard 128M flash memory can realize completely offline operation, processing time prediction and other humanized functions, and the performance of relief carving is excellent.
8. Most professional CAD/CAM software compatibility. The creative works are compatible with most free and paid graphic design software (e.g. AutoCAD, AlphaCAM, PowerMill, MasterCAM, ArtCAM, Fusion 360, hyperMill, UG & NX, SolidWorks, SolidCAM, BobCAD, Solid Edge, ScultpGL, K-3D, Antimony, DraftSight, CATIA, Smoothie 3D, CAMWorks, SprutCAM, HSM.).
9. It can cut a full 4x8 sheet of plywood, MDF, wood, or aluminum with high cutting speed.

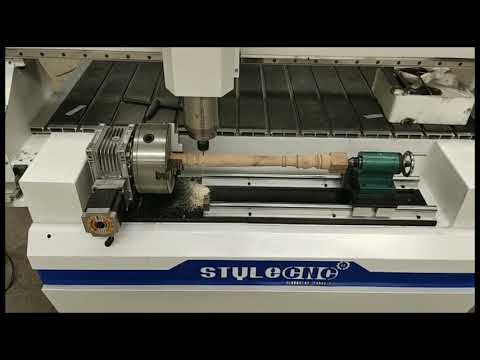

10. With the 4th axis, it can do rotary carving and cutting on 3D cylinders.
1. Furniture Making: Cabinets, office furniture, home furniture, chairs, tables, doors, and windows.
2. Woodworking: Computer tables, game cabinets, voice box, sewing machines table, music instruments, wood balusters & spindles, table legs, and some cylinder woodworking projects.
3. Decorations: MDF, organic glass, artificial stone, PVC, acrylic, plastic and soft metals such as aluminum, copper, brass cutting and milling.
4. Industrial Manufacturing: Sign making, plastic chemical components, insulation part, bowling tracks, inner body of car, stairs, epoxy resin, anti bate board, PCB, ABS, PE, PP, and other carbon mixed compounds.
Brand | STYLECNC |
Model | STM1325-R3 |
Working Area | 1300x2500x200mm |
Table Size | 4x8 feet (48x96 inches, 1300x2500mm) |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
Frame | Welded Structure |
X, Y Structure | Hiwin Rail Linear Bearings, Rack and Pinion Drive |
Z Structure | Ball Screw, Hiwin Rail Linear Bearings |
Max Power Consumption | 3.0KW (Without Spindle) |
Max Rapid Travel Rate | 33000mm/min |
Max Working Speed | 25000mm/min |
Spindle Power | 3.0KW |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper System |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language | G Code |
Operating System | DSP System (Options: NCstudio/Mach4 PC Software) |
Computer Interface | USB |
Flash Memory | 128M (U Disk) |
Collet | ER20 |
X, Y Resolution | <0.03mm |
Software Compatibility | Type3/UcancameV9 Software (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Packing Size | 3300X2220X1800mm |
N.W. | 1400KG |
G.W. | 1680KG |
Optional Parts | Air Cooling Spindle |
Dust Collector | |
Vacuum Pump | |
Easy servo motor | |
Mist-cooling System | |
Yaskawa servo motor | |
Price Range | $5,680.00 - $10,180.00 |
The cost of 4x8 CNC router machine is mainly composed of frame bed, CNC controller, computer, spindle, drive system, and servo system.
Most entry level and hobby 4x8 CNC routers are priced from $4880, while some can be as expensive as $5680.00 with 4th axis rotary table. The higher end 4'x8' CNC routers with automatic tool changer kits are priced anywhere from $18,000.00 to $23,800.00, depending on the machine's capabilities.
STM1325-R3 with T-slot Table.
STM1325-R3 with Vacuum Table.
STM1325-R3 with Water Tank and T-slot Table.
1. Lathe bed adopts strong welded steel tube to avoid distortion.
2. Y axis adopts double motors to keep stable moving.
3. High accuracy rack rail travel method with high speed.
4. Best square linear rail, high accuracy, heavy burthen.
5. Advanced international technology vacuum with double cavity.
6. Humanization design of lathe bed vacuum and easy working.
7. Intelligent protecting working fable.
8. Temperature monitor could show the spindle temperature,huminity and timing clock help take rest for machine more friendly.
9. Press roller on the machine table could fix materials on table more tightly without any move during works.

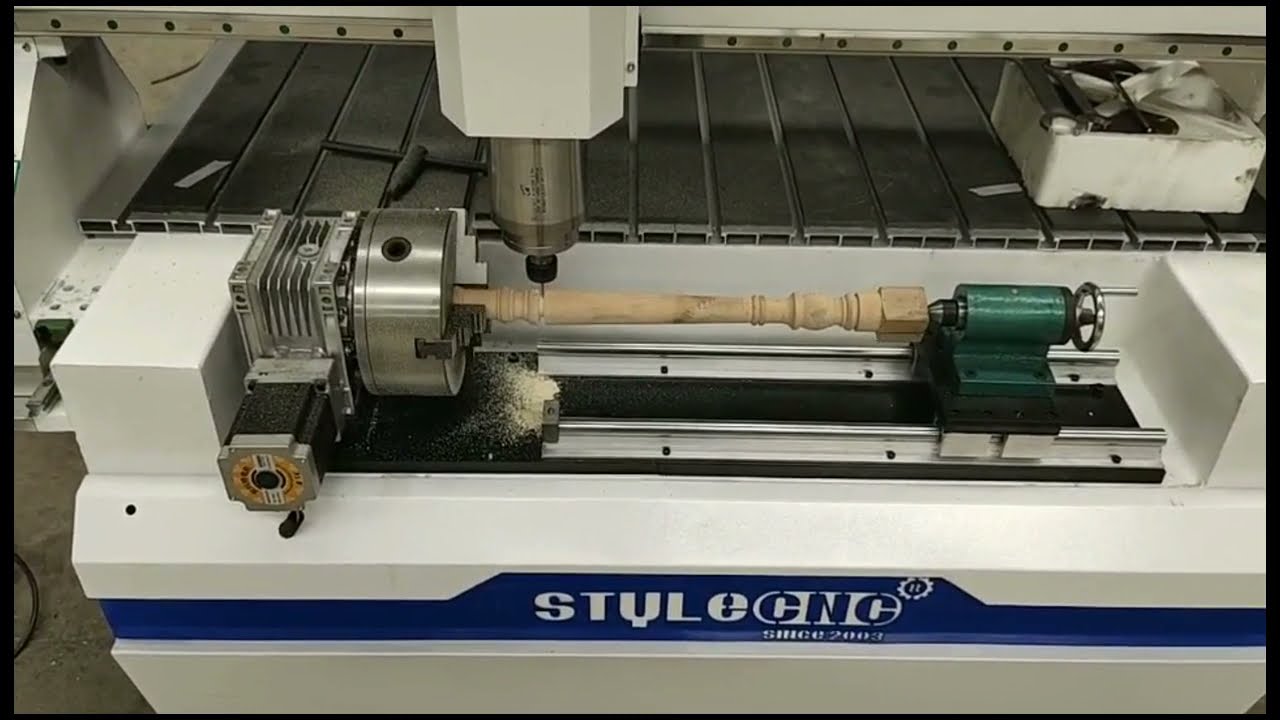

10. Rotary device can work with cylinder projects.
Custom the right DIY plans for your woodworking projects with relief carving, wood crafts, cabinet door making, furniture making, and home decorations.
Taiwan Delta servo driver and servo motors.
Mach4 control system.
T-slot and vaccum table combined.
4th axis rotary device.
Three Layers Packaging
1. The machine all covers will be protected by the foam board.
2. The middle layer is wrapped with environmental protection material.
3. The outermost layer is wrapped with PE stretch film.
Packaging Details
The control cabinet and accessories are put on the machine bed, and the machine will be wrapped with PE stretch film in case of damage in transit.
The 4'x8' CNC wood carving and cutting machine is packaged with the plywood case and the wooden case will be fix on the pallet, the shipping mark will be labeled on the surface of the wooden case.
If the 48"x96" wood CNC machine is customized even the size is larger, the machine needs disassembling.
STM1325 Affordable Entry Level 4x8 CNC Router Kit
STM1325-R1 4x8 CNC Router Table with 4th Rotary Axis
STM1325D 4x8 CNC Router Machine with Automatic Tool Changer Kit
Pros
1. Pricing Advantages: We are a professional manufacturer, we have the best price with the same quality, we have the best quality with the same price. You can find all types of 4x8 CNC woodworking kits within any budget from STYLECNC.
2. Technical Advantages: The technician staff will offer 24/7 free technical support.
3. Quality Advantages: The 4'x8' CNC woodworking machine is made with rigorous production and inspection.
4. After-Sales Service Advantages: We can reply within 1 hour for any after sales problem.
Cons
1. Rotary carving & cutting speed is slower than a CNC wood lathe machine.
2. Requires manual tool change without automatic tool changer.
3. Shipping cost is a bit high during the COVID-19 pandemic.
Whether you are a novice or a professional, you should do regular care and maintenance for 48"x96" CNC wood router kit and its accessories.
1. The control cabinet should be placed in a well-ventilated place and cannot be placed in a high-temperature environment. Prevent the electrical components in the control box from malfunctioning due to high temperature.
2. The machine should be placed in a dry and well-ventilated place (to prevent parts and accessories from malfunctioning due to exposure to the fuselage).
3. The machine must be equipped with a reliable voltage stabilizer to ensure the safe grounding of the ground wire. At this point, the manufacturer has basically installed and debugged the customer in advance when configuring the control cabinet. It is best to consult before purchasing the machine.
4. Try not to use the internet computer to transfer files to the machine. Computers connected to the network are likely to cause abnormalities in the machine through file transfer.
5. The machine needs to be maintained every other month (add a proper amount of special lubricating oil to the screw rod and the guide rail rack). Now many manufacturers are equipped with manual or electric lubricators, which can realize faster feeding of the slider and the wire. The bar is filled with oil and does not need to be disassembled, making maintenance easier and faster.
6. Maintain a good lubrication state, regularly check and clean the lead screw, add or replace lubricating grease and oil, so that the lead screw, nut and other moving parts always maintain a good lubrication condition to reduce the wear speed of mechanical parts.
7. Do not allow the machine to work on the same part of the table for a long time (in case that the screw, guide rail and other transmission devices are not in contact with the beam for a long time and cannot be reasonably lubricated).
8. Check whether the wiring and screws of the machine are loose within a certain period of time. It is best to tighten the screws regularly. This can also improve the accuracy of routing.
9. Do not place debris (magnetic materials, corrosive items, overweight items, liquids) on the table or machine head.
The 4'x8' CNC wood router machine will inevitably have some problems during the day-to-day work. Some of the reasons are due to the configuration of the machine itself, and some of the reasons are caused by the misoperation of the user. Below we have listed some common problems and solutions for reference:
1. When setting the origin, the reason is sometimes shifted forward or shifted to the right and the shift distance is uncertain:
1.1. The limit switch is out of order. The limit switch has been closed and then bounced when the system returns to the system origin. Just change the limit switch.
1.2. The drive line is loose. Try to fix it tightly.
2. When the machine starts to reset, it makes an abnormal sound or always tops the limit switch:
2.1. The limit switch cannot be touched, just correct it.
2.2. The contact of the drive line is not good, just fix the drive line.
2.3. The limit switch wire is not connected properly, just connect the wire properly.
2.4. The limit switch is damaged, just replace it.
3. The reason why the machine cannot engrave at the origin:
3.1. Whether the layout size of the file matches the machine.
3.2. Check whether there is an offset (OFFSET) and whether the layout setting is correct.
4. The reason why the spindle motor suddenly stops or rotates slowly during the working process:
4.1. If the working voltage is unstable or overloaded, just add a voltage stabilizer.
4.2. Check whether the middle line is connected well and whether the end of the line is unsoldered.
Q1. How to buy an affordable 4x8 CNC wood router table kit?
Please tell us the materials you want to cut.
How to work with it? routing? carving? cutting? or other?
What's the max size of the materials? (Length? Width? Thickness?)
Q2. Do you provide user manual for 4'x8' CNC machine?
Yes, we provide English user manual with illustrated and textual instructions, as well as instructional videos on YouTube for assembly of parts & accessories, software installation, setting, and debugging, operation, care & maintenance, and troubleshooting.
Q3. How to use the 48"x96" wood CNC machine kit?
We will help you to understand on how to use it, even if you are a beginner. If you can come to STYLECNC's factory, we will offer free training until you can operate it proficiently. If you are busy, we will arrange the special engineer to your workshop with door-to-door service, but you need to bear some fee, like tickets, hotel and meal.
Q4. Do you have after-sales service?
We offer 24/7 free service and support via E-mail, Calling, Skype, Online Livechat, or WhatsApp. Whenever and wherever, as long as you encounter problems, you can contact us at any time, and our technicians will be happy to provide you with free after-sales service.
Q5. Do you have guarantee and warranty?
Two years for warranty, and during this period, if you have any problems, we will solve it for free. Both hardware and software are covered, while man-made damage is not covered under warranty.
Q5. How to DIY a 4x8 CNC router table kit?
If you have an idea to build your own 4x8 CNC router kit, you need to set your building plan and budget, research the DIY guide with open source, buy parts and accessories, make a fully assembled CNC router table.
