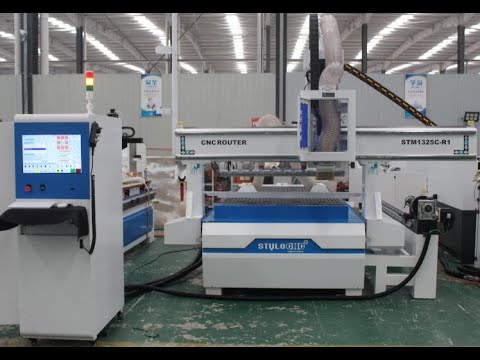

Disc automated tool changer CNC router with drum type ATC kit has no need to change tools manually during machining with rotary tool changer kit.
Features of Disc Automated Tool Changer CNC Router with Drum Type ATC Kit:
1. HSD automatic tool changer spindle kit: original famous brand from Italian, also can choose Kolumb spindle.
2. SYNTEC Control System: It is from Taiwan with high performance and competitive price.
3. Yaskawa Servo Motor and Drives: They are from Japan with high precision and long life.
4. HIWIN linear guide rails: made from Taiwan,used for linear reciprocating stadium.
5. Working Table: 1300*2500*300mm, C Rotary Axis:360 degree.
6. Whole cast steel structure thickness to 8mm.
7. Drive System: X, Y-Rack Z-Ball Screw, Z with high precision ball screw.
8. Automatic Tool Calibration: To guide rail and slide block, make it run better.
9. Schneider electrical components: original brand from France.
10. Japanese Omron switch with long life.
11. APEX Reudcer from Taiwan: More powerful and higher precision.
12. T-Slot Table with Vacuum Table: Use clamp or pump to fix materials.
Technical Parameters of Disc Automatic Tool Changer CNC Router with Drum Type ATC Kit:
Model | ST1325D-ATC |
Working Area | 1300*2500*300mm |
Tool magazine | 8 tool position drum ATC |
Max Moving Speed | 30-60m/min |
Max working Speed | 20-25m/min |
Positioning Accuracy | 0.05mm |
Hold mode | Vacuum+Clamp (vacuum table, Vacuum pump) |
Spindle Speed | 0-24000rpm/min |
Spindle Power | Italy HSD 9kw air cooling spindle |
Tool Diameter | 2--12.7 |
Collect Size | ER32 |
Transmission | X,Y Axis High Precision Rack Gears, Z Axis Ball Screw |
X,Y,Z Guide rail | Linear Square Guide Rail from Taiwan |
Control System | Taiwan SYNTEC system |
Driving Motor | Japan Yaskawa Servo Motor & Driver |
Software | Artcam,Type3 |
Inverter | Taiwan Delta inverter |
Command | G Code (plt, mmg, uoo, bmp) |
Gross Weight | 2500KG |
Option system | Dust collector system |
Applications of Drum Type Automatic Tool Changer CNC Router with Disc ATC kit:
Furniture Making:
Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.
Woodworking:
Voice box, game cabinets, computer tables, sewing machine table, instruments.
Plate Processing:
Insulation part, plastic chemical components, PBC, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
Decorate Industry:
Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals.
Projects of Drum Type ATC CNC Router Kit with Rotary Automatic Tool Changer:
Package of CTM Type Automatic Tool Changer CNC Router Kit:
Service & Support for Drum Type Automatic Tool Changer CNC Router Kit with Disc ATC Spindle:
Before Sales Service
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free.
During Sales Service
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here.
After Sales Service
We would provide English Version working manual.
If you have any questions during using and maintaining, our engineers who could speak very good english would answer you online or by calls.
If your machine has big problems if by any chance, our engineers would arrive there to debug and fix. we provide remote control if needed.
We also have more ATC CNC routers for option:
Rotary ATC CNC Router with 4th Rotary Axis
ATC CNC Router with Double Drum Type Tools Magazine
