2023 Best ATC CNC Router with Oscillating Knife Cutting System for Sale
Product Introduction
Customer Reviews & TestimonialsLooking for the best CNC router machine with automatic tool changer combined oscillating knife cutting system and CCD camera to cut wood, foam, cardboard, leather, textile, fabric, felt, veneer, or rubber in 2023? Review the affordable CNC woodworking router table and oscillating knife cutter combo within your budget.
Demonstration Video
Product Details

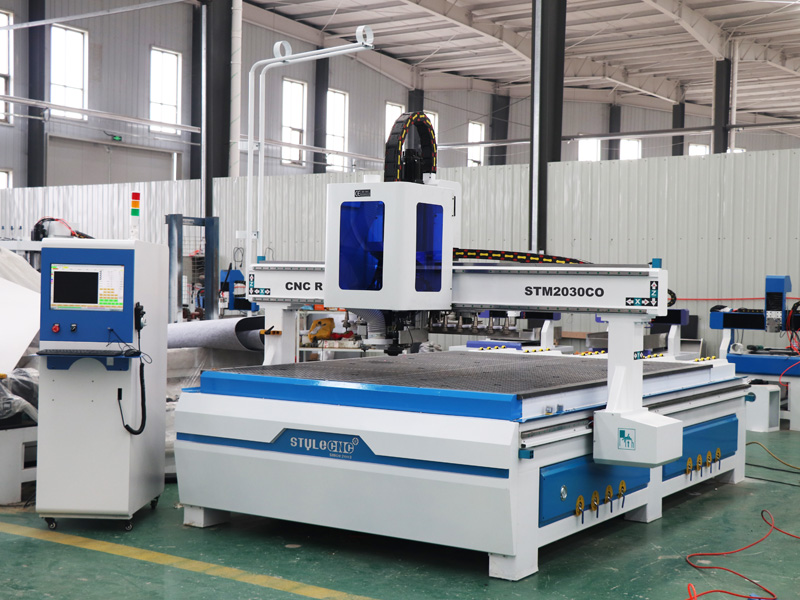

STM2030CO is an innovative CNC router and knife system combining heavy-duty routing spindle with fast knife cutting, STM2030CO is suitable for processing the broadest range of materials in many types of manufacturing industries.
STM2030CO is an all in one CNC machine configured with spindle, oscillating knife and CCD camera as standard. For processing the widest range of materials with accuracy, flexibility, productivity and quality, a multitude of options can be customized, such as pneumatic knife, beveling knife, crease wheel and CCD visual positioning system.
The oscillating knife cutter is an important tool for businesses that need to process flexible materials including packaging foam, foam core, gator foam, EVA foam, corrugated plastic and cardboard. These materials all present challenges for traditional router or knife tools, but the oscillating knife cutter allows it to slice through these materials with ease, delivering clean cut edges without fraying.
Features of 2022 Best ATC CNC Router with Oscillating Knife Cutting System
1. STYLECNC incorporates the best controller to support the CNC router combined knife system, will provides the best return on your investment.
2. High-definition CCD visual positioning system with professional industrial camera, powerful image recognition, improve the processing accuracy and efficiency.
3. The bed is made of high-rigidity rectangular steel pipe welded and optimized dragnet structure, aging treatment to ensure the precision of the bed.
4. Transmission adopts precision servo motors match to reducer, large torque, low noise and fast speed.
5. Machine with linear automatic tool changer, which has 12 pieces different router bits to change tools speedy and freely.
6. Strong power suction vacuum pump fixed the variety materials easily.
7. Double bags dust collector ensures site cleanliness during the machine operation.
Technical Parameters of 2022 Best ATC CNC Router with Oscillating Knife Cutting System
Model | STM2030CO |
X,Y,Z Working Area | 2000x3000x300mm |
Spindle Power | 9KW ATC spindle |
Multifunctional Knife | Oscillating knife, CCD camera |
Table Surface | Vacuum table with pumps |
Different Knife Options | V-cut, crease wheel, pneumatic knife, round knife |
Driving System | Rack and pinion with square rails |
Spindle Speed | 0-24000rpm |
Drive Motors | Servo System |
Working Voltage | 220V, single phase or 380V, 3 phase |
Command Language | G Code |
Operating System | STYLECNC professional CNC control system |
Software Compatibility | Artcam, Aspire, Fusion360, etc |
Dust Collector | Included |
Applications of 2022 Best ATC CNC Router with Oscillating Knife Cutting System
Advertising
Acrylic cutting, density board cutting, double color board carving, various advertising boards.
Furniture Making
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting.
Sheet Processing
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE, and other carbon mixtures.
Crafts & Arts
Artificial marble, PVC, wood, plexiglass, copper, aluminum, and so on.
Decorations
The decorative board, double color board, PET acoustic felt panels, rubber, gasket, PP, PE, EVA, PTFE, ETFE, etc.
Packaging
The packaging foam, foam core, gator foam, EVA foam, corrugated board, cardboard, honeycomb paper, plastic film, fiber paper, and plastic box.
Projects of 2022 Best ATC CNC Router with Oscillating Knife Cutting System
ATC CNC Router with Automatic Tool Changer Projects

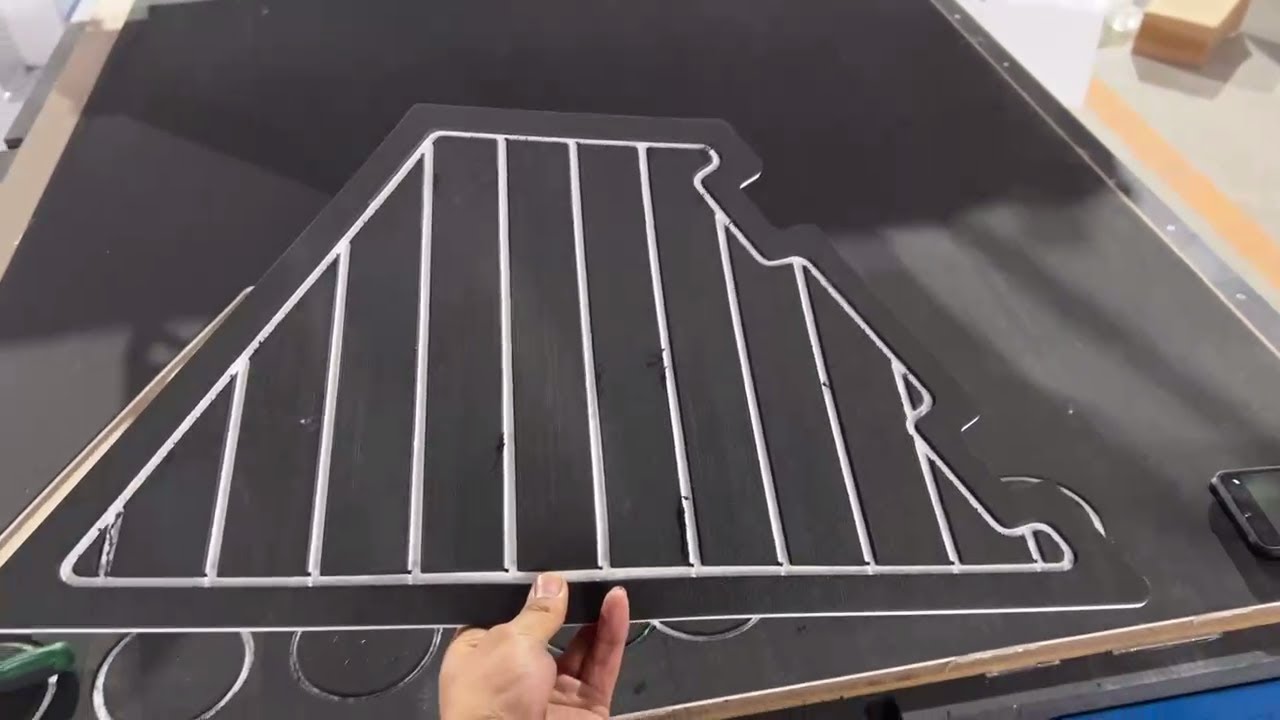

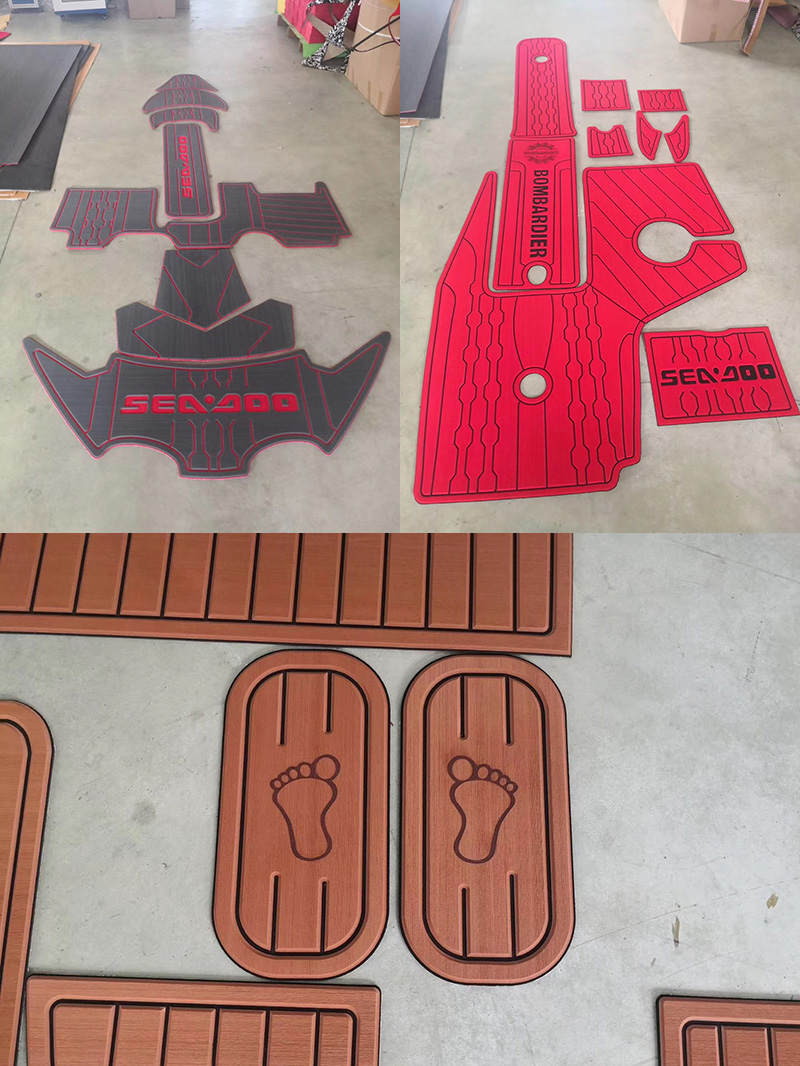

CNC Oscillating Knife Cutting Projects
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

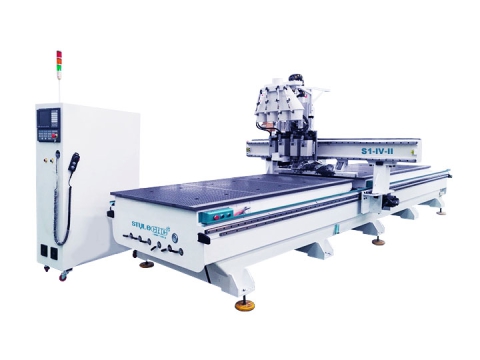

- • Previous: Multi Spindle CNC Woodworking Machine with Four Heads
