3 Min Read By

4x4 hybrid laser cutter is a smart laser cutting table capable of precisely cutting metal and non-metal such as stainless steel, carbon steel, aluminum sheet, mild steel, wood, plywood, MDF, acrylic. The laser cutting table is an all-in-one machine combined with one 1000W fiber laser generator for metal and one 150W CO2 laser tube for nonmetal. When it cuts metal, oxygen is generally added as an auxiliary gas. When cutting non-metal, just blow air like ordinary machines.

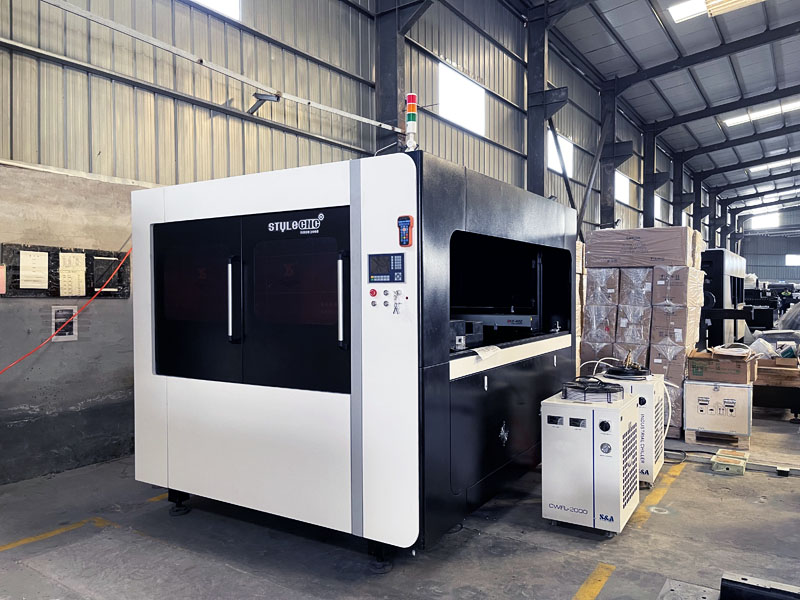

4x4 Hybrid Fiber & CO2 Laser Cutting Table for Metal & Wood

Pros

The hybrid 4x4 laser cutting machine has faster speed, higher efficiency and stronger cutting ability. It can not only cut metal, but also can cut non-metal. It can cut different material thickness with different laser power. In addition, it adopts high-precision screw rod and linear guide rail, with stable transmission and high precision. The beam structure has the features of light weight, high rigidity and superior dynamic performance. Its modular design provides customers with convenient customized services and maximizes the realization of economical cutting. Its cutting head servo system can automatically adjust the focus to achieve fine cutting of metal and non-metal materials. The fully automatic constant focal length cutting can effectively guarantee the cutting quality.

1. Equipped with reinforced welded bed, large gantry precision milling process, annealing treatment, vibration aging to eliminate stress.

2. The semi-flight optical path design is adopted and the optical path is constant, which improves the consistency of the light beam in the entire working area.

3. High-dynamic stepping motor and high-precision linear guide rail have high dynamic response performance and high load capacity.

4x4 Hybrid Fiber & CO2 Laser Cutting Head

Features

1. Economical and cost-effective metal and non-metal hybrid laser cutting machine.

2. Reliable product quality and comprehensive cutting capabilities.

3. Low investment cost, low operating cost and low maintenance cost.

4. The metal non-contact follow-up configuration allows you to cover the largest range of material processing at a low cost.

5. The 4x4 laser cutting table adopts a fully open blade working platform, which is specially treated, easy to operate, and never wears out. It is suitable for processing various hard materials.

6. A stable and solid working chassis at the machine tool level is adopted to ensure stability and accuracy during fast movement.

7. The motion system adopts linear guide rail and precision gear, and cooperates with the high-precision three-phase stepper motor driver controlled by advanced DSP to ensure the processing accuracy.

8. The new high-speed laser tube with more stable beam has a service life of more than 10,000 hours.

Applications

The hybrid 4x4 laser cutter table is used to cut stainless steel, carbon steel, copper sheet, alloy steel, aluminum sheet, spring steel, galvanized sheet, titanium alloy, wood, acrylic, plywood, MDF, leather, fabric in advertising sign making, sheet metal structure, high and low voltage electrical cabinet production, textile machinery, kitchen utensils, automobiles, machinery, chainsaws, precision parts, subway parts, arts & crafts, gifts making, decorations.

Projects

4x4 Fiber Laser Cut Stainless Steel Crafts

4x4 Fiber Laser Cut Stainless Steel Crafts

4x4 CO2 Laser Cut Wood Crafts

4x4 Fiber Laser Cut Stainless Steel Crafts
