2022 Affordable CNC Plasma Cutting Drilling Machine with Flame Torch for Oxy-Fuel Cutting on Sale
Product Introduction

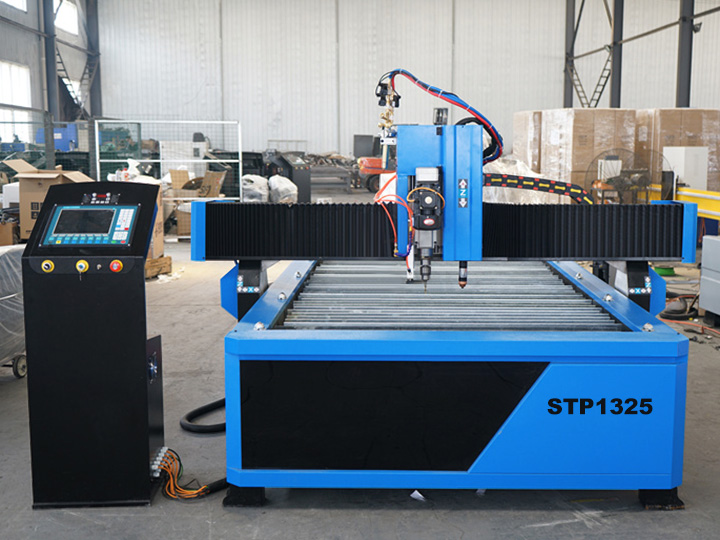

Customer Reviews & Testimonials2022 affordable CNC plasma cutting drilling system STP1325 is equipped with a plasma cutting head for thin metals cutting, a drilling head to drill holes on metal, a flame torch for oxy-fuel cutting carbon steel, low alloy steels, and cast irons with more thickness. Now the low cost CNC plasma cutting system on sale at cheap price.

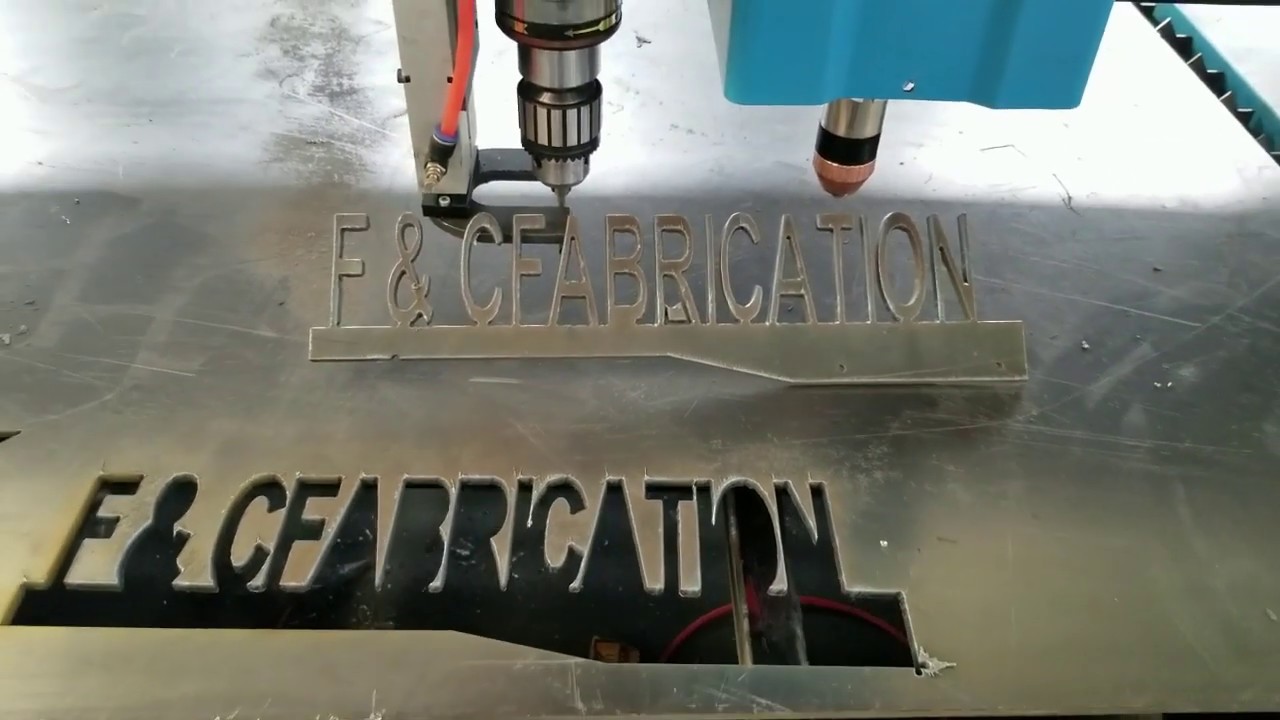

Demonstration Video
Product Details
Features of Affordable CNC Plasma Cutting Drilling System with Flame Torch for Oxy-Fuel Cutting
1. Fast cutting speed,high precision and low cost.
2. The cutting incision is thin and tidily and can avoid the second processing.
3. High configurated CNC system,auto arc-striking and stable performance.
4. StarFire control system uses the U-disk exchange processing document, easy to operate.
5. Fastcam software, support offline files,You also can change software to read DXF files by AUTOCAD.
6. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.
Applications of Affordable CNC Plasma Cutting Drilling System with Flame Torch for Oxy-Fuel Cutting
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. It is applied to iron plate, aluminum plate, galvanized sheet, white steel plate, titanium plates and other sheet metals.
1. Chinese Huayuan Power Supply Cutting Capacity:
- 63A cutting thickness: 8mm
- 100A cutting thickness: 15mm
- 120A cutting thickness: 20mm
- 160A cutting thickness: 30mm
- 200A cutting thickness: 40mm
2. USA Hypertherm Power Supply Cutting Capacity:
- 45A cutting thickness: 8mm
- 65A cutting thickness: 10mm
- 85A cutting thickness: 12mm
- 105A cutting thickness: 18mm
- 125A cutting thickness: 25mm
- 200A cutting thickness: 30mm
Technical Parameters of Affordable CNC Plasma Cutting Drilling Machine with Flame Torch for Oxy-Fuel Cutting
Model | STP1325 |
Working Area | 1300mm x 2500mm |
Cutting Material | Iron, Steel, Aluminum, Galvanized, Titanium. |
Cutting Thickness | Below 30mm with plasma cutting head Above 30mm with flame cutting head |
Cutting Speed | 0-6000mm/min |
Power | 8.5kw |
Input Voltage | 380V 50HZ for power supply, 220V for machine |
Plasma Current | 63A-200A |
Connecting Way | USB |
Working Mode | Untouched arc striking |
Rail Guide | Hiwin square rails |
Transmit Way | Taiwan imported ball screw |
Operation Language | Chinese, English, Russian, Spanish, French, Czech, Japanese, Slovakian |
Command | G code, *uoo, *mmg, *plt |
Optional Power Supply | America Hypertherm |
Spare Parts | Electrode, nozzle and water jacket |

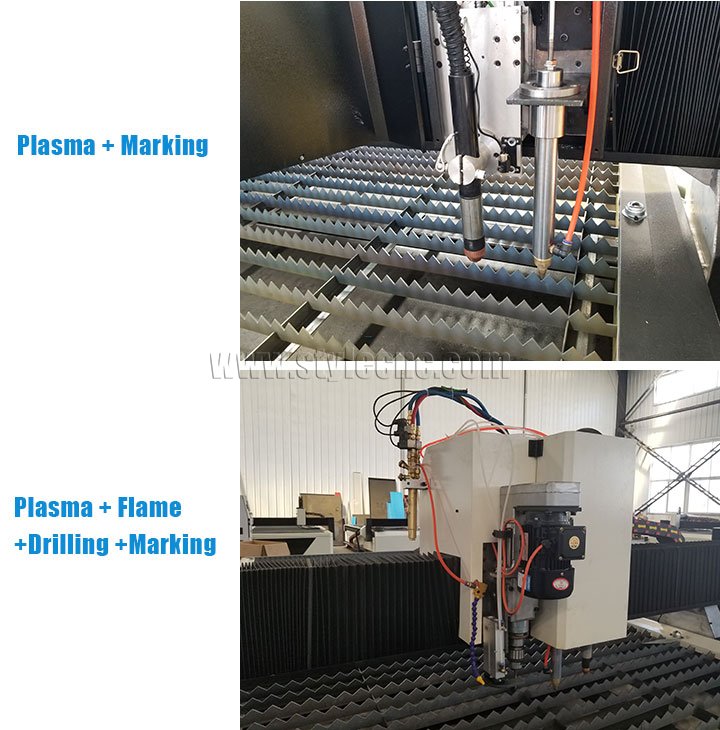

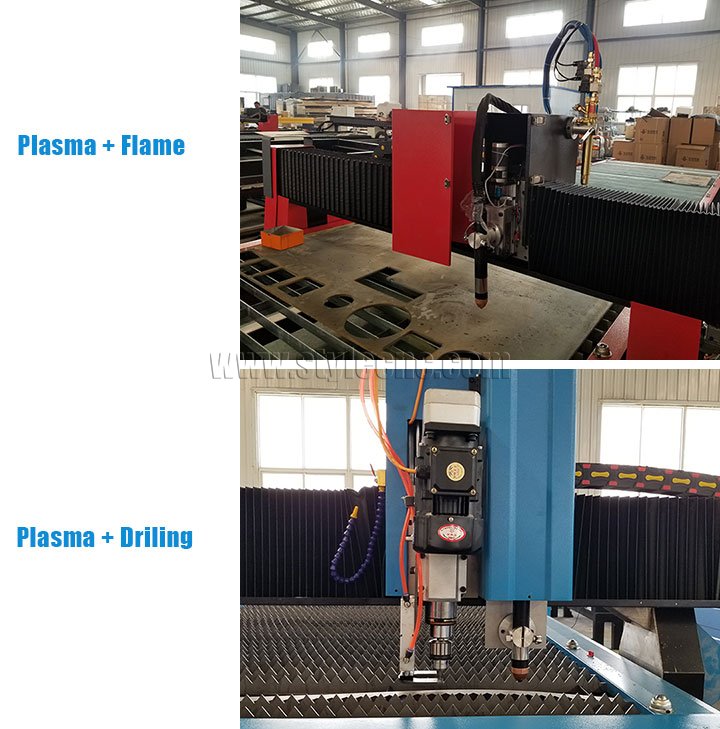

Different Combined of CNC Plasma Cutting Drilling Machine with Flame Torch for Oxy-Fuel Cutting

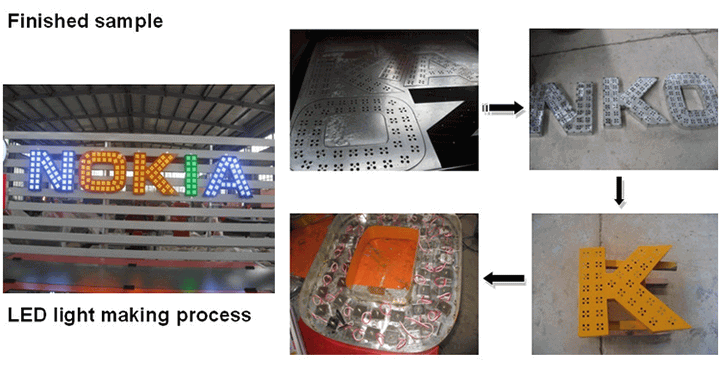

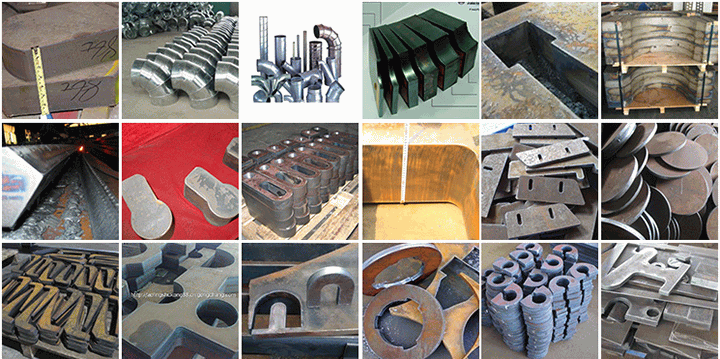

Projects of Affordable CNC Plasma Cutting Drilling System with Flame Torch for Oxy-Fuel Cutting

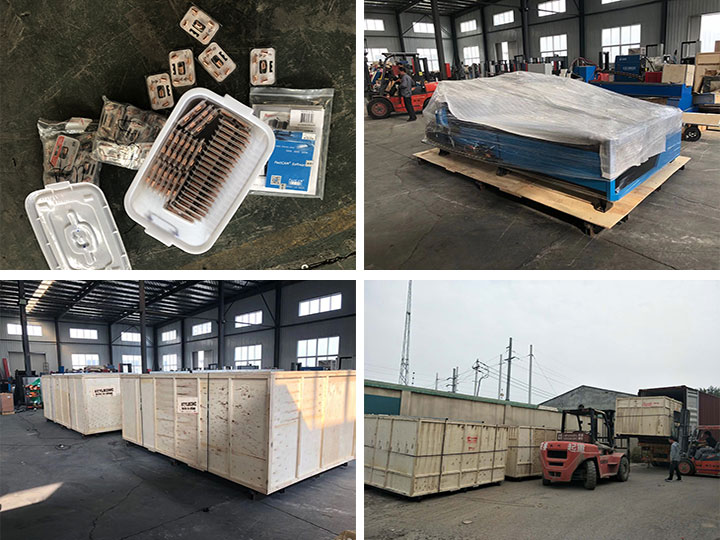

Package of Affordable CNC Plasma Cutting Drilling Machine with Flame Torch for Oxy-Fuel Cutting
International Shipping Around the World
All the CNC machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
-
