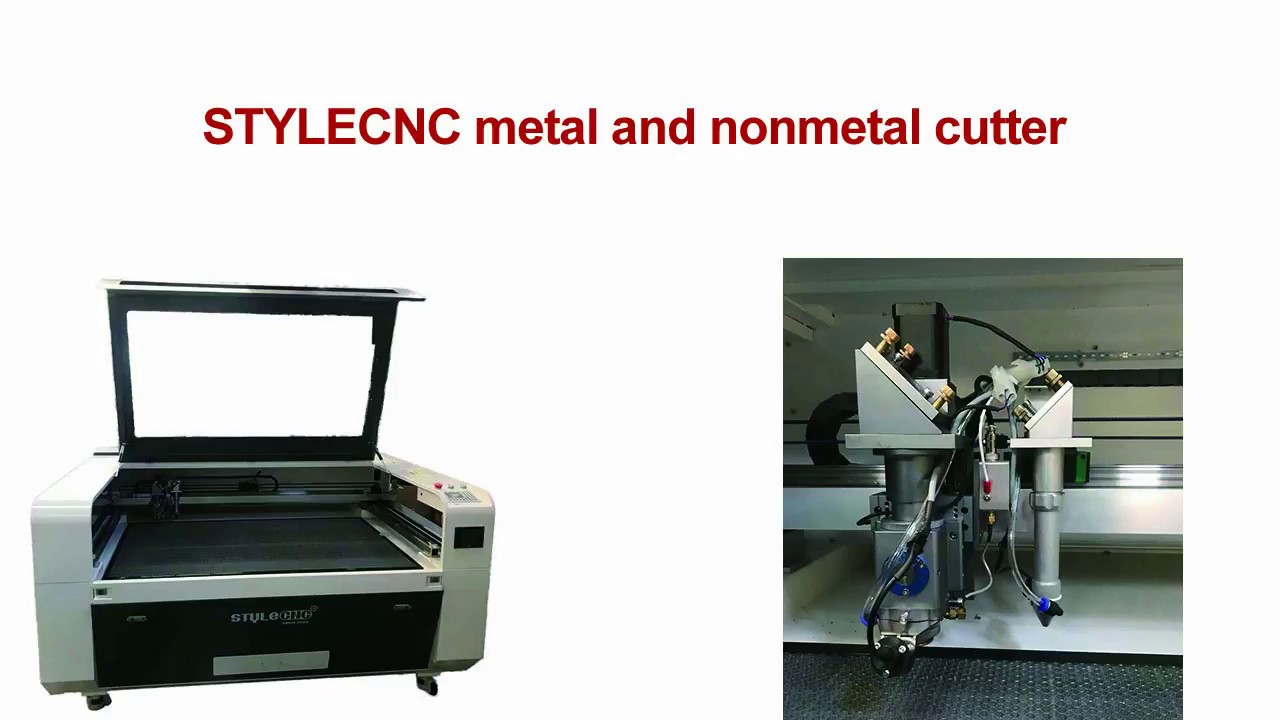

STYLECNC® 150W laser cutter for metal and nonmetal

STYLECNC® 150W laser cutter for metal and nonmetal
  • STYLECNC® 150W laser cutter for metal and nonmetal
  • The First Picture of STYLECNC® 150W laser cutter for metal and nonmetal
  • The Second Picture of STYLECNC® 150W laser cutter for metal and nonmetal
  • The Third Picture of STYLECNC® 150W laser cutter for metal and nonmetal
  • The Fourth Picture of STYLECNC® 150W laser cutter for metal and nonmetal
  • The Fifth Picture of STYLECNC® 150W laser cutter for metal and nonmetal
Loading...

150W laser cutter for metal and nonmetal

Inquiries:

463

Model: STJ1325M Category: Mixed laser cutting machine
Brand: STYLECNC STYLECNC®
Rating:

4.7

 /5 based on 3 ratings and reviews
Price Range:

8800.00

to

$

9800.00

/ Set according to your configuration
The price will float according to the configurations of STYLECNC® 150W laser cutter for metal and nonmetal
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Port From: Qingdao, Shanghai, Tianjin, Beijing, Guangzhou Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Skype to usSend a request

150W laser cutter for metal and nonmetal is used for cutting thin metal(1.5mmss and 2.5mmcs) and thick nonmetal(30mm acrylic, 25mm wood, etc.)

Video Show
Product Show

150W laser cutter for metal and nonmetal


Configurations of STJ1325M Laser cutter:




#Working area is 1300*2500mm

#150W Reci laser tube

#Auto following cutting head

#Ruida RD6332M control system

#Leadshine stepper motor and driver

#Taiwan Hiwin rail guide

#Belt transmission

#America lens and mirrors

#Blade table

#Air pump

#Water chiller CW6000

#Dust collector 550w

#Standard tool box


Applied materials of 150W laser cutter:



Metal: carbon steel, stainless steel, galvanized sheet, According to different metal materials and thickness, the speed can be adjust.


Nonmetal: Wood, Acrylic,MDF, Plywood,etc. the thicker nonmetal materials.


150W laser cutter cutting samples:


acrylic

carbon steel

metals


150W laser cutter details:


150W laser cutter for metal and nonmetal

150w laser cutter

Ruida control system

professional laser head

Reci laser tube


Technical parameters of 150W laser cutter:


Model

STJ1325M

Laser tube

Water cooling Co2 sealed glass

Laser power

150W

Laser cooling type

Water cooling sytem

Contral system

RDC6332M

Manner of working

Cutting

Format support

plt. ai. dxf. bmp. jpg. png. dst. dsb and so on

PC Interface

USB cable and USB disk

Drive type

Stepper System

Guide way

Linear square guide way , belt transmission

Focus lamp

 25 ,focal distance:63.5mm

Laser head follow-up

YES

Repeated positioning accuracy

≤0.05

Work area

1300*2500mm

Working platform

Balde table

Before and after the function

YES

Open cover protection

NO

Purging system

YES

Laser head gas-assisted

metal material:O2


non-metallic material:air

Processing metal materials

stainless steel/carbon steel/galvanized plate and non-metallic material

Total power

<2500W

Power Supply

AC 220V±10%/50~60HZ

Machine Size WxDxH(mm)

3520*2040*1050


It can also choose more power tube for thicker metal cutting,such as 260W,280W or 300W.
