Heavy Duty Fiber Laser Cutting Machine for Sheet Metal

Heavy Duty Fiber Laser Cutting Machine for Sheet Metal

Model: ST-FC3015L
Views: 4692
Brand: STYLECNC STYLECNC®
Rating: 4.6 /5 based on 24 ratings and reviews
Standard Price: $43000.00 / Set
Price Range: $43000.00 to $73000.00 / Set according to configuration
The price will float according to the configurations of Heavy Duty Fiber Laser Cutting Machine for Sheet Metal
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba

Product Introduction

Buyer's Reviews

ST-FC3015L is a heavy duty fiber laser cutting machine for sheet metal, you can choose different laser power such as 1000W or 2000W of Chinese Raycus or Germany IPG brand, the laser power can be improved which is based on the laser source technology.

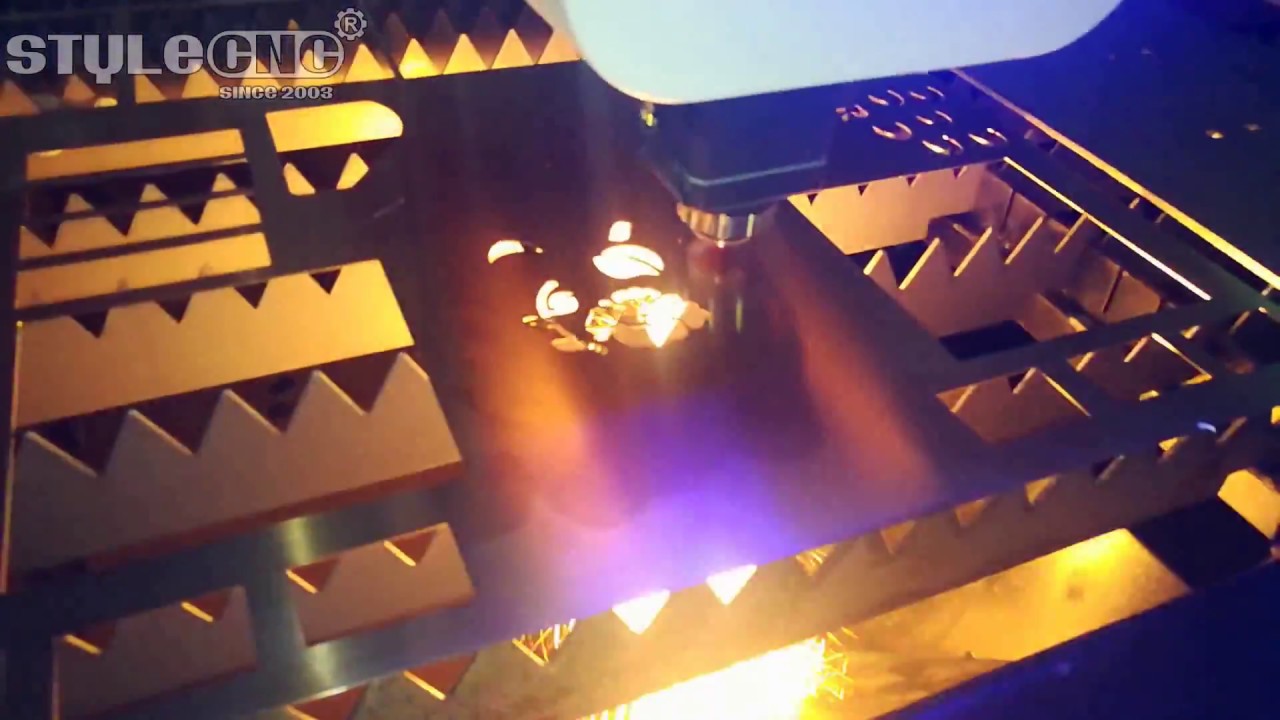

Demonstration Video


Product Descriptions

Heavy Duty Fiber Laser Cutting Machine

Features and Advantages of Heavy Duty Fiber laser cutting machine for Sheet Metal:


Heavy Duty Fiber Laser Cutting Machine for sale


1. High rigidity fiber Laser cutting machine bed segmented welding, adopts exclusive annealing processing with high-temperature NC electric resistance furnace, ensure long-time stable working of the machine.


exclusive annealing processing fiber laser cutting machine bed


2. All the guide rails and screw holes are milled by our professional 5 axis gantry milling machine to keep the levelness. This quality engineering and workmanship result in smooth precision cutting.


5 axis gantry milling machine


3. Machine rack and rails installed based on the dial indicator, table frame based on the marble gradienter. This quality engineering and workmanship result in smooth precision cutting.


marble gradienter of fiber laser cutting machine


4. The gantry we adopted are new design aircraft-grade aluminum casting,replace of the welded steel gantry,more light-footed to make the whole machine working very fast.


aircraft-grade aluminum casting gantry


5. New machine body whole frame with smoke extraction,reduce the smoke and chippings to harm the cutting head and lens.


fiber laser cutting machine extractor


Technical Parameters of Heavy Duty Fiber Laser Cutting Machine for Sheet Metal:


Model

ST-FC3015L

Working Area

1500mm*3000mm

Max Cutting Speed

80m/min

Laser Power1000W/2000W

Max Acceleration

1G

Repeated Positioning Accuracy

0.02mm

Driving Way

Servo motor

Transmission Way

Y-axis gear rack double driver, X-axis ball screw

Power Requirements

380V/50HZ/3P (220V Avaliable)

Machine Weight

3500kg


Applications of Heavy Duty Fiber Laser Cutting Machine for Sheet Metal:


ST-FC3015L fiber laser cutting machine is widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries.


Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.


Heavy Duty Fiber Laser Cutting Machine for Sheet Metal Cutting Capacity:


 Fiber laser cutting machine cutting capacity


Details of Heavy Duty Fiber Laser Cutting Machine for Sheet Metal:

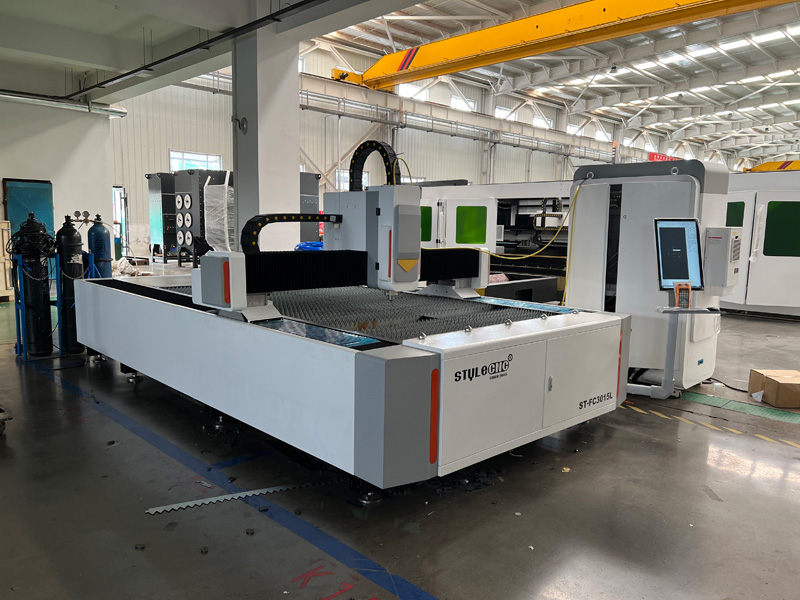

ST-FC3015L fiber laser cutting machine


Taiwan Hiwin square rails:

Each parts we adopted are original, such as Taiwan Hiwin rails with flange,high accuracy, Zero-distance to avoid the dust accumulation.


fiber laser cutting machine rails


Swiss Raytool fiber laser cutting head, more closure to protect the parts inside.


Swiss Raytool fiber laser cutting head

fiber laser cutting head


Germany IPG laser source:


2000 watts IPG fiber laser

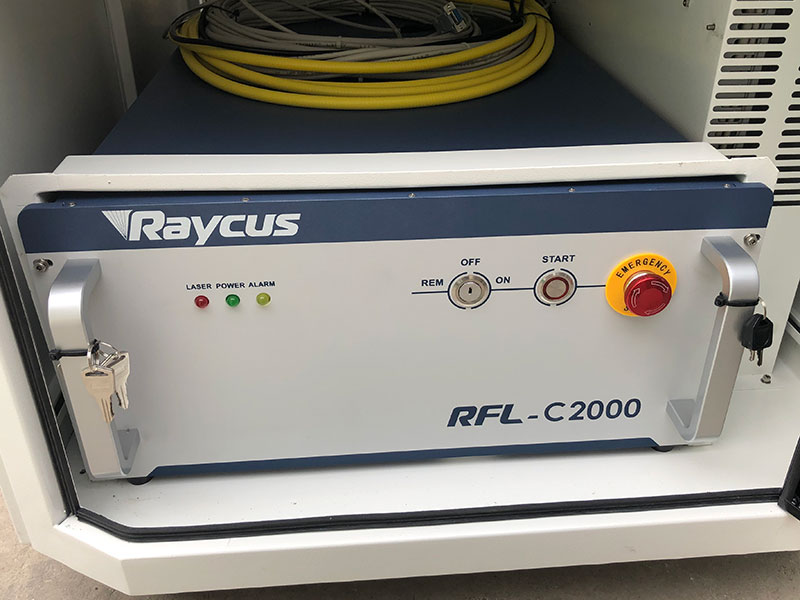

Chinese Raycus laser source:


Chinese Raycus laser source 2000w


Package of Heavy Duty Fiber Laser Cutting Machine for Sheet Metal:


Laser cutting machine package


Heavy Duty Fiber Laser Cutting Machine for Sheet Metal Projects:


fiber laser cutting machine for metal signs projects


Heavy Duty Fiber Laser Cutting Machine Electrical Power Cost:


Item

Air cutting

Oxygen cutting(O2)

Nitrogen cutting(N2)


Electronic consumption

Laser source

4KW

4KW

4KW

Water chiller

2.8KW

2.8KW

2.8KW

Machine

5.4KW

5.4KW

5.4KW

Dust exhausting 

0.75KW

0.75KW

0.75KW

Consumable parts

2RMB/h

2RMB/h

2RMB/h

Air consumption

15*85%=12.75KW

20L/h

40L/h

Total power

15.2KW

15.2KW

15.2KW

Average power consumption(80%)

15.2*80%=12.16KW

15.2*80%=12.16KW

15.2*80%=12.16KW


STYLECNC Package for Heavy Duty Fiber Laser Cutting Machine:


1. Strong water resit bottom in plywood.

2. Laser source (separated plywood case) and Spare parts on the laser bed.

3. Corner protect by foam and fixed by protective film.

4. All covered by strong and hard protective film.

5. Vacuum packing.

6. Inside steel frame protector.

7. Plywood packing and steel strip outside fixed the box.

8. Finishing packing by normal container or frame container.


STYLECNC Pre-Sale Service for Heavy Duty Fiber Laser Cutting Machine:


1. Free sample cutting service:

For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you to check the cutting quality.


2. Progressing Solution Design:

According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.


3. Customized machine design:

According to customer's application, we may revise our machine according to customer's convenience and high production efficiency.


STYLECNC After-Sale Service for Heavy Duty Fiber Laser Cutting Machine:

STYLECNC After-Sale Service

1. We will supply the laser machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)

2. You can come to our laser machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days (Recommended)

3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator (if no English-speaking) for our engineers during the training period.


STYLECNC Warranty for Heavy Duty Fiber Laser Cutting Machine:


1. 3 years for the whole machine, laser device 18 months, chiller 12 months, lens/mirror/nozzle without warranty.

2. Long life-time maintenance, after-sale department will offer 24/7 English online support.

3. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.

4. After the warranty period expired, the buyer only need to pay the actual maintenance cost.

5. Certificate support: CE, FDA, SGS.


If you have an idea to get a free quotation of Heavy Duty Fiber Laser Cutting Machine, please answer the questions as following and tell us by email, so that we can recommend the most suitable laser machine and quota the affordable price to you directly.


1. Do you need to cut metal sheets/plates, metal pipes/tubes only or both?

2. If need to cut tubes, What is your tube length, diameter and max thickness?

3. For cutting metal sheet, what is the max working area required?

4. After processed, what the materials will be used for? (Applications)

5. Which seaport is the nearest to you?

6. Do you have any experience in the fiber laser cutting machine?

7. What is your online chat way? Such as Skype, Whatsapp, etc.

8. Are you an end user or reseller?
