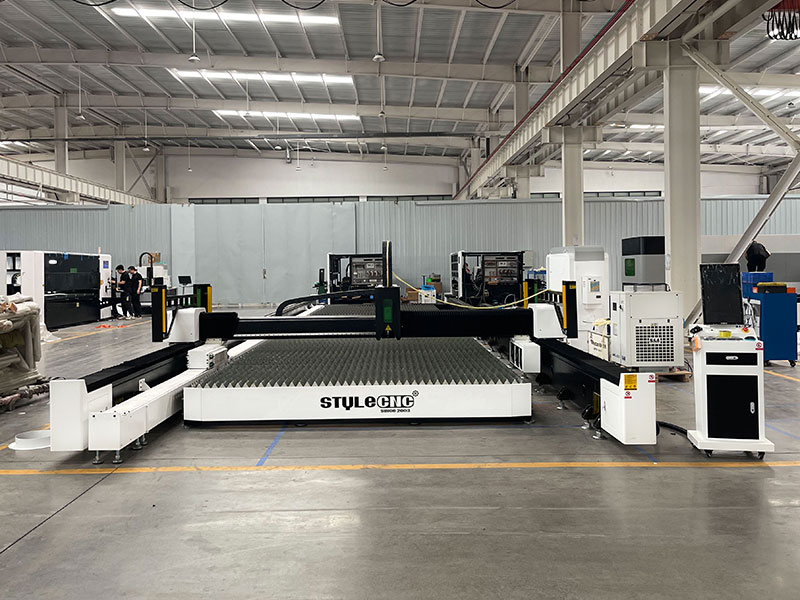

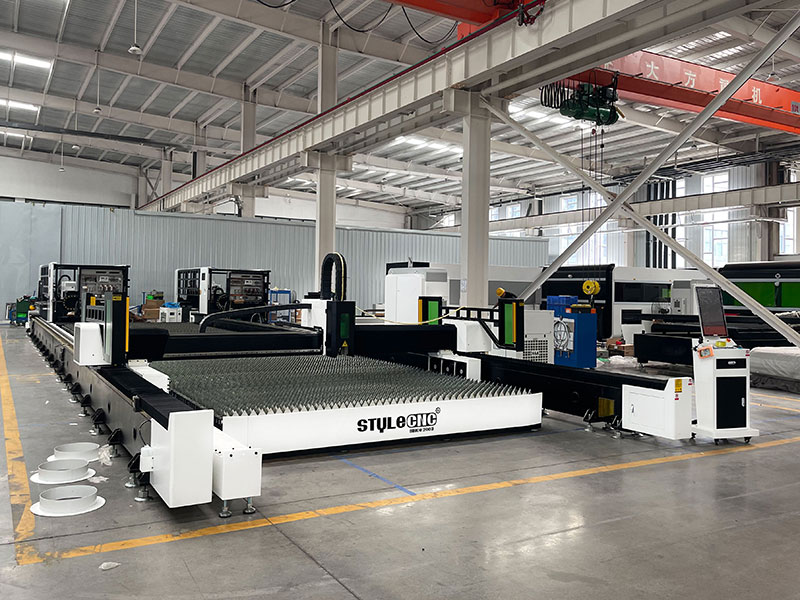

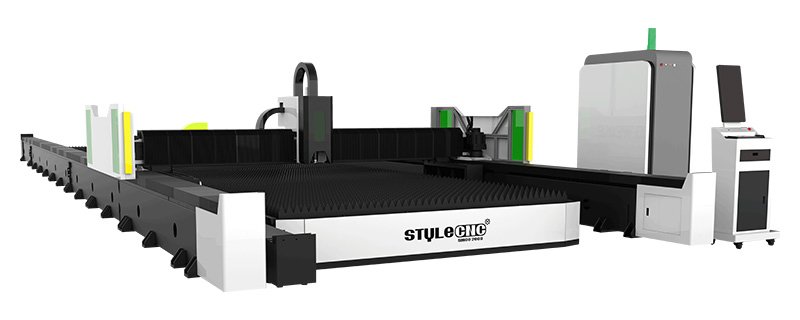

30KW Large Format Fiber Laser Cutting Machine for Sheet Metal

This ultra-large-format fiber laser sheet cutting table is a high-power fiber laser metal cutting system, offering a range of selectable power outputs including 6000W, 12000W, 20000W, 30000W, 40000W, and even higher. Its cutting width ranges from 2500mm to 5000mm, while its cutting length spans from 6000mm to 32000mm. Furthermore, the dimensions of the equipment can be customized to meet specific client requirements, enabling the cutting and processing of entire sheets of thick metal plate.

Technical Parameters of Ultra-Large Format Fiber Laser Sheet Metal Cutting Table 30000W

Ultra-Large High-Power Fiber Laser Metal Cutting Machine Advantages & Features

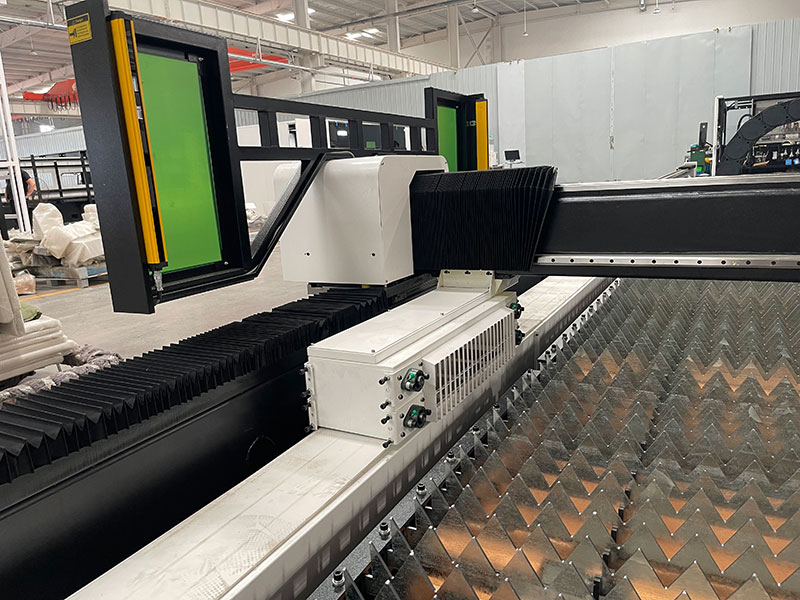

Enhanced safety with light curtain

Leveraging a lightweight gantry design, its robust internal mechanical structure ensures high operating speeds; meanwhile, a built-in light curtain device enhances operational safety.

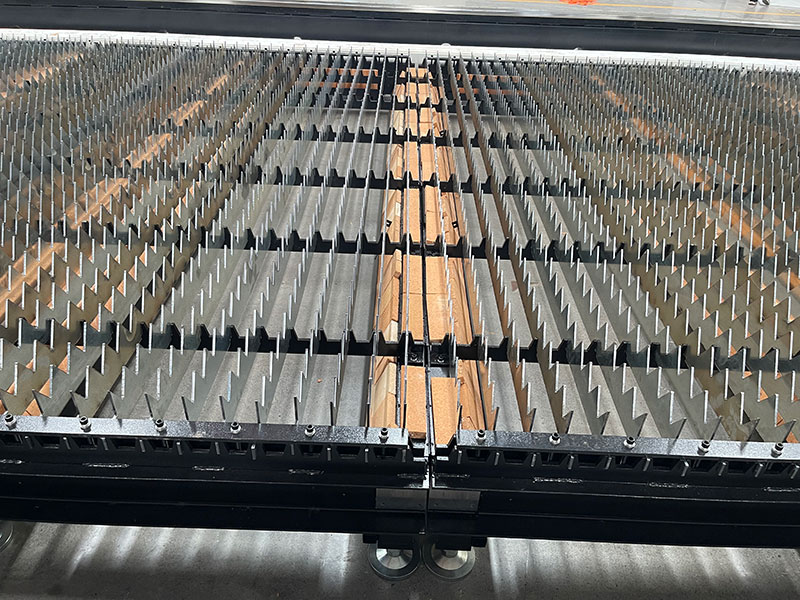

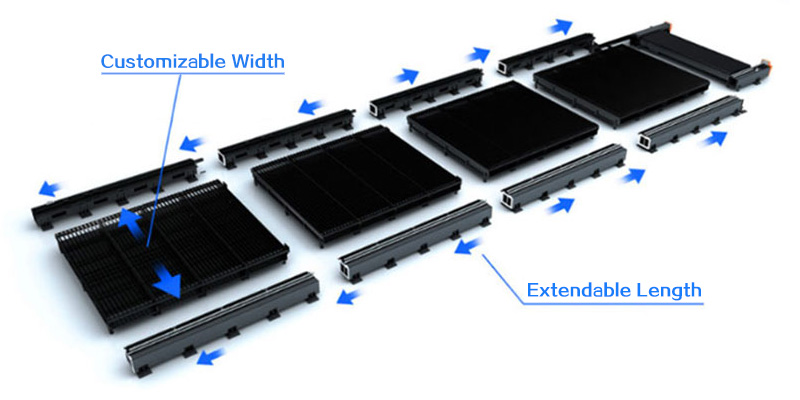

Modular workbench design

The segmented modular worktable can be dismantled and replaced without disrupting production. The modular, extendable machine bed allows for infinite extension, thereby meeting the requirements for ultra-large-format cutting.

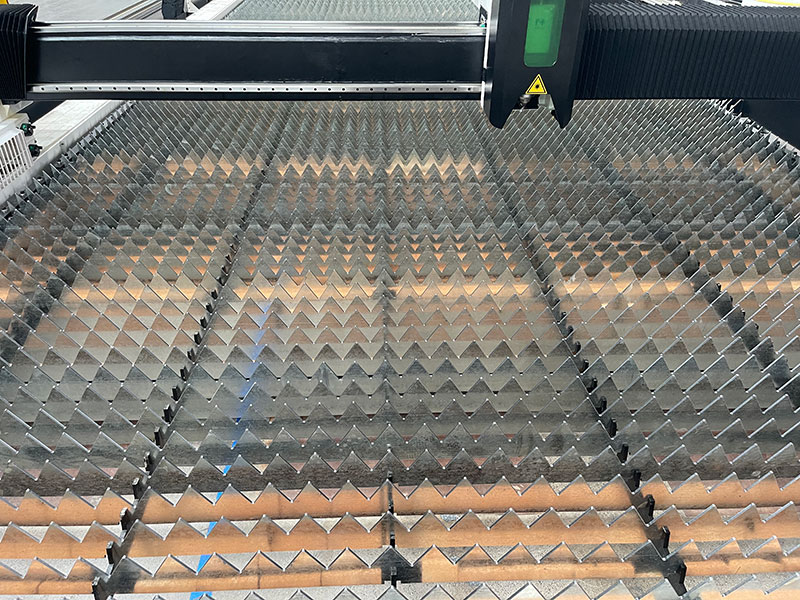

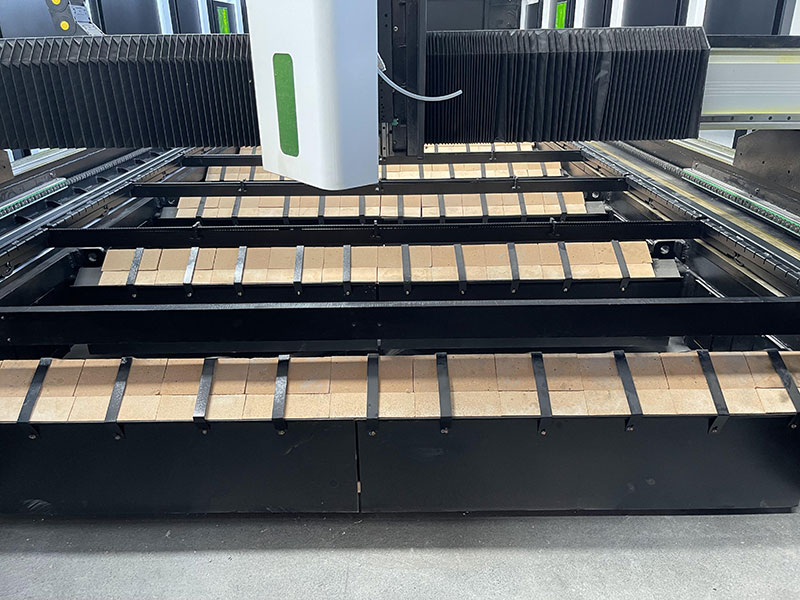

New fire-resistant technology

The surface of the cutting table is lined with refractory bricks to prevent the bed body from being directly exposed to high-temperature heat, thereby extending the service life of the fiber laser.

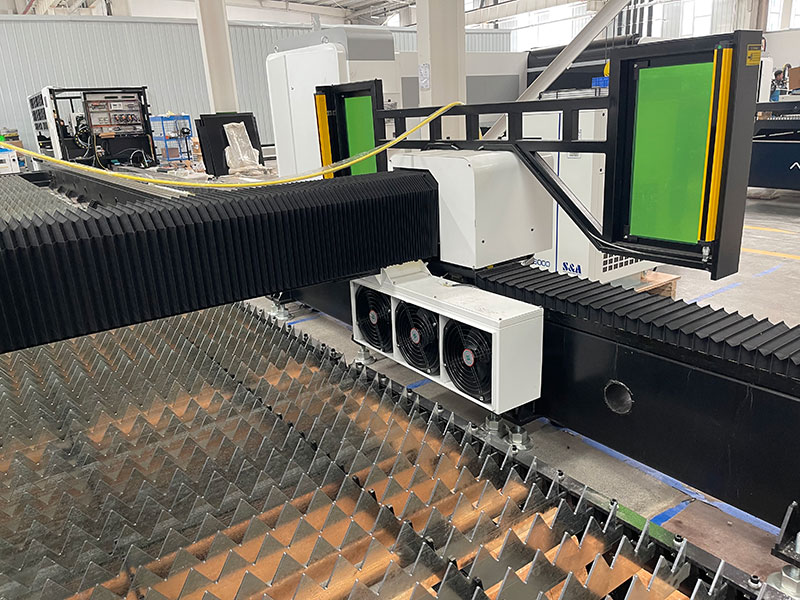

Powerful smoke exhaust system

As the laser cutting head moves into a specific zone, exhaust extraction is initiated within that area; simultaneously, the system automatically activates the corresponding blower to direct airflow toward the left-hand zone. The right side of the equipment is fitted with a high-volume blower, which works in tandem with the high-suction exhaust fan on the left to collectively create an optimal working environment for you.

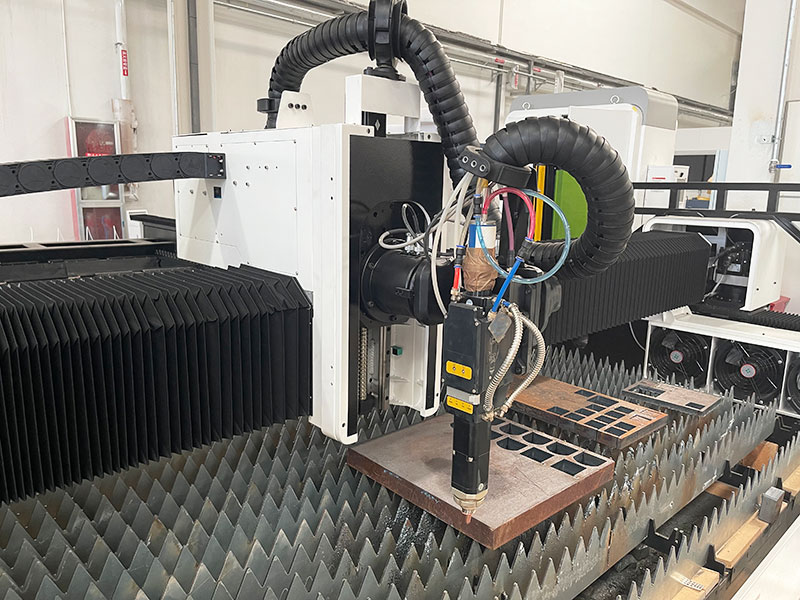

The bevel laser cutting feature is an optional add-on.

✓ Supports various bevel types, including V, Y, X, and K. Once a drawing—presented as the outer contour of a part—is imported and the material thickness is confirmed, the bevel attributes for the part can be flexibly configured.

✓ Supports a normal vector tracking function, effectively preventing dimensional deviations caused by variations in nozzle type or cutting angle.

✓ Enables localized editing and optimization of drawings, thereby enhancing production efficiency.

✓ The software features built-in functions for automatic nesting and common-line bevel cutting specifically tailored for bevel processing.

✓ Supports two piercing modes: vertical piercing and inclined piercing.

Application of Ultra-Large Fiber Laser Sheet Metal Cutting Table 30000W

The Ultra-Large Format Fiber Laser Sheet Cutting Machine is a powerful fiber laser cutting system capable of cutting a wide variety of metal materials, including stainless steel, carbon steel, low-carbon steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium plates, galvanized sheets, iron plates, aluminum, copper, and brass.

The ultra-large-format fiber laser sheet cutting machine is widely utilized across a diverse range of industries, encompassing mechanical components, electrical equipment, power distribution cabinets, kitchenware, elevator panels, hardware tools, metal enclosures, advertising signage, lighting fixtures, metal handicrafts, interior decoration, medical devices, automotive parts, and various other metal cutting applications. As a rail-guided cutting system, this model leverages its distinct advantages—specifically high efficiency, safety, and precision—to effectively enhance both operational productivity and product quality.

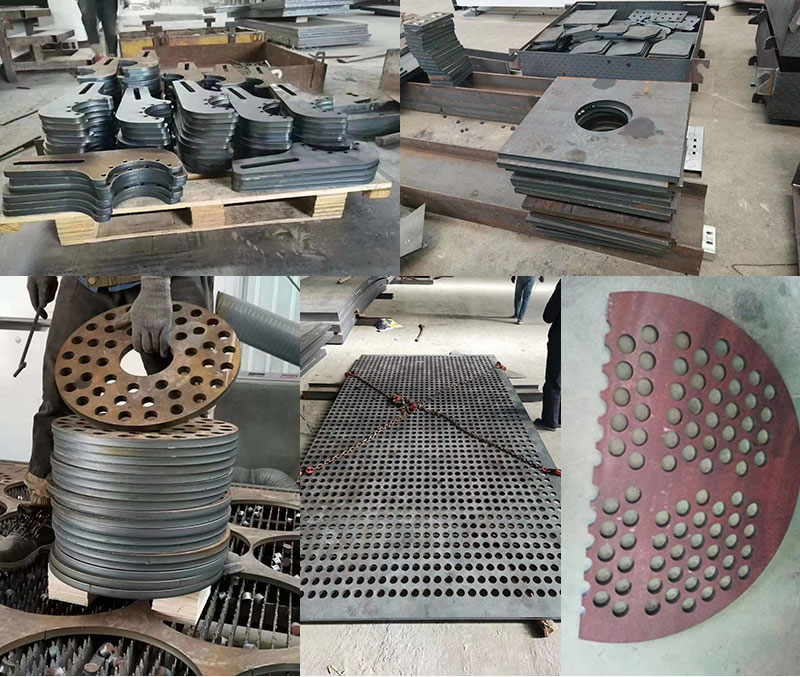

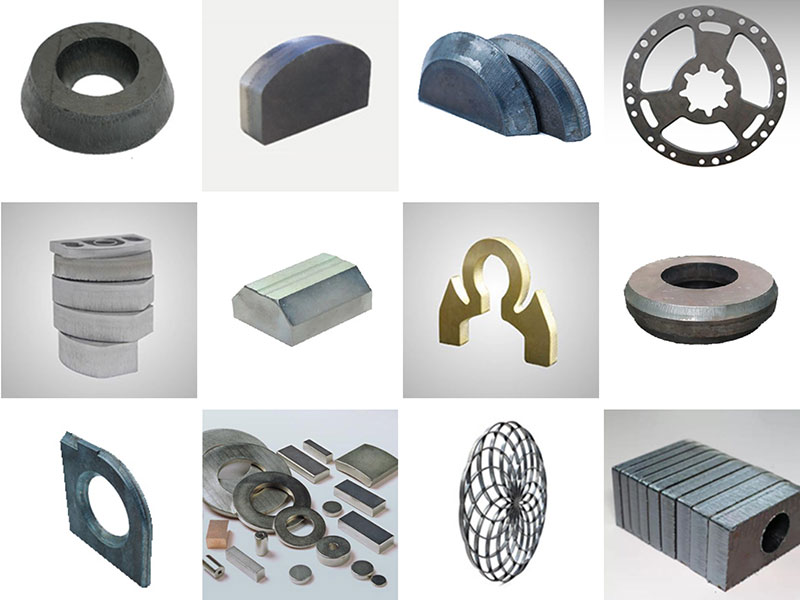

Ultra-Large Format Fiber Laser Cutting Sheet Metal Projects

Scaling Power from 6kW to 40kW: Where Diminishing Returns Begin

The ST-FC12025SL offers power configurations spanning from 6,000W to 40,000W, giving buyers a wide range of cutting capability. However, the relationship between laser power and cutting performance is not linear across all thicknesses. Understanding where speed gains plateau helps buyers avoid over-investing in power they will not fully utilize.

Upgrading from 6kW to 12kW delivers the most dramatic improvement: roughly double the speed on medium-gauge steel plus the ability to cut significantly thicker material. Beyond 12kW, each power jump delivers progressively smaller speed gains on material you could already cut, but opens up thicker material capability. Shops primarily cutting material under 20mm should evaluate whether the speed premium of 20kW+ justifies the investment over a well-configured 12kW system. For detailed speed charts across all powers, refer to STYLECNC's fiber laser cutting thickness and speed chart.

Assist Gas Strategy for Ultra-High-Power Cutting: Nitrogen vs Oxygen vs Air

Assist gas selection has a major impact on both edge quality and operating cost at the 6kW–40kW power range. Ultra-high-power fiber lasers have fundamentally changed the gas economics that apply to lower-power machines, making compressed air a viable production option for applications that previously required nitrogen.

At 20kW and above, compressed air cutting on carbon steel up to 20mm can match nitrogen speeds while producing acceptably clean edges for welding and general fabrication. This eliminates nitrogen gas expense, which can exceed $100,000 annually in high-volume operations. For applications requiring oxide-free edges (powder coating preparation, visible stainless steel components), nitrogen remains essential. Shops processing primarily carbon steel for structural and welded applications should evaluate air cutting as a major cost reduction strategy with ultra-high-power systems. For a broader view of industrial laser cutting technologies, see STYLECNC's guide.

Exchange Tables and Material Handling for Large-Format Production

The ST-FC12025SL's customizable bed dimensions (widths from 2,500mm to 5,000mm, lengths from 6,000mm to 32,000mm) are designed for processing full-size heavy metal plates without secondary cutting. At this scale, material handling becomes as critical to productivity as the laser itself. The exchange table system is the key feature that separates production-grade machines from basic flatbed models.

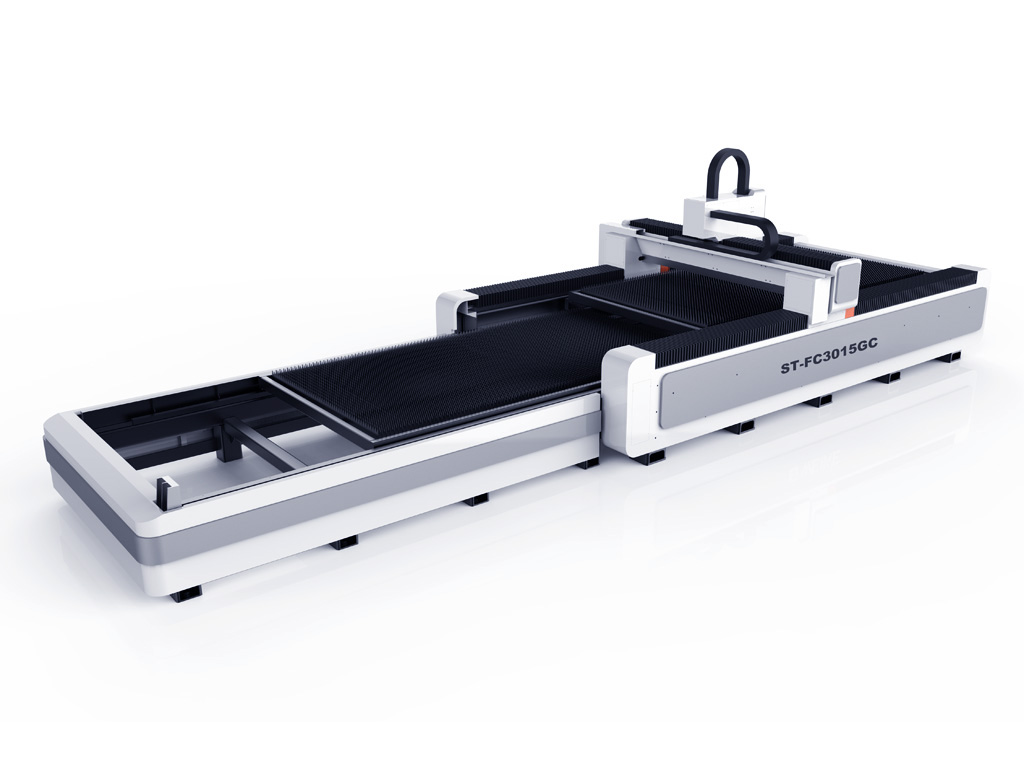

✓ Exchange tables allow loading the next metal sheet while the laser cuts the current sheet, virtually eliminating idle time between jobs. On thick plate work where individual sheets take 30–60+ minutes to process, this can increase daily throughput by 20–30%.

✓ Heavy-duty tables rated for 800+ kg/m² loading capacity accommodate thick steel plates without deflection, ensuring consistent focus distance across the entire cutting surface.

✓ Ground-rail gantry designs separate the motion system from the material table, preventing heavy plate loading from introducing vibration or thermal distortion into the cutting axis.

✓ The 5-axis bevel cutting head option enables V/Y/X/K groove preparation directly during the cutting cycle, eliminating secondary grinding or machining operations before welding.

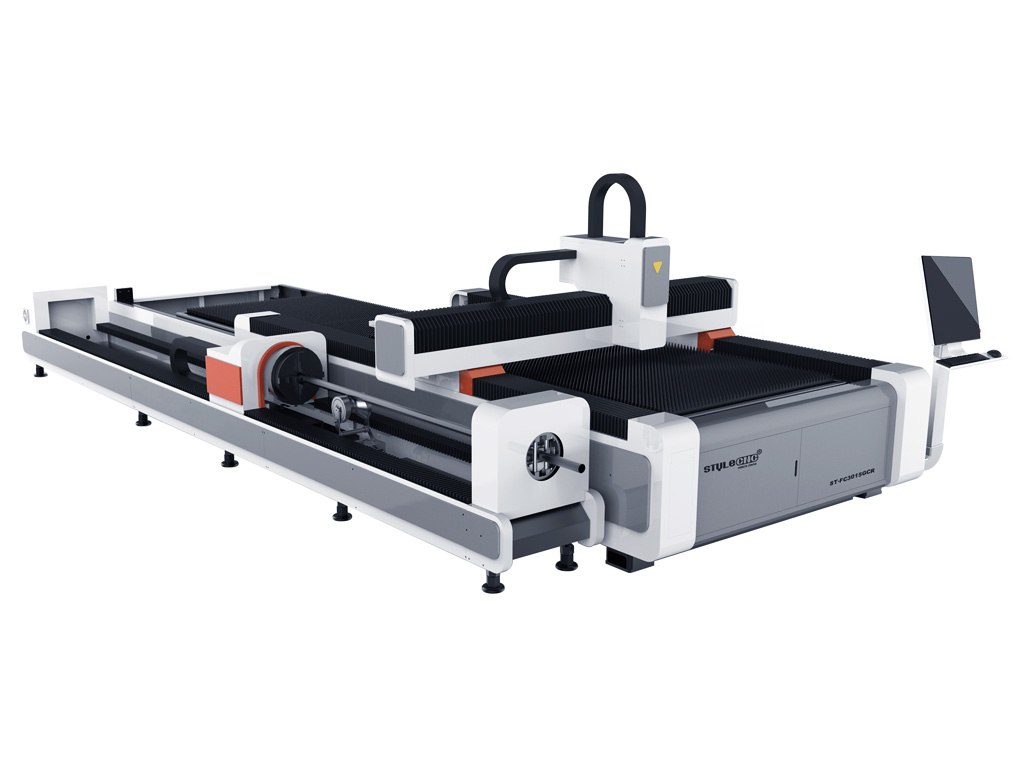

For fabrication operations handling both flat sheet and tubular stock, STYLECNC also offers dual-purpose sheet and tube laser cutters and dedicated metal pipe laser cutting machines for high-volume tube processing.

Frequently Asked Questions

How thick can a 30,000W fiber laser cut through stainless steel?

A 30kW fiber laser can cut stainless steel up to approximately 100mm+ in pulse-cutting mode for proofing and low-volume work. For continuous production-quality cutting, maximum practical thickness is around 50–70mm with nitrogen assist. Edge quality and speed decrease substantially beyond 40mm, so shops regularly cutting stainless thicker than 50mm should evaluate 40kW configurations.

Is Raycus laser quality comparable to IPG for ultra-high-power cutting?

Raycus and MAX (both Chinese-manufactured) have closed the performance gap with German-made IPG sources significantly in recent years. For most production cutting applications up to 30kW, Raycus delivers comparable beam quality and cutting results at a substantially lower price point. IPG sources may offer slight advantages in beam stability for extremely thick stainless steel cutting and carry longer established track records for 100,000+ hour service life claims.

Can I use compressed air instead of nitrogen to cut carbon steel at 30kW?

Yes. At 20kW and above, compressed air cutting on carbon steel produces faster speeds than oxygen and significantly lower gas costs than nitrogen, with acceptably clean edges suitable for welding, painting, and general fabrication. A dedicated high-pressure air compressor system with proper filtration and drying is required. Air cutting is not recommended for stainless steel or aluminum where oxide-free edges are needed.

What facility requirements are needed for installing an ultra-large format laser?

The ST-FC12025SL requires 380V three-phase power, a dedicated chiller circuit, nitrogen/oxygen gas storage or generation, and adequate floor space for the machine footprint plus material staging area. For a 2500mm × 12000mm configuration, plan for at least 15m × 6m of clear floor space including operator access. Overhead crane or forklift access is essential for loading heavy plates onto the exchange tables. Fume extraction must be sized for the cutting area.

What is the 5-axis bevel cutting head used for?

The optional 5-axis bevel cutting head performs V, Y, X, and K groove preparation directly during the laser cutting cycle. This eliminates the secondary grinding or machining step traditionally required before welding thick steel plates. It is particularly valuable for structural steel fabrication, pressure vessel manufacturing, and shipbuilding where weld-prep edges are specified on every part.

How much does it cost to operate a 30kW fiber laser per hour?

Total operating costs depend heavily on assist gas strategy. With nitrogen cutting, total hourly costs (power, gas, consumables) can reach $40–$80+ per hour due to high nitrogen consumption at the pressures required for thick material. With compressed air cutting on carbon steel, costs drop to $8–$15 per hour. Electricity consumption for the laser source, chiller, and auxiliaries ranges from 30kW to 135kW depending on laser output. For complete pricing information, see STYLECNC's guide to laser cutting machine costs.

Can this machine cut reflective metals like copper and brass?

Yes. High-power fiber lasers (12kW+) with modern anti-back-reflection protection can reliably cut copper and brass. At 30kW, the ST-FC12025SL can process copper up to approximately 30mm and brass up to similar thicknesses. Reflective metals require higher power than equivalent-thickness steel due to poor absorption of the 1.06μm wavelength. Oxygen assist is recommended for copper to improve absorption. For machines specifically optimized for stainless steel, see STYLECNC's stainless steel laser cutting machine.

Package for Ultra-Large Fiber Laser Cutting Table 30000W

• The base is constructed from high-strength, waterproof plywood.

• The laser source (packaged separately in a plywood crate) and spare parts are placed directly on the laser bed.

• Foam protectors are applied to all four corners and secured in place with protective film.

• The entire exterior of the machine is covered with a robust and durable protective film.

• The unit undergoes vacuum packaging.

• An internal steel frame protective structure is incorporated.

• The exterior packaging consists of a plywood crate, reinforced with steel strapping.

• Final Shipment: Transport is carried out via standard shipping containers or flat-rack containers.

Pre-Sale Service for Ultra-Large Fiber Laser Metal Cutter 30000W

Free Cutting Trial Service

If you would like to test-cut metal free of charge to determine if it meets your business requirements, please send us your CAD files (in .plt or .ai format). We will perform actual cutting operations at our facility and record a video demonstrating the cutting process and results. Alternatively, we can ship the finished samples directly to you so that you may personally inspect the cutting quality.

Tailored Metal Cutting Solutions

Based on your specific metal fabrication needs, we can custom-design unique solutions aimed at helping you achieve greater manufacturing efficiency and superior cutting quality.

Machine Customization Service

To address your specific application scenarios, we can perform targeted optimizations and adjustments to our existing equipment, ensuring maximum operational convenience and meeting your requirements for high productivity.

After-Sale Service for Ultra-Large Fiber Laser Metal Cutting Machine 30000W

✓ We will provide English-language training videos and user manuals alongside the laser equipment, covering installation, operation, maintenance, and troubleshooting. Should you encounter any issues during the installation, operation, or commissioning process, we offer remote technical guidance through various channels, including TeamViewer, email, landline, mobile phone, WhatsApp, Skype, and 24-hour online customer support. (Recommended Option)

✓ You are welcome to visit our laser equipment factory in person to receive training. We will provide expert guidance to ensure a direct, efficient, and effective face-to-face training experience. The factory is fully equipped with assembled machinery, various tools, and comprehensive testing facilities. Training Duration: 3 to 5 days. (Recommended Option)

✓ Our engineers can travel to your location to provide on-site guidance and training services. Prior to the engineer's departure, we require your assistance in handling visa formalities and the advance payment of their travel, accommodation, and meal expenses for the duration of their business trip and service period. Additionally, if there is no personnel at your site capable of communicating in English, we recommend arranging an interpreter for our engineer during the training session.

Warranty for Ultra-Large Format Fiber Laser Sheet Metal Cutting Table 30000W

✓ The entire machine comes with 1-year limited warranty (excluding consumable parts).

✓ We provide lifetime maintenance services; our After-Sales Department offers 24/7 online English support.

✓ During the warranty period—excluding damage caused by human error—we will provide replacement parts free of charge.

✓ Upon expiration of the warranty period, the Buyer shall be responsible only for the actual maintenance costs incurred.

✓ Certificate support: CE, FDA, SGS.
