Moving Table CNC Router Machine with Rotary Automatic Tool Changer
Product Introduction
Customer Reviews & TestimonialsMoving table CNC router machine with rotary automatic tool changer is used for high precision carving and cutting on wood, brass, aluminum, foam, plastic, acrylic, MDF and more similar materials.

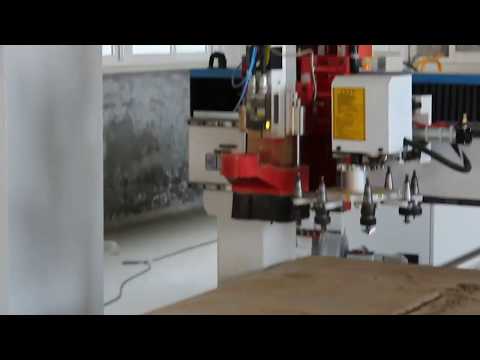

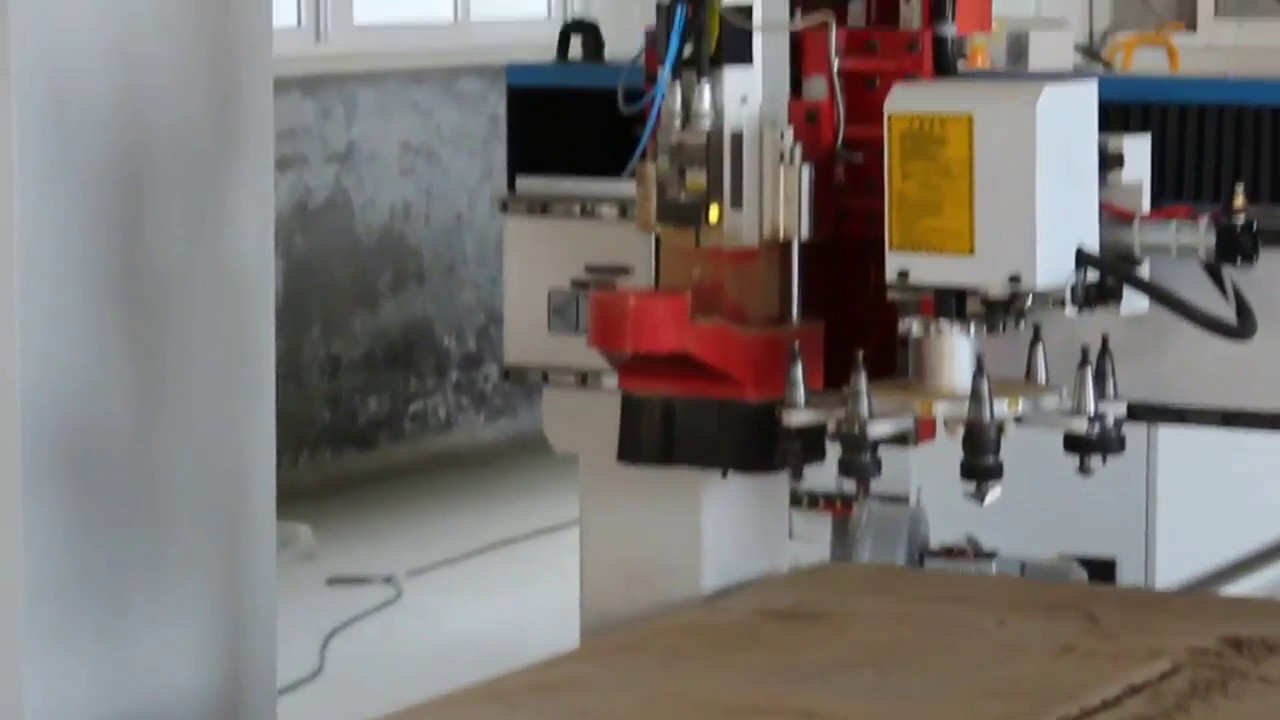

Demonstration Video
Product Details

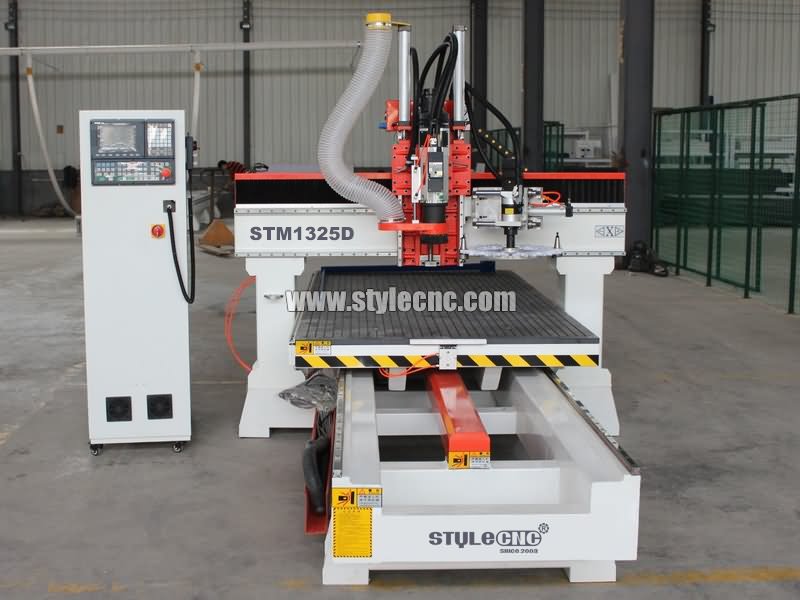

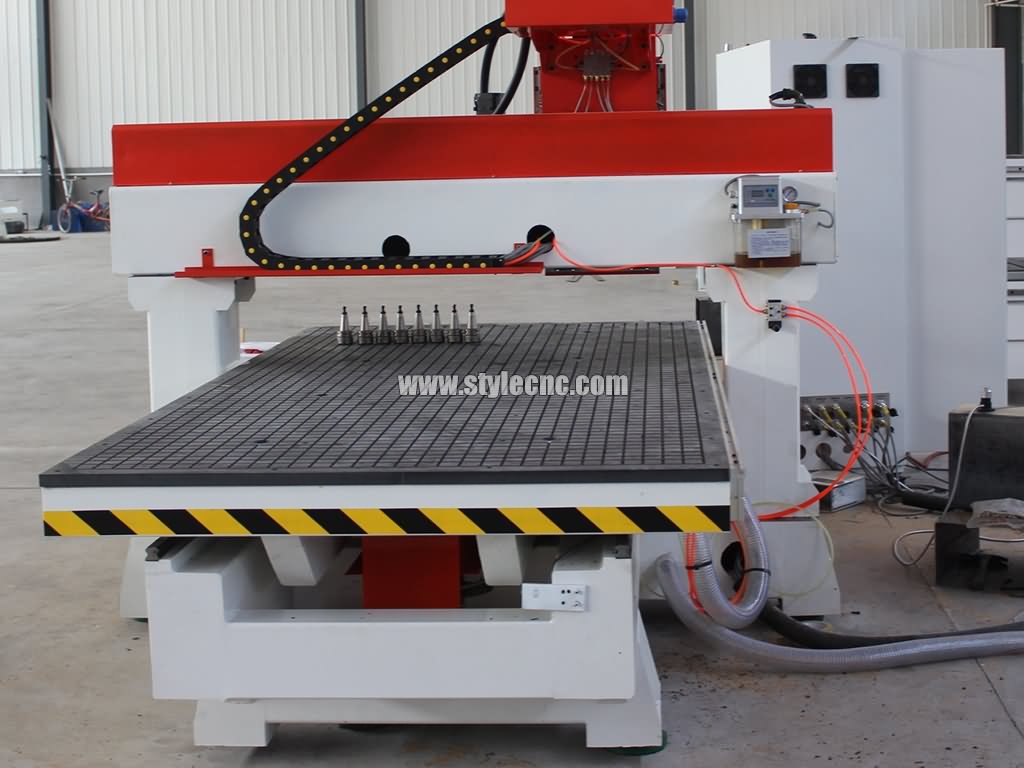

The CNC router machine with 16 tools rotary automatic tool changer has a stationary bridge with moving table. The automatic tool changer CNC router machine with moving table is designed to increase productivity while maintaining an open-style machine for ease of use. The moving table CNC router machine is used for cutting and engraving on wood, brass, aluminum, plastic, acrylic, MDF and other similar materials.
We use top quality components for the ATC CNC router machine with moving table, such as HSD spindle, Yaskawa servo motor, Delta Inverter, Hiwin linear and so on, to keep the machine in best condition even after working for many years. With phenolic T-slot and vacuum combined table, not easy to deflect, you can do variety of high-precision works.
Features of Moving Table CNC Router Machine with Rotary Automatic Tool Changer
1. Italy HSD spindle: original famous brand from Italian.
2. Taiwan SYNTEC control system: It is from Taiwan with high performance and competitive price.
3. Japan Yaskawa servo motor and drives: They are from Japan with high precision and long life.
4. HIWIN linear guide rails: made from Taiwan,used for linear reciprocating stadium.
5. Schneider electrical components: original brand from France.
6. Japan Omron Switch with long life.
7. Drum-type ATC with 16 tools, no need to change tools manually during working.
8. Applicable to workpieces which need many different tools to finish. Intelligent controlling with high efficiency.
9. Whole cast steel structure thickness to 8mm.
10. APEX Reudcer from Taiwan: More powerful and higher precision.
11. T-Slot table with vacuum table: Use clamp or pump to fix materials.
12. Moving table.
Applications of Moving Table CNC Router Machine with Rotary Automatic Tool Changer
It is suitable for the wave board processing, wooden door, screen, craft, window processing and different kinds of furniture assistance processing.
It is also suitable for the aluminium board, plastic board, artificial marble as well as the light metal industry.
Techncial Parameters of Rotary Automatic Tool Changer CNC Router Machine with Moving Table
Model | STM1325D |
Working area | 1300*2500*300mm |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum (Option: Vacuum and T-slot Combined) |
Frame | Welded Structure |
X/Y axis movement | Ballscrew transmission |
Z movement | Ballscrew transmission |
Guide | Taiwan HIWIN/PMI 25-30 square rails |
Max idling speed | 60000mm/min |
Max engraving speed | 30000mm/min |
Spindle power | 9KW Italy HSD air cooling spindle |
Spindle speed | 24000rpm |
inverter | 11kw |
Drive motors | Japan Yaskawa 850w servo motors |
Tool magazine | 16 pieces, circular disk |
drivers | Servo drivers |
Control system | Taiwan SYNTEC control system |
Working voltage | 380V or Customized |
Command code | G code |
software | Artcam, Type 3 |
collet | ER32-ER40 |
Packing dimension(L*W*H) | 3500*2300*1890mm |
Standard equipment included | 1. Automatic oil injection system 2. Tool sensor 3. 7.5kw vacuum pump 4. Whole set dust collector system |
Moving Table CNC Router Machine Projects
Free Accessories for Moving Table CNC Router Machine
Software, CD Videos, Controlling Card (PCI card), Water Pump, Engraving Tools, Data Wire, Power Line, Spanners and Clamps,and so on.
Service for Moving Table CNC Router Machine
1. One year warranty, unconditional replace accessories according to warranty card.
2. We provide the consumable parts at agent price when you need replacement.
3. Free training course at our factory with professional engineers.
4. Provide the operation manual and video, and so that you learn that more easy.
5. 24 hours online service each day, free technical support with English languages.
Our CNC router machine’s configuration/working area can be changed just according to your needs.
We provide 24/7 online service for you. Please feel free to contact us.
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
-
