4x8 glass CNC router machine is used for cutting and carving glass, wood, MDF, acrylic, plastic, aluminum, and copper. Now the affordable glass CNC cutting & carving machine for sale at cost price.
A 4x8 glass CNC router is a specialist instrument designed for accurate glass engraving and cutting jobs. It gets its name from its vast 4 x 8 foot working area, which makes it easy to handle larger glass sheets. These devices automate the cutting and carving process using sophisticated computer-controlled mechanisms, guaranteeing excellent precision and accuracy.
These devices have the purpose to make glass processing operations such as milling, engraving, cutting, and 3D carving more efficient. For businesses like furniture manufacture, home décor, and architectural design, this makes them perfect. The 4x8 glass CNC router machine minimizes the possibility of human error and saves time by executing complex cuts and designs.
In general, these devices offer a dependable option for companies seeking to increase the volume of glasswork they produce, producing consistently excellent outcomes for both modest and large-scale jobs.
1. The lathe bed adopts a strong welded steel tube to avoid distortion.
2. The Y axis adopts double motors to keep stable moving.
3. High-accuracy Rack Rail travel method with high speed.
4. Imported Square Liner Rail, high accuracy, heavy burthen.
5. Humanization Design of lathe bed vacuum and easy working.
6. Intelligent protecting working fable.
7. Break-point memory function enables the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.
8. Compatible with many CAD/CAM software, such as Type3, ArtCAM, and Castmate.

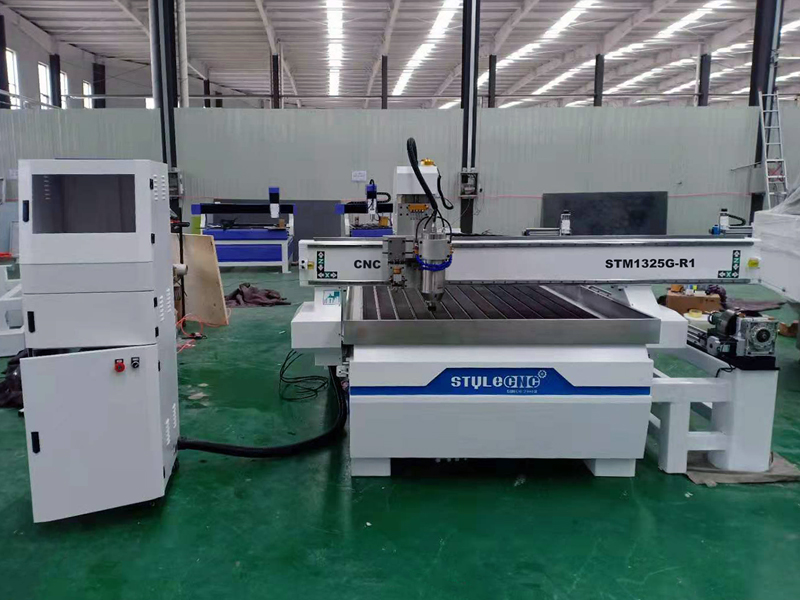

Model | STM1325G |
Working Area | 1300x2500x250mm |
Table Size | 1450x2940mm |
Traveling Positioning Accuracy | ±0.03/300mm |
Reposition Accuracy | ±0.03mm |
Table Surface | T-slot Table |
Frame | Welded Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption | (Without Spindle) 3.0Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 3.0kw+Glass knife |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper System |
Working Voltage | AC220V/50/60Hz,3PH (Option: 380V)) |
Command Language | G Code |
Operating System | NC Studio control system |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER20 |
X, Y Resolution | <0.03mm |
Software Compatibility | Type3/UcancameV9 Software (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Packing Size | 3160X2160X1800mm |
N.W. | 950KG |
G.W. | 11800KG |
Glass CNC router machines are widely used in the furniture processing industry, woodworking decorating, wood artwork, house decoration, and door manufacture for single lines, milling, 3D cutting, and engraving of glass. These devices are made to be accurate and effective in performing a wide range of tasks involving glass.
For complex and detailed tasks, including making ornamental glass pieces for furniture or house interiors, glass CNC router machines are perfect. Their ability to create exquisite designs on glass surfaces makes them ideal for complementing interior décor. Apart from engraving, these devices are employed for shaping glass into precise dimensions and forms, a crucial function in the production of doors and furnishings.
Glass CNC routers are capable of 3D cutting and engraving for complex projects, allowing manufacturers to produce unique and custom designs. These devices offer accuracy and dependability whether they are used for glass components for furniture or wood artwork projects.
Glass CNC router machines are significant in industries where quality and precision are crucial due to their adaptability. They are the go-to choice for glass processing needs in a range of sectors, from milling and single-line work to intricate 3D designs.
Investing in a 4x8 glass CNC router machine can bring substantial cost savings for businesses engaged in glass cutting and carving. These machines offer precision, efficiency, and reduced labor costs, making them an excellent choice for industries requiring glass processing.
• Time Efficiency
The automated cutting and carving process reduces the time needed for manual labor. Projects that once took hours or days can now be completed in a fraction of the time, boosting productivity.
• Lower Labor Costs
Since the CNC machine performs most tasks automatically, the need for manual labor decreases significantly. This leads to savings in labor expenses while maintaining consistent quality.
• Reduced Material Waste
The accuracy of the CNC router minimizes material waste by ensuring precise cuts every time. This leads to better use of materials and fewer costly mistakes, saving money in the long run.
• High ROI
Although the initial investment in a 4x8 CNC router may seem high, the long-term benefits, such as increased efficiency and reduced costs, result in a high return on investment (ROI).
Regular care helps your 4x8 glass CNC router work smoothly and last longer. Skipping maintenance can lead to breakdowns and costly repairs. With simple steps like cleaning, lubrication, and software updates, you can keep the machine in top shape and ensure it performs reliably for every project.
1. After every use, clear away glass fragments, debris, and dust. Clear the work area and the rails to avoid accumulation that can hinder efficiency.
2. Lubricate the lead screws, bearings, and rails on a regular basis. Smooth operation is ensured by proper lubrication, which lowers friction and stops wear.
3. Frequently check the spindle to prevent overheating or strange noises. To avoid heat damage when the cooling system is operating, make sure it is operating correctly.
4. Make sure electrical connections are secure by checking them on a regular basis. The machine's performance may be impacted by problems brought on by loose connections.
5. Maintain the most recent firmware and software on the device. Updates to the software frequently contain bug fixes and performance enhancements to keep the system operating at peak efficiency.
