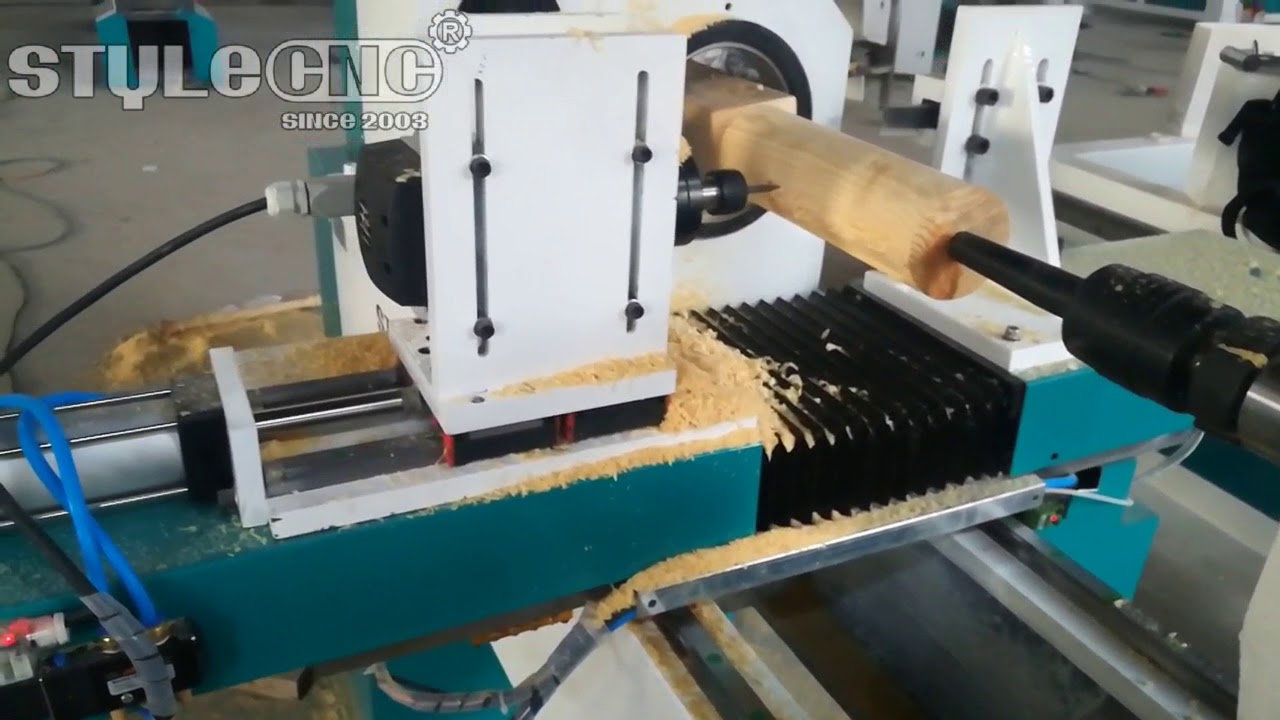

The most affordable CNC wood lathe machine is used for fine turning complex shape of rotary or semi-finished woodworking projects with low cost and best budget.
• Maximum working length is 2000mm and Maximum turning diameter is 300mm.
• The Affordable Wood CNC Lathe Machine has 2 cutters at 2 sides of the machine, the 2 cutters can work together to improve the work efficiency greatly.
• Linear square rails, ball screws, electronic components with high quality, high precision and durable.
• Heavy-duty with good stability to avoid shaking when the spindle rotates with high speed or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.
• Easy operation, we can draw by Coredraw, Artcam, autoCAD and other softwares, and the control directly by the CNC cabinet computer (Industrial PC configuration) or transfer the files to machine by USB (DSP handle configuration).
• High Class frequency converter with high stability.
• High accuracy stepper motor, after program calculating, guarantee the exact processing size.
| Model | STL2030-S |
| Max turning length | 2000mm |
| Max turning diameter | 300mm |
| Spindle | 3.5KW air cooling spindle |
| Maximum feed rate | 200cm/min |
| Spindle speed | 0-3000r/min |
| Minimum setting unit | 0.01cm |
| Control system | PLC controller |
| Driving system | Stepper motor |
| Power supply | AC380V/50hZ (AC220V for option) |
| Overall dimensions | 0.6-0.8MPa |
Applicable Materials
Bodhi, Bodhi root, mahogany, gold-rimmed nanmu, rosewood, mahogany, boxwood.
Applicable Industries
Bead, barrel, all kinds of buddha heads, gourd pendant, hoist pieces, wood cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, pens and wine stoppers.
Cylindrical workpieces, bowl sharps, tubular sharps vehicle wood crafts, stairway balusters, staircase columns, stairway newel posts, end table legs, sofa table legs, dining table legs, bar stool legs, Roman column, general column, washstand, wooden table, wooden vase, car wooden furniture, children' s bed column, chair arm posts, chair stretchers, bed rails, sofa and bun feet, lamp posts, baseball bats, and more woodworking projects.
I wanted to get into turning posts and stiles. I have never used a wood lathe at all. This unit is just perfect. All the parts are tight and balanced. It performs well and produces smooth work. It has been great for the price and my needs. With the CNC controller and the instructions came with the machine, I am able to use it with no any experience. I love it and am having so much fun. Overall, I would recommend this product to all.
This is the first lathe I've bought here that I'm extremely impressed. Once you've read the instructions, it is easy to set up. It has a nice heavy duty cast iron body, which is heavy enough to sit solidly on the ground and also run quietly, and works just like it is supposed to.
This lathe is very robust. Heavy duty. So far it is working well for spindle turning as well as some vases and bowls.
