In our daily lives, we are often amazed by the various styles of personalized wooden bowls, plates, vases and cups made of cherry, beech, silver birch, sweet chestnut, ash, black walnut, maple or bamboo. While marveling at the skills of the craftsmen, do you also suspect that these woodworking projects were machine-made? In fact, most wood turning on the market is done by lathes. Well, what type of lathe can do these turns? In practice, both manual lathes and CNC lathes can get these jobs done. Today we introduce to you this automatic wood lathe with CNC controller designed for woodworking enthusiasts. You're bound to learn something here and start turning your next bowl or vase - maybe your first try.
Features of Hobby CNC Wood Lathe Machine for Bowls, Plates, Vases, Cups
• Horizontal flat bed structure design.
• Precision ball screws and linear guides.
• X/Z axis adopts stepper drive.
• Spindle drive with frequency conversion and stepless speed regulation.
• Dual turret design enables rough turning and finishing turning at one time.
• CNC controller is easy to use, simple to operate and user friendly.
• Compatible with various CAD/CAM software.
• Turning length and diameter are optional for different woodworking needs.
Technical Parameters of Hobby CNC Wood Lathe Machine for Bowls, Plates, Vases, Cups
| Model | STL0525 |
| Brand | STYLECNC |
| Max Turning Length | 500mm, optional 900mm |
| Max Turning Diameter | 250mm |
| Hole Size | 45mm |
| Controller | CNC controller |
| Max Turning Precision | 0.01mm |
| Drilling | Automatic (Turning Thimble for Option) |
| Operating System | LCD Touch Screen Interface |
| Software | CAD |
| File Format | DXF |
| Transmission | TBI Ball Screw Guider, HIWIN Square Rail |
| Driving | Step Motor and Driver |
| Turning Tools | HSS/Carbide Blades and Drillers |
| Motor Power | 1500 Watts |
| Voltage | 220V/380V Single Phase, 50HZ |
| Packing Size | 1300mm x 850mm x 1000mm |
| Gross Weight | 360KGS |
Automatic Wood Bowl & Plate & Vase & Cup Turning Lathe Applications
STL0525 wood lathe is used for turning wooden bowls, rolling pins, vases, drawer pulls, candle holders, magic wands, chess pieces, trivets, keepsake boxes, egg cups, beads, barrels, round boxes, drumsticks, wooden plates, wine cups, succulent planters, spurtles, christmas ornaments, salt and pepper shakers or mills, goblets, lamps, pens, bottle stoppers, lidded boxes, honey dippers, spatulas, spoons, ice cream scoops, gourd pendants, Buddha heads, magnifying glasses, mortars and pestles, antique pepper mills, furniture legs, bracelets, bangles, wooden toys, and handles for anything and everything.
Hobby CNC Lathe Machine Turning Wooden Bowl, Plate, Vase and Cup Projects

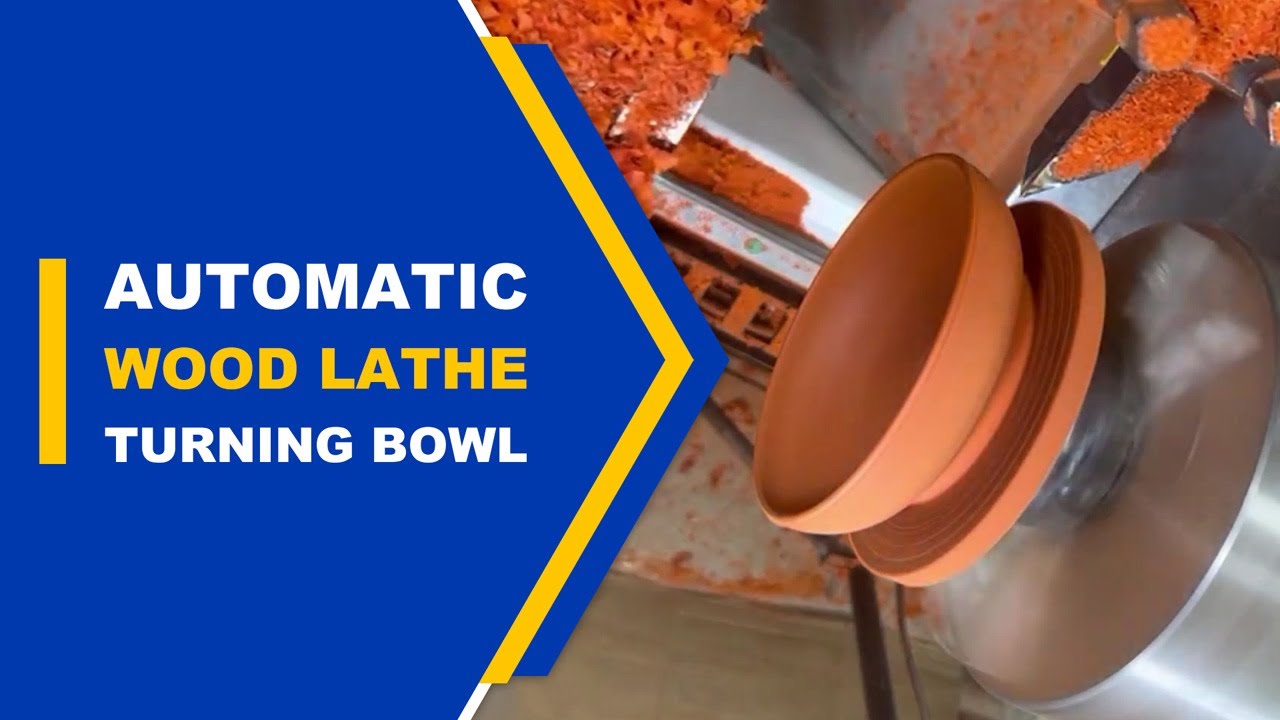

Automrtic Wooden Bowls Turning Projects
CNC Wood Bowls & Plates Turning Projects
CNC Lathe Turning Wooden Bowls & Vases & Cups & Plates, Beads
FAQs
What is a bowl turning lathe?
A bowl turning lathe is a popular woodworking tool used to shape hard wood blanks into designed bowls with complex curves. A wooden bowl turning is the moment a lathe meet artistry.
How does a CNC lathe turn a bowl?
A CNC wood lathe uses a computer to control a turner to turn a wooden block and create a shaped bowl with turning tools. It is different from most of automatic woodworking forms in that the work piece is moving while a stationary blade is used to cut and shape it.
How much does a bowl lathe cost?
The average cost of owning a wood bowl lathe is $5,720. An entry-level bowl turning machine starts at around $4,780, while a professional CNC bowl turning lathe is priced as high as $6,960.
