Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head

Last Updated: 2024-08-02 11:55:05

Heavy duty 4x8 ATC CNC router with tapping head is professional for drilling screw holes on aluminum, brass, copper and other soft metals. Now the best 4x8 aluminum CNC machine for sale at affordable price.

Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
  • Brand - STYLECNC
  • Model - STM1325DT
  • Table Size - 4' x 8' (48" x 96", 1300mm x 2500mm)
4.9 (49)
16500.00 for Base / 18500.00 for Premium
  • Supplity - 360 Sets / Month Waiting for Sale In Stock
  • Standard - Meet CE Standards in Terms of Quality & Safety
  • Warranting - One (1) Year Limited Warranty for Entire Machine
  • 1-2 Days Handling and 7-30 Days Shipping
  • 30-Day Money Back Guarantee for Your Purchase
  • Free Lifetime Technical Support for End-Users & Dealers
  • Online (PayPal, Trade Assurance) / Offline (T/T, Debit & Credit Cards)

Heavy duty 4x8 CNC router for aluminum

Standard Features of Heavy Duty 4x8 ATC CNC Router with Tapping head

1. 11KW water-cooling ATC spindle motor: good rigidity, large torque at low speed and high precision at high speed,with encoder to carry out the tapping.

2. Professional Inverter: Guarantee the spindle tapping function by pulse, and execute normal working by frequency.

3. Big steel square tube structure,by seamless welding and hardening treatment, guarantee it to be strong, reliable and durable, with large bearing capacity and long working life.

4. Big power servo driving system with Shimpo reducer: With highly control precision and high speed, reliable and stable.

5. Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates, longer lifetime because of smaller wearing force.

6. High precision Taiwan TBI ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.

7. Disc tool magazine with 12pcs tool holders BT40, effectively improve working efficiency.

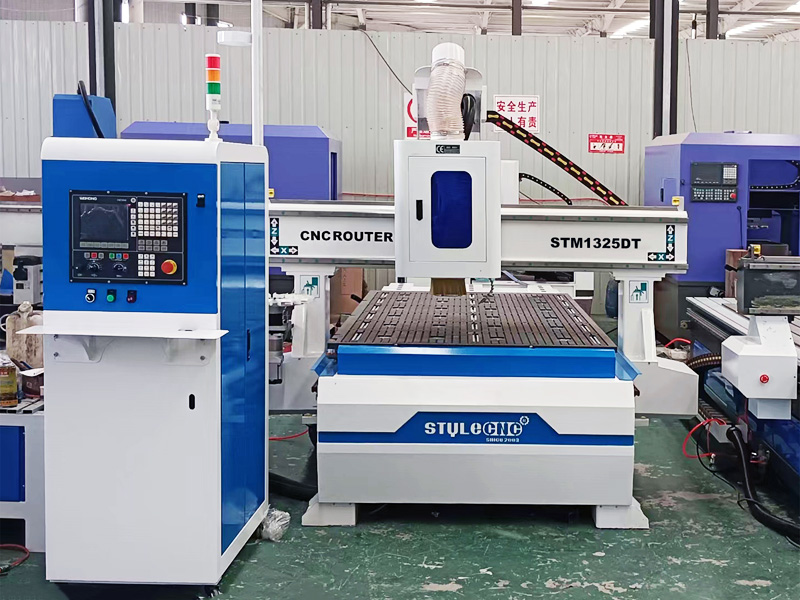

Aluminum CNC router with tapping

CNC router for aluminum with disc ATC system

tapping spindle

Automatic tool changer BT40

Technical Parameters of Heavy Duty 4x8 ATC CNC Router for tapping

ModelSTM1325DT
Working Area1300x2500x300mm
Traveling Positioning Accuracy±0.03/300mm
Reposition Accuracy±0.03mm
Table SurfaceT-slot table (Vacuum table with 7.5KW vacuum pump optional)
FrameWelded Structure
X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
Z StructureHiwin Rail Linear Bearings and Ball Screw
Max. Rapid Travel Rate50000mm/min
Max. Working Speed30000mm/min
Spindle Power11KW
Spindle Speed9000-18000RPM
Drive MotorsLeadshine servo system
Working VoltageAC380V/50-60Hz, 3PH (Option: 220V)
Command LanguageG Code
Operating SystemWeihong NK280 control system
ColletBT40

Heavy Duty 4x8 CNC Router for Aluminum Applications

Disc ATC aluminum CNC router is mainly used to cut, carve, drill and do rigid tapping in aluminum, it is also applied to the following works:

1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

2. Wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.

3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Projects of 4x8 Heavy Duty ATC CNC Router for Aluminum

CNC router for aluminum carving projects

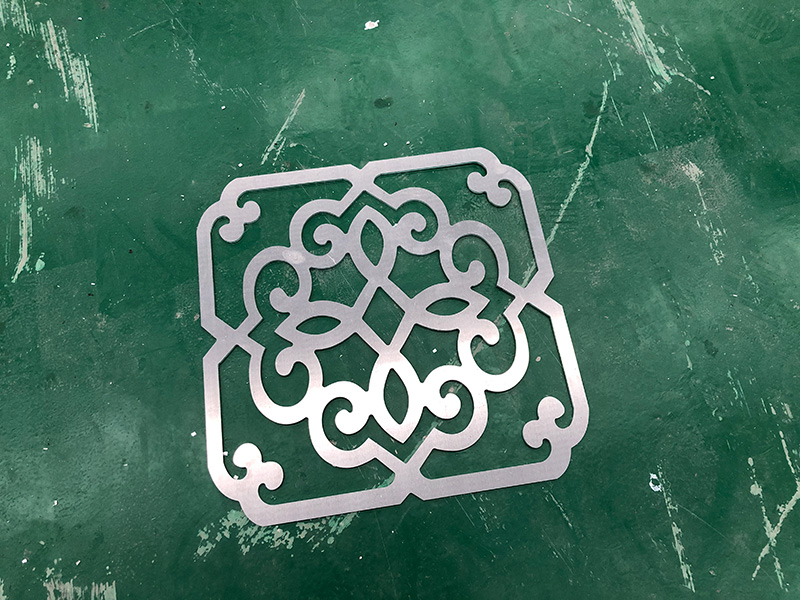

Aluminum cutting

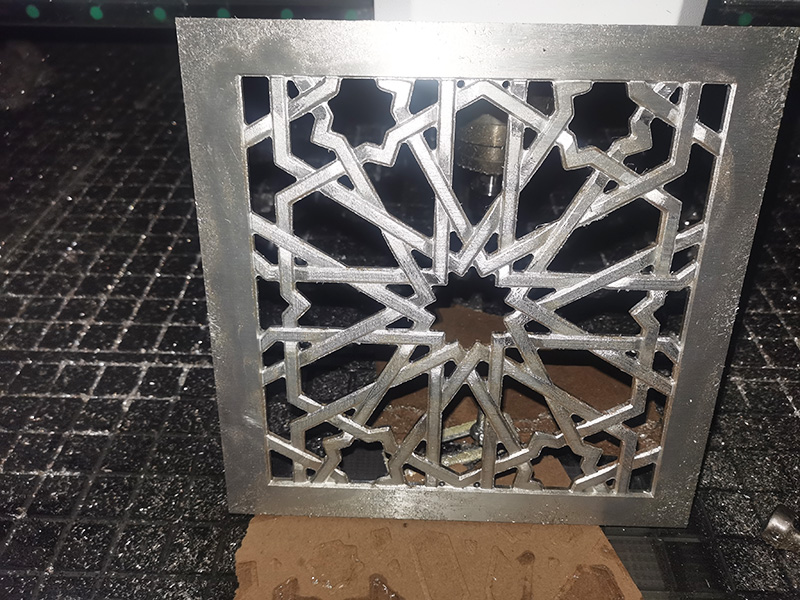

Aluminum CNC router cutting

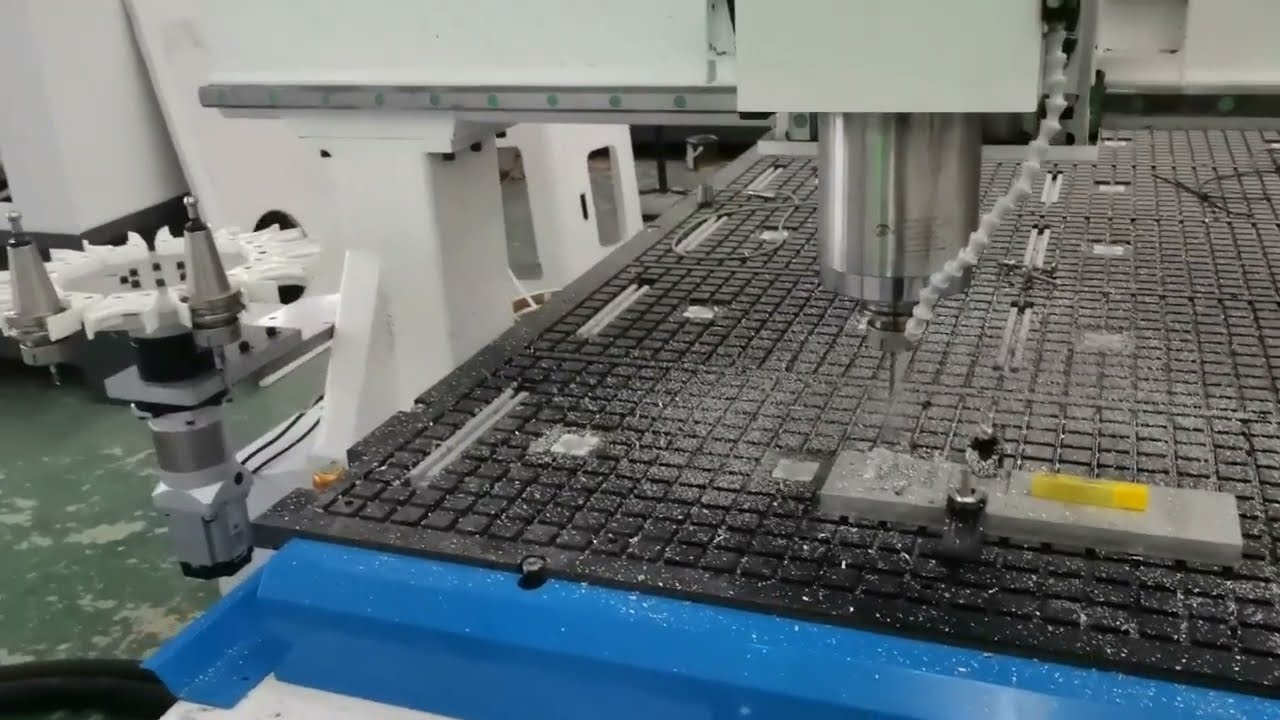

Drill and rigid tapping in aluminum

Drill and rigid tapping in aluminum

We also have CNC aluminum moulds making machine, welcome to contact us with your requires.

As one professional manufacturer of disc ATC Aluminum CNC router with over 20 years experience, we could supply you with the best quality, affordable price and perfect after-sale service.

Heavy Duty 4x8 CNC Router for Aluminum with Tapping Head
Customers Say - Don't take our words as everything. Find out what customers say about our products and services they have purchased, owned or experienced.
B
5 out of 5

Reviewed in the United States on

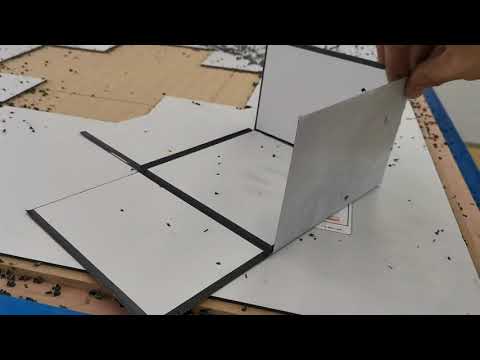

This machine really works soooo awesome. We purchased the machine for ACP cutting. We knew a little bit about the CNC operation. So the operation is not a problem for us. The important thing was the bits for ACP cutting. We have bought some from STYLECNC team. They also sent us some. The bits and the machine are really good. This machine saved a lot of manual working time. Thank you.
