3-in-1 laser welding, cleaning, cutting machine is a portable laser system with handheld laser gun to cut & weld metal, clean rust, paint, resin, coating, oil.
3-In-1 laser welding, cleaning, cutting machine is composed of fiber laser generator, handheld laser gun, water chiller, and 3 in 1 control system, which is used for laser welding, cleaning and handheld cutting. Each handheld laser gun is portable, convenient, and easy to use.
1. As a laser cleaning machine, it is a "green" cleaning method. It does not need to use any chemical agent and cleaning solution. The cleaned waste is basically solid powder. It is small, easy to store and recyclable. It can easily solve the problem of environmental pollution caused by chemical cleaning.
2. As a laser welder, the welding seam is smooth and beautiful, no need to polish, no deformation or welding scar, firm welding of the part. Save time and improve efficiency.
3. As a laser cutter, it is very easy to operate to cut all types of metals.
4.The portable laser gun has a simple handheld structure and is easy to carry. It is equipped with a touch screen, which is convenient to switch parameters during work and simplify the operation. The weight is 0.75kg, which is light to use without fatigue.
5. It adopts professional fiber laser source with lower error rate, low power consumption, maintenance free, and easy to assemble.
6. Industrial constant temperature water cooling chiller is specially designed. The water chiller is equipped with a filter, which has safe, durable, and stable working performance and long service life. Strong & stable water cooling system will ensure the fiber laser source to work perfectly.
7. Portable design: Compact, ergonomic design, with wheels to move freely.
3 In 1 Handheld Laser Gun
The handheld type laser gun can do welding, cleaning, and cutting with smart controller, easy to use for flexible machining, portable with small size, low cost without consumables.

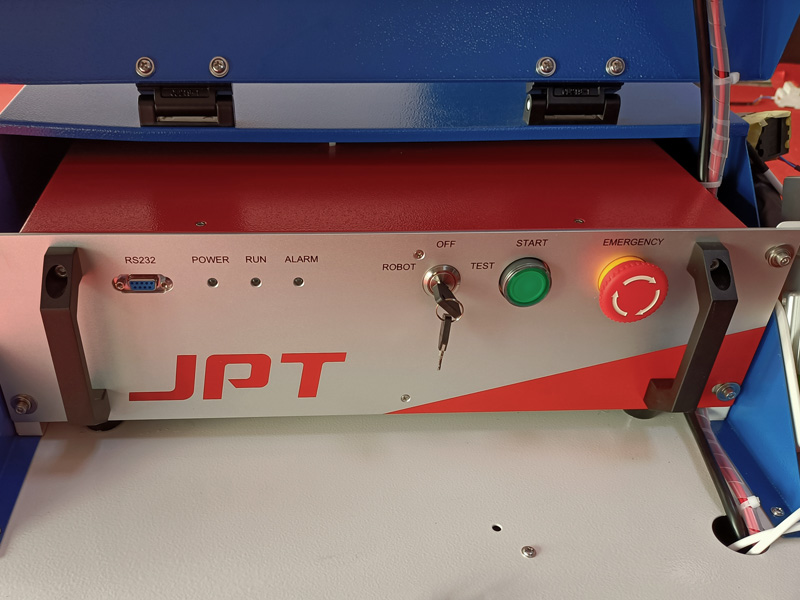

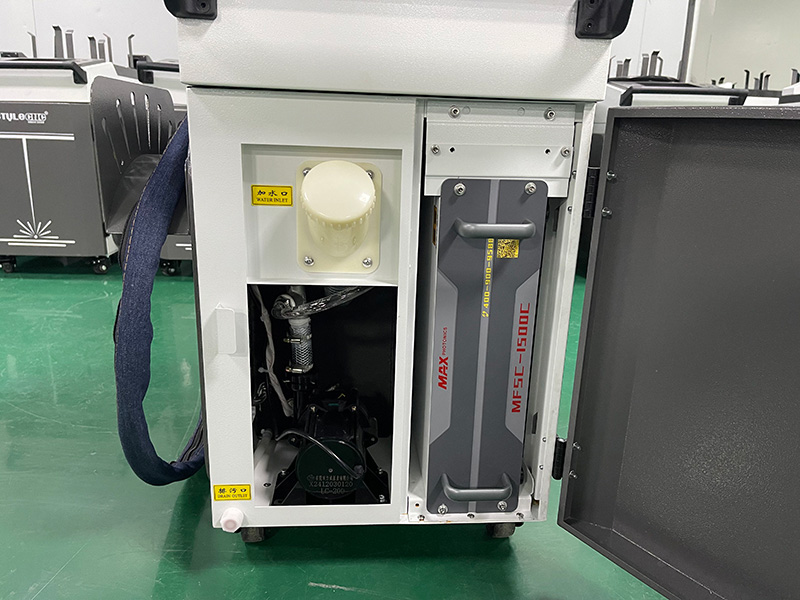

Fiber Laser Generator
JPT, Raycus, MAX, RECI and IPG laser generators are optional with higher photoelectric conversion efficiency, lower error rate, low power consumption, maintenance free, and compact structure.

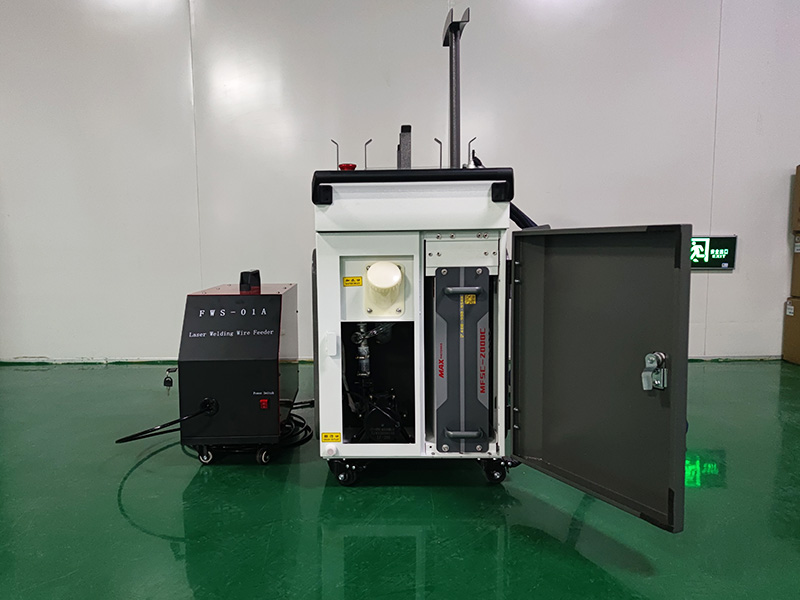

Built-In Water Chiller Design
It can avoid the shackles of wires to adapt to more venues, and has good dustproof and anti-condensation effects.
Smart Control Panel
Built-in parameters adjustment range is large, and the one-key startup is simple and easy to use.
| Laser System | LCW1000 | LCW1500 | LCW2000 | LCW3000 | |
|---|---|---|---|---|---|
| Laser Type | 1080nm Fiber Laser | ||||
| Laser Power | 1000W | 1500W | 2000W | 3000W | |
| Cooling System | Water Cooling | ||||
| Working Method | Continuous | ||||
| Laser Source | JPT, Raycus, Max, IPG, RECI | ||||
| Laser Gun | Handheld | ||||
| Collimating focal length | 50mm | ||||
| Focus length | 150mm | ||||
| Focus adjustment range | -10mm～+10mm | ||||
| Spot adjustment range | 0～5mm | ||||
| Auxiliary gas pressure | ≤1Mpa | ||||
| Ambient Temperature | 10~40℃ | ||||
| Environmental Humidity | <70% without condensation | ||||
| Operating Voltage | AC220V±10% , 50/60Hz | ||||
| Machine Dimensions | 910*600*750mm | ||||
| Automatic Wire Feeder | Maximum Wire Core Diameter | Ø3.0mm | |||
| Maximum Wire Weight | 25KG | ||||
| Maximum wire feed speed | 80mm/s | ||||
| Material | Laser Power (Watt) | Maximum Penetration (mm) |
|---|---|---|
| Stainless steel | 1000 | 0.5-3 |
| Stainless steel | 1500 | 0.5-4 |
| Carbon steel | 1000 | 0.5-2.5 |
| Carbon steel | 1500 | 0.5-3.5 |
| Aluminum alloy | 1000 | 0.5-2.5 |
| Aluminum alloy | 1500 | 0.5-3 |
| Galvanized sheet | 1000 | 0.5-1.2 |
| Galvanized sheet | 1500 | 0.5-1.8 |
The multipurpose laser machine is used in manufacturing, automotive, shipbuilding, battery, aerospace, kitchenware, shelves, elevators, guardrails, distribution boxes, ovens, metal furniture, biomedicine, powder metallurgy, jewelry, electronics, hardware, optical communication, sensor, automobile accessories, porcelain teeth, glasses, solar energy, and precision parts manufacturing.
1. With laser welding gun, it is a portable laser welder to weld aluminum, stainless steel, titanium, gold, silver, copper, nickel, chromium, and more metals or alloys, it can also be applied in a variety of welds between different metals, such as titanium–gold, copper–brass, nickel-copper, titanium–molybdenum and so on.
2. With laser cleaning gun, it is a portable laser cleaner to remove rust, resin, coating, oil, stains, paint, dirt for for surface treatment with hobbyists and industrial manufacturing, it can effectively reduce the machine maintenance cost and improve the industrial cleaning effect.
3. With laser cutting gun, it is one portable handheld laser cutter for all types of metals cutting.
Great laser machine that did not let me down, I fell in love with all its abilities. I am an amateur welder in an educator team. I purchased this unit for welding 1/4 mild steel and 3/16 aluminum as well as some metal cutting and rust removal jobs in training. Got it in 12 days. Easy to handle and use. All works have been finished in one machine. It is well worth it for the value. Best investments for my team.
Very impressed with this all-in-one laser machine. Quality is as expected. Price is affordable. Surprised about how easy it is. Works pretty good with a cutting gun for sheet metal and tube, a welding gun to join metals, a cleaning gun to remove rust.
