Affordable CNC Router Machine for Sale at Cost Price with 4x8 Vacuum Table

Model: STM1325
Category: Hobby CNC Router
Views: 21837
Brand:STYLECNC
Rating:
 4.9 /5 Based On 73 Votes
Standard Price: $5580.00 / Set
Price Range: $5580.00 to $6580.00 / Set According to Configurations
The final price will fluctuate according to the configurations of Affordable CNC Router Machine for Sale with 4x8 Vacuum Table
Supply Ability: 100 Sets / Month In stock!
Payment Terms: T/T, Credit Cards, e-Checking, Alibaba Trade Assurance
WhatsApp

Product Introduction

Buyer's Reviews

Affordable 4x8 CNC router table STM1325 is an economical CNC machine with vacuum table, which is used for making furniture, decorations, crafts, arts, signs, doors, and cabinets. Now the best CNC router machine for sale at a low price.

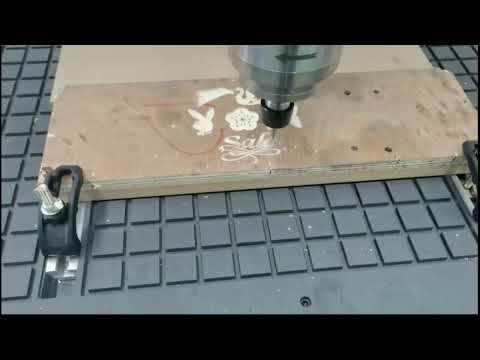

Demonstration Video

Affordable CNC Router Machine for Sale with 4x8 Vacuum Table

Product Descriptions

What is CNC Vacuum Table?


The CNC vacuum table is a workbench composed of bakelite boards with 6, 8, or 24 sections, which uses a vacuum pump to ensure the suction strength and the stability of the workpiece on the table to ensure that the workpiece will not vibrate and shake during the work of the CNC router machine.


How Does CNC Vacuum Table Work?


The vacuum table is connected to the bottom of the CNC router machine by a vacuum pump through a pipeline. There are many suction holes on the vacuum table. When we put the workpiece on it, the workpiece will be firmly adsorbed by the negative pressure generated by the vacuum pump. The machine starts to work at this time on the table, and the entire loading and unloading process does not exceed ten seconds with high efficiency and speed. It is very suitable for making wood doors and cabinet furniture.


The suction holes on the CNC vacuum table will automatically close when there is a large amount of air intake, thereby avoiding increasing the load of the vacuum system in order to ensure the vacuum suction effect, and avoiding strong airflow between the vacuum table and the workpiece.

4x8 CNC Router Table


Features of Affordable CNC Router Machine with 4x8 Vacuum Table


1. Lathe bed adopts strong welded steel tube to avoid distortion.

2. Hiwin linear guide with high precision, which can ensure the CNC router machine frame more stability and durability.

3. High accuracy rolling ball screw from Taiwan TBI, assure machine frame of better precision.

4. DSP Handle controlling, no occupying computer resource, one computer can control several equipment.

5. It is compatible with various CAD/CAM softwares such as TYPE3, Artcam, Casmate, Artcut, etc.

6. Vacuum table can absorb the materials automatically by vacuum pump, not need to fix the materials.

Affordable CNC Router Table


Applications of Affordable CNC Router Machine with 4x8 Vacuum Table


Advertising industry: Business logos and signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, fine jewelry carving, furniture and other decoration.

Woodworking: Redwood classical and antique furniture, wood carving, gifts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture.

Other industries: The CNC router table is also used in portraits, landscapes, calligraphy lettering, basso-relieve, seal carving and other plane surface carving.

Affordable 4x8 CNC Router Table


Technical Parameters of Affordable CNC Router Machine with 4x8 Vacuum Table


Model

STM1325

Working Area

1300x2500x200mm

Table Size

4x8

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Positioning Accuracy

±0.02mm

X, Y Structure

Rack and Pinion

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. power Consumption

3KW

Max Rapid Travel Rate

15000mm/min

Max Working Speed

10000mm/min

Spindle Power Motor

3kw water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper system

Working Voltage

AC220V/50/60Hz

Command Language

G code

Operating System

RichAuto A11 DSP control


Affordable 4x8 CNC Router Table Details


Affordable CNC Router

CNC Router Table

DSP Controller for Affordable CNC Router Table

Affordable CNC Router Table Parts

Affordable CNC Router Table Bits and Tools


Optional Parts for Affordable 4x8 CNC Router Table


Affordable CNC Router Table with Rotary Axis


Affordable 4x8 CNC Router Table Projects


Affordable CNC Router Table Projects


Affordable 4x8 CNC Router Table Package


Affordable CNC Router Table Package


Pros & Cons


There are two main types of CNC router tables: aluminum profile tables and vacuum tables. The former uses aluminum profiles as the table top, and the workpiece needs to be manually fixed with rivets. The vacuum table directly puts the plate on the table top of the machine, and it can be automatically fixed. Relatively speaking, the latter can save time and fix more firmly.


Compared with the aluminum profile table, the price of the vacuum table is higher. Its structure is composed of a vacuum pump and high-quality bakelite, which can enhance the adsorption. The power of the vacuum pump is generally 5.5KW.


When the CNC router table working, open the vacuum valve, the engraved plate will be directly fixed, which saves a lot of time than manual fixing, and the fixation is more stable, suitable for wooden door making, large format relief carving, and hollowing.


Although vacuum table can save a lot of time, it is not suitable for every user to use. If the design of the vacuum table is unreasonable, problems such as insufficient suction or air leakage are likely to occur during use.
