4x8 CNC Router for Honeycomb Panels with Aluminum Core

Applications of 4x8 CNC Router for Aluminum Honeycomb Panels

This CNC machine is utilized in sectors such as aerospace interiors, high-speed train manufacturing, elevator panels, shipbuilding, and high-end architectural decoration—industries that demand exceptional precision, flatness, and surface quality. Thanks to its superior dust extraction capabilities and smart control system, the equipment delivers reliable, efficient, and high-quality processing solutions for aluminum honeycomb materials.

In addition to aluminum honeycomb panels, this equipment is capable of machining polyurethane insulation boards, sandwich panels, flame-retardant polyurethane boards, wall panels, thermal insulation boards, foam boards, PUF boards, and sound-absorbing foam materials.

Technical Parameters of 4x8 CNC Router for Aluminum Honeycomb Panels

Details of 4x8 CNC Router for Aluminum Honeycomb Panels

This CNC router machine comes with a sawing unit and a spindle system; the sawing unit can rotate within a range of 0 to 90 degrees to enable cutting in various directions.

Cross-cutting saws and rip saws are optional configurations.

The 9 kW air-cooled spindle, featuring a rotational speed of 24,000 rpm, is designed for the efficient machining of aluminum honeycomb panels and other composite materials.

A showcase of details regarding the STYLECNC aluminum honeycomb panel CNC router machine.

A large, dual-door electrical control cabinet designed specifically for 4x8 CNC routers equipped with a rotary automatic tool changer (ATC) system, featuring a layout that separates high-voltage and low-voltage components.

The guide rails feature automatic oil lubrication, extending the machine's continuous operating time.

The CNC router machine for aluminum-core honeycomb panels is equipped with ample accessories upon shipment.

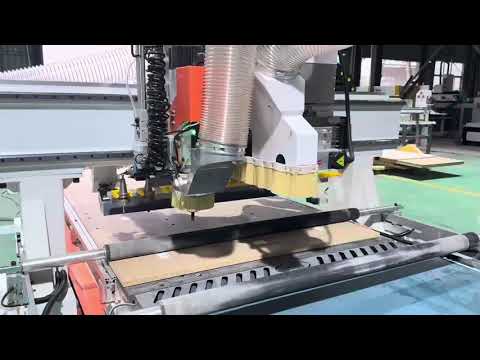

4x8 CNC Router for Aluminum Honeycomb Panel Machining Projects

What Aluminum Honeycomb Panels Are

An aluminum honeycomb panel is a sandwich: two thin aluminum skins bonded to a core of hexagonal aluminum cells. That structure is remarkably light yet stiff and flat, which is why it shows up in aerospace interiors, high-speed trains, elevators, and architectural facades. The same structure makes it tricky to cut. The core has very little sideways strength, so it crushes if pushed, and the skins can peel away from the core if the tool tears at them. Aluminum is also gummy and wants a sharp edge and high spindle speed to cut cleanly. A dull tool or too aggressive a pass shows up immediately as burred fins or a wavy edge. A machine built for these panels controls those risks, and for solid sheets an aluminum composite panel router covers the related job.

Saw and Spindle Working Together

This machine carries two cutting systems on one gantry, and each does what it is best at. The saw unit makes fast, clean straight cuts to separate panels, and because it swivels from zero to ninety degrees, it can rip, cross-cut, and bevel edges. The high-speed milling spindle then handles everything the saw cannot: curved contours, interior cutouts, grooves, and finished edges. Doing both in one setup means a panel is rough-cut, shaped, and finished without being moved, which protects accuracy and flatness. A twelve-tool magazine and automatic tool changer let the spindle switch bits mid-job, so a mix of cuts runs without stopping to change tooling by hand.

Tooling, Hold-Down, and Dust

Clean panels come from sharp tools and steady support. Aluminum cuts best with keen, free-cutting bits, so single-flute aluminum bits clear chips well and resist the gumming that dulls edges. Light passes at the right feed keep cutting forces low, which is what stops the thin core from crushing and the skins from lifting. Because the panels are light and must stay dead flat, a vacuum table holds them down far better than clamps, which would only grip the edges. Machining aluminum and foam throws a lot of fine, abrasive debris, so strong dust extraction protects the rails, the tools, and the finish while keeping the shop clean.

Other Panels and Higher Volumes

Aluminum honeycomb is the specialty, but the same machine cuts a wide range of related boards: polyurethane insulation, sandwich panels, wall panels, foam, PUF board, and sound-absorbing material. Because finished panels go into aerospace, transit, and architectural work, the machine holds tight repeat accuracy so edges stay flat and square across a batch. Soft and friable foams cut very cleanly with sharp tools and good extraction, provided they are held flat. For a shop running many identical parts rather than varied one-off panels, a four-spindle router copies the same program across several heads at once, multiplying output. Which setup fits depends on whether your work is high-mix and detailed, where this saw-and-spindle machine shines, or high-volume and repetitive.

How the saw and spindle divide the work:

Honeycomb machining checklist:

✓ Separate panels with the saw, shape with the spindle.

✓ Use sharp single-flute tools for aluminum.

✓ Take light passes so the core does not crush.

✓ Hold panels flat with a vacuum table.

✓ Run strong dust extraction for chips and foam.
