Dual-Zone CNC Router for Panel Furniture Production
The S5 series dual-station CNC nesting machine is designed specifically for panel furniture production. It integrates automatic labeling, drilling, cutting, and unloading into a single system, achieving full-process automation—from loading and labeling to double-sided drilling, grooving, cutting, and unloading.
- Brand - STYLECNC
- Model - S5
- Maker - Jinan Style Machinery Co., Ltd.
- Table Size - 4' x 8' (48" x 96", 1300mm x 2500mm)
- 360 Units in Stock Available for Sale Every Month
- Meeting CE Standards in Terms of Quality & Safety
- One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
- 30-Day Money Back Guarantee for Your Purchase
- Free Lifetime Technical Support for End-Users & Dealers
- Online (PayPal, Alibaba) / Offline (T/T, Debit & Credit Cards)
- Global Logistics and International Shipping To Anywhere
Advantages of Dual-Zone CNC Router for Panel Furniture Production
The S5 series dual-station CNC nesting machine, designed for panel furniture production, consists of four sections: automatic labeling, automatic drilling, automatic cutting, and automatic unloading. This series automates the entire workflow—including loading, labeling, drilling and grooving on both sides, cutting, and unloading. Requiring no manual intervention during processing, the system offers high speed and ease of operation, making it particularly well-suited for the production of plywood or custom furniture.
Applications of Dual-Station CNC Router for Panel Furniture Making
1. Furniture Manufacturing: Cabinets, wardrobes, panel furniture, office furniture, solid wood furniture, wooden doors, tables and chairs, doors and windows, etc.
2. Woodworking: Speaker enclosures, game console cabinets, computer desks, sewing machine tables, musical instruments, etc.
3. Panel Fabrication: Insulation components, plastic and chemical parts, PCD (polycrystalline diamond) materials, high-speed rail interior components, bowling lanes, and stair treads; as well as composite materials such as compact laminate, phenolic resin, epoxy resin, ABS, PP, and PE.
4. Decoration: Carving, milling, and cutting of acrylic, PVC, MDF, artificial stone, PMMA, plastics, and soft metal sheets (such as copper and aluminum plates).
Features of Dual-Zone CNC Router for Panel Furniture Production
Drilling Zone
Equipped with multi-axis drilling units for both the top and bottom, it can complete all drilling and grooving operations on both surfaces in a single pass, offering high efficiency and high precision.

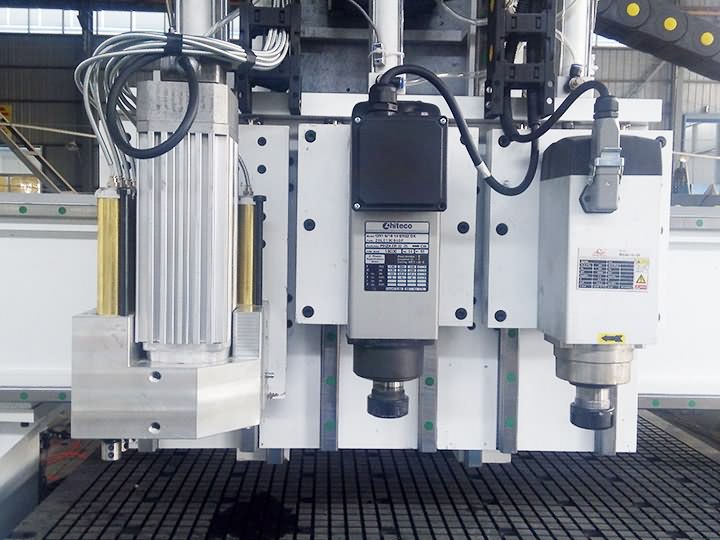

Cutting Zone
The cutting zone is equipped with a 9kW automatic tool-changing (ATC) spindle that integrates drilling, grooving, profile machining, and cutting capabilities. In addition to machining the holes required for "3-in-1" and "2-in-1" connectors, the machine utilizes automatic tool changing to process slots for Lamello and Minifix concealed connectors, grooves for LED strips and hinges, and complex profiles.
Dual clamps transport the panel to the drilling zone.
A dual clamping mechanism is employed, and the feeding and positioning of the panels are automatically controlled by the program, thereby enhancing drilling accuracy.
It effectively prevents the edge banding from being scratched.
Automatic Labeling Unit
The automatic labeling unit rapidly applies identification codes to the panels while CNC machining is in progress.
Hydraulic Lifting Platform
The hydraulic lifting platform automatically loads the sheets onto the work table.
Precision Frame Structure
The equipment features a welded steel frame structure and is equipped with precision linear guides and servo motors, ensuring exceptional stability, accuracy, and a long service life.

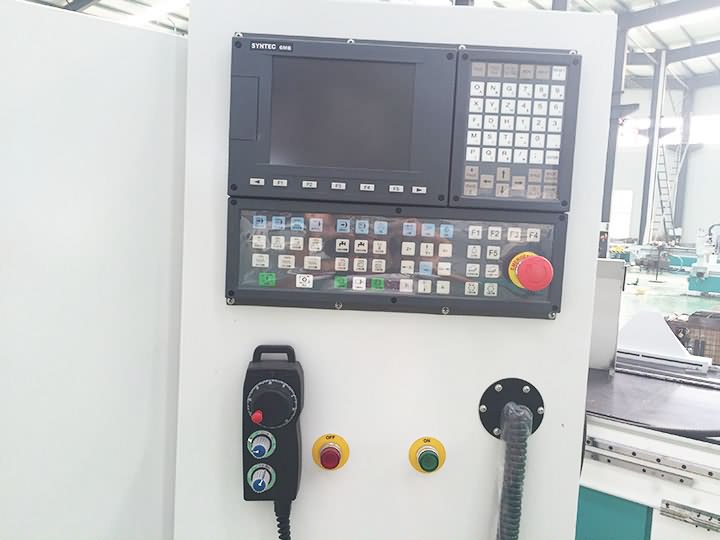

Easy-To-Use CNC Controller
An easy-to-operate industrial CNC control system compatible with mainstream CAD/CAM software, enabling seamless workflow integration.

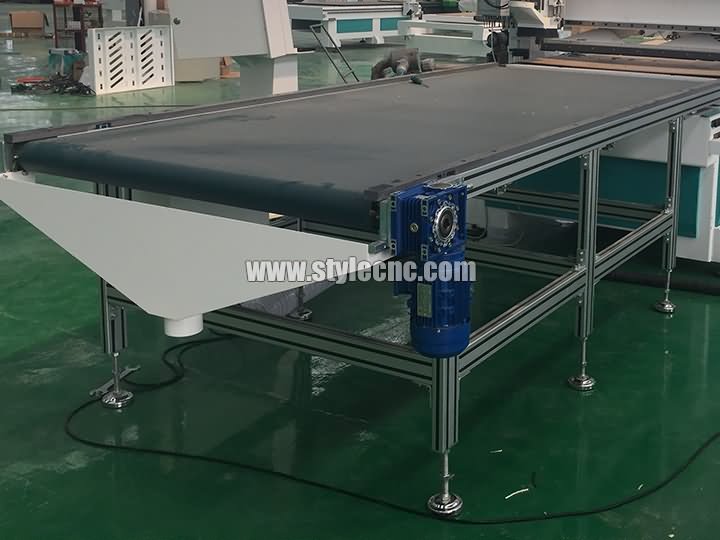

Conveyor System
The conveyor system automatically transports finished workpieces, minimizing manual handling.
Technical Parameters of Dual-Zone CNC Router for Panel Furniture Production
| Model | S5 |
| Working Travel | 1300*2500*200mm |
| Table Structure | Vacuum suction |
| Rails | Square rails |
| Transmission Type | X,Y Rack, Z Ball screw |
| Working accuracy | ±0.05 |
| Max air move speed | 50000mm/min |
| Max working speed | 25000mm/min |
| Cutting unit | 9KW air-cooling with 24000RPM |
| Drilling unit | 9pcs vertical drils |
| Drive system | AC servo 1500W |
| Command code | G code |
| Control system | Taiwan Syntec control system |
| Oiling system | Automatic |
| Working voltage | AC380V/3PH/50HZ |

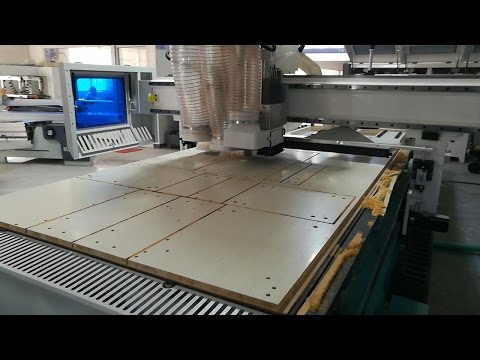

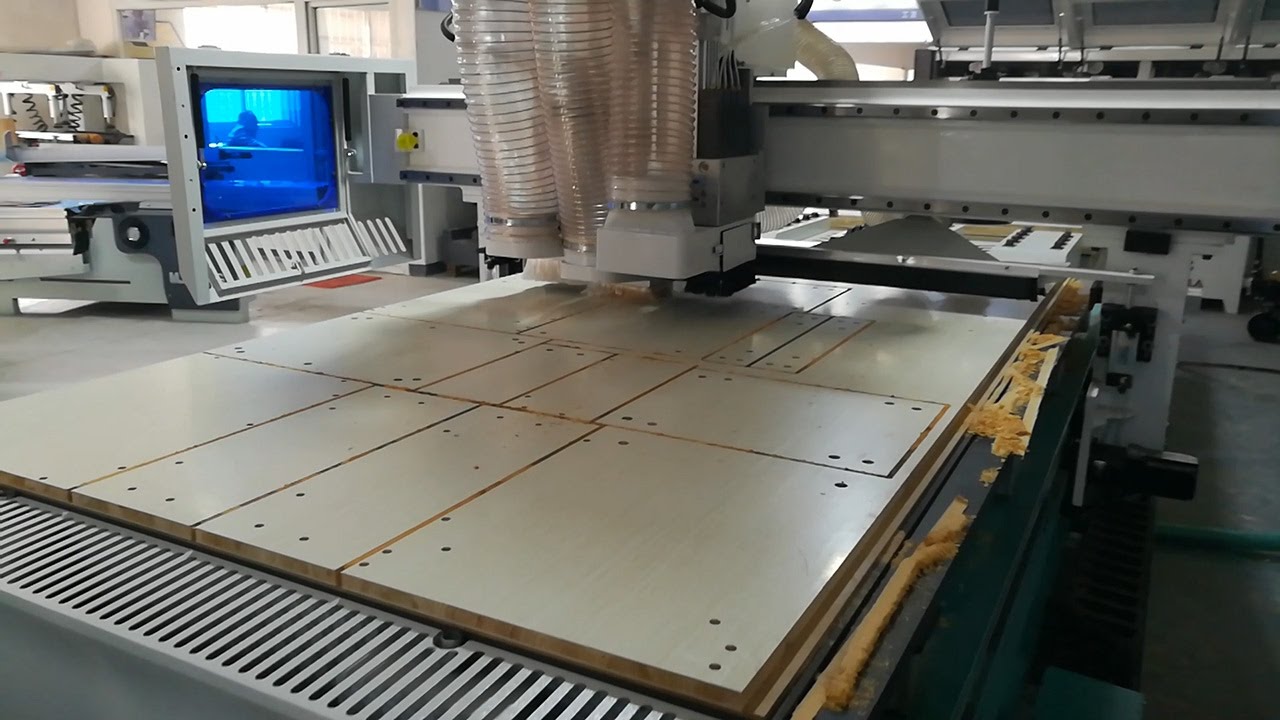

Dual-Station CNC Router for Panel Furniture Making Projects
Package and Service for Dual-Station CNC Router for Panel Furniture Manufacturing
• Wrap the CNC machine tool in plastic sheeting and clean it to ensure moisture protection.
• Place the CNC machine tool into a plywood crate to ensure safety and prevent collision damage.
• Load the plywood crate into a shipping container.
Guarantee and Service
• We provide a 12-month warranty and lifetime maintenance service under normal operating conditions.
• 24-hour technical support is available via telephone, email, and other online channels.
• Free training on machine operation, routine maintenance, and basic programming is provided at our factory.
• Easy-to-understand English operation manuals are included.
Delivery Time
Typically, for standard models, delivery is made within 30 days of receiving the deposit.
Payment Terms
• Advance payment via Telegraphic Transfer (T/T).
• For larger amounts, payment by Letter of Credit (L/C) is acceptable; please submit a draft L/C for our confirmation first.
• We are also open to considering other payment methods, subject to suitable terms.
