Automated CNC 6-Sided Drilling Machine for Woodworking

What Is CNC Drilling Machine?

CNC drilling machine refers to an automated mechanical device that uses a computer numberical controlled controller and a tool that is harder and sharper than the target to make a cylindrical hole on the target by rotary cutting or extrusion. Also known as CNC punching machine and CNC drill.

CNC drills integrate advanced CNC, electronic, and software technologies, evolving toward high speed, high precision, multifunctionality, intelligence, systematization, and high reliability. Leveraging CNC technology, these machines offer features such as automatic positioning, automatic layout, automatic scanning, and precise alignment, ensuring ease of operation; they are capable of machining diverse patterns and allow for computer-based machining simulation.

What Is CNC Six-Sided Drilling Machine?

CNC six-sided drilling machine is a high-end, automated piece of equipment designed for multi-hole drilling in cabinet and furniture manufacturing, featuring wireless scanning (with sorting capabilities), automatic positioning, dual-clamp automatic clamping, and automated loading and processing, enabling simultaneous six-sided positioning and front/rear grooving in a single pass. Upon completion, the clamps automatically transfer the panel to a sorting and rotating platform, ensuring high processing efficiency and a high degree of automation.

Six-sided CNC drilling machine is computer-controlled and supports CAD drafting and CAM importing, allowing for the direct import of open data formats such as DXF, MPR, and XML, making operation simple. It integrates seamlessly with renowned design and order-processing software—such as CV (USA) and Topsolid (France)—and can be linked with existing cutting machines, edgebanders, and drilling machines to form a complete production line.

Automatic CNC Six-Sided Drilling Machine Advantages

The six-sided drilling machine is primarily used for drilling, grooving, and milling operations on workpieces. Once a workpiece is conveyed onto the worktable, positioning pins extend to ensure precise alignment, and the workpiece is then clamped and fed into the machine, where drilling, grooving, and milling tasks are executed according to the CAM program.

Featuring a full gantry structure and equipped with upper and lower drilling units as well as a main spindle, the machine is capable of simultaneously processing side holes, vertical holes, and grooves. It enables complete six-sided drilling in a single pass, making it an ideal choice for manufacturers of various types of panel furniture.

Automatic Six Sided CNC Drilling Machine Features

1. This high-speed, multifunctional CNC drilling machine initiates its processing program with a single button press. It is ready for immediate operation after scanning a QR code, eliminating the need for setup, debugging, programming, or trial runs.

2. The machine supports vertical drilling, horizontal side drilling, and grooving, allowing for the simultaneous execution of side drilling, chamfering, and grooving operations.

3. Compared to traditional gang-drilling machines, this automated unit offers a six-fold increase in efficiency. In the context of small-batch custom furniture production, it is three times as efficient as PTP (Point-to-Point) machining centers.

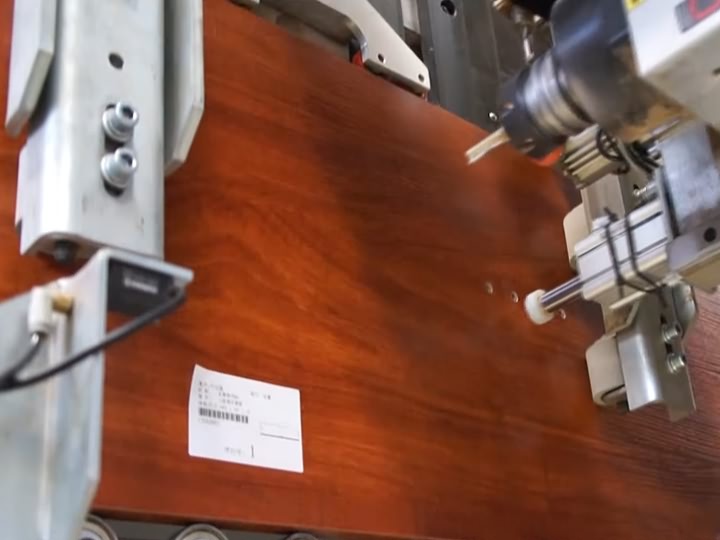

4. The machine features a tilted vertical worktable that facilitates easy loading and unloading. Workpieces slide across the table surface while the machining head remains stationary. This design enables continuous drilling across multiple workpieces, while automatic positioning and clamping functions save time and boost efficiency.

5. Capable of processing narrow panels as small as 60mm in width, the machine includes an automatic detection module to identify panel dimensions and prevent material errors. An auxiliary clamping device ensures successful processing even for bent or warped panels, simplifying operations and enabling immediate, seamless production. It supports the continuous processing of workpieces in various styles and sizes, maximizing both output and quality. With no restrictions on batch size, custom furniture manufacturing becomes simple and highly efficient.

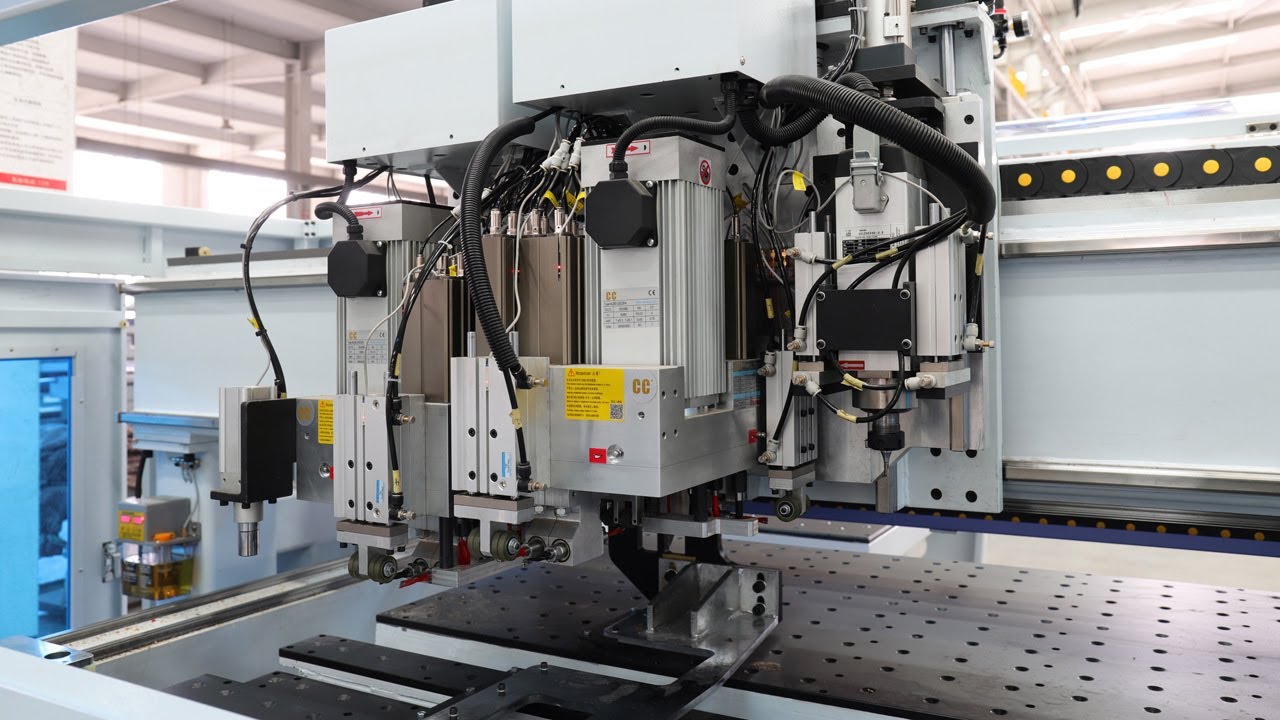

STM1228-S6 CNC drilling machine with single drilling group and spindle

STM1228-S6 CNC drilling machine with single drilling group and ATC spindle

STM1228-DS6 CNC drilling machine with dual drilling group and ATC spindle

Bottom drill group and spindles of CNC drilling machine

CNC drilling machine controller

Automatic Six Sided CNC Drilling Machine Specifications

Automatic CNC Six-Sided Drilling Machine Applications

Applicable Industries

Custom panel furniture: Hole machining for cabinets, wardrobes, nightstands, and storage units.

Solid wood furniture: Machining of assembly holes, mortises, and positioning holes.

Wooden door industry: Drilling for hinge recesses, lock bores, and hardware mounting holes.

Wooden packaging: Hole machining for wooden pallets and export crates.

Applicable Materials

This CNC drilling machine is compatible with particle board, MDF, plywood, solid wood, wood-plastic board and aluminum-wood composite board.

Automatic Six Sided CNC Drilling Machine Projects

Single, Dual, or ATC: Picking a Configuration

This machine comes in a few builds, and the right one depends on your volume and operations. A single drill group carries one bank of drills, plenty for lighter or lower-volume work. A dual drill group puts two banks to work, so more holes are bored at once and throughput climbs. Adding an ATC spindle brings automatic tool changing, so the machine swaps between routing, grooving, and pocketing tools in one cycle without stopping. If you also need heavier grooving and milling, a fuller drilling and grooving machine is the next tier up. The table below lays out the choices.

Comparing the configurations:

Buying and setup checklist:

✓ Match the drill-group count to your volume.

✓ Add an ATC spindle for routing and grooving.

✓ Export DXF, MPR, or XML from your design software.

✓ Use the auxiliary clamp for warped boards.

✓ Keep bits sharp and drill blocks clear of dust.

A Vertical Table Built for Flow

Unlike a flat-bed drill, this machine stands panels on a tilted vertical table and slides them past a fixed machining head. That layout helps: loading and unloading happen at a comfortable height, the machine takes little floor space, and panels flow past one after another rather than being placed and removed individually. Sensors read each panel's size to catch a wrong board early, and an auxiliary clamp grips stock that is slightly bent or warped. It even runs parts as narrow as sixty millimeters, so small pieces like drawer fronts are fine. A simpler side-hole drilling machine covers basic edge holes.

Automatic CNC Six-Sided Drilling Machine Packing & Shipping

Packing Terms

1. Wrap the high-speed multi-functional CNC machine in plastic film to protect against dust and moisture.

2. Pack the CNC machine into a plywood crate to ensure safety and prevent impact damage.

3. Load the plywood crate into a shipping container.

Shipping Terms

Typically, for standard models, delivery is made within 15 days of receiving the deposit.

Automatic CNC Six-Sided Drilling Machine Service & Support

Guarantee & After-Sales Service

1. Includes a 24-month warranty for normal use and lifetime maintenance services.

2. Provides 24-hour technical support (via phone, email, and other online channels).

3. Offers free training at the STYLECNC factory covering machine operation, routine maintenance, and basic programming.

4. Includes an easy-to-understand English user manual.

Payment Terms

1. Payment by T/T in advance.

2. For larger amounts, payment by Letter of Credit (L/C) is acceptable. Please submit a draft L/C for our review first.

3. We are also open to considering other payment methods, subject to suitable terms.

Frequently Asked Questions

Do I need the ATC spindle version?

Only if you want the machine to change tools itself. An ATC spindle lets one cycle drill, then switch to a router or grooving cutter for pockets and profiles. Without it, you still get full six-sided drilling and grooving.

What design software does it work with?

It reads common cabinet formats like DXF, MPR, and XML, and works with design software such as Cabinet Vision and Topsolid. You can also send drawings through general CAD/CAM software, so parts flow from design to machine without redrawing.

Can it handle warped or very narrow panels?

Yes. An auxiliary clamp holds stock that is slightly bent or warped, and automatic size detection flags a wrong panel before machining. It processes pieces down to sixty millimeters wide, so narrow parts run without special fixtures.

How is it faster than gang drills or point-to-point?

The maker rates it about six times faster than gang drills, and three times faster than a point-to-point on custom work. The speed comes from many spindles drilling at once, no repositioning between operations, and panels flowing through one after another.

Can it connect to a full production line?

Yes. It links with a nesting router upstream and edge banding machines downstream, and its sorting platform hands finished panels to the next stage. That lets you build a continuous cut, drill, and band line.

What upkeep keeps it drilling accurately?

Keep drill bits sharp so holes stay clean and on size, clear dust from the drill blocks, and check the positioning pins and clamps. Sharp tooling and a clean, rigid setup hold accuracy over a long run.
