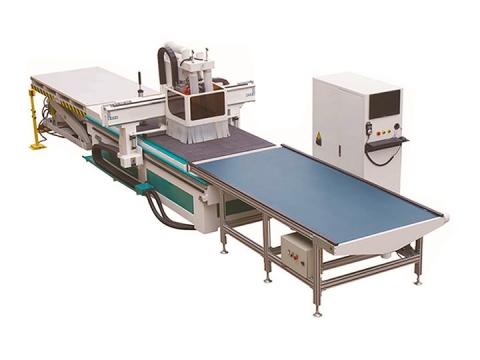

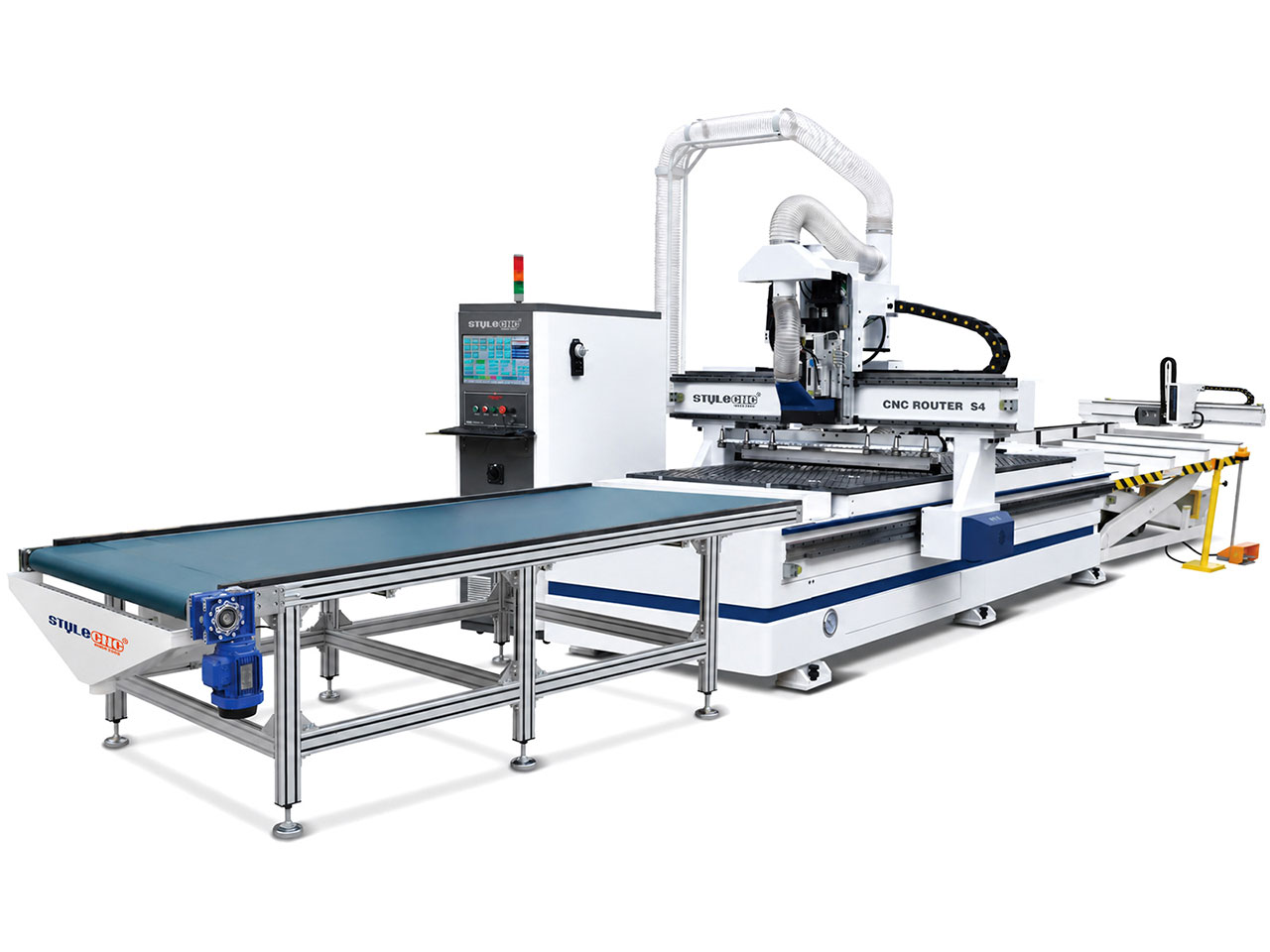

Full automatic flatbed CNC router machine is designed for home furniture making including home door, cabinet, cupboard, wardrobe, closet and home decorations, featuring with labeling, feeding, carving, cutting, drilling, grooving, and discharge.
1. Increase 10% material usage.
2. Reduce the dependence of the technical workers.
3. Decrease of sorting procedure and sorting error.
4. Save both time and labour for complicated workpiece processing.
5. It can also groove and drill.
6. Improve the product quality and the efficiency.
7. Optimize technology procedure, reduce the production cost.
1. Furniture industries
Cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, tables and chairs.
2. Decoration industries
Screens, wave boards, large-size wall hangings, advertising boards and sign making.
3. Arts & Crafts industries
Achieveing effects of exquisite patterns and characters on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on.
4. Processing material
Carving, milling and cutting for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.

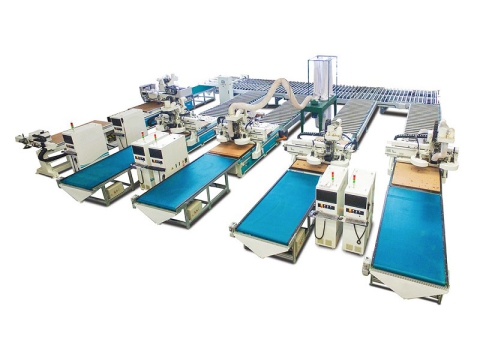

Full automatic CNC router is mainly designed for customized furniture plans, such as kitchen cabinet and wardrobe, the whole production line only need one ordinary worker to operate.
The CNC router machine can mix a lot of your customers orders from a BOM automitically though the software:
1. Automatic Labeling
The machine can show a barcode / order No. / board size information on each board. The label information can be customized according to your requirements.

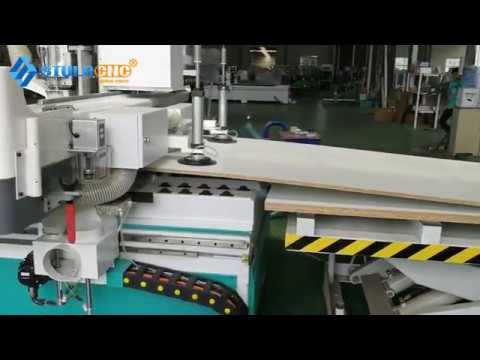

2. Automatic Feeding
Suck the board to the next process automatically.
3. Automatic CNC Machining
Cutting, milling, drilling and engraving automatically.

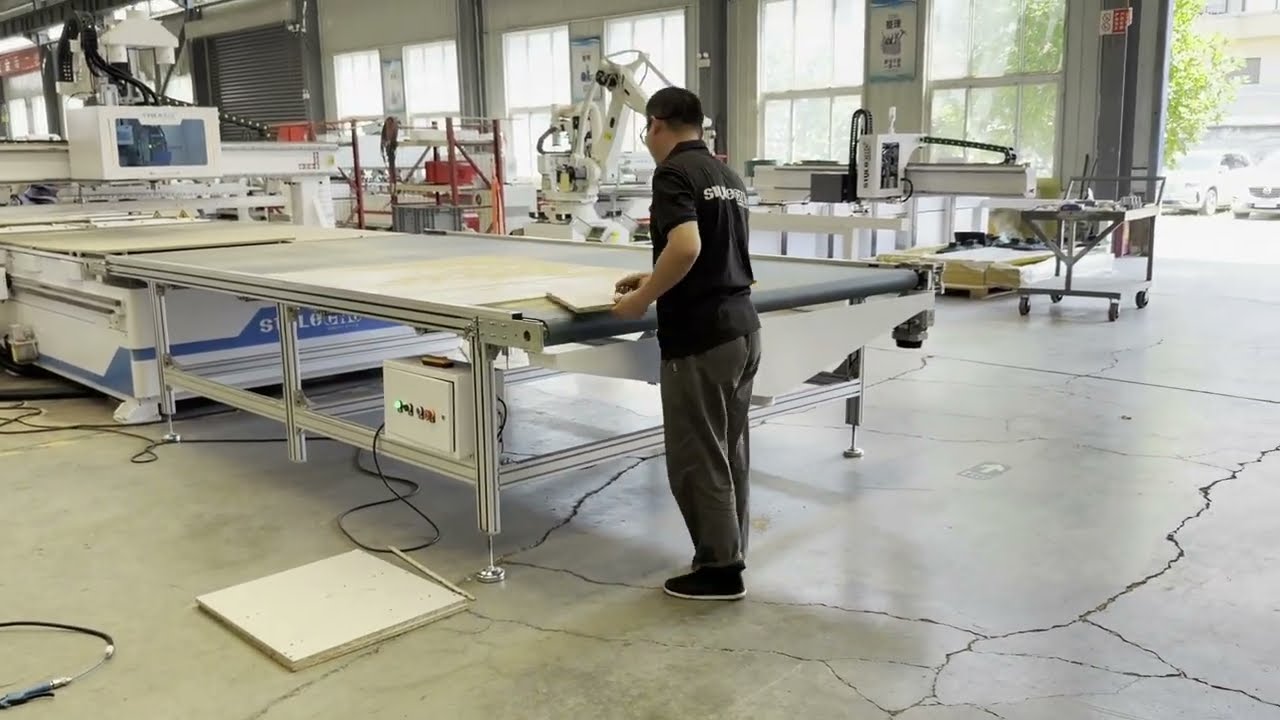

4. Automatic Discharge
After process, the boards are discharged automatically.
| Model | S5 | |
| Working travel | X axis | 1300mm |
| Y axis | 2500mm | |
| C axis | 200mm | |
| Table structure | Vacuum suction | |
| orbit | HIWIN or PMI square orbit | |
| Transmission type | X, Y Rack, Z Ball Screw | |
| Repositioning accuracy | ±0.05 | |
| Working accuracy | ±0.05 | |
| Max air move speed | 25000mm/min | |
| Max working speed | 12000mm/min | |
| Spindle parameters | Type of cooling | HSD air cooling spindle |
| power | 2pcs 6KW | |
| speed | 0-18000r/min | |
| inverter | Delta inverter | |
| Drive system | 850w YASKAWA servo motor | |
| Command code | G code | |
| Control system | Taiwan syntec | |
| Oiling system | Automatic | |
| Working voltage | 3 phase AC380V/50HZ | |
1. Packed the Full Automatic CNC Router for Furniture Making with plastic sheet for clearing and damp proofing.
2. Put the CNC router panel furniture production line in the plywood case for safety and clashing.
3. Transport the plywood case into the container.
1. Guarantee & After-sale Service
12 Months warranty under normal use and lifelong maintenance we supply.
24 hours technical support by phone, email and other online contact.
Free training on machine operation, daily maintenance and basic program designing in our factory.
Friendly English operation manual.
2. Delivery Time
Usually, for standard model, within 30 days after get the deposit.
3. Payment Terms
T/T in advance.
L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
Other type payment terms we can consider if acceptable for us.
