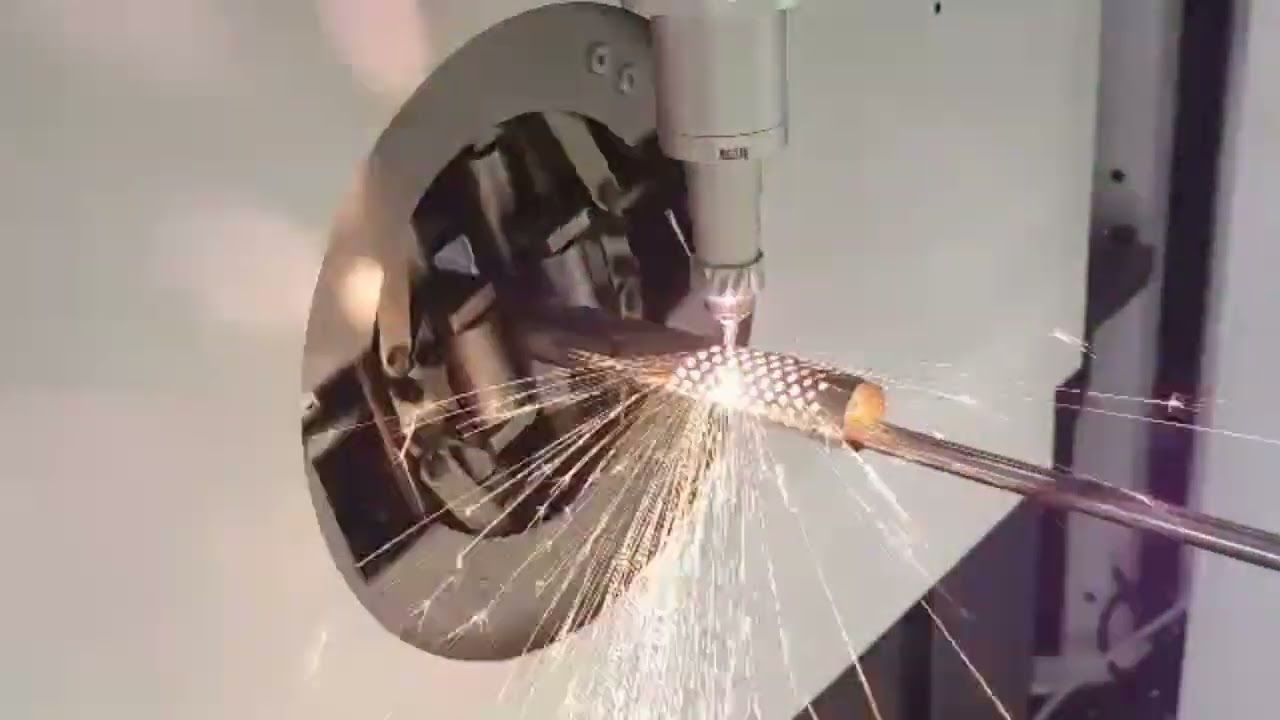

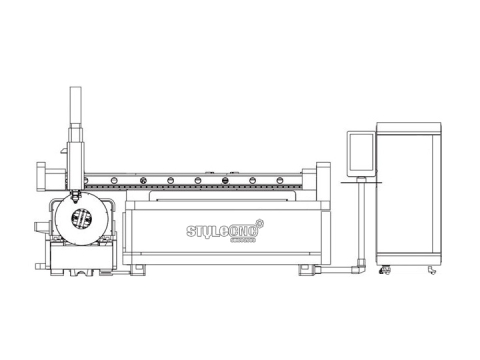

Multi-purpose metal sheet and pipes fiber laser cutter is a type of CNC laser metal cutting system designed to not only metal sheets and metal plates with different thickness, but also metal pipes and metal tubes to different shapes.
1. Fiber laser cutter with tube cutting and metal sheet cutting process combination save cost and space.
2. A "clean cut" surface quality is obtained.
3. Reflective materials like aluminium, copper and brass can be cut with ease.
4. Available for different diameter and length tubes from 20mm-200mm.
5. Little to maintenance costs.
6. The lifetime is over 100,000 working hours.
7. Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
|Cutting Table Size||1500*3000mm (5*10ft), 2200*6000mm for choose|
|Tube Cutting Dimension||20mm-200mm diameter, 3000mm length, 6000mm for choose|
|Laser Power||1500W, 2000W, 3000W, 4000W, 6000W, 8000W|
|Laser Type||Fiber Laser|
|Max Running Speed||120m/min|
|Repeated positioning accuracy||0.02mm|
|Voltage||380V/3PH or 220V/3PH|
|Warranty Time||3 years|
|Price Range||$73,500.00 - $136,500.00|
1. High rigidity machine bed sequence welding, adopts exclusive annealing processing with high-temperature NC electric resistance furnace, ensure long-time stable working of the machine.
2. Electric-drive motor in rotary device adjust speed freely. Easy-work, lower noisy, high rotary speed, high accuracy.
3. Feeding system with rolls, it is easy to load heavy materials.
4. Swiss RAYTOOLS laser head with auto focusing height follower.
To ensure the constant same distance between the head and cutting material.
5. Metal sheet and pipes laser cutter with Cypcut control system and software with English language.
Applicable insert files with DXF or AI format. Drawing in the software is also okay. Software with fly cutting mode for cutting same products for save time. With Nesting function, autonomic compose type for saving materials by saving spaces.

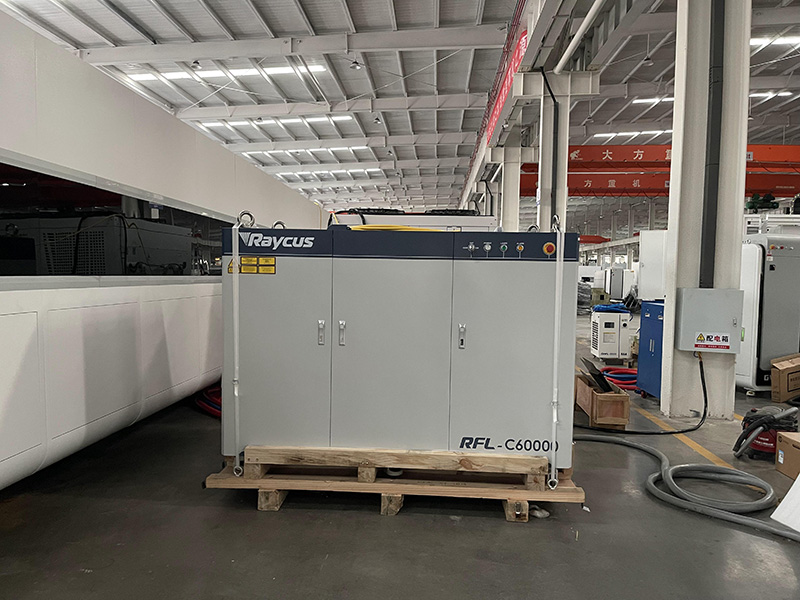

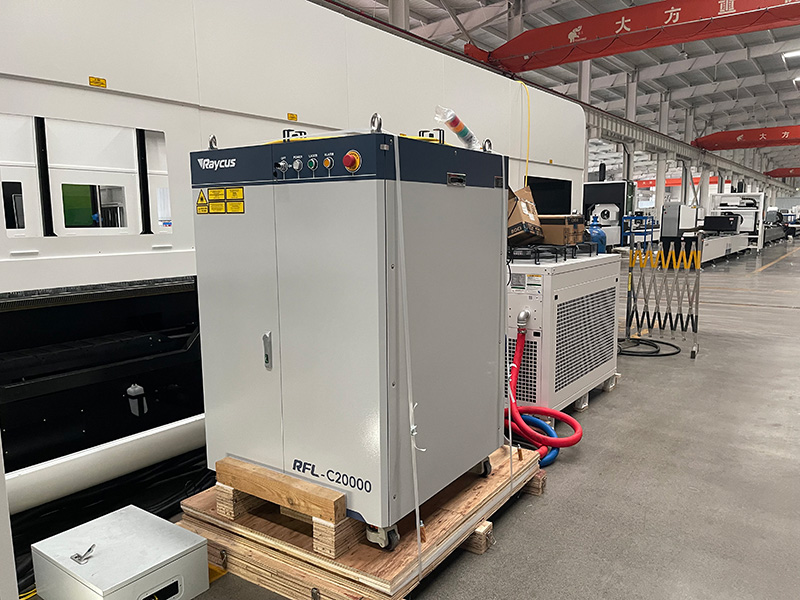

6. China best brand Raycus or World’s top brand IPG fiber laser source can be choose, the lifetime up to 100,000 hours.
Metal sheet and pipes fiber laser cutter is used in aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, ventilation pipes, signs, metal and other metal parts processing industry.
Metal sheet and pipes fiber laser cutter is used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting.
1. Strong water resit bottom in plywood.
2. Laser source (separated plywood case) and spare parts on the laser bed.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
1. Free sample cutting service:
For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you to check the cutting quality.
2. Progressing Solution Design:
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
3. Customized machine design:
According to customer's application, we may revise our machine according to customer's convenience and high production efficiency.
1. We will supply the laser machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)
2. You can come to our laser machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days (Recommended)
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator (if no English-speaking) for our engineers during the training period.
1. 3 years for the whole machine, laser device 18 months, chiller 12 months, lens/mirror/nozzle without warranty.
2. Long life-time maintenance, after-sale department will offer 24/7 English online support.
3. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.
4. After the warranty period expired, the buyer only need to pay the actual maintenance cost.
5. Certificate support: CE, FDA, SGS.
If you have an idea to get a free quotation of Metal Sheet and Pipes Fiber Laser Cutter, please answer the questions as following and tell us by email, so that we can recommend the most suitable laser machine and quota the affordable price to you directly.
1. Do you need to cut metal sheets/plates, metal pipes/tubes only or both?
2. If need to cut tubes, What is your tube length, diameter and max thickness?
3. For cutting metal sheet, what is the max working area required?
4. After processed, what the materials will be used for? (Applications)
5. Which seaport is the nearest to you?
6. Do you have any experience in the fiber laser cutting machine?
7. What is your online chat way? Such as Skype, Whatsapp, etc.
8. Are you an end user or reseller?
