How to Solve Common Problems of Laser Engraving Software?

Updated on 2023-08-30 by 3 Min Read

How to Solve Common Problems of Laser Engraving Software?

1. When laser engraving with gradient, double phenomenon.

This phenomenon occurs when the slope of words carved smaller, usually the reason is "wide" setting slope too large, cause calculation errors, please set "wide" little slope.

2. If you only can move a graphic with one direction, please click "Shift" or "Ctrl" to recover.

3. PLT format cannot to engrave.

There are two reasons, one is the graphic is not closed, the other is graphic double. Please detect this phenomenon with "data detect" tools.

4. The size is not same with laser engraving and cutting samples. Open the item "laser engraving machine set", adjust the pulse.

5. The edge is irregularity when laser engraving.

The edge is irregularity maybe happen when you use the DSP laser engraver software, that means "burr", this is mainly caused by mechanical return clearance, this is the solution.

a. Draw a box (rectangular or square), set work mode for the laser engraving machine, the sculpture is 0.5 mm instead, then see laser engraving effect, theoretically, should be aligned, namely the odd interlaces did edge should be aligned, even did edge also should be aligned, only the odd and even did not have a little.

b. When you open "set laser engraving parameters", the parameters for different. laser engraving speed can be seen, the reverse gap is "0", you should adjust it as the matter of fact.

c. You can choose "single-track light" when best laser engraving effect needed. Not to chose the draw of "dual-engrave", but when you chose it, the efficiency would be lower.

6. The X-axis or the Y-axis not move.

a. Stir knob to chose the DC 5V, test the voltage between PULX(or PULY)and GND. Take Y axis as example, click the button of "up" or "down", the normal voltage is 2.8V, if it is not, we could confirm the controller was broken, please change the controller. If it is, please go to next step.

b. Exchange the output terminal of the two drivers, then press "Up" or "Down" button; if X axis works normal, it means there is something wrong with the motor on Y axis, please change a new one; if X axis doesn't work, it means there is something wrong with the driver on Y axis, please chance it.

7. X Axis and Y Axis work in only one direction.

a. Test the voltage between the DIRX and GND after pressed the multimeter into grade 5V; take the X Axis for example, press "left", then press "right" to see if there is some change on high level (>2.8V) and the low level(<0.8V); if not, the control card is broken and need to change a new one.

b. If with change, please check the driver; if works normal, please change the driver on Y Axis.

8. NO Ray.

Test the voltage between the LAS and GND after pressed the multimeter into grade 5V; press "fixed fire" in the control panel, to see if there is some change on high level (>2.8V) and the low level(<0.8V); if not, the control card is broken and need to change a new one. Also set up the time of fixed fir as 0 millisecond, which is in the PAD03 menu.

Adjust the power from 0%~100%, enter and press "fixed fire" button, then test if any change between the DA1 and GND from 0V to 5V; if not, the control card is broken, please change it; if both with, it means there is something wrong with the laser power supply.

How to Correct CNC Router Spindle Common Failures?

May 10, 2016 Prev Post

How Much Does it Cost to Ship a CNC Machine?

Feb 26, 2018 Next Post

Further Reading

How Long Does A Laser Engraver Last?
2024-09-21 6 Min Read

How Long Does A Laser Engraver Last?

How long a laser engraver lasts depends on whether you can right operate the machine, and whether you can regularly maintain the main components and parts.

19 Most Common Laser Engraver Problems and Solutions
2024-04-25 7 Min Read

19 Most Common Laser Engraver Problems and Solutions

You may run into some problems in the use of laser engraver, we'll analyse 19 most common laser engraving machine problems and give you the right solutions.

Is It Worth Buying A Laser Engraver?
2024-04-13 5 Min Read

Is It Worth Buying A Laser Engraver?

Is it worth buying a laser engraver? It's a thing to consider before starting DIY personalized crafts, arts, gifts, daily necessities with custom laser engraving to make money.

A Comparison of Laser Engraver, Laser Etcher, Laser Marker
2024-04-02 4 Min Read

A Comparison of Laser Engraver, Laser Etcher, Laser Marker

Compare technical specifications, features, uses, pros and cons for laser engraver, laser marking machine, laser etching system and find the right one for you.

5 Best Laser Etching Machines for Glass
2024-01-02 6 Min Read

5 Best Laser Etching Machines for Glass

Looking for an affordable laser etcher to DIY custom wine glasses, bottles, cups, arts, crafts, gifts, decorations? Review the 5 best laser etching machines for personalized glassware & crystal.

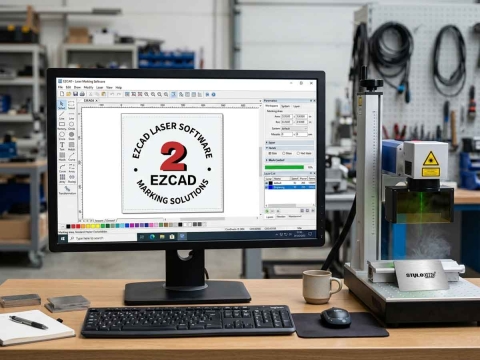

How to Install & Use EZCAD for Laser Marking Machine?
