4x8 CNC Router for sale with Multi-spindles changing automatically

4x8 CNC Router for sale with Multi-spindles changing automatically
  • 4x8 CNC Router for sale with Multi-spindles changing automatically
  • The First Picture of 4x8 CNC Router for sale with Multi-spindles changing automatically
  • The Second Picture of 4x8 CNC Router for sale with Multi-spindles changing automatically
  • The Third Picture of 4x8 CNC Router for sale with Multi-spindles changing automatically
  • The Fourth Picture of 4x8 CNC Router for sale with Multi-spindles changing automatically
Loading...

4x8 CNC Router for sale with Multi-spindles and reasonable price

Inquiries:

2358

Model: S1-IV Category: CNC wood router
Brand: STYLECNC STYLECNC®
Rating:

4.6

 /5 based on 17 ratings and reviews
Price Range:

9000.00

to

$

11000.00

/ Set according to your configuration
The price will float according to the configurations of 4x8 CNC Router for sale with Multi-spindles changing automatically
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Port From: Qingdao, Shanghai, Tianjin, Beijing, Guangzhou Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Send a request

4x8 CNC Router for sale with reasonable price, Multi-spindles automatically changing, humanization design, top quality accessories, high-performance drive motor and imported high-precision ball screw.

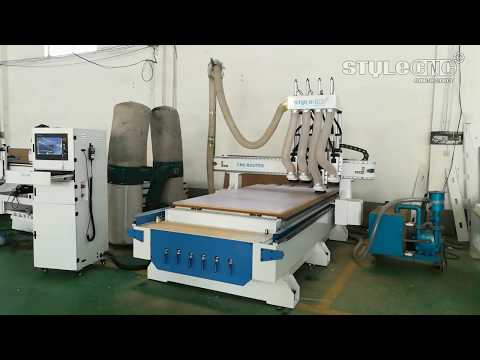

Video Show

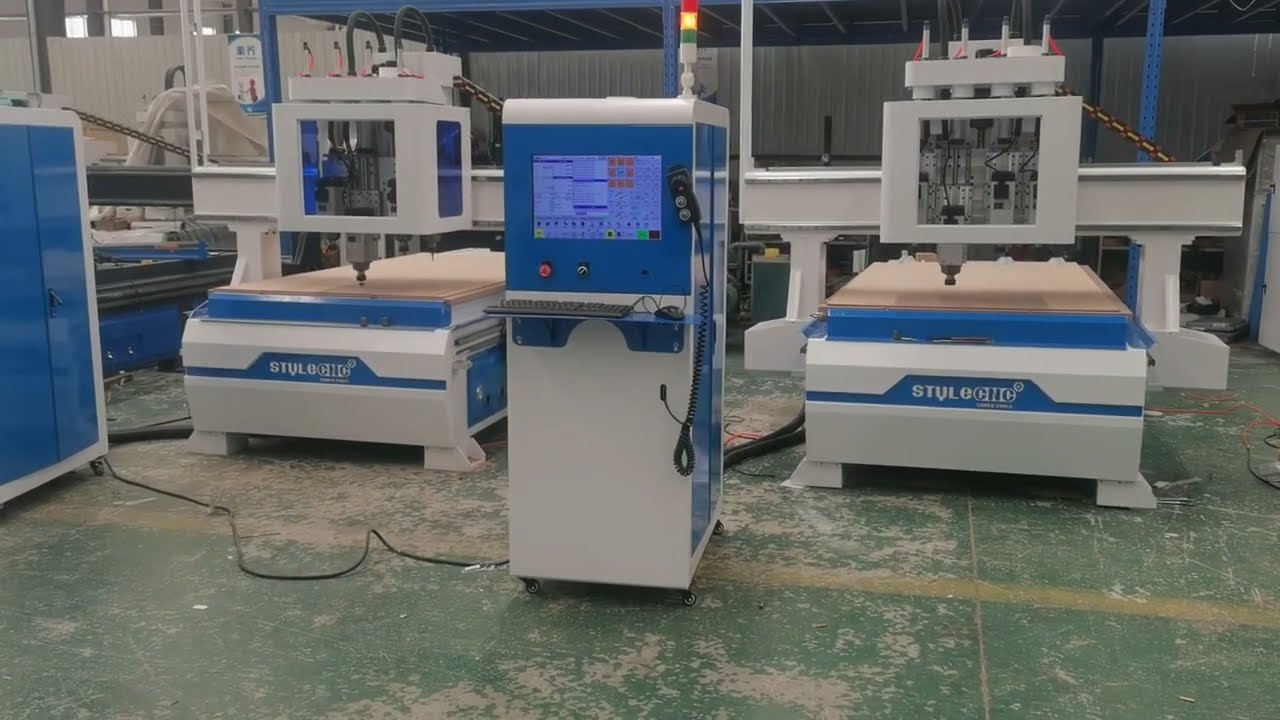

Product Show

4x8 CNC Router

Multi-spindles CNC Router


Advantages of 4x8 CNC router with Multi-spindles:


1. The Multi-spindles CNC router bed structure using generous walled tube T-type structure,tempering and vibration aging treatment with import 5 axis metal milling precision Machining centers.

2. The whole structure with side mount rails, with high performance and precision, dust-proof design of the whole structure of the rack rails with sub-type structure, rail replacement without professionals,more convenient.

3. Multi-spindles can automatic change to save time and only set origin one time, avoid tool marks.

4. Perfect design, top quality accessories, to minimize the Machine’s failure rate.

5. High-performance drive motor to ensure the machine’s high speed and accuracy.

6. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.

7. Two motors for Y-axis, high speed.

8. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

9. The machine’s body is strong, high-precision, reliable and durable.


Features of 4x8 CNC Router with Multi-spindles:


Multi-spindles CNC Router is mainly designed for changing tools easily while it is working. For example, when you make a workpiece by two, three or four tools to make different patterns, the Multi-spindles CNC Router can short the time of adjusting and checking the tools. After turning on the machine and once adjusting the knife, the machine can complete all the work absolutely at the same time and you can choose a horizontal side spindle to process keyhole slot, which can increase the accuracy and the additional time


Separated Multi-Spindles CNC Router, the power and quantity of the spindle and motor can be properly increased, because each motor has its own drive current with strong cutting effect and adjust tools conveniently. While the cost of it is more expensive than that of Board-holden Multi-heads CNC Router.


1. Imported Square Liner Rail,high accuracy,heavy burthen.

2. High accuracy Rack Rail travel method with high speed.

3. Lathe bed adopts strong welded steel tube to avoid distortion.

4. Advanced international technology vacuum with double cavity.

5. Y axis adopts double motors to keep stable moving.

6. Intelligent protecting working fable.

7. Humanization Design of lathe bed vacuum and easy working.

8. Automatic change two, three or four spindles with higher performance.


4x8 CNC Router with Multi-spindles

Multi-spindles CNC Router

4x8ft CNC Router with Multi-spindles Features

4x8 CNC Router with Multi-spindles Features


Applications of 4x8 CNC Router with Multi-spindles:


Application in Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

Application in wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.

Application in Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Application in Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.


Technical Parameters of 4x8 CNC Router with Multi-spindles:


Model

S1-IV

Working Area

1300x2500x200mm

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table Surface

Double layer vacuum table

Table Size

1450×2940mm

Frame

Welded Structure

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption

(Without Spindle) 3.0Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

6kw

Spindle Speed

0-18000RPM

Drive Motors

Servo System

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

Command Language

G Code

Operating System

Nc studio control system

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X,Y Resolution

<0.03mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Packing Size

3300X2100X2300mm

N.W.

2500KG

G.W.

2800KG


Optional Parts of 4x8 CNC Router with Multi-spindles:


1. Air Cooling Spindle or Water Cooling Spindle.

2. Dust Collector.

3. Vacuum Pump.

4. Rotary System.

5. Mist-cooling System.

6. 850W Yaskawa/800W Panasonic Servo Motors.


Toolbox of 4x8 CNC Router with Multi-spindles:


Toolbox of 4x8 CNC Router with Multi-spindles

4x8 CNC Router Toolbox


4x8 CNC router projects:


4x8 CNC Router Applications

Projects of 4x8 CNC Router with Multi-spindles

4x8 CNC router samples

Packages of 4x8 CNC Router with four spindles:


4x8 CNC router package


FAQs of 4x8 CNC Router:


Q1. how to get the most suitable 4x8 CNC router and best price?


Please tell the material you want to working on?


How to working on it ? Engraving? Cutting? Or other?


What’s the MAX size of these material?( length? Width? Thickness?)


Q2. Do you have the manual of 4x8 CNC router?


Yes,we have


Q3. If we donot know how to use the 4x8 CNC router,can you teach us?


Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.


Q4. How about your 4x8 CNC router after-sales service?


We offer you 24 hours service phone,skype or whatsapp.


Q5. How about your 4x8 CNC router guarantee period?


One and half year, and during the time,if you have any questions ,we will solve it for free.
