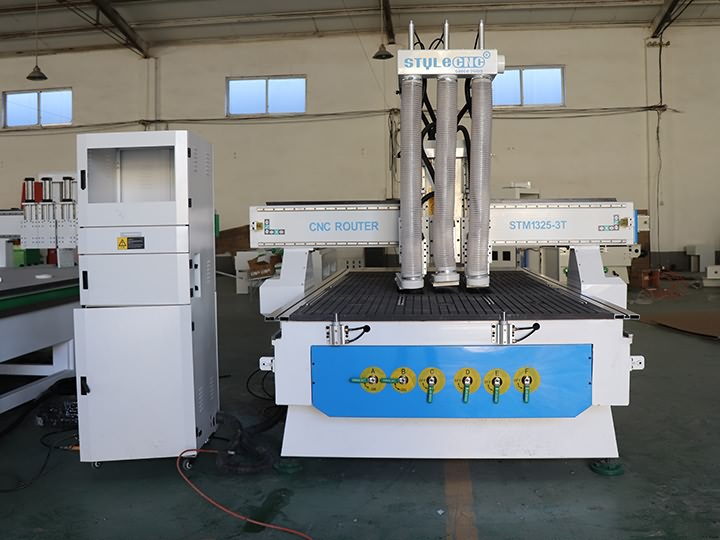

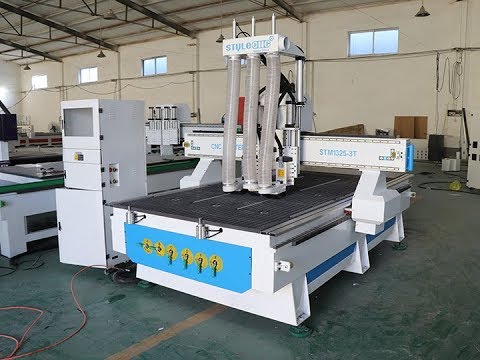

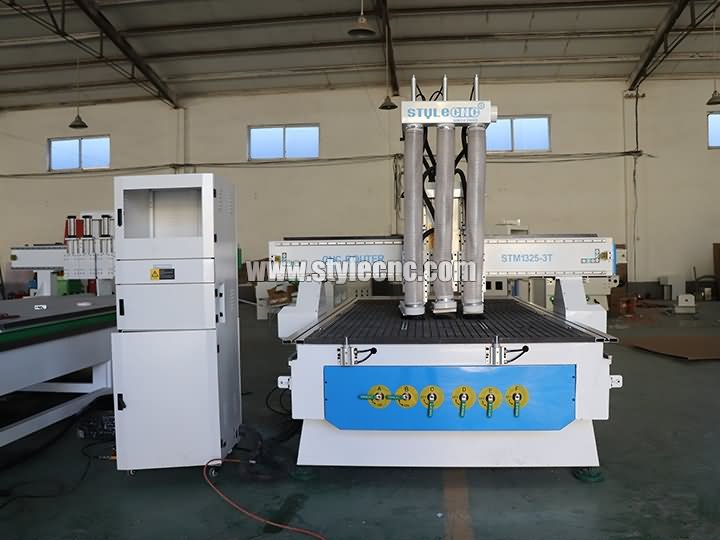

Economic automatic tool changer CNC router machine STM1325-3T operates like an ATC CNC machine with 3 spindles in cabinet making, door making, furniture making.
Advantages of Automatic Tool Changer CNC Router Machine:

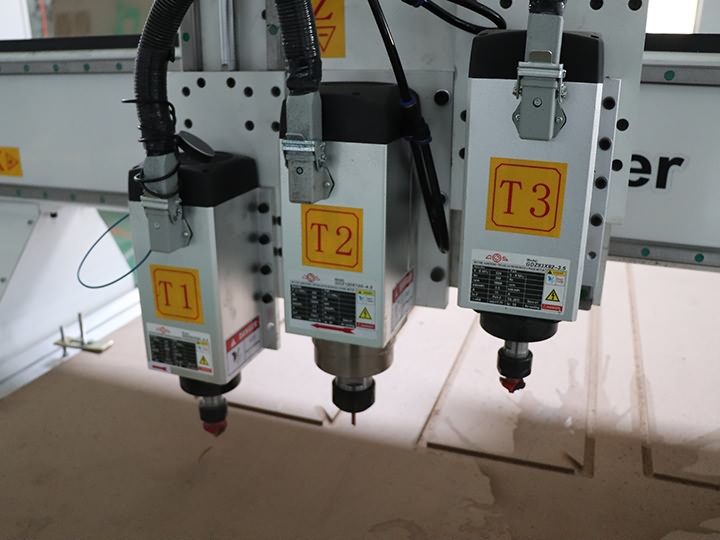

1. Three pieces spindles can work one by one automatically, so this machine can finish three different work on one board without changing tools by hands.
2. The CNC router uses heavy-duty machine structure, welded by 8mm thickness steel square tube, so that it can ensures minimum distortion, excellent rigidity and powerful strength.
3. Position materials by 5 pcs position cylinder to improve the working efficiency.
4. Dust collection system collect the dust when the economic automatic tool changer cnc router working in time.
5. Protection device to protect the wire and one emergency switch on each later plate.
Features of Automatic Tool Changer CNC Router Machine:
1. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

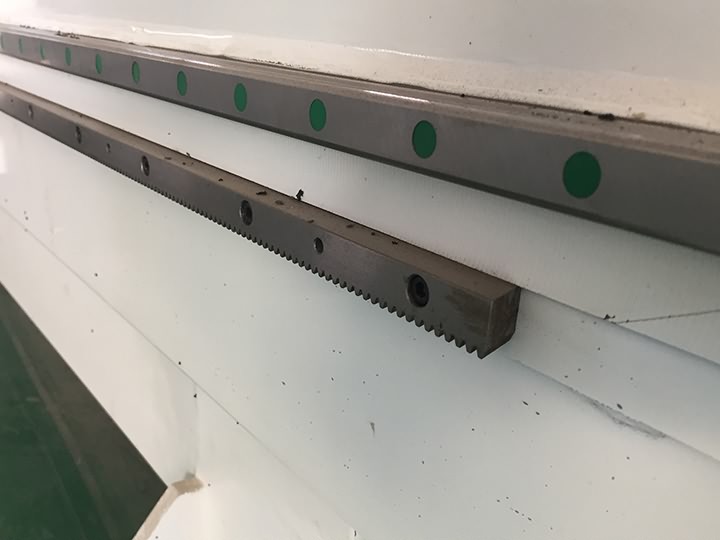

2. Three axes adopt Taiwan Hiwin high precision square guide rails; X and Y axes adopt helical rack and pinion transmission, fast working and high efficiency , Z axis adopts Taiwan TBI ball screw,with high precision and longevity.

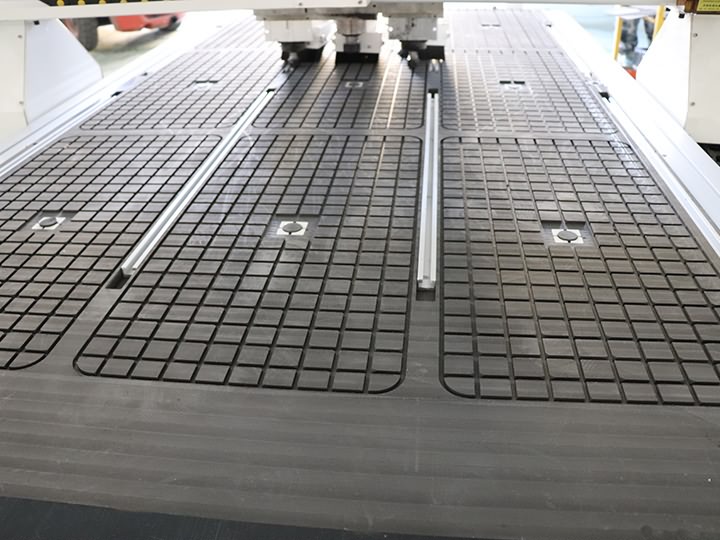

3. Vacuum table with 6 vacuum zones, which can adsorb different size materials.Vacuum&T-slot holding worktable for optional.

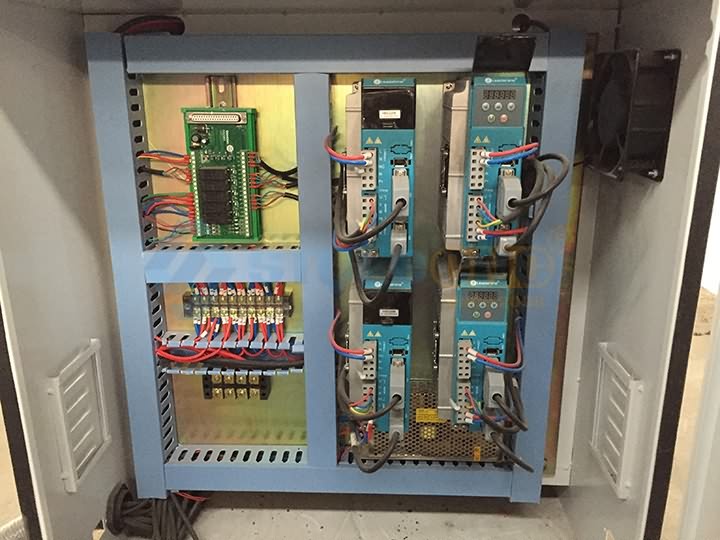

4. Transmission by hybrid servo driver and motor,more precision and fast.
5. Adopting NC Studio control system(Original),it working with computer,make the working more stable and precision.
6. Well compatibility: CAD/CAM designing software e.g. Type 3 / Artcam / Castmate / Wentai.
7. The CNC router has the function of re-carving after break point and power failure. It also has the function of forecasting process time.
Technical Parameters of Automatic Tool Changer CNC Router Machine:
Model | STM1325-3T |
X,Y Working Area | 1300*2500mm |
Z Working Area | 200mm |
Tool change function | 3pcs spindles work one by one automatically |
Table Size | 1640*3040mm |
Package size | 2040*3140*1900mm |
Resolution | 0.1mm |
Max. Idling Speed | 35m/min |
Spindle Motor Power | 3.5 Kw air cooling spindle |
Working Mode | Hybrid servo motor |
Inverter | Fulling Inverter |
Vacuum system | Yes |
Vacuum pump | 5.5Kw air cooling vacuum pump |
Operating System | Real NC studio control system |
Lathe Structure | Seamless welded steel structure |
X,Y Structure | Rack and pinion transmission, |
Z Structure | Imported high-precision Ball screw |
Gantry | Steel gantry |
Rail | Taiwan made HIWIN square rail |
Spindle Rotate Speed | 0-18000r/min |
Working Voltage | AC380V/50Hz |
Command | G code,HPGL,U00,mmg,plt |
Diameter of cutter | φ3.175-φ12.7mm |
Manual oil-injection | Yes |
Package | Wooden case |
Applications of Automatic Tool Changer CNC Router Machine:
1. Furniture industry:
To engrave versitile patterns on Solid wooden door, Composite door, Cabinet door, Sofa legs, bedside board, classical furniture and kinds of board furniture.
2. Decoration Industry:
Decorating kinds of patterns for wall fresco, folding screen, cubic wave board, acoustic board.
3. Musical instrument:
Shaping the guitar, piano, and other instruments, and the embossing on the surface of the instruments.
4. Mould industry:
Precision founding the wooden mould, founding foam, food mould, etc.
5. Arts and Crafts industry:
To process kind of embossing, shadow engraving, pendant,car Accessories and so on.
6. Building moulds.
7. Advertising industry : Acrylic cutting, engraving, sign making.
Projects of Automatic Tool Changer CNC Router Machine:
Package of Automatic Tool Changer CNC Router Machine:
How to Choose the Best Automatic Tool Changer CNC Router Machine?
1. Machine quality. If you plan to choose a so cheap machine, maybe the quality is bad.And you have to order another machine,after you use it for a period. This situation will have a bad effect on your producing. So the quality is most important factors to choose a automatic tool changer cnc router.
2. Future more, after-sales service is very important too. Good after-sales service represent the image of a company. After you use the machine and find some problems of the machine, a good after-sale service can solve it effectively and protect the right of customer.
3. The third is technical support. Because of time difference, there is a big problem to communicate with the sellers. When you need help, maybe it is the sleeping time for your sellers.
So effective contact and the good service is also important to you. Other sellers maybe can not do this, but we can provide 24/7 service a day.
4. The last is manufacturer. A manufacturer with good reputation usually can produce high quality machine. As STYLECNC, we specialized in automatic tool changer CNC router for over 10 years, the professional engineer team, the high quality equipment and the great after-sales service have earned us good reputation in the world market.
