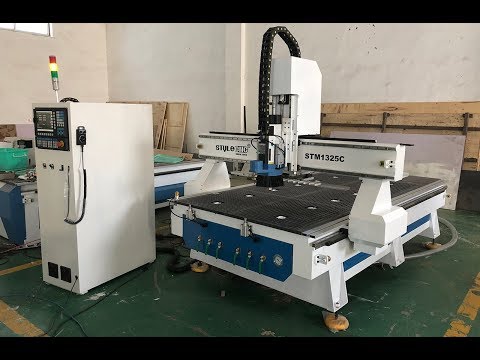

ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate

Last Updated: 2024-01-12 15:04:29

Affordable linear ATC CNC wood router with HSD C-axis and aggregate to increase the performance, versatility and productivity of 3, 4 or 5 axis CNC table kits. C Axis can move from 0 degrees to 360 degrees, so aggregate can multi-angle milling, cutting, drilling, and sawing.

ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate
  • Brand - STYLECNC
  • Model - STM1325C
  • Table Size - 4' x 8' (48" x 96", 1300mm x 2500mm)
4.9 (31)
US$24800.00 for Base / US$35800.00 for Premium
  • Supplity - 360 Sets / Month Waiting for Sale In Stock
  • Standard - Meet CE Standards in Terms of Quality & Safety
  • Warranting - One (1) Year Limited Warranty for Entire Machine
  • 1-2 Days Handling and 7-30 Days Shipping
  • 30-Day Money Back Guarantee for Your Purchase
  • Free Lifetime Technical Support for End-Users & Dealers
  • Online (PayPal, Trade Assurance) / Offline (T/T, Debit & Credit Cards)

ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate

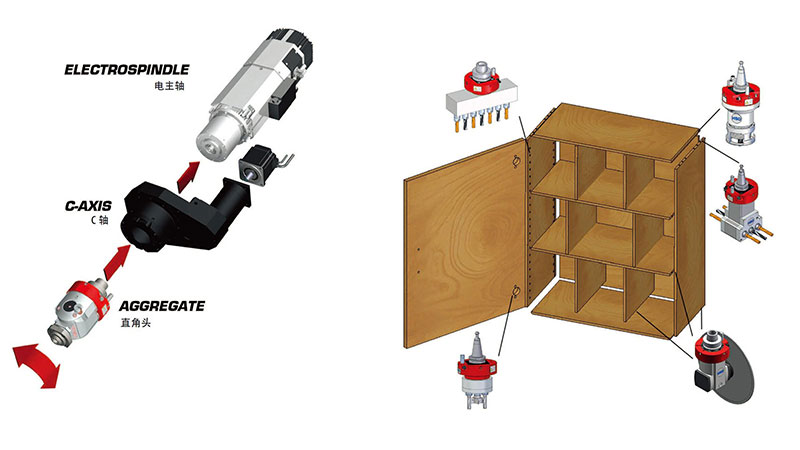

HSD C axis

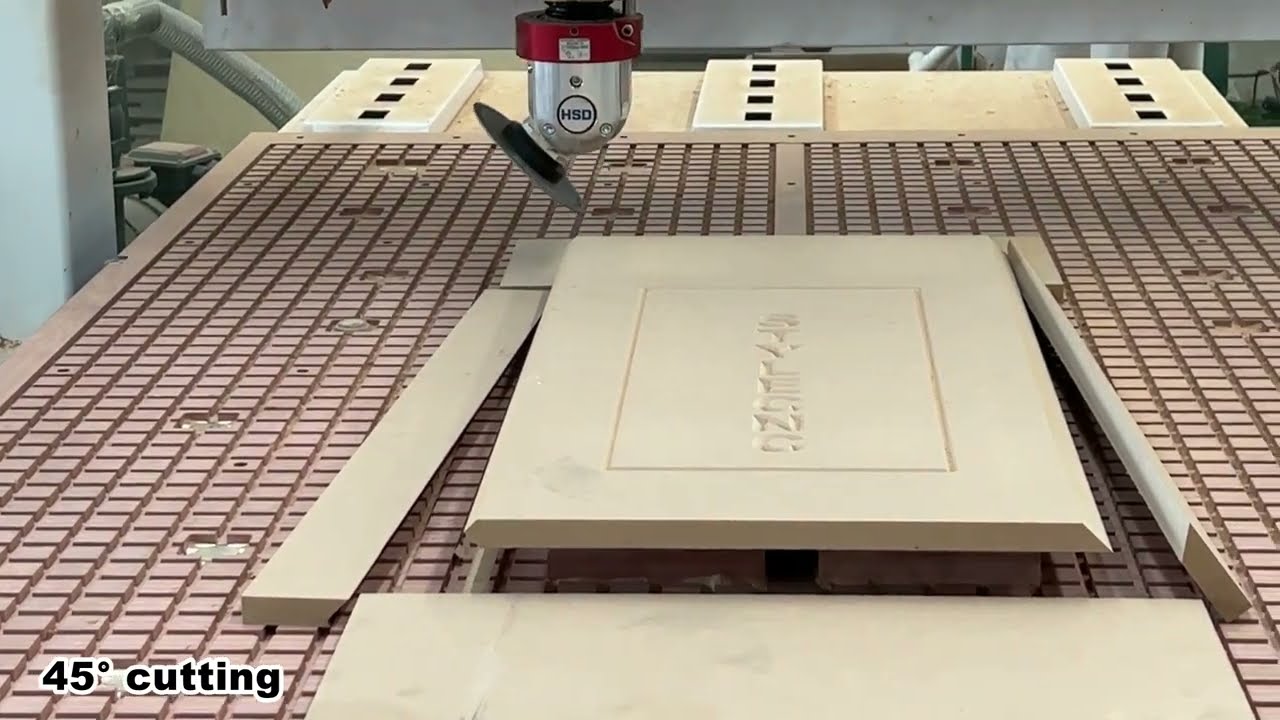

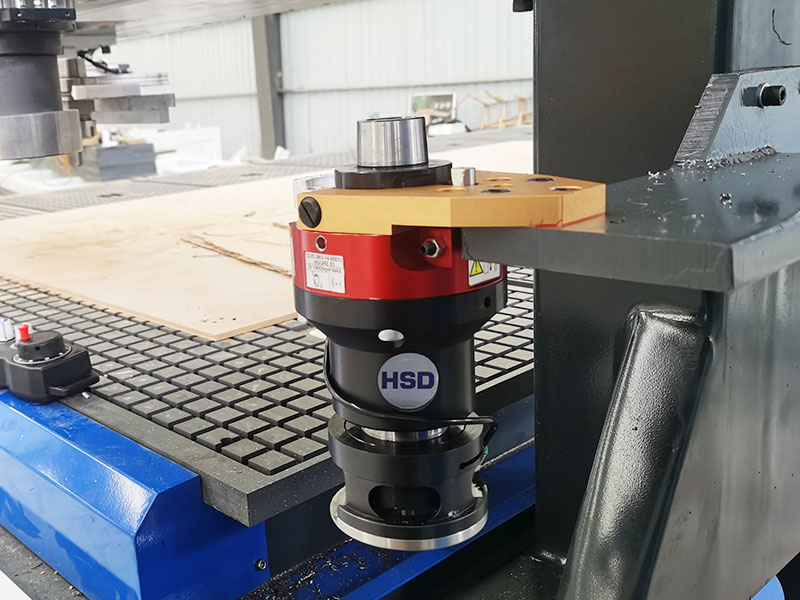

HSD aggregates

Advantages of ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate

1. Function: Linear ATC CNC router with HSD C axis and aggregate is suitable for routing, drilling, cutting, and edge chamfering at one time through automatic tool change, high precision, zero error.

2. Equipped 9KW Italy HSD spindle, HSD C axis and HSD aggregate, famous brand among panel furniture production industry. The aggregate head can realize side drilling and slotting work when it equipped with a router bit, and can complete cutting at any angle if it carries a saw blade.

3. High-speed: Reducer direct design,high torque, high-energy, Y axis dual servo motor drive, runs smoothly with high efficiency.

4. The linear automatic tool changer system which contains 12 pieces cutting bits controlled by Taiwan LNC control system.The tools can be changed very quickly and reliably.

5. The whole bed is welded and tempered by steel structure, which has strong rigidity and no distortion.

6. Large independent electronic cabinet, separate keyboard operation, simple and convenient, easy to learn.

Features of ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate

1. 12 pcs linear auto tool changer follow with spindle, it can catch12pcs different CNC bits for different work, no need to change bits by hand, the tool changing speed just 5s.

atc CNC Router tool holder

2. 9KW Italy HSD air cooling ATC spindle, powerful in cutting and carving, makes ATC CNC Router with high precision, long service time and stable movement.

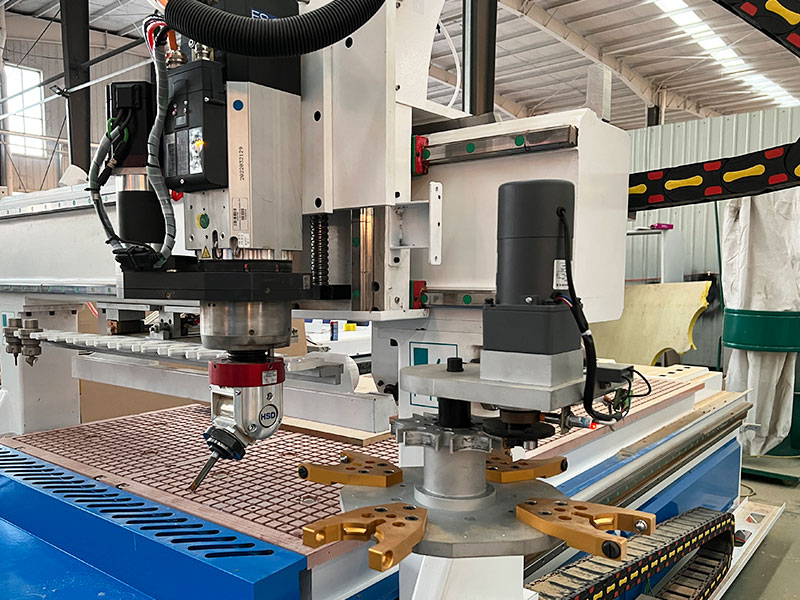

ATC spindle

Floating head

3. PC intergrated control system, support offline operation, even there is sudden electricity power-off, you needn't reset from beginning.

LNC control system

4. HIWIN linear rail 30mm from Taiwan, smooth and precise transmission, low noise, lifetime is 10 times longer than common rail way.

Taiwan Hiwin rails

5. Strong vacuum work table match with 7.5KW vacuum pump, big suction to fix materials.

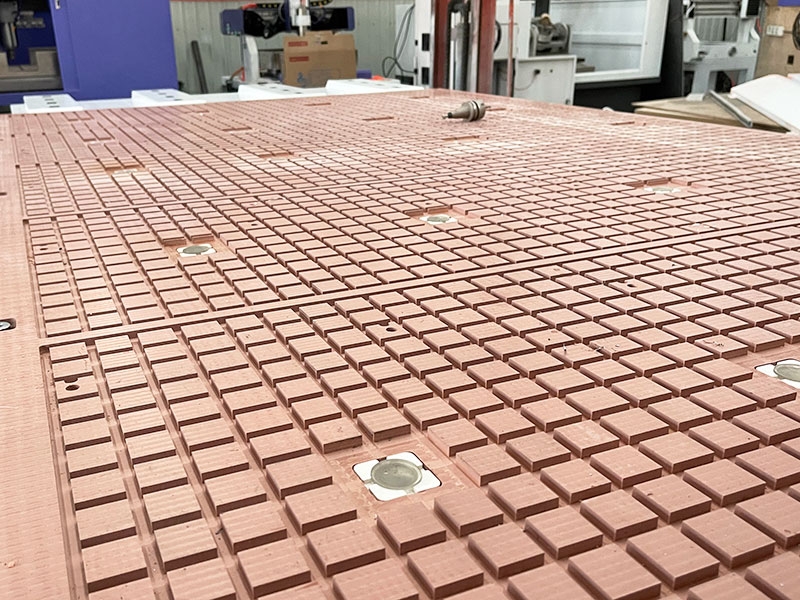

Vacuum table of CNC Router

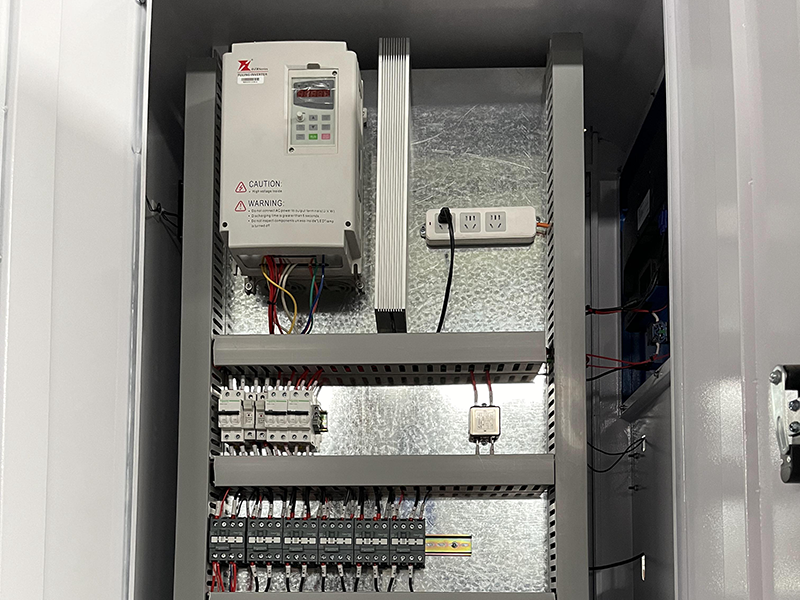

6. Electronic cabinet with independent spaces for stronger and weaker electronic parts,eliminate interference, each parts with English label.

Taiwan Delta servo driver and motor

7. High sensitivity tool sensor make the tool position more accuracy.

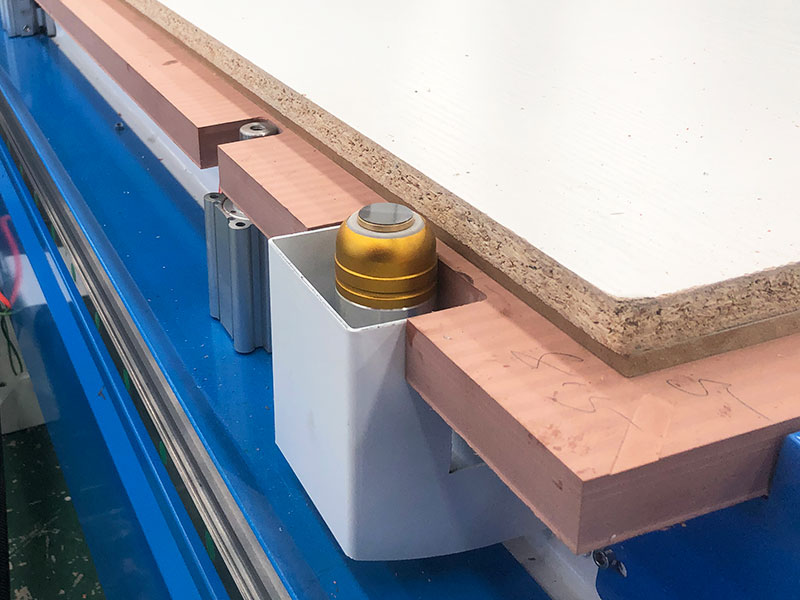

Tool sensor

8. All the necessary tools attached with machine package.

CNC tools

Technical Parameters of Linear ATC CNC Router Kit with Automatic Tool Changer

ModelSTM1325C
Working Area1300*2500*300mm
Lathe StructureWelded and tempered steel tube frame
X structureHelical rack pinion, linear rails
Y structureHelical rack pinion, linear rails
Z structureBall screw transmision
Max Rapid50000mm/min
Max Working Speed30000mm/min
Spindle Power Motor9KW ATC spindle HSK63F
Spindle Speed0-24000RPM
Working Mode1500W Servo system
Working VoltageAC380V/3P or AC220V/3P/2P
Command CodeG code(*uoo,*mmg)
Operating SystemLNC control system
InterfaceUSB
SoftwareType3 software, Artcam software
Vacuum TableStrong vacuum table
Vacuum PumpChinese water-cooling 7.5KW
Dust Collection3KW double bags

Applications of Linear ATC CNC Router Kit with HSD C Axis and Aggregate

1. Furniture industry: Processing various furniture such as door, window, cabinet, craft wood door, screen, etc.

2. Advertisement: Carving and cutting various labels and number plate,gifts and souvenirs.

3. Arts and Crafts: Carving characters of any languages and graphics on gifts and souvenirs.

4. Any kinds of wood,Aluminum board, plastic, density board, wave board, PVC, acrylic, and other nonmetal materials,etc

Projects of Linear ATC CNC Router with HSD C Axis and Aggregate:

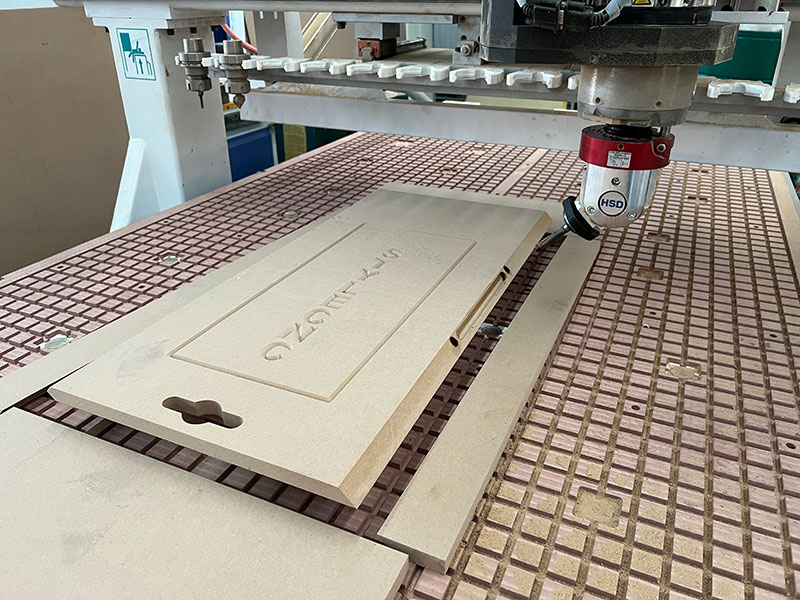

Linear ATC CNC Router Projects

cabinet door making

Package of ATC CNC Wood Router Table Kit with HSD C Axis and Aggregate

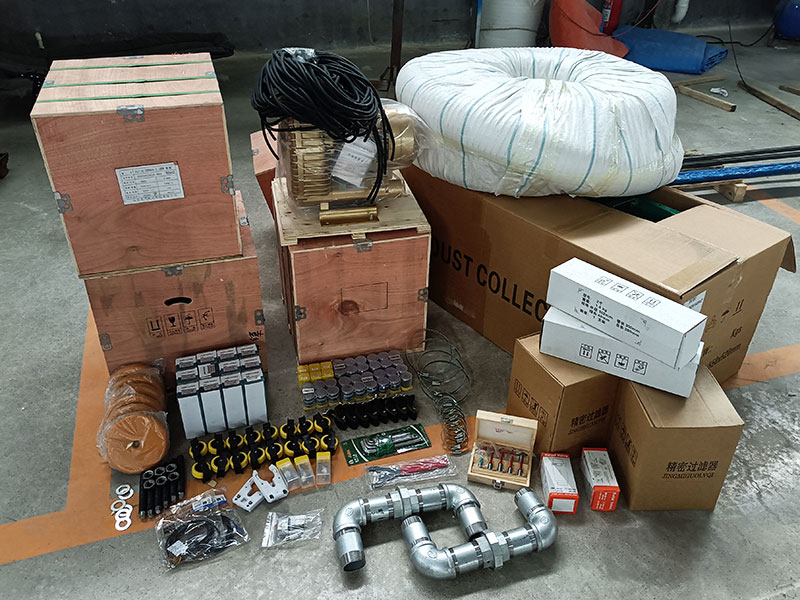

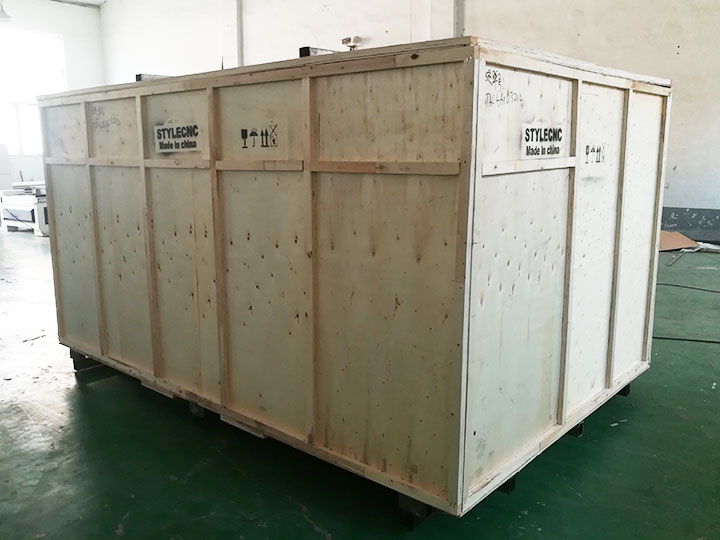

Package for linear ATC CNC Router STM1325C

Service & Support for Linear ATC CNC Router with HSD C Axis and Aggregate

1. Warranty time: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.

Exceed warranty period: if the machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

2. After buy item, we will send you friendly user manual and the videos about installation,operation and maintanance for the machine step by step.

3. Our technician can give you remote guide online(Teamviewer/Skype//Whatsapp/Vber/Tel) if you have any question.

4. 24 hours technician professional and timely after-sale service online or by email or calling

5. If you need,we will arrange technicians go abroad to install or maintenance the machines.

6. Free training course in our factory.
