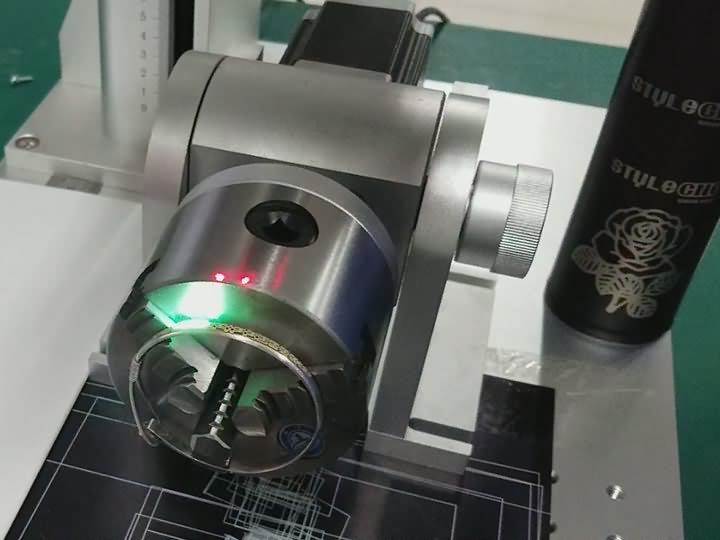

3D Fiber Laser Deep Engraving On Sliver Bracelet
Next »

Precision Fiber Laser Cutting Machine with 1300*900mm Table

1300*900mm high precision fiber laser cutting machine

High Precision Fiber Laser Cutting Machine Features & Advantages


1. High cutting accuracy: The positioning accuracy of the laser cutting machine is 0.05mm, and the repeat positioning accuracy is 0.03mm.

2. Narrow slit: The laser beam is focused into a very small spot to achieve a high power density at the focal point. The material is quickly heated to the degree of vaporization and evaporates to form a hole. With the relative linear movement of the light beam and the material, the hole continuously forms a slit with a very narrow width. The width of the slit is generally 0.10-0.20mm.

3. Smooth cutting surface: There is no burr on the cutting surface, and the surface roughness of the cut is generally controlled within Ra6.5.

4. Fast speed: the cutting speed can reach 10m/min, and the maximum positioning speed can reach 30m/min, which is much faster than the wire cutting speed.

5. Good quality: non-contact cutting, the cutting edge is little affected by heat, there is basically no thermal deformation of the workpiece, and the collapse of the material formed during punching and shearing is completely avoided. Generally, the cutting seam does not require secondary processing.

6. No damage to the workpiece: the laser cutting head will not contact the surface of the material to ensure that the workpiece will not be scratched.

7. Not affected by the shape of the workpiece: laser processing has good flexibility, can process any graphics, and can cut pipes and other profiles.

8. Cutting and processing a variety of materials: such as silver, gold, stainless steel, copper, brass, etc.

9. Saving mold investment: Laser processing does not require molds, no mold consumption, no mold repairs, and saving time for mold replacement, thereby saving processing costs and reducing production costs, especially suitable for processing large products.

10. Save materials: Using computer programming, products of different shapes can be cut to maximize the utilization of materials.

11. Increase the speed of sample delivery: After the product drawing is formed, laser processing can be performed immediately, and the physical object of the new product can be obtained in the shortest time.

12. Safety and environmental protection: Laser processing has less waste, low noise, clean, safe, and pollution-free, which greatly improves the working environment.

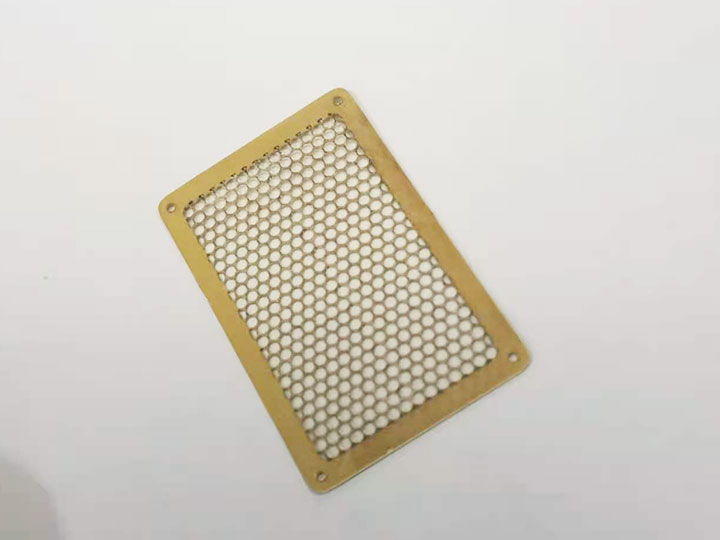

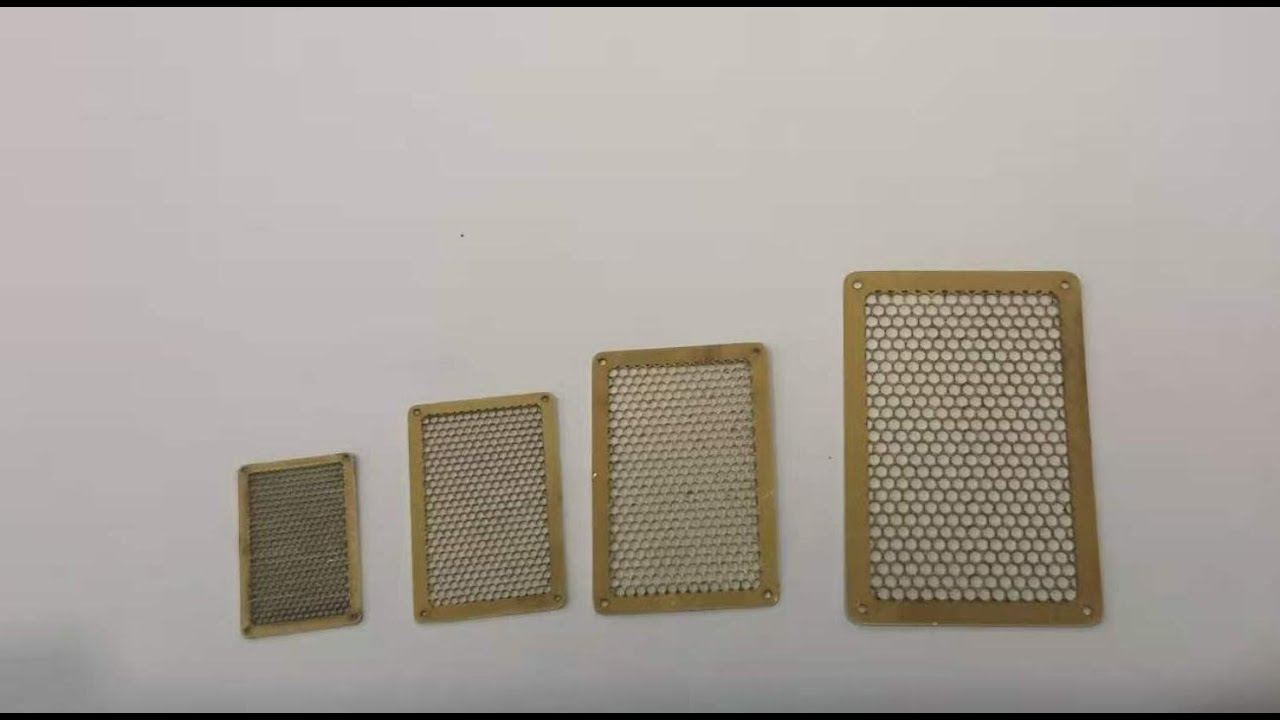

High Precision Fiber Laser Cutting Machine Project


High Precision Fiber Laser Cutting Machine Project
