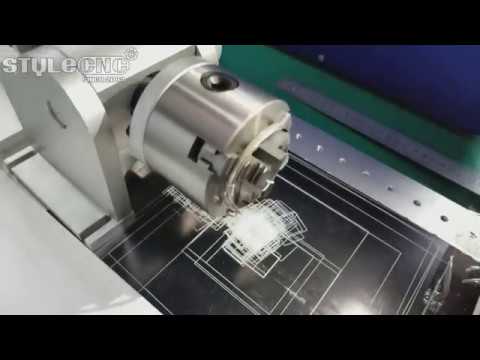

3D Fiber Laser Deep Engraving On Sliver Bracelet
Precision Fiber Laser Cutting Machine with 1300*900mm Table
« Previous
  • Small CNC Router Machine with Rotary Axis for 3D Woodworking
  • 48x96 CNC Router Table for 3D Relief Carving
  • 5'x10' Linear ATC CNC Router Machine for Relief Carving
  • 2022 Best Laser Cutting 3D Puzzle of CO2 Laser Cutter
  • High Precision Laser Cutter for Metal Fabrication
  • Aluminum Mold Making CNC Router with 3 Axis, 4 Axis, 5 Axis
  • Carousel Auto Tool Changer CNC Router Machining Center
  • How to Setup and Use CNC Router Machine and CO2 Laser Machine Combo?
  • How to Use JDPaint Software with CNC Routers?
Laser Engraving Memorial Photo on Granite & Marble
Next »

3D Fiber Laser Deep Engraving On Sliver Bracelet

3D fiber laser engraver

3D fiber laser engraving is a laser surface depression processing method. Compared with traditional 2D laser engraving, 3D engraving has greatly reduced the surface flatness requirements of the processed object, and the processing effects are more colorful and more creative.


Since 3D engraving can quickly change the laser focal length and the position of the laser beam, it becomes possible to mark curved surfaces that cannot be achieved in 2D in the past. After using 3D, the engraving of a cylinder within a certain arc can be completed at one time, which greatly improves the processing efficiency. Furthermore, in real life, the surface shape of many parts is irregular, and the surface height of some parts is quite different. It is really powerless for 2D engraving. At this time, the advantages of 3D engraving will become more obvious.


Traditional 2D engraving has inherent defects in deep engraving of the object surface. As the laser focus moves up during the engraving process, the laser energy acting on the actual surface of the object will drop sharply, which seriously affects the effect and efficiency of deep engraving.


For the traditional deep engraving method, the lifting table is moved to a certain height at regular intervals during the engraving process to ensure that the laser surface is well focused. 3D marking for deep engraving processing does not have the above problems, which not only guarantees the effect, but also improves the efficiency, and saves the cost of the electric lifting table at the same time.


In the same plane, black and white engraving can be realized, and even multi-color engraving can be achieved, and the effect is more abundant. For general metal surface blackening, such as anodic aluminum oxide, higher frequency pulses are usually used under suitable energy, and engraving is carried out with a certain defocus. The defocus distance obviously affects the energy distribution and energy distribution of the laser on the surface of the material. For general 2D engraving users, even if advanced features such as curved surface engraving are not required, it is very meaningful that the 3D engraving machine can perform flat engraving with multi-gray-scale and multi-color effects.


3D fiber laser engraver projects

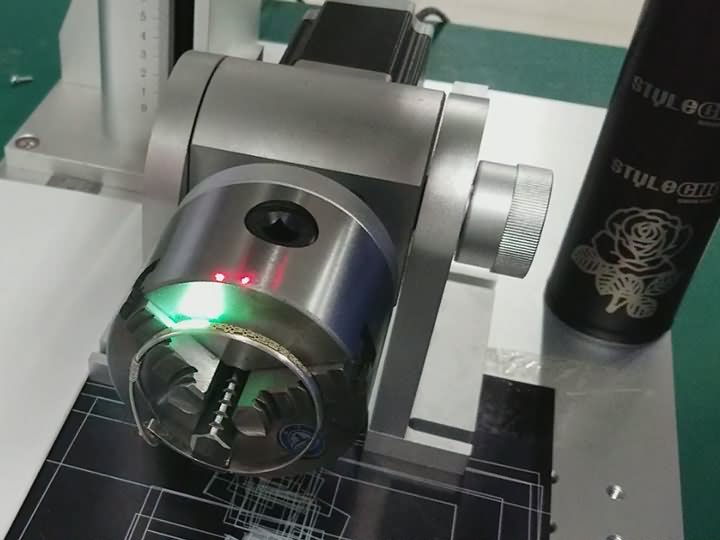

3D fiber laser engraver for sliver bracelet


3D fiber laser engraver for cups

3D fiber laser engraver projects
