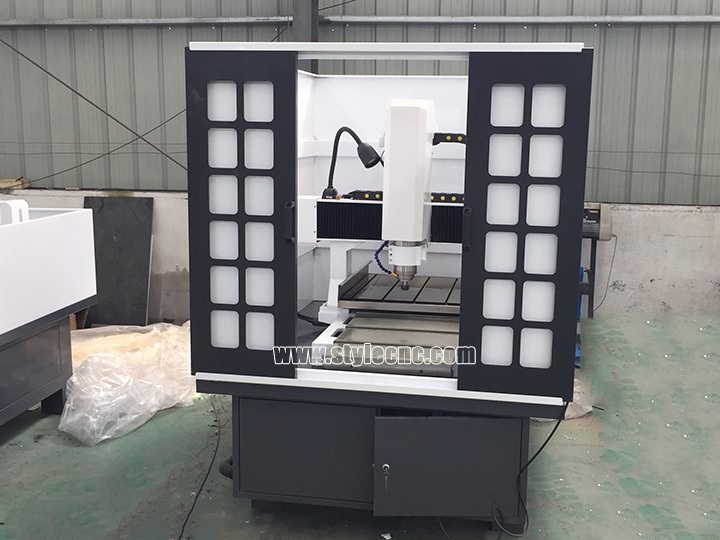

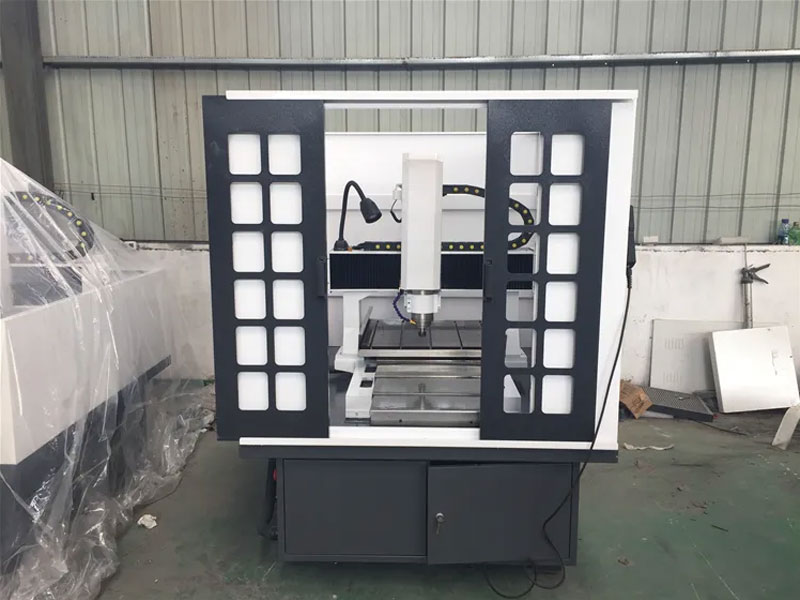

CNC mold making machine is a multi-functional mold making CNC router machine, now the CNC mold making machine for sale at cost price.
CNC Mold Making Machine Features and Advantages:

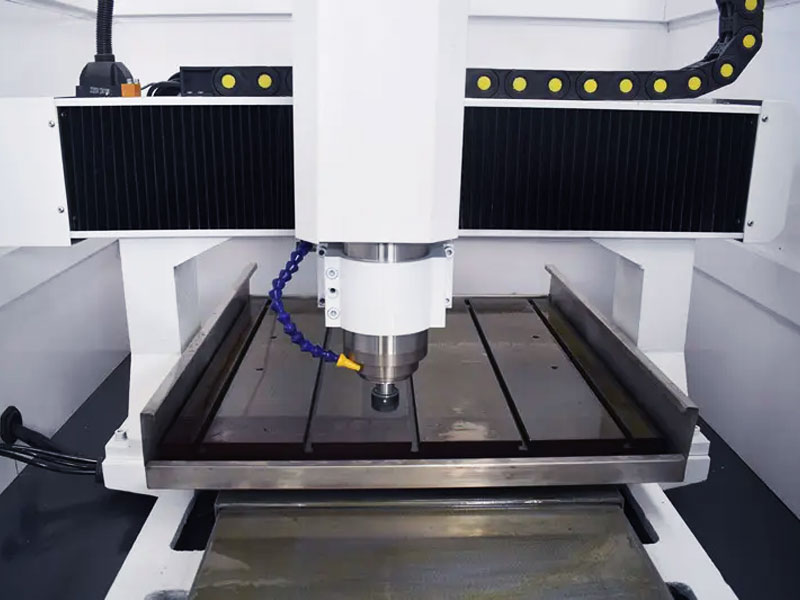

1. Cooling system: Mist cooling system for spindle, cooling workpieces with oil in the tank or atomization liquid through or spray nozzle.
2. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer.

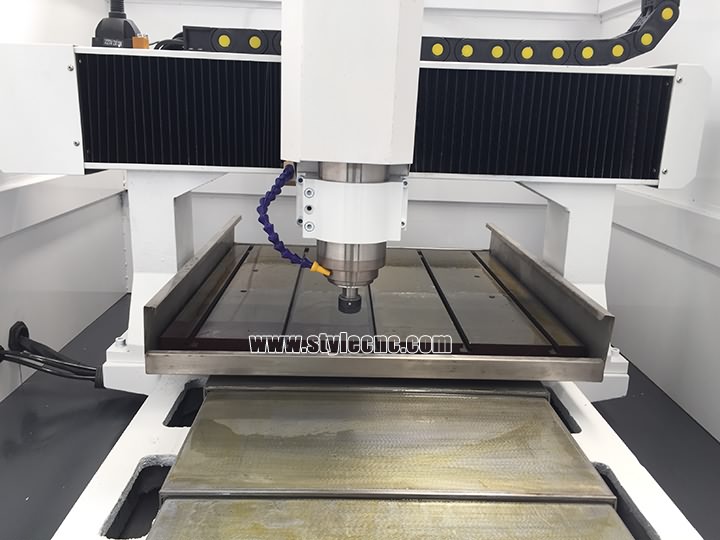

3. Gantry structure: Whole cast-iron structure,steady structure,high rigidity ,precision 0.01mm. The double column is whole part, greatly increase machine rigidity.
4. The machine adopts high-speed water cooling variable frequency motor ,big torque,strong cutting ,high-frequency ,long-lifetime,can be a long time continuous working.
5. Servo motor and drives: from Japan with high precision and long life.
6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium.
7. Three axis all use Germany ball screw and Taiwan linear orbits to make sure the accuracy and reposition precision.
8. Functional and easy-to-operate control system made by Taiwan SYNTEC with high performance and competitive price.
9. Table movement to keep stable and high precision.

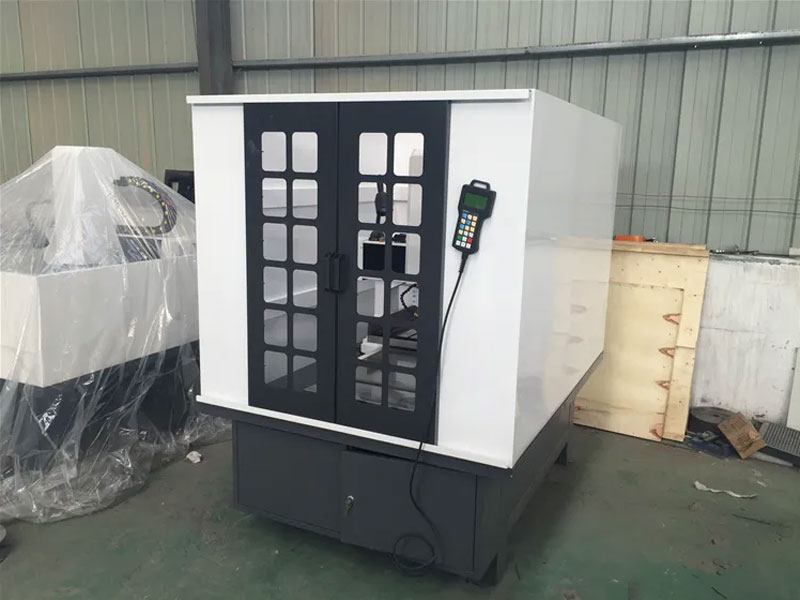

10. Enclosed work space ensures safe and contamination-free work.
11. The mold making machine is the product of the combination of numerical control technology and engraving and milling process. It is a kind of multi-functional cnc machine. Similar to the ordinary numerical control machine, our metal engraving machine price realizes the carving, the milling processing automation through that numerical control system controls the engraving and milling machine movement according to processing procedure code.
12. Stable and rigid structure: With the gantry type bed and table are one, it is not only good rigidity, but also no installation error for both. Processing precision will not be affected even if being used for long time.
13. The mold making machine is a kind of fully enclosed design, it adopt external circulating cutting oil processing way. Machine body is fully casting with stable structure and great weight-bearing ability.
14. The mold making machine is equipped with accurate bidirectional ball screw of famous brand, Taiwan square rail and accurate bearing with strong rigidity and high dynamic accuracy. It is also equipped with Japan YASKAWA ac servo motor with high accuracy and high power make amplitude smaller and three-axis more stable.
Technical Parameters of CNC Mold Making Machine:
|X/Y/Z Axis Movement||550mm×450×200mm||600mm×600mm×200mm|
|XYZ movement Accuracy||±0.01/300mm||±0.01/300mm|
|XYZ Repetition Accuracy||0.005mm||0.005mm|
|Feeding Height||200mm||Max 300mm|
|Max Loading Weight||300kg||350kg|
|Pressure Deformation of Working Table||<0.02mm(300kg)||<0.02mm(300kg)|
|Spindle Power||2.2KW(Optional 5.5KW)||3.2KW(Optional 5.5KW)|
|Spindle rotate speed||24000rpm||24000rpm|
|Max movement speed||15m/min||12m/min|
|Motor||Yaskawa Servo Motor||Yaskawa Servo Motor|
|Power supply||380V ± 10%50Hz||380V ± 10%50Hz|
CNC Mold Making Machine Applications:
CNC mold making machine is suitable for carving, milling, cutting and drilling most materials, including copper, aluminum, steel, iron, brass, wood, foam, and plastics. It is widely used in injection mould, automotive, ironware mould, shoe mold, drop mold, metal molds, clock parts, copper electrodes, zinc electrodes, metal electrodes, metal crafts, metal arts, jewelry, jade, dental crown, and other molding industries. It is especially designed for batch machining molds, watch, eyeglasses, panel, brand, badge, outside surface's sleeking, three-dimensional graphics and words, It’s easy for this molding machine to produce 2D or 3D relieves on various materials.

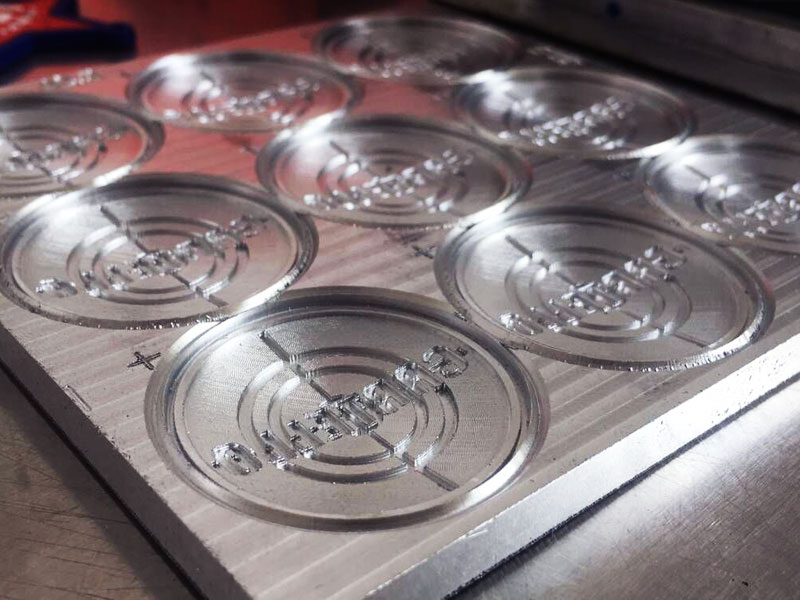

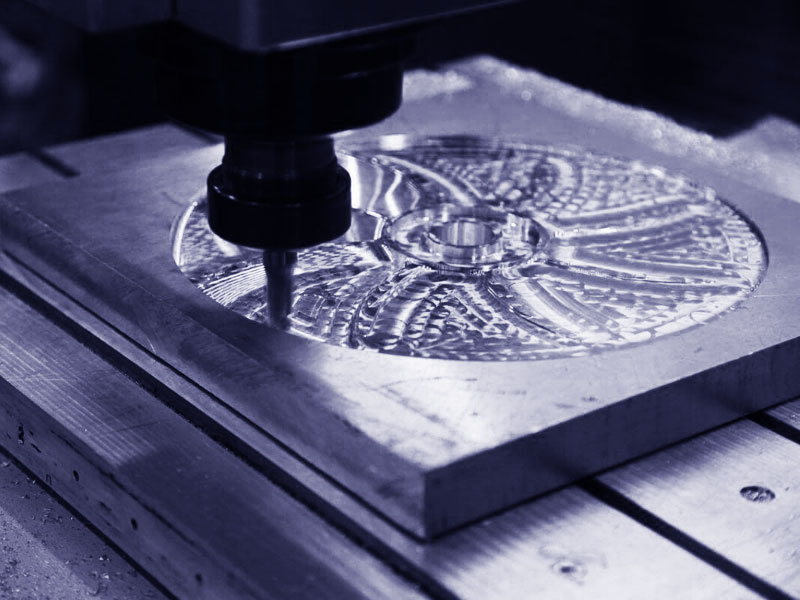

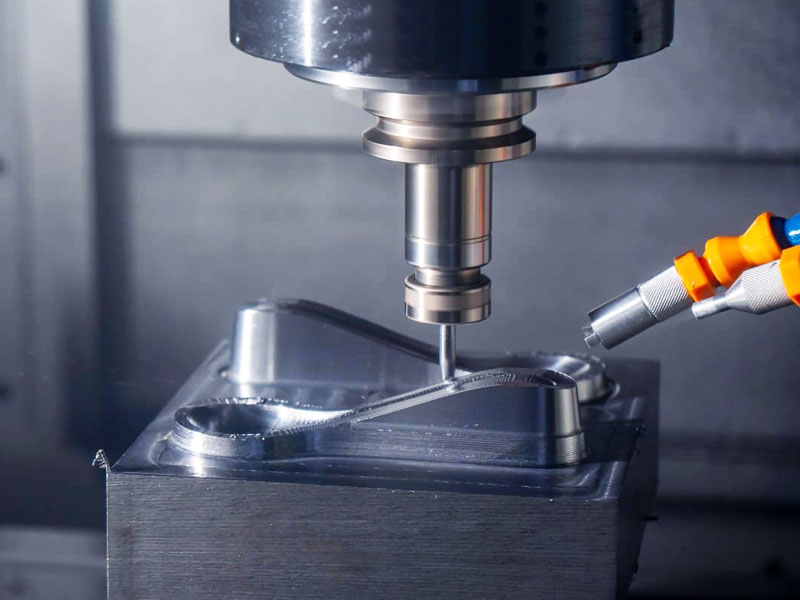

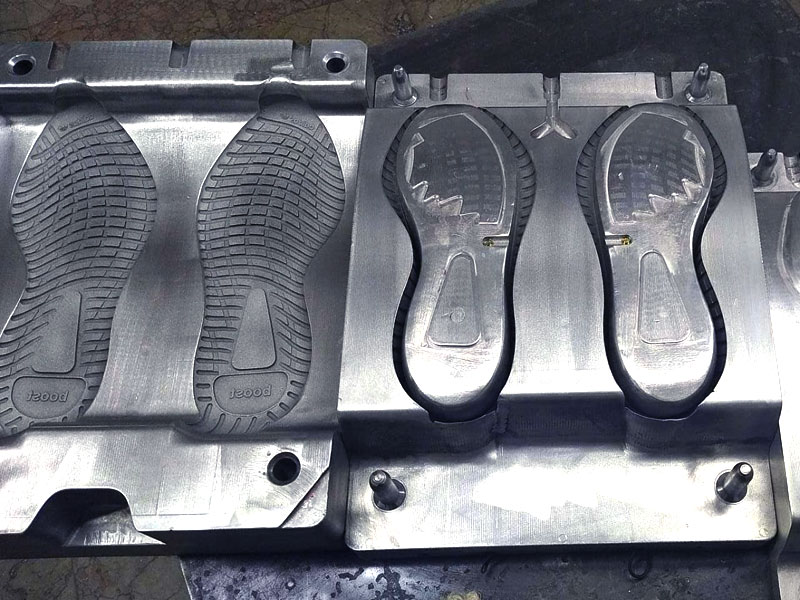

CNC Mold Making Machine Projects:

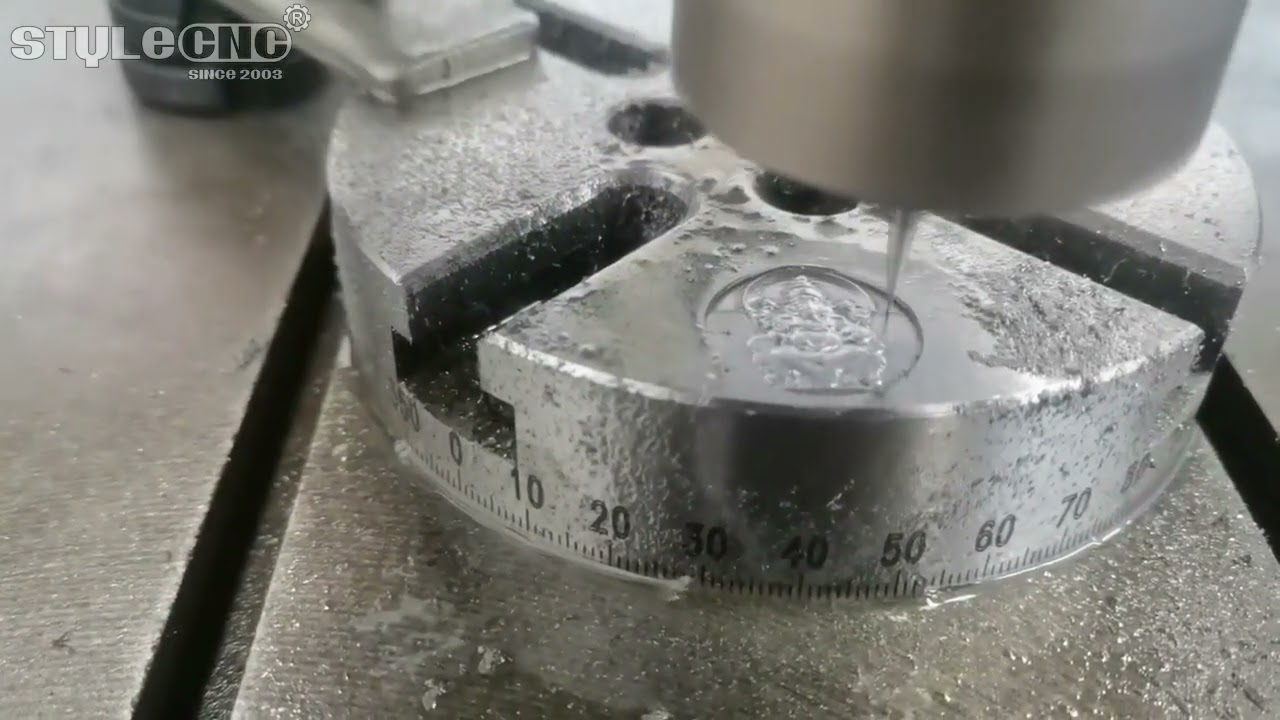

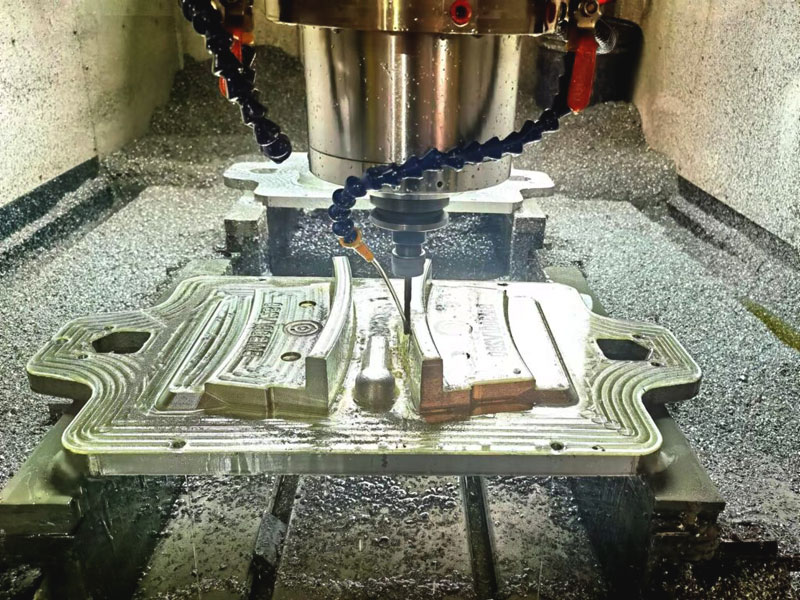

CNC Mold Making Process:
