Automated CNC Wood Drilling and Slotting Machine for Sale

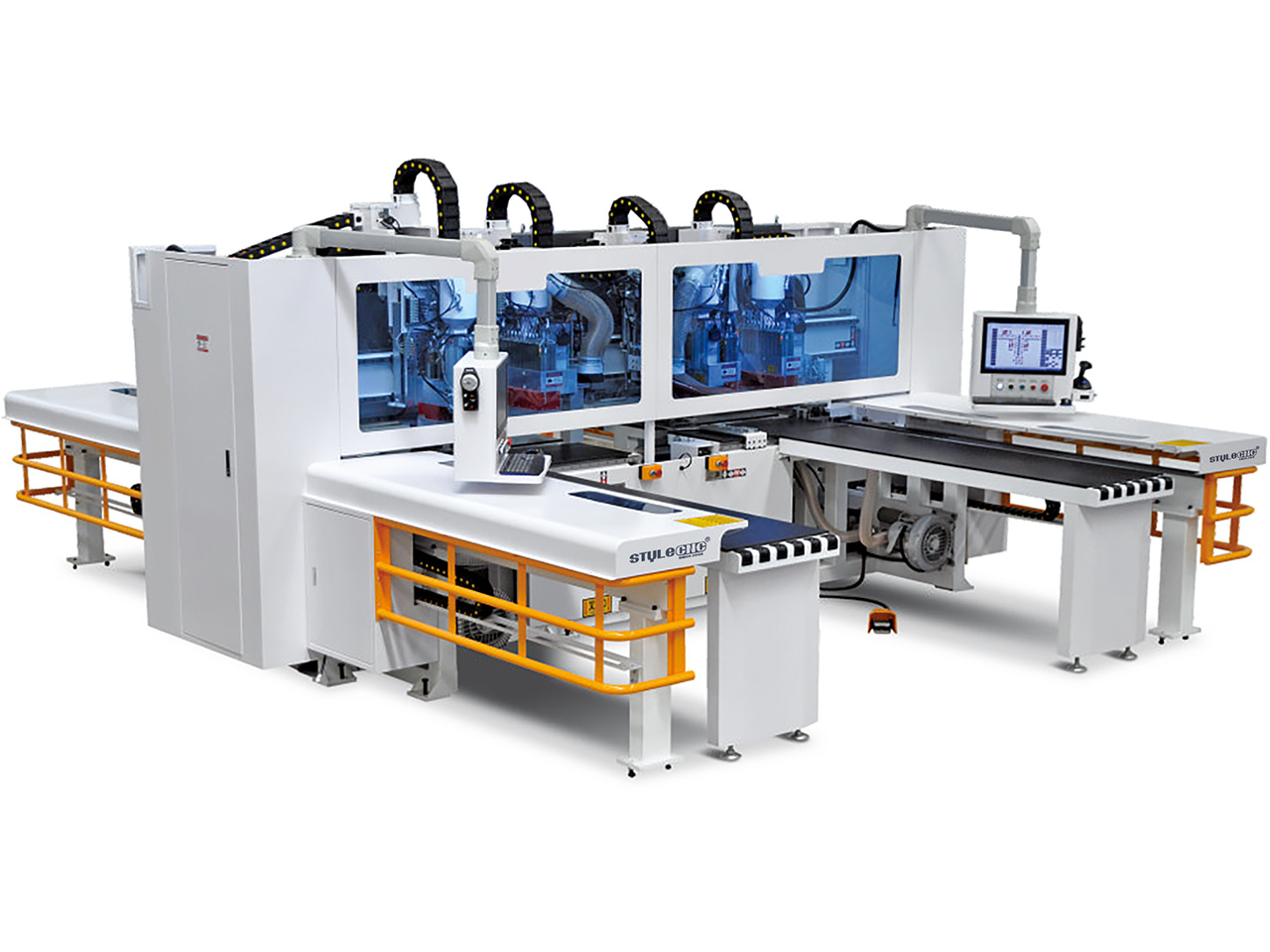

Automatic CNC Drilling, Grooving and Milling Machine Introduction

This dual-station CNC six-sided drilling and milling machining center is a high-end, automated woodworking machine designed specifically for panel furniture manufacturing.

Featuring a full gantry structure and equipped with four drilling units, the machine can complete drilling, grooving, and milling operations on all six sides of a panel within a single loading cycle, eliminating the need for manual panel flipping.

The dual-station design enables simultaneous loading and machining, thereby maximizing production efficiency. The system supports automatic barcode data reading via CAM software and can be integrated into automated production lines, making it ideal for cabinet, wardrobe, and panel processing facilities.

Technical Parameters of Automatic CNC Drilling and Milling Machine

Automatic CNC Drilling and Milling Machine Advantages

• This automatic CNC drilling machine is capable of machining all six sides of a workpiece within a single processing cycle.

• Featuring two adjustable clamps that securely hold the workpiece, regardless of its length.

• The air-cushion table design effectively reduces friction, protecting the workpiece surface from damage.

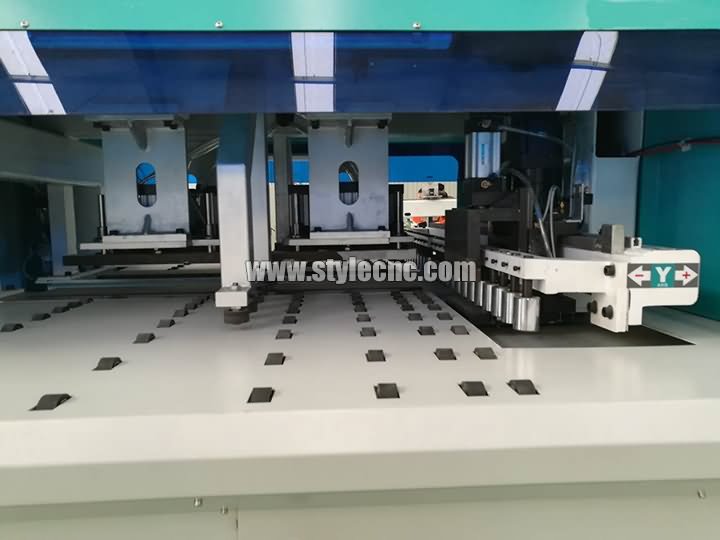

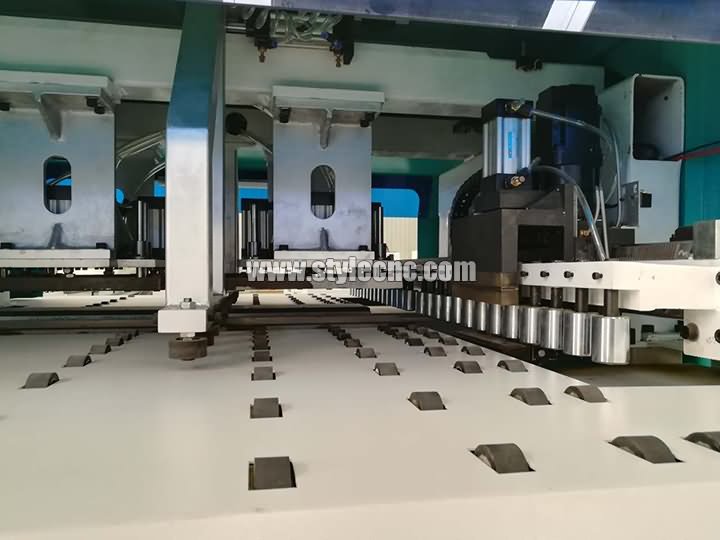

• The machining head integrates vertical and horizontal drilling units, a saw blade, and a main spindle, enabling versatile processing capabilities.

• By scanning the barcode label on the panel with a wireless scanner, the machine automatically identifies panel data. It requires only a single positioning step to automatically feed the material and complete all drilling and grooving operations—eliminating the need to flip the panel.

• The machine offers high precision and high speed, requiring no machine adjustments when switching between different panels. It is easy to operate and particularly well-suited for the production of plywood or custom-made furniture.

Automatic CNC Drilling and Grooving Machine Features

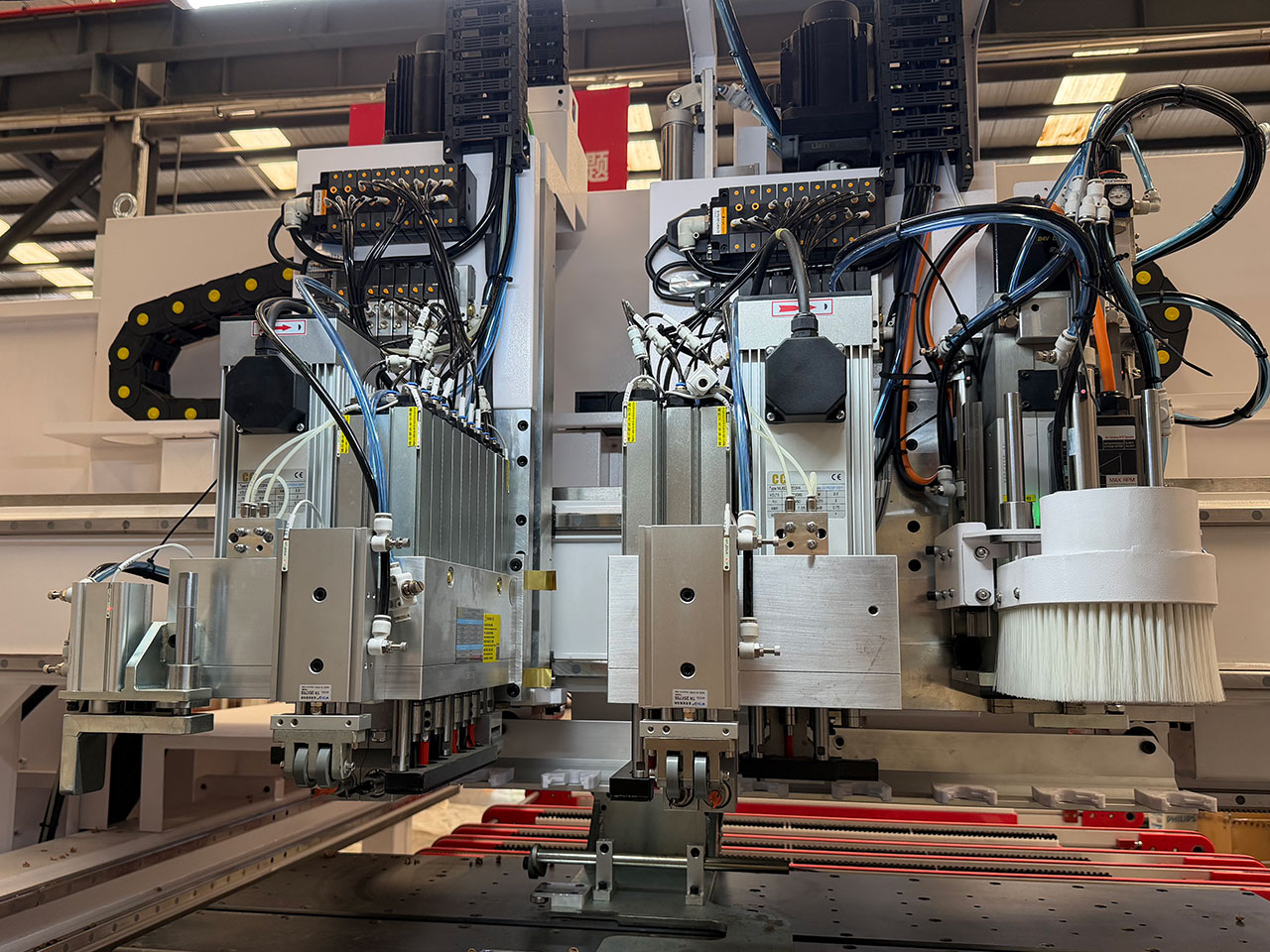

Dual-station & Four Drill Unit Configuration

Dual workstations enable alternating loading and unloading, allowing loading and processing to run simultaneously. The efficiency is increased by 60% compared with single-station models. Four drill units can process vertical holes, side holes, Lamello invisible tenon grooves, pull handle grooves and hinge holes at the same time.

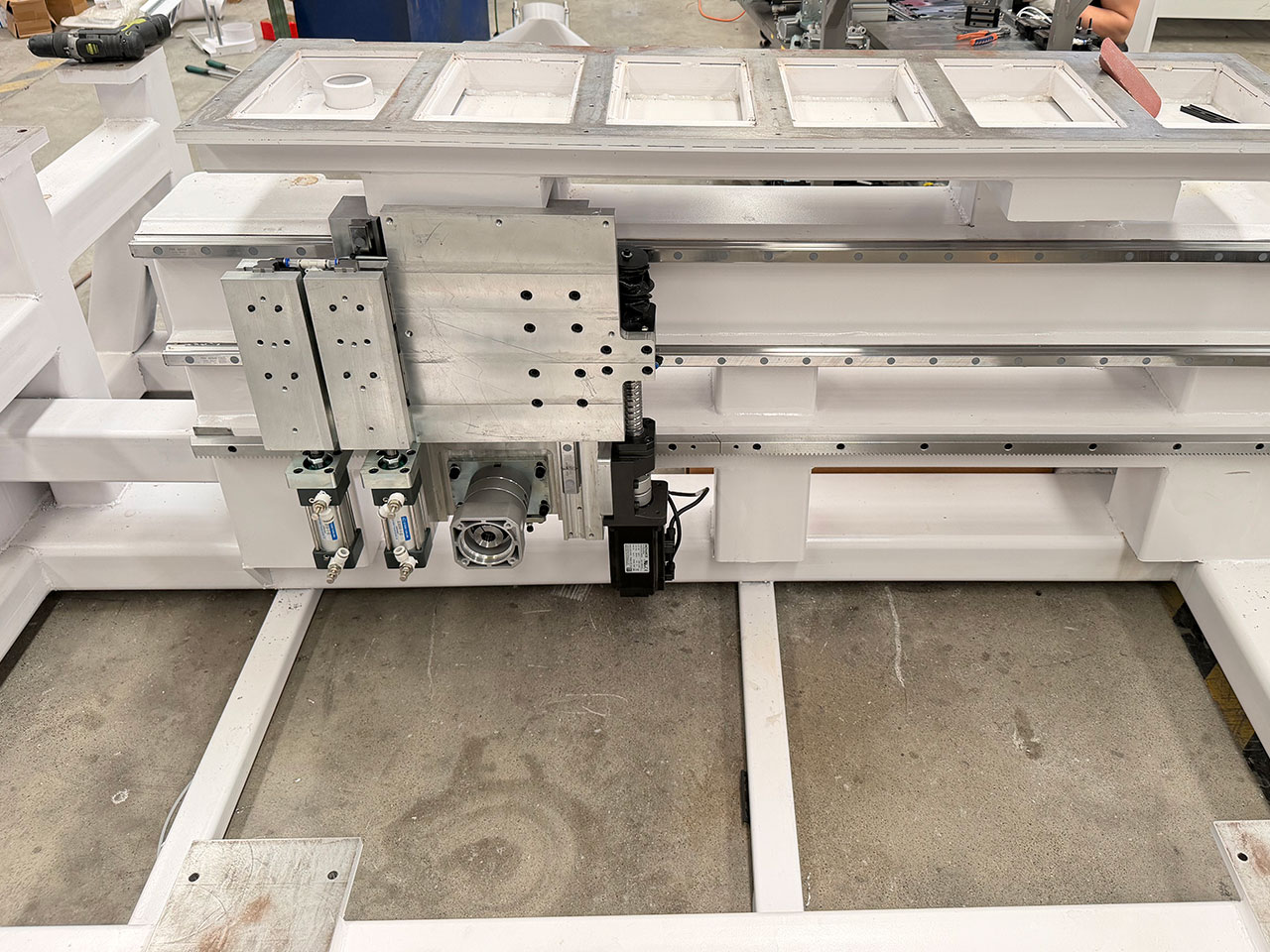

Heavy-duty Full Gantry Frame

Adopting an integrally welded gantry structure, the machine operates stably with a repeated positioning accuracy of ±0.05mm. No cumulative errors occur during mass production, effectively avoiding misaligned holes and panel waste.

Simultaneous Six-sided Machining

All holes and grooves on the top, bottom, front, rear, left and right sides of panels can be finished in one single feed pass, replacing multiple separate processes required by traditional multi-row drills and side drilling machines.

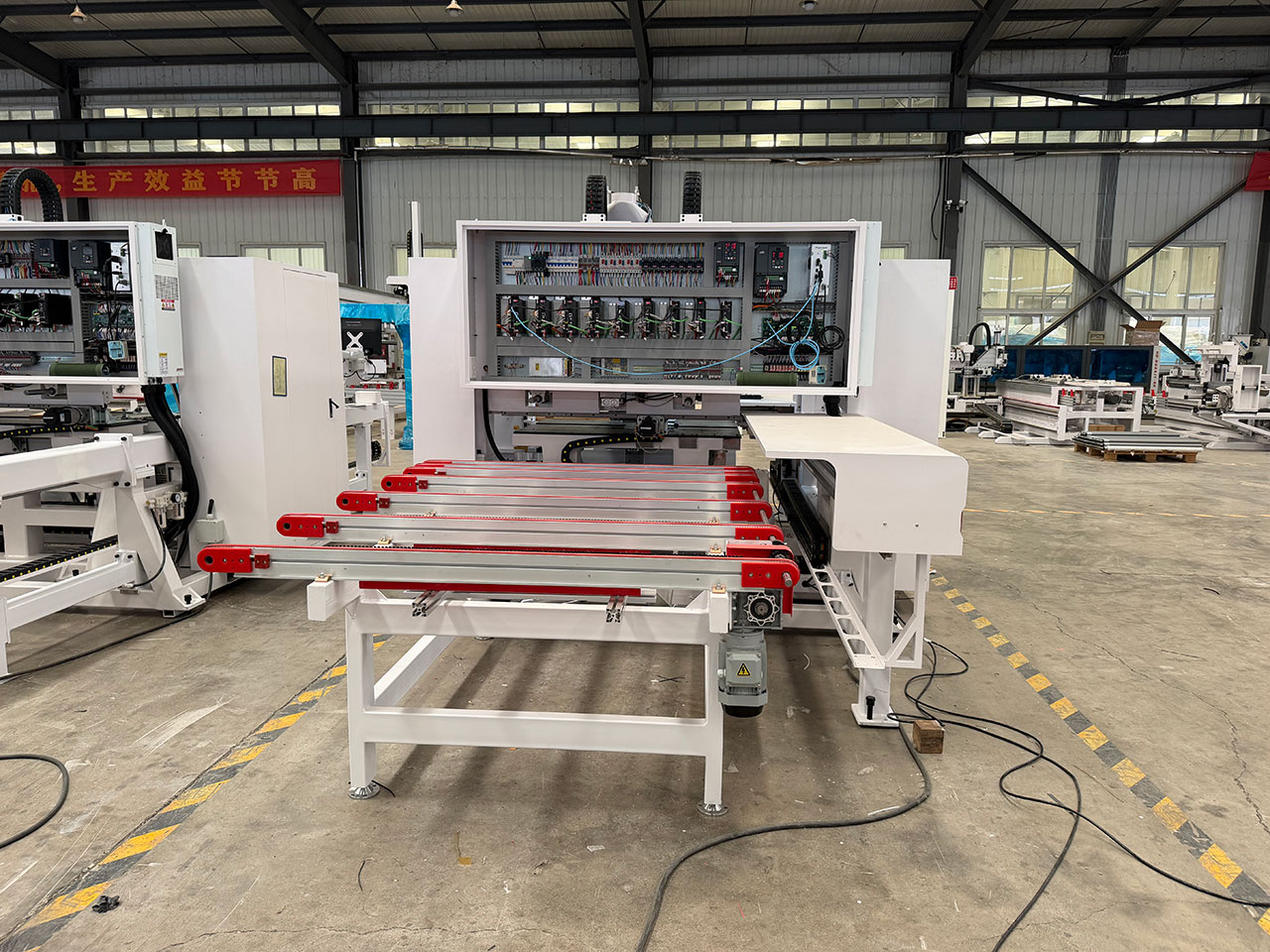

Production Line Compatible Design

The straight-through feed and discharge structure can seamlessly connect with edge banding machines and automatic return lines to build a fully automatic assembly lines to achieve continuous unmanned production.

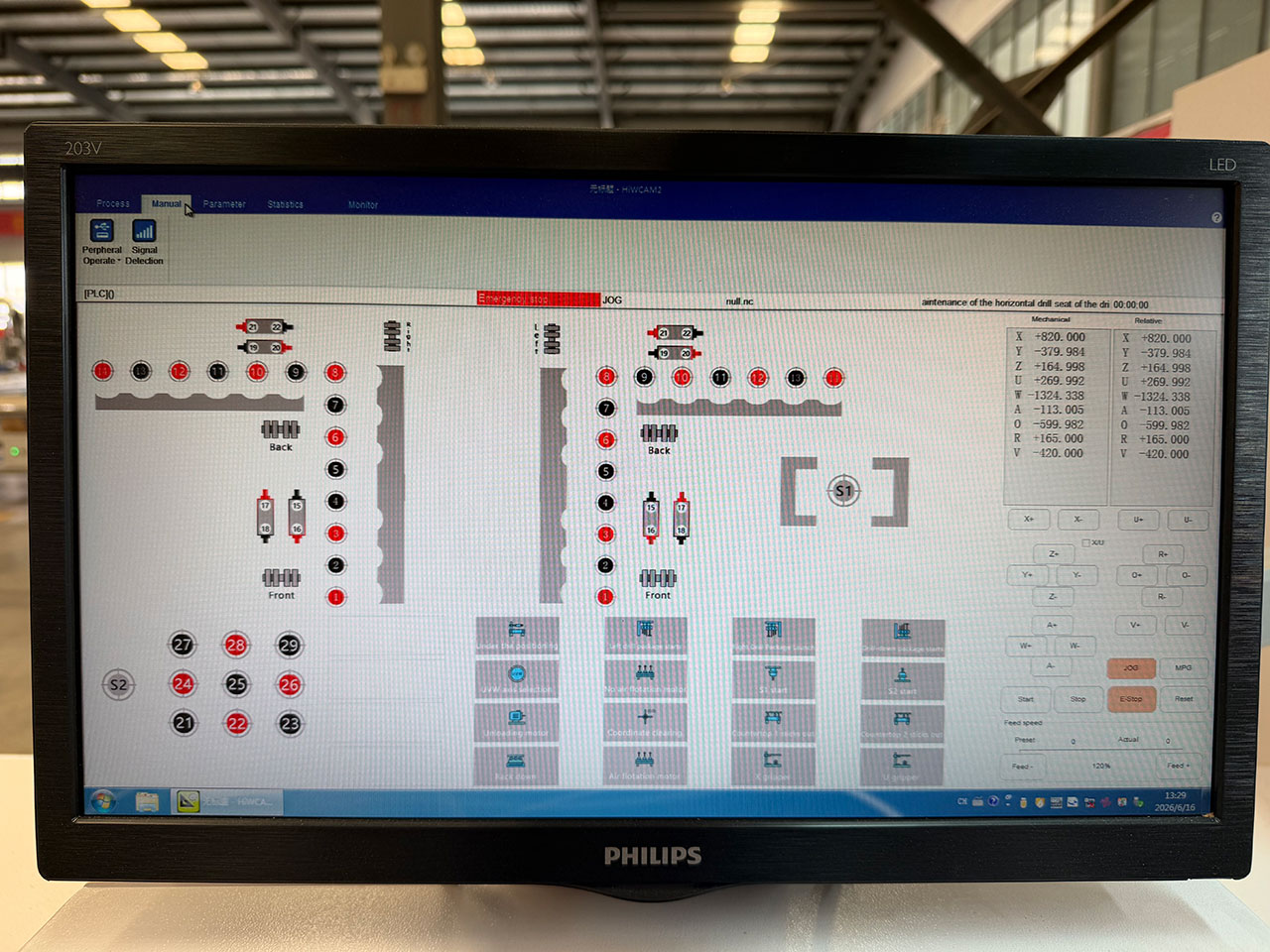

Independent built-in CNC CAM system.

It reads panel data via barcode scanning to realize automatic processing.

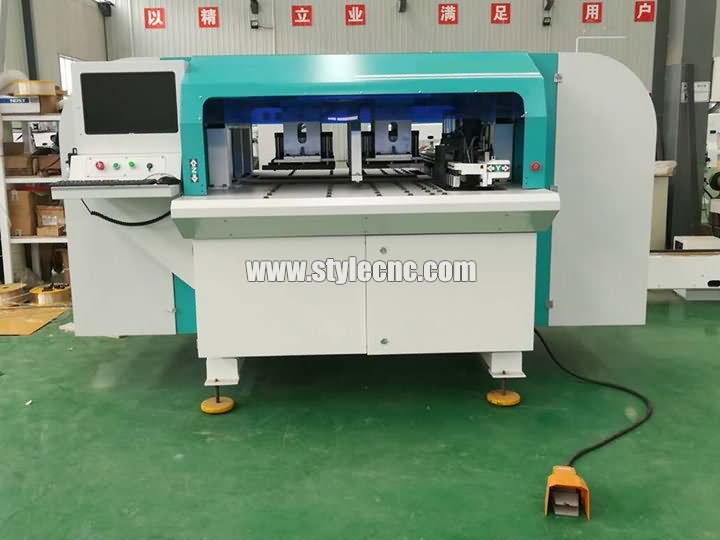

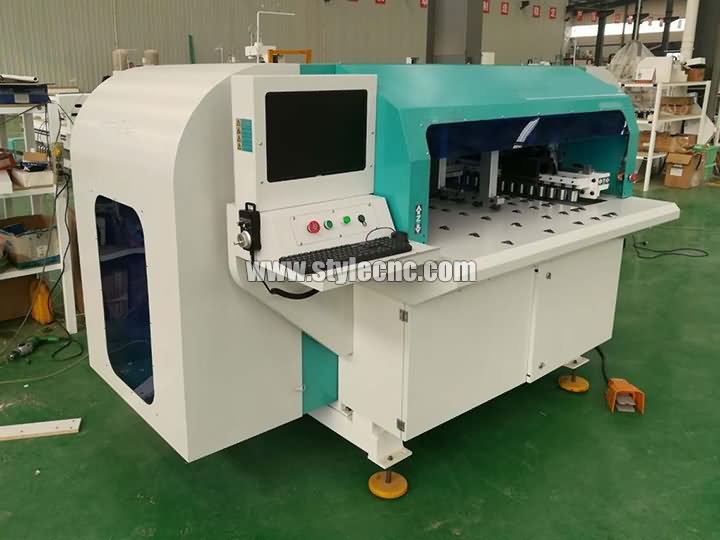

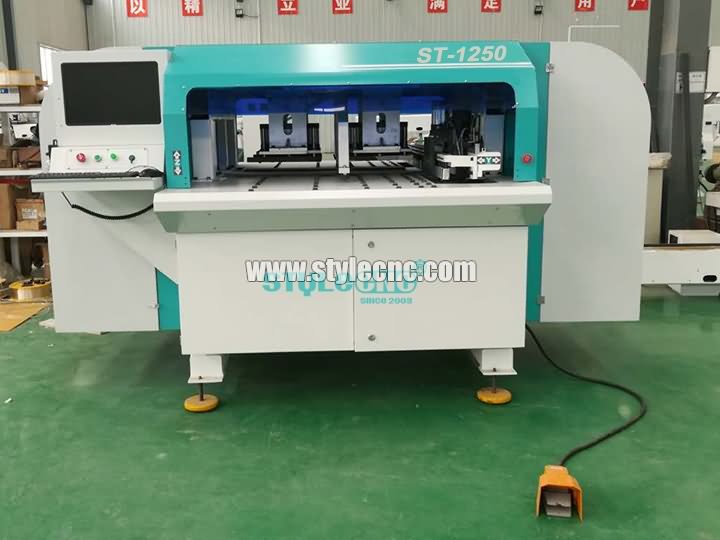

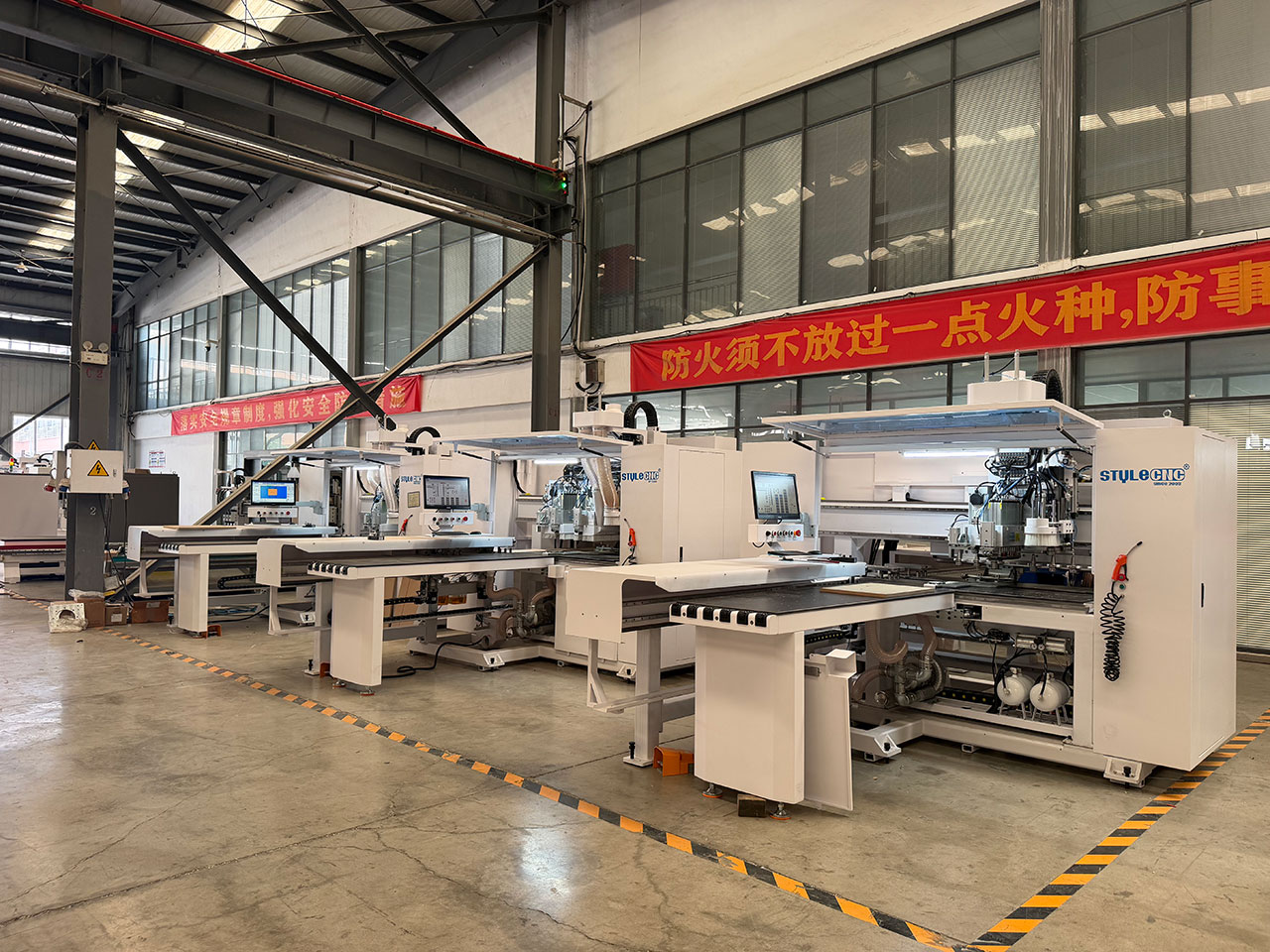

Showcase of STYLECNC factory for automatic CNC drilling, milling, and slotting machines

Automatic CNC Drilling, Milling and Grooving Machine Applications

Applicable Industries

Custom panel furniture: Hole processing for cabinets, wardrobes, nightstands, and storage units.

Solid wood furniture: Processing of assembly holes, mortises, and positioning holes.

Wooden door industry: Drilling for hinge recesses, lock holes, and hardware installation holes.

Wooden packaging: Hole processing for wooden pallets and export-grade wooden crates.

Applicable Materials

Particleboard, MDF, plywood, solid wood, wood-plastic composites (WPC), and aluminum-wood composite panels.

The 32mm Hole System

Cabinet drilling follows a standard called the 32mm system, which explains what this machine is built to do. Panels are drilled in vertical rows of holes spaced 32 millimeters apart, with the first row set 37 millimeters in from the edge. Because hinges, drawer slides, and shelf pins from major brands are all made to that same spacing, standardized holes mean the hardware simply lines up and fits. The system uses two kinds of holes: small system holes, usually five millimeters, for hardware, and larger construction holes for the dowels or connectors that join panels. Sizing panels in multiples of 32 millimeters keeps everything on the grid, so parts interchange and a cabinet can be reconfigured later. This machine drills those patterns automatically and consistently.

What Six-Sided Drilling and Grooving Do

The machine works all six sides of a panel in one pass. Vertical drills bore into the faces for shelf pins, hinge cups, and construction holes. Horizontal drills work the four edges, boring the holes that take dowels and cam-lock connectors so panels join edge to edge without visible fasteners. The saw blade and spindle cut grooves and slots: a channel along the back for the back panel, drawer-bottom grooves, biscuit or Lamello joints, and grooves for pull handles. Doing all of this in a single feed cycle means no manual flipping, no repeated setups, and no chance of drilling the wrong face. So one unit replaces a separate multi-row drill, side driller, and grooving saw.

What each operation produces:

Cabinet drilling checklist:

✓ Standardize hardware to the 32mm system.

✓ Use edge holes for dowels and connectors.

✓ Set groove depth to the back panel thickness.

✓ Use sharp carbide bits on melamine to limit chip-out.

✓ Edge-band before drilling so holes reference the front.

Frequently Asked Questions

What panel materials can it handle?

It works particleboard, MDF, plywood, solid wood, and composite panels, the common materials for cabinets and wardrobes. Melamine-faced board is fine too, though sharp carbide bits and scoring help keep the brittle surface from chipping around each hole.

How is this different from a nesting CNC router?

A nesting router cuts finished panel shapes out of a full sheet. This machine takes those cut panels and adds the holes and grooves that turn them into a cabinet. In a full line, the two work in sequence rather than competing.

Can it replace several separate machines?

Yes, that is much of its value. The tasks that once needed a multi-row boring machine, a separate side-hole driller, and a grooving saw are combined into one head. That saves floor space, handling, and the errors that creep in between machines.

How does it know where to drill each panel?

Each panel carries a barcode from your cabinet software. A scanner reads it, and the built-in controller pulls up that panel's drilling and grooving plan, then feeds and machines it automatically. There is no manual setup between panels, so mixed batches run without stopping.

How accurate and repeatable are the holes?

It repeats to within about 0.05 millimeters with no drift across a batch, so the last panel matches the first. That consistency lets hardware fit every time and panels interchange, the whole point of building to the grid.

Can it make biscuit joints and hinge holes?

Yes. The head cuts Lamello biscuit slots, bores 35 millimeter cups for European hinges, and mills grooves for pull handles, alongside the shelf and connector holes. These are the everyday joints and fittings of panel furniture, all done in the same pass.
