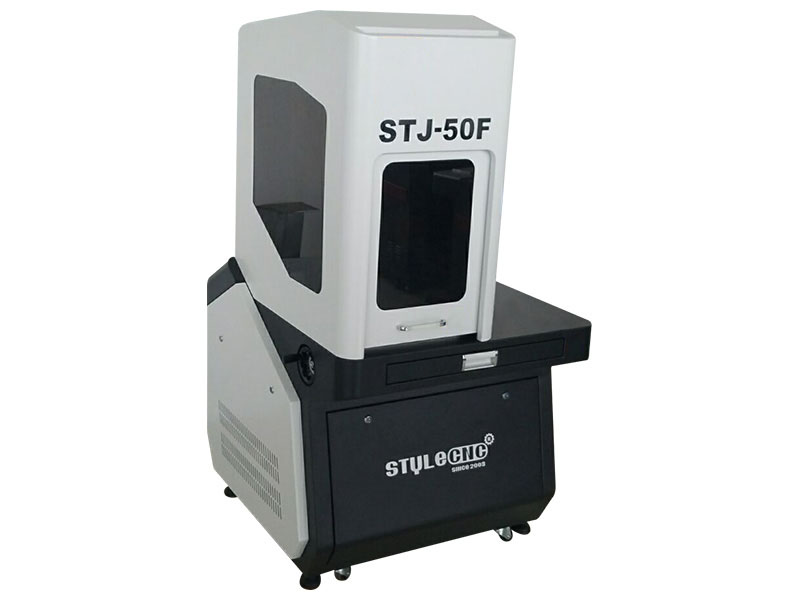

New Design Fiber Laser Engraver with Full Enclosed Cover

New Design Fiber Laser Engraver with Full Enclosed Cover for sale

Model: STJ-50F-Enclosed
Views: 1219
Brand: STYLECNC STYLECNC®
Rating: 4.4 /5 based on 11 ratings and reviews
Standard Price: $7380.00 / Set
Price Range: $7380.00 to $9280.00 / Set according to configuration
The price will float according to the configurations of New Design Fiber Laser Engraver with Full Enclosed Cover
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba

Product Introduction

Buyer's Reviews

New design fiber laser engraver with full enclosed cover will keep the smoke in the enclosed protection case without emission to outside. The fiber laser engraver has advantages of healthy, environmental and friendly.

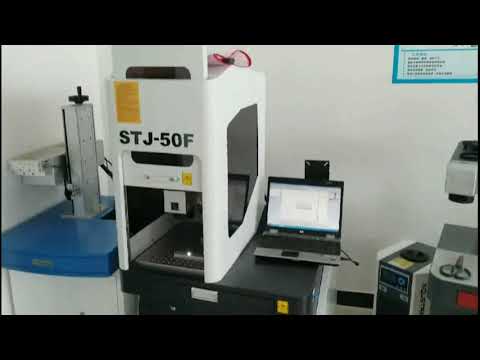

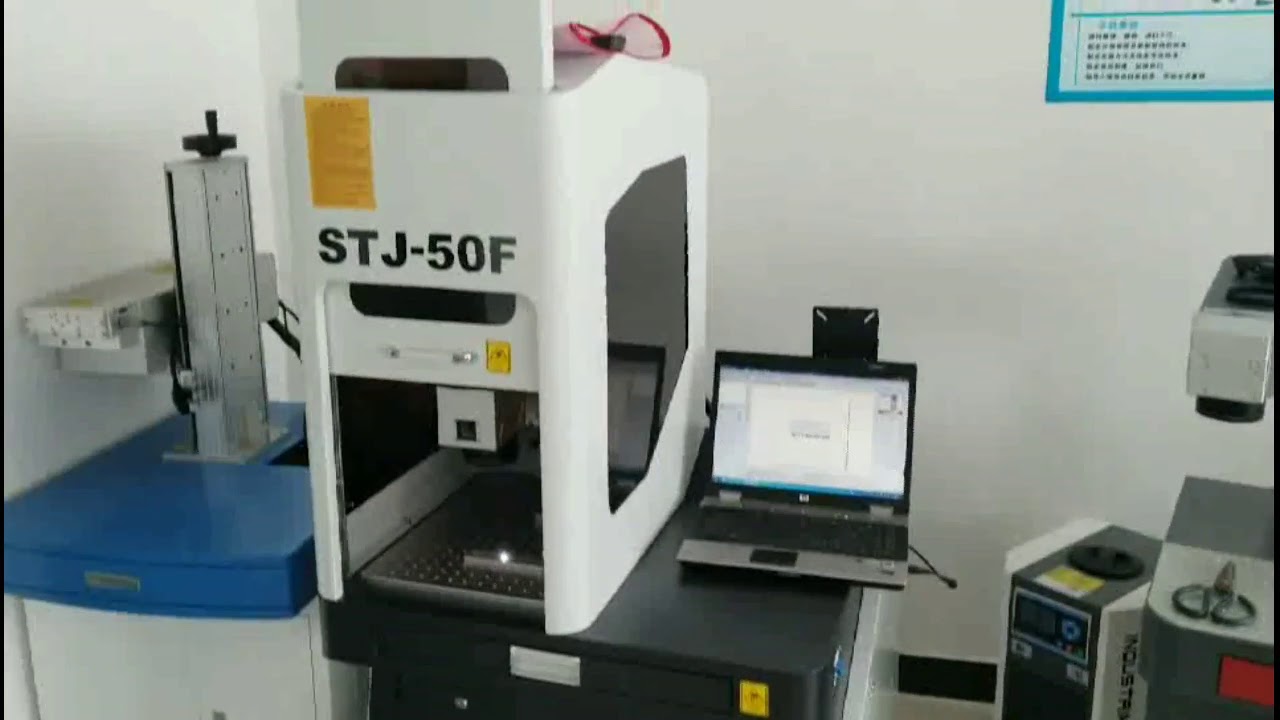

Demonstration Video


Product Descriptions

Fiber Laser Engraver

Fiber Laser Engraver with Full Enclosed Cover

New Design Fiber Laser Engraver

New Design Fiber laser engraver with Full Enclosed Cover Features:


1. Low Cost in use: No wearing part. Free of maintenance.

2. High Speed: Imported laser scanning system makes the marking speed up to 7000mm/s.

3. High Precision: High precision, re-position precision is 0.002mm

4. Energy Saving: The efficiency of optic-electrical converting is up to 70%.

5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours

6. Integrated and Compact: Small size with wheels, easy to move.

7. Easy Operating: Easy operation, free training, trouble free.

8. 10 Years Long Lifetime: Fiber laser device 100000 hours lifetime.

10. Air Cooling: No consumables, low running cost, saving electricity and energy.

11. Innovative integrated all-in design, fully enclosed maintenance-free optical system.

12. MOPA laser is available, which can mark colors on stainless steel.

13. 3D dynamic engraving is available, which can mark on 3D curved surface with auto focusing system.


Technical Parameters of New Design Fiber Laser engraver with Full Enclosed Cover:


Brand

STYLECNC

Price Range

7,380$ -9,280$

Model

STJ-50F

Output Power

50W

Laser Wavelength

1064nm

Fiber Cable Length

2m

Pulse Width

90-150ns

Repetition Frequency Range

50-100kHz

M2

<1.8

Max.Single Pulse Energy

1mJ

Output Power Stability

<3%

Output Beam Diameter

7±1mm

Power Range

10%-100%

Marking Range

100*100mm/200*200mm/300*300mm

Minimum Line Width

0.01mm

Minimum Character

0.1mm

Marking Speed

≤7000mm/s

Marking Depth

Depend on materials

Repeatability Accuracy

±0.001mm

Marking Format

Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc.

Graphic format supported

Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif

Working Voltage

220V±10%/50Hz or 110V±10%/60Hz or customized

Unit Power

<0.5kw

Working Environment

Clean and dust free or dust less

Working Condition Humidity

5%-75%, 0-40 degree, free of condensed water

Laser lifetime

>100000 hours

Net weight

180 kgs

Packing Size

900*950*1700mm


New Design Fiber Laser Engraver with Full Enclosed Cover Applications:


Application Scope:

New design fiber laser engraver with full enclosed cover can be used on both metal and non-metal material marking, and it can mark time, date,text, serial and part numbers, company logos, icon, symbol, bar codes, 2D codes, matrix and vector fonts on all plain, painted, powder coated, anodized, plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.


Application Industry:

· Electronics: Iphone, IPAD, Ipod, Keyboard and more standard parts.

· Jewelry Acessories: Rings, Pendant, Bracelet,Necklace,Sunglasses,Watches etc.

· Electronic Components: Phone,IPAD,Resistors,Capacitors,Chips,Printed Circuit Boards, etc.

· Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

· Instrument: Panel Board, Nameplates, Precision equipment, etc.

· Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

· Automobile Parts: Pistons, Rings, Gears, Shafts,Bearings,Clutch,Lights

· Handicrafts: Zipper, Key Holder, Souvenir,etc.

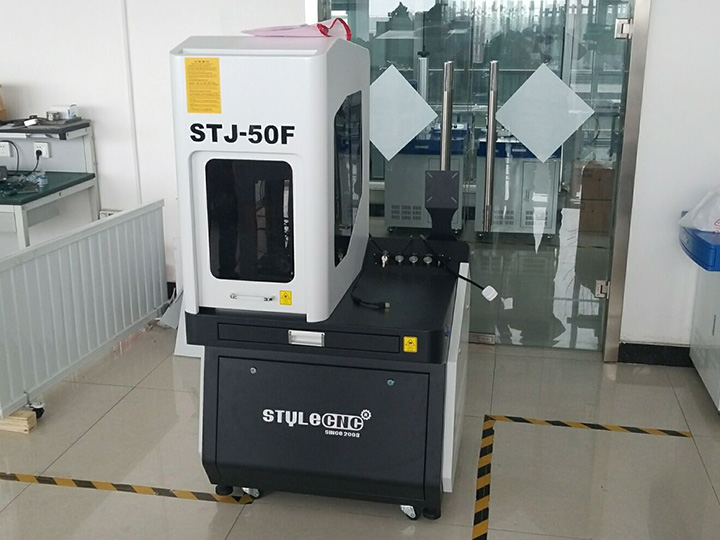

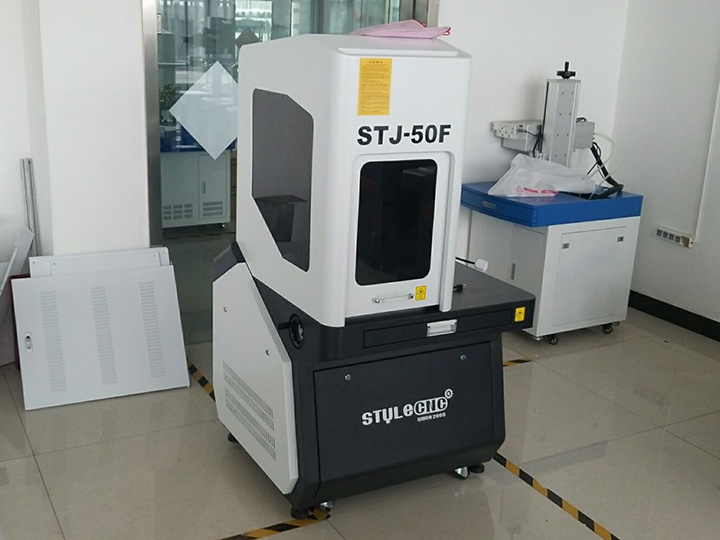

Projects of New Design Fiber Laser Engraver with Full Enclosed Cover:


New Design Fiber Laser Engraver with Full Enclosed Cover Projects


Package of New Design Fiber Laser Engraver with Full Enclosed Cover


1. Durable wooden case or as per required.

2. The delivery lead time would be 5-7 working days after recieving the payment.

3. As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.


Package of New Design Fiber Laser Engraver with Full Enclosed Cover


STYLECNC Service for New Design Fiber Laser Engraver


1. Warranty

3 years warranty for this fiber laser engraver.

Our customer will be fully trained for the operation and maintaining technology after the order confirmed.

24-hour full after sales service: our skilled engineer will help customer to solve the problem by Skype or Whatsapp in time when problems happen, if necessary, door-to-door service is available.


2. Quality Control

Skilled and strict quality inspection team is available during the material purchasing and production procedure.

All finished fiber laser engraver we delivered are 100% strictly tested by our QC department and engineering department.


3. OEM Service

Customized and OEM orders are welcome due to our aboundant experiences.

All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors, etc.

No MOQ required.


4. Privacy

None of your personally identifiable information (such as your name, address , email address, bank info, etc ) will be disclosed or shared with any third parties.

Contact: All of your inquiries, questions or problems will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.


5. Payment Terms

30% T/T paid in advance, the balance paid before shipment.

Irrevocable L/C at sight.

Credit card.


International Shipping Around the World


All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
